Powerdynamo VAPE Ignition and Charging System for Yamaha Air Cooled RD TZ 250 350 DC UnBoxed

Fits Yamaha:

1973-79 air-cooled
RD250
RD350
DS7
TZ250
TZ350

Rotor 750gr (26oz) with advance and retard for early air-cooled Yamaha RD with stock dynamo system with points ignition
12 Volt / 150 Watt

This is the D/C system and will run head lights, tail lights, turn signals and charges the battery.
If the DC systems has R9522 regulator, then a battery is needed to flash the turn signals / lights
If the DC systems has R7300 regulator, then no battery is needed to flash the turn signals / lights

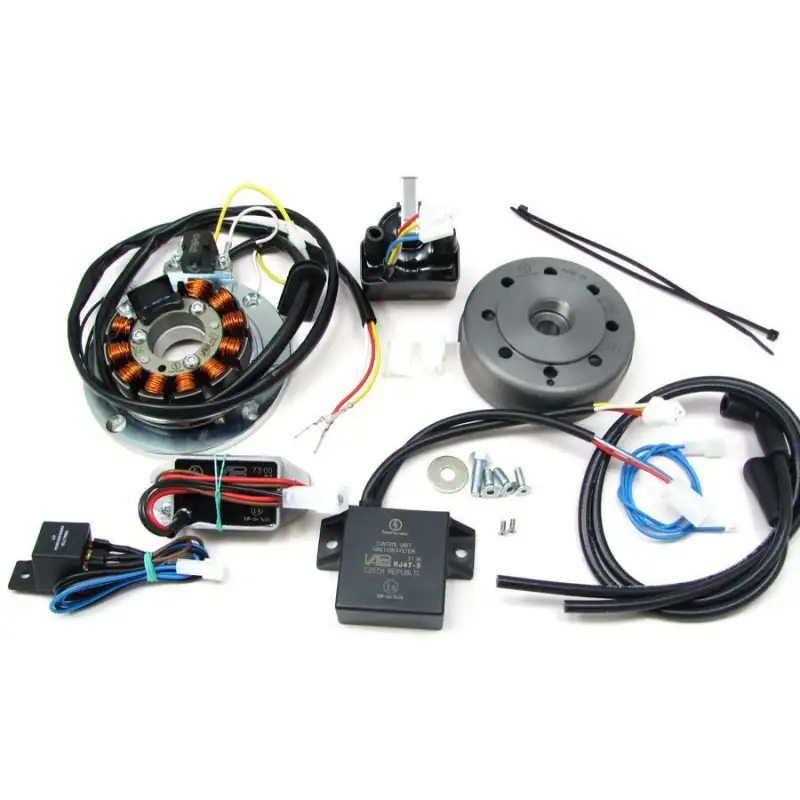

This is a complete system including Rotor, Stator, Coil-CDI, Regulator (where applicable), Adaptor mounting plate (where applicable), Spark plug cap, Rotor Puller & hardware.


The Powerdynamo ignition system is a magneto based generator with integrated, fully electronic ignition. It is equipped with a tiny AC regulator to run lighting equipment, thus eliminating the need to run a battery. Powerdynamo external flywheel type ignitions are an analog type, CDI ignition with 80-100 watts of 12-volt lighting capacity capable of delivering up to 40,000 volts! Systems are available for Bultaco, Hercules, Husqvarna, KTM, Yamaha, Ossa, Sachs, Zundapp, and small, medium and large shaft Husqvarna engines.
