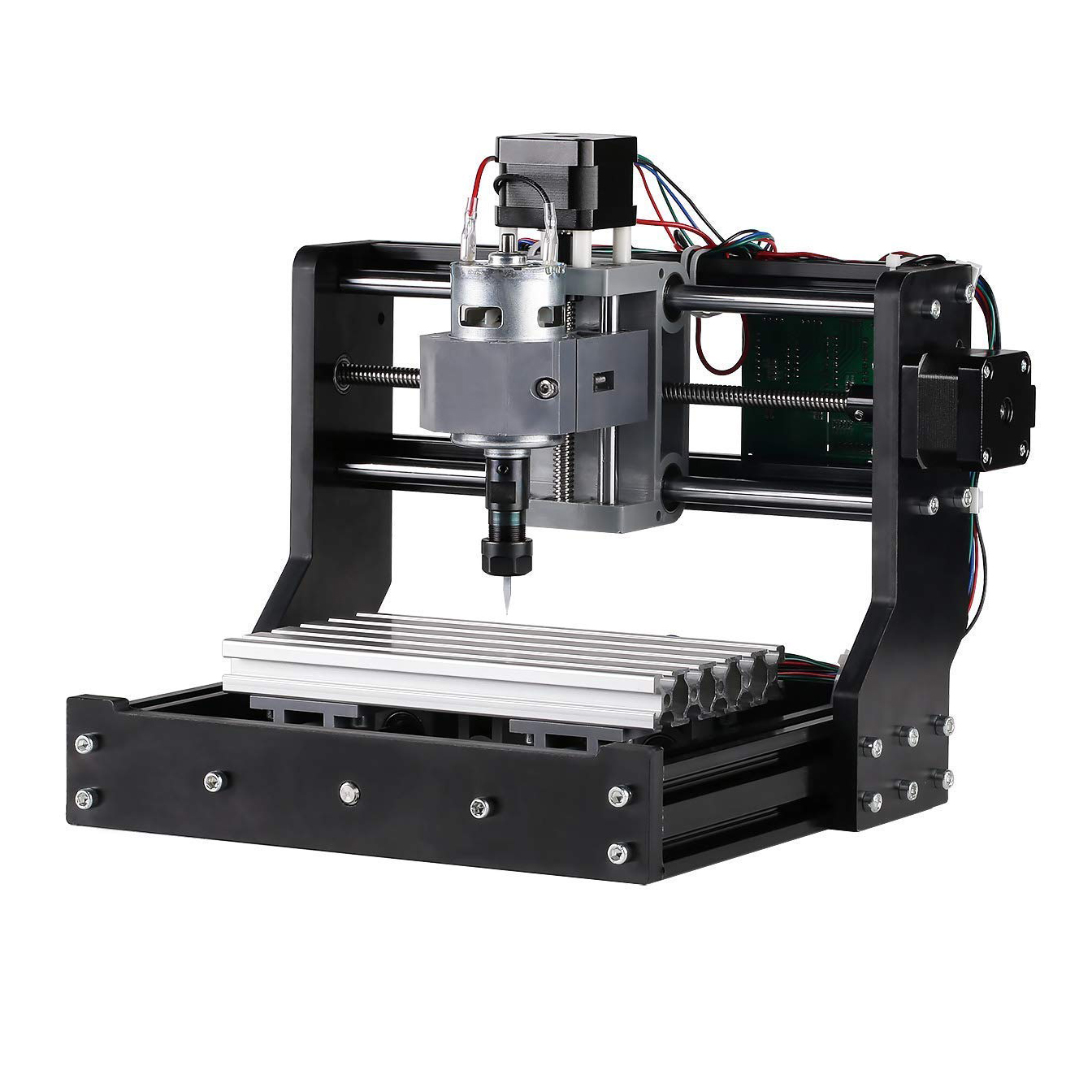

Upgrade Version 1810 GRBL Control Mini DIY CNC Router Standard Spindle Motor
Reference: BG0052-9124930
Condition: New product
Delivery on: Jun 10 2026
- Assembly requires a certain mechanical skill. All assembly components are included.

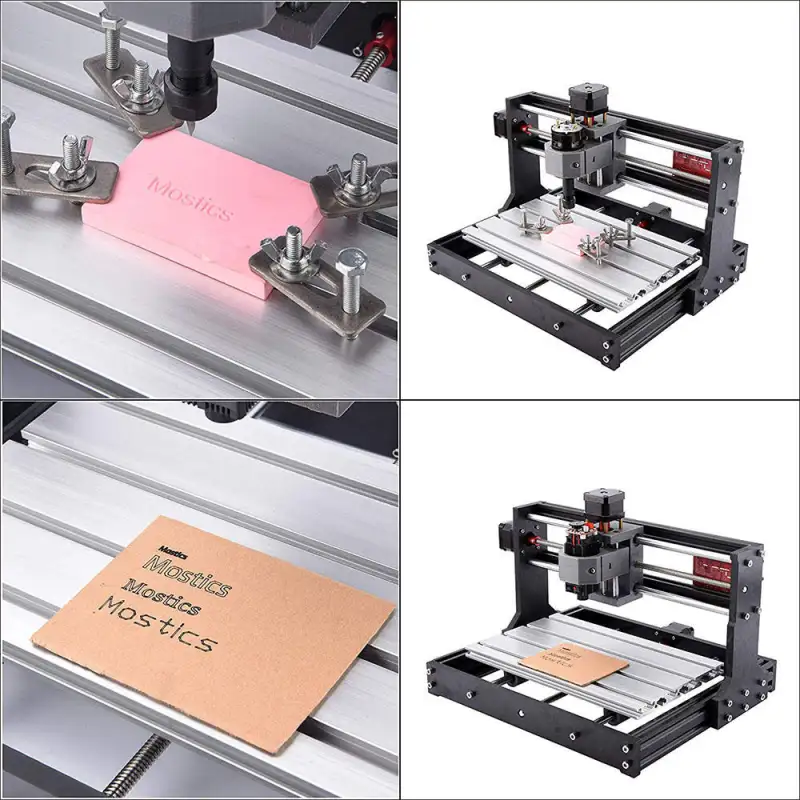

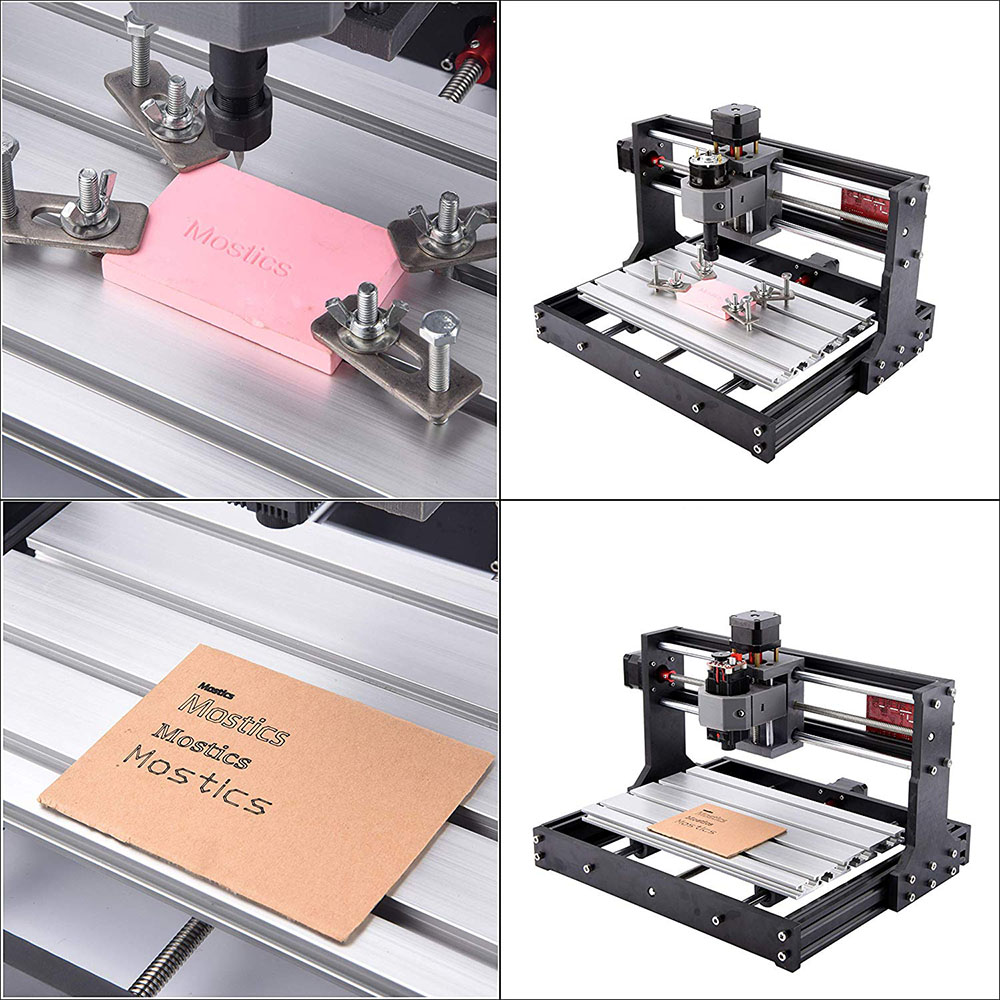

- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
100 Items
More info
Description:
This DIY CNC engraving machine is especially designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience.
Made of aluminum and with red oxidation treatment, the all-metal fuselage is durable and good looking.

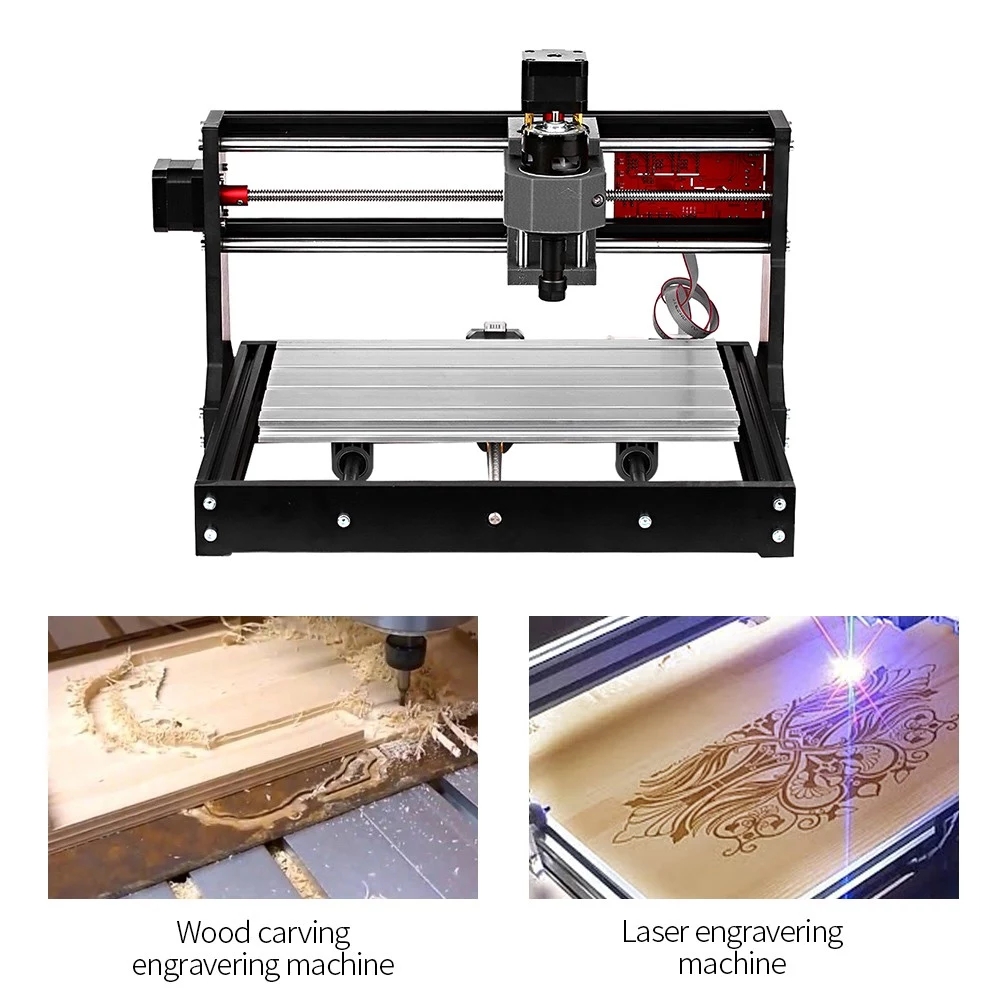

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.
Specification:
Features:
This DIY CNC engraving machine is especially designed for DIY fun, study and research with professional GRBL control software, giving you extreme portable experience.
Made of aluminum and with red oxidation treatment, the all-metal fuselage is durable and good looking.
If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.
Specification:
| General Specification | |
| Model | CNC1810 (Without Laser Module) |
| Frame Material | Aluminum Alloy |
| Color | Silver + Black |

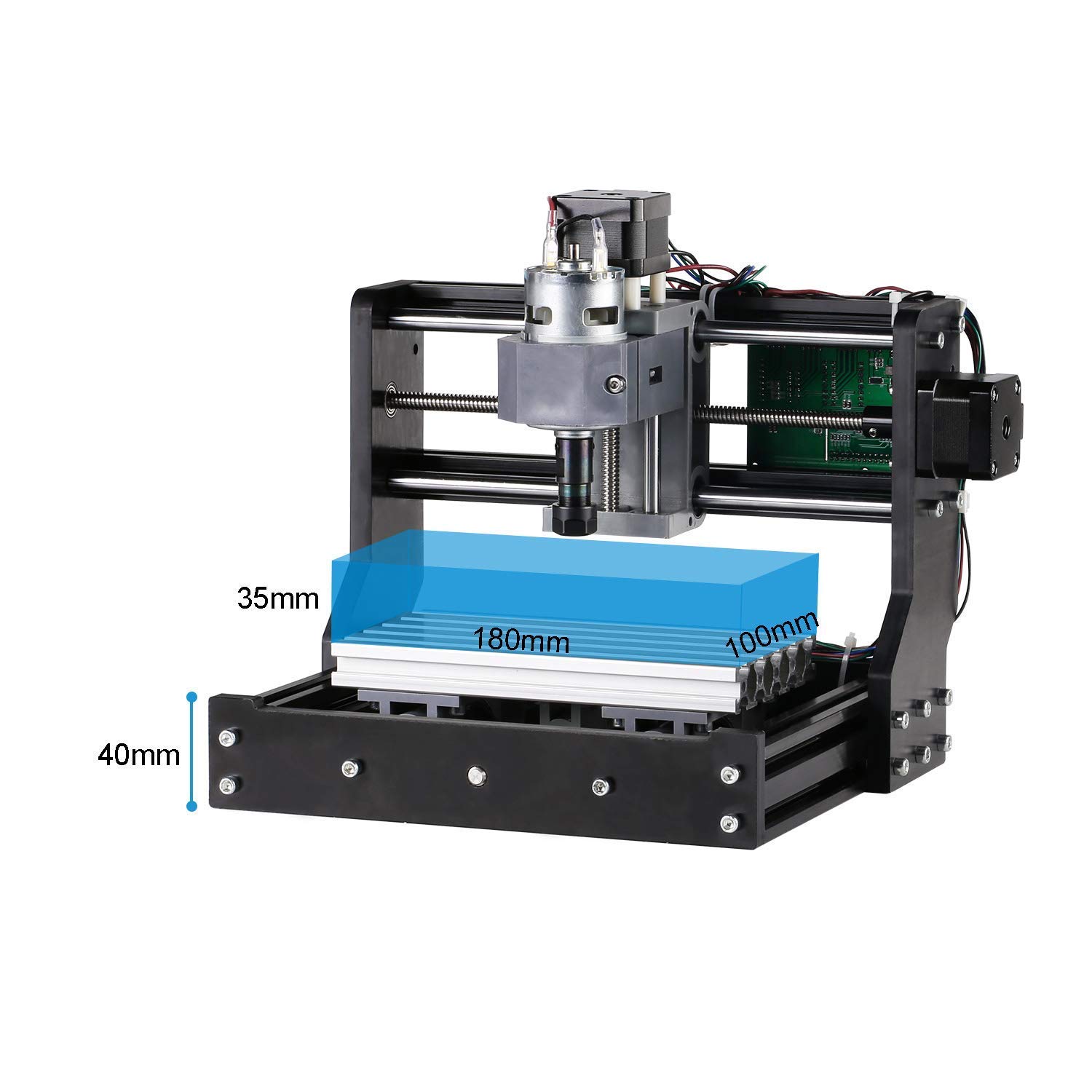

| Table Area | Approx. 180x100mm |
| Working Area | Approx. 180x100x450mm |
| Product Weight | 5kg |
| Control Software for Spindle | GRBL Control |
| System Requirements | Windows XP, Win7, Win8, Win10 |
| Adapter Plug | 2-Pin US Plug |
| Adapter Input Voltage | AC 110-240V 50/60Hz |
| Features | 1. Aluminum Profile Stable Construction 2. 3 A xis Movable, Powerful Spindle Motor 3. Contains Quickstart Guide of GRBL Software 4. 180x100x450mm Working Area, Meet Most Amateur DIY Needs 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material Can Not Engrave Metal, Steel. |
| Technical Parameters | |
| Working Voltage | DC 24V |
| Interface | USB |
| Stepper Motor | 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.3N.m |
| Using Spindle Motor (3-a xis Engraving) | |
| Spindle Motor | Diameter: 45mm Spindle Motor: 10000r/min Maximal Power: 120W |
| Drill | ER11-3.175mm, can be replaced within 0-7mm |

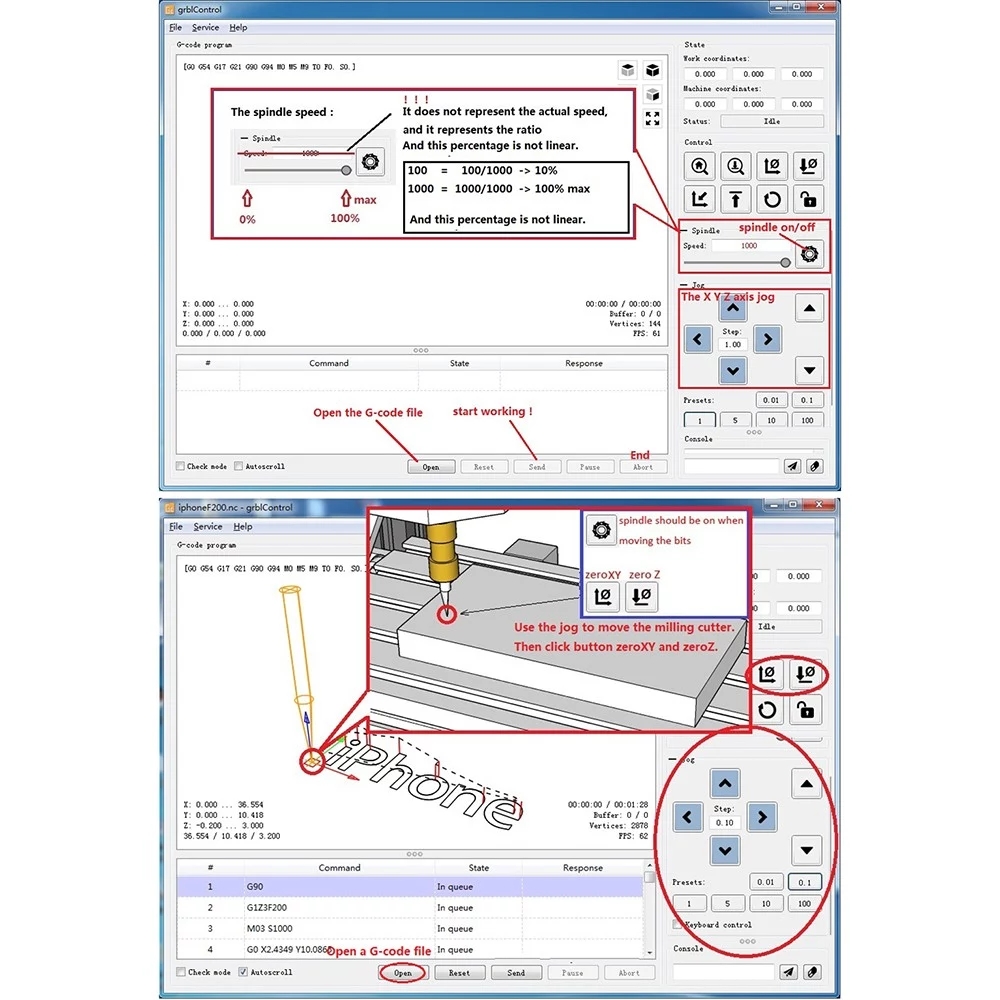

| Control Software | GRBL Control (Candle) |
| Supporting File | .cn. Txt. Tap. Gcode…… |
| Processing Accuracy | About 0.2mm |

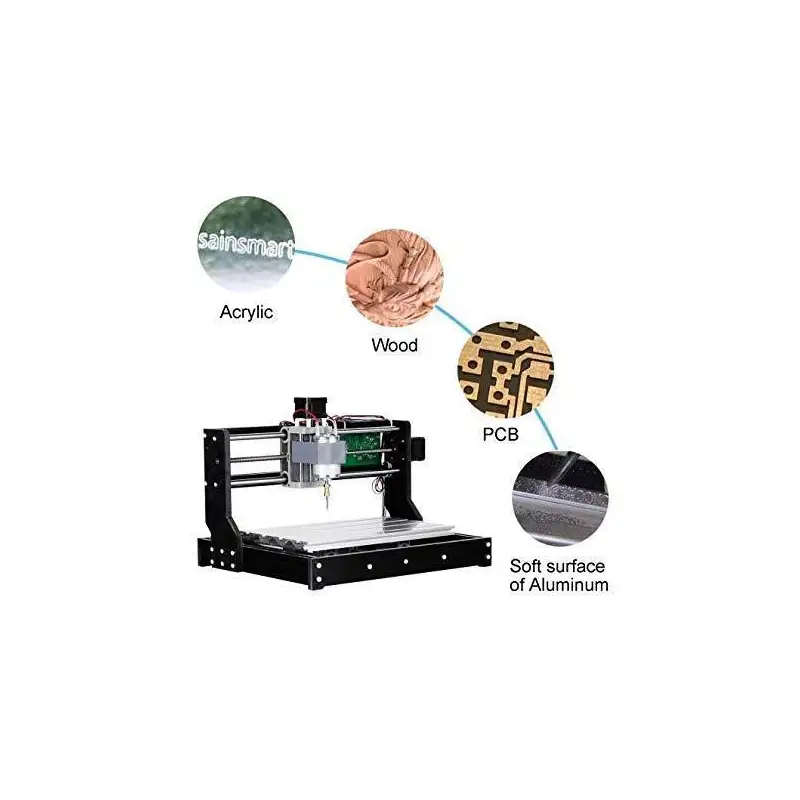

| Suitable Engraving Material | Wood, Plastic, PCB, Carbon fiber, Acrylic, MDF |
| Using Laser (2-a xis Plane Engraving) | |
| Laser Interface | 12V Supporting PWM |
| Laser Power | Optional (500mW/2.5W/5.5W/7W/15W) |
| Designing Software | Any Photo Editing Software |
| Control Software | Laser GRBL |
| Supporting File | G-code/Picture |
| Processing Accuracy | 0.1mm |
| Suitable Engraving Material | Wood, Plastic, Leather, Paper |
Features:
- Assembly requires a certain mechanical skill. All assembly components are included.
- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor holder is round.
Package Included:
1 x Wood Engraving Machine Full Set (Unassembled Delivery)
