Magswitch MagDrill Disruptor 55 - 81001155

FEATURES & BENEFITS

• Since the magnets require no electric power, it will not release in the event of power failure.

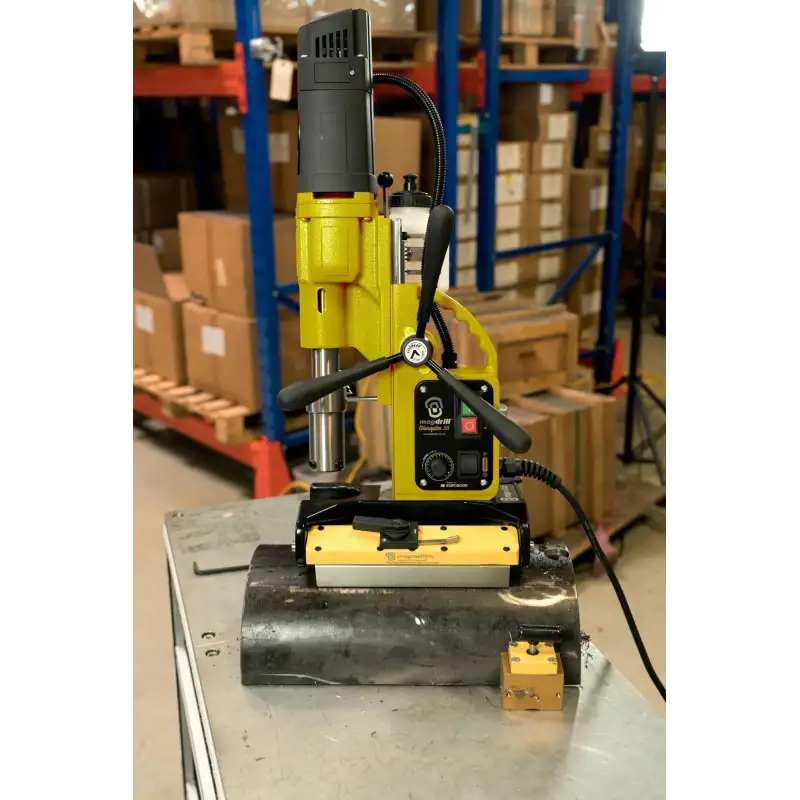

• Automatically conforms to any pipe 3-1/2” or larger in diameter.
• Maintains strong grip on thin steel. Cuts holes up to 2 1/4” in diameter, up to 3” deep.
• Just one drill is required for flat or round surfaces without the need for expensive adapters.
• Reversible setting for Tapping.
• High-performance 2-speed gear box.
• Morse Taper 3 spindle.

SPECIFICATIONS

• Max Breakaway: 1512 lbs (685.8 kg)
• Full Saturation Thickness: 1/2''/12/7mm
• Speed: 500 RPM (No Load) - 275 RPM (Load 1600 W)
• Product Weight: 39 lbs (17.7 kg)
• Drill Stroke: 6.6''/170 mm
• Smallest Pipe Diameter: 3.5''/80mm

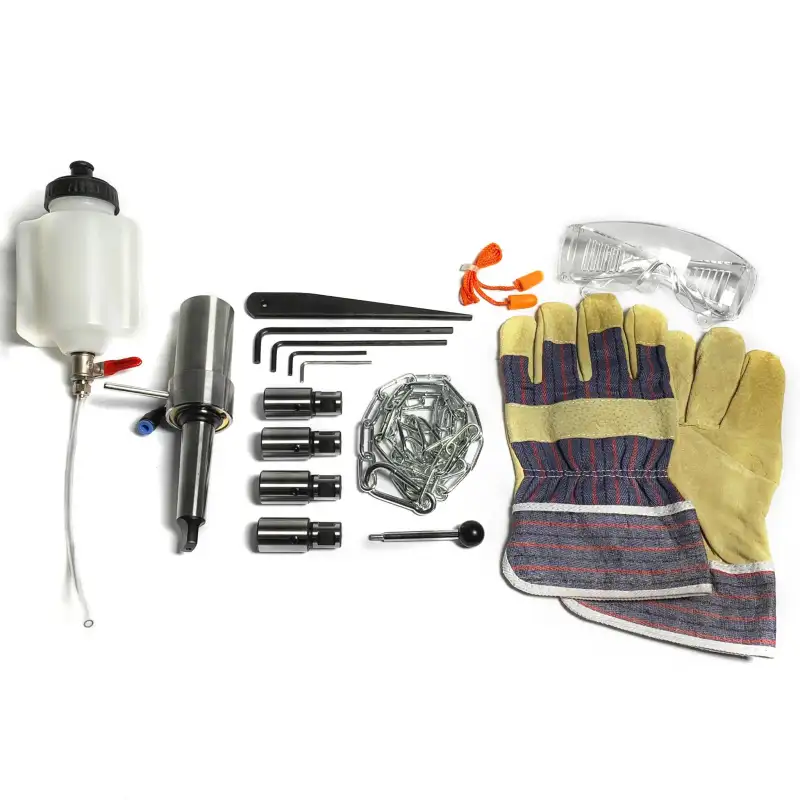

Accessories

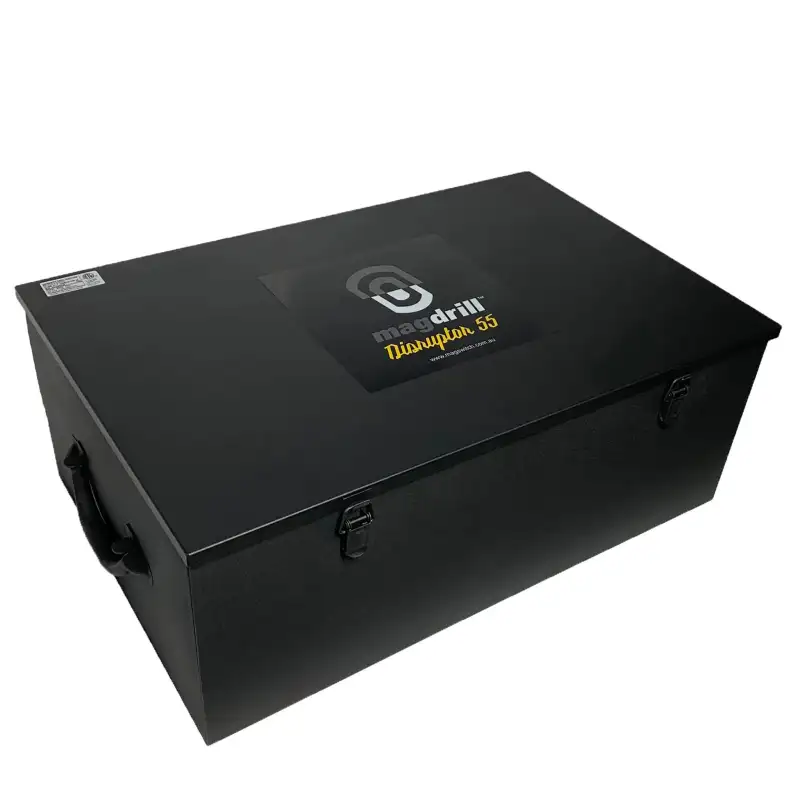

• 1 Steel Carrying Case
• 1 Instruction Manual and Exploded Drawing
• 1 Morse Taper 3 spindle
• 1 Spindle Drift
• 4 Tap collets (DIN 376 M10/M12/M14/M16)

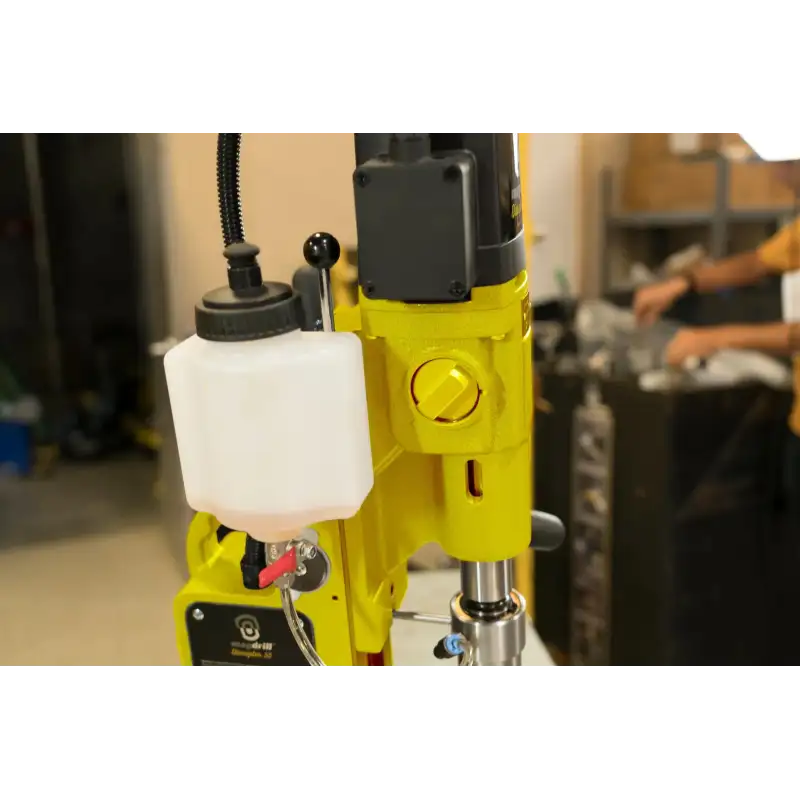

• 1 Coolant System Quick Connect
• 1 Auto Coolant
• 1 Oil Tank + Attachment Pin
• 1 Bottle for Cutting Oil
• 4 Allen keys (5mm, 4mm, 2.5mm, 2mm)
• 1 Safety Chain
• 1 Set of Ear Plugs
• 1 Pair of Protective Gloves

Downloads

MagDrill Disruptor 55 Magnetic Drill Downloads:

• MagDrill Disruptor Flyer
• MagDrill Disruptor 55 Spec Sheet

Magswitch Downloads:

• Welding & Fabrication Brochure
• Magswitch Manual Catalog
