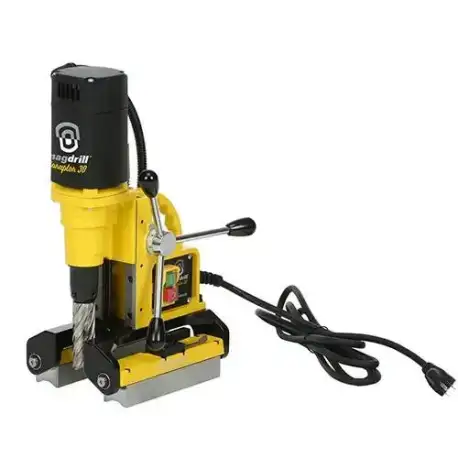

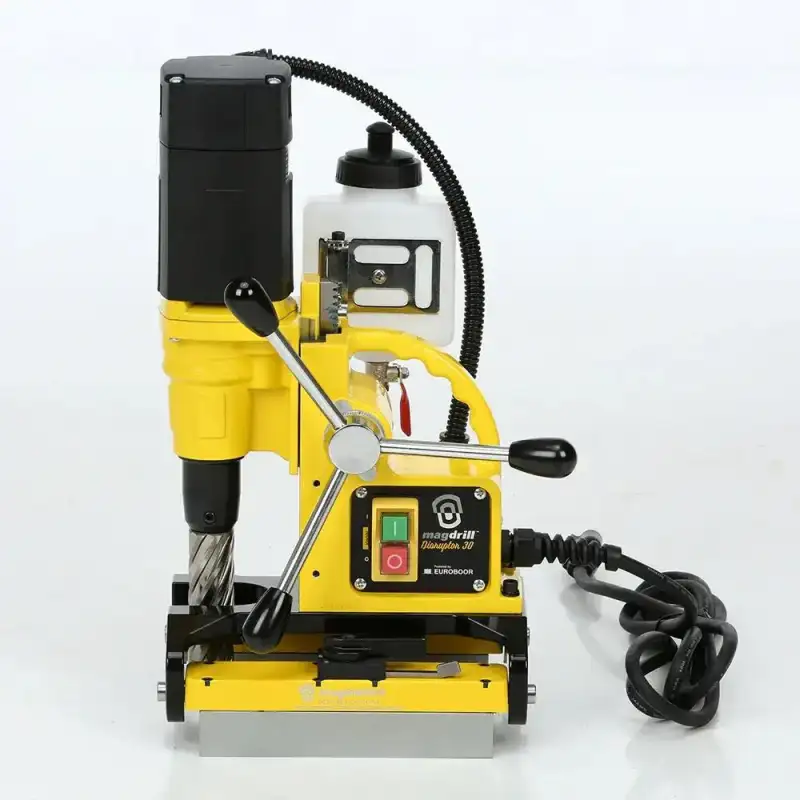

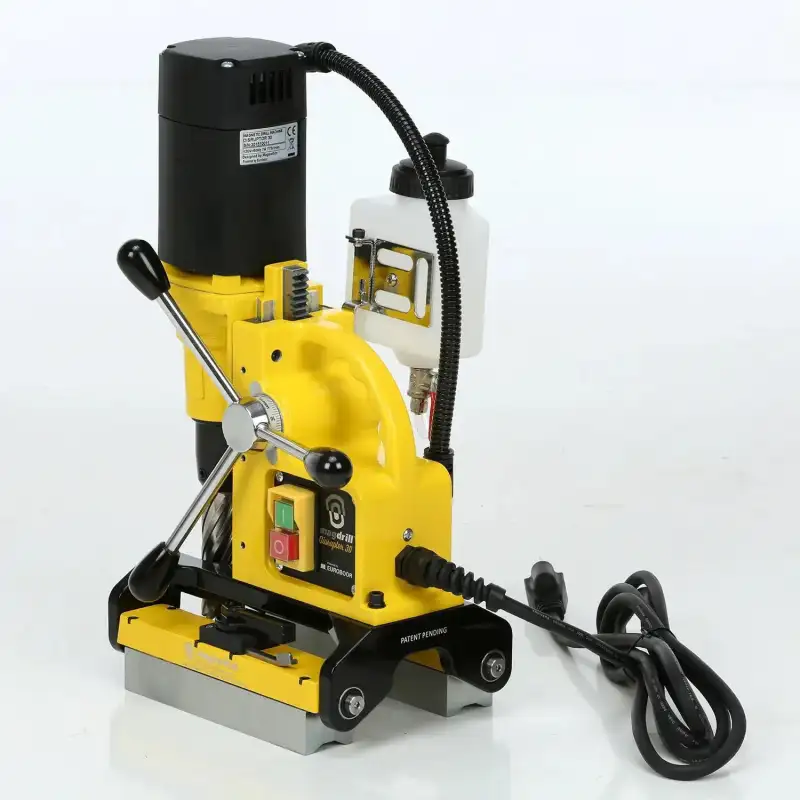

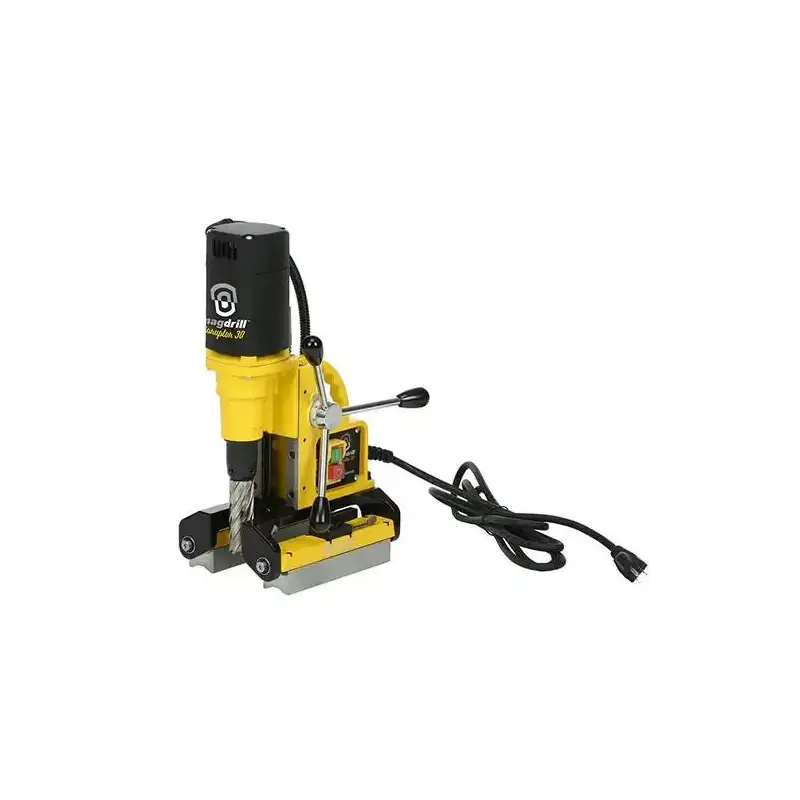

Magswitch MagDrill Disruptor 30 - 8100920

FEATURES & BENEFITS

• No electricity is needed for the magnets; all the power goes to drill.
• Safety mechanism! A loss of power and the drill remains in place.
• Holds strong on thick or thin steel (down to 11 gauge).

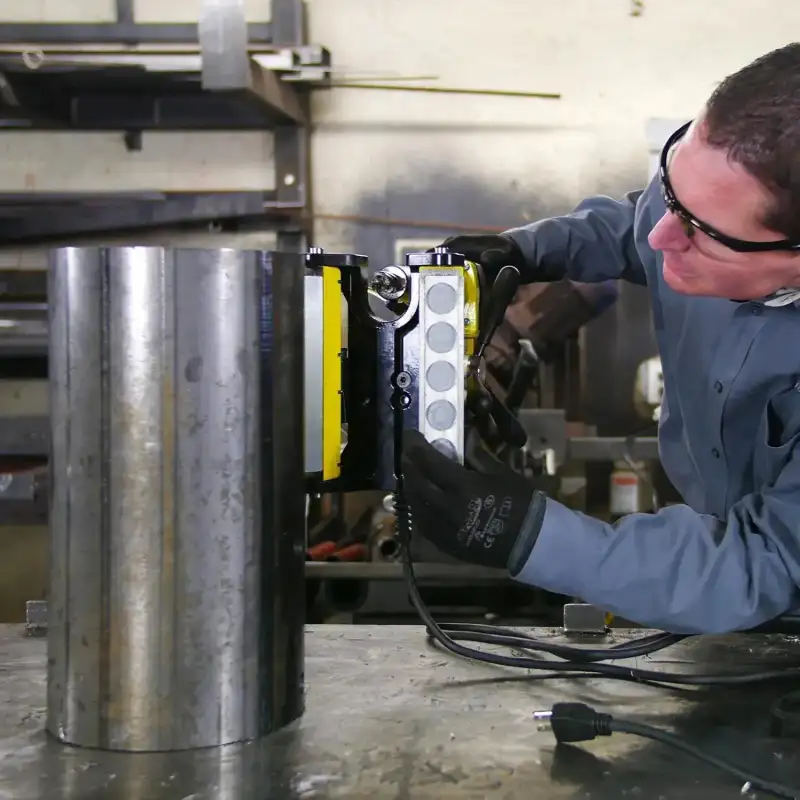

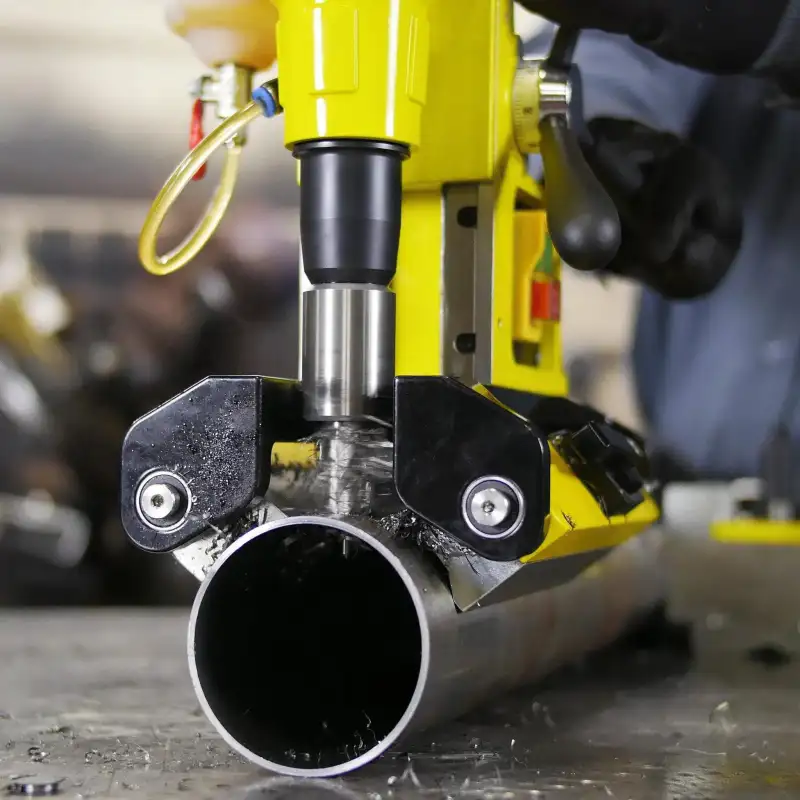

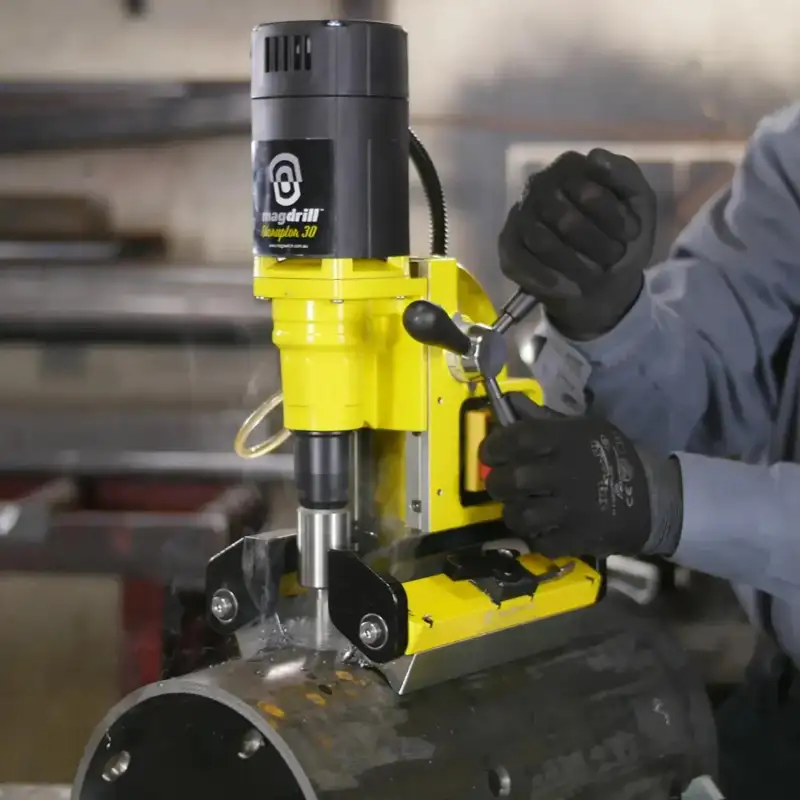

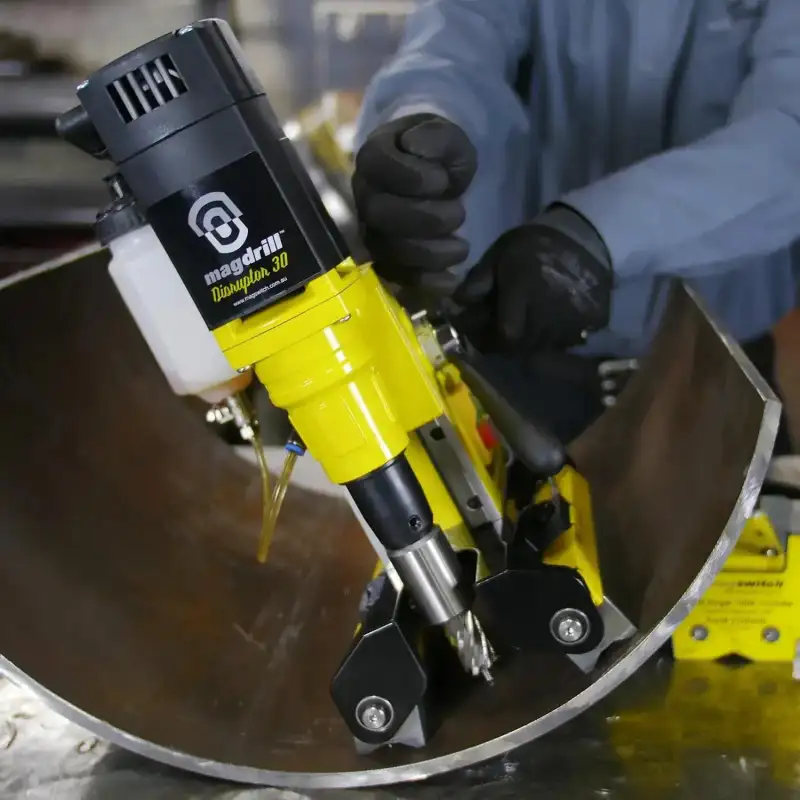

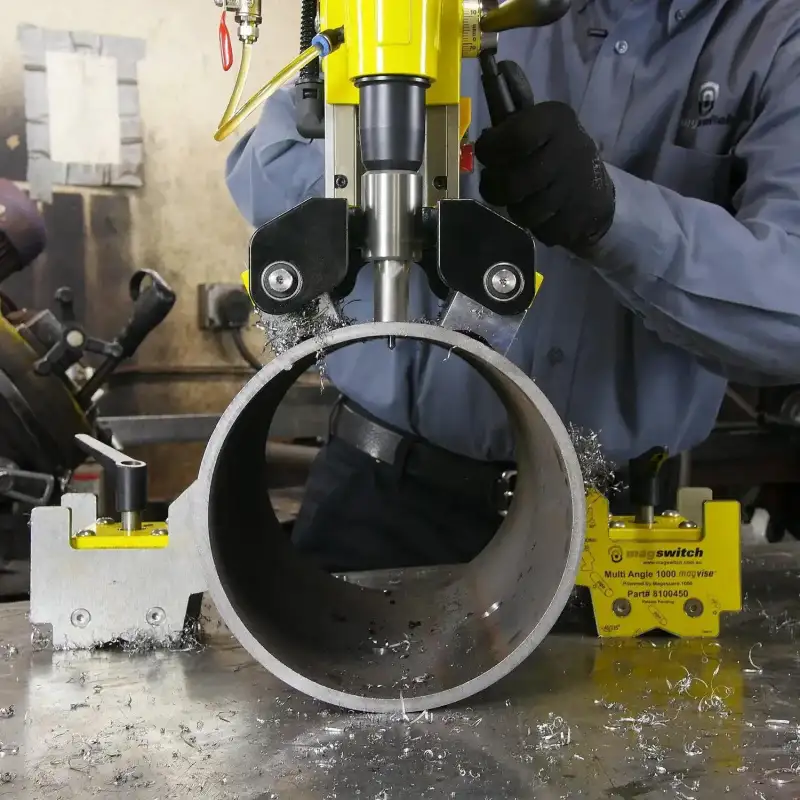

• Can be used on 3" pipe and up, inside or outside the curve.
• The base magnets can be ‘partially actuated’ to slide the drill into a precise position.
• Turn one magnetic base off while the other holds on while pivoting the tool in place for cleaning and hole inspection without moving the drill.
• The drill cuts holes up to 1-3/16" in diameter and 2" deep.
• Standard ¾" Weldon spindle will take popular cutters.

SPECIFICATIONS

• Max Breakaway: 1172 lbs (531.6 kg)
• Full Saturation Thickness: 1/2" (12.7 mm)
• Speed: 775 RPM (No Load) - 400 RPM (Load 900 W)
• Max Tip Force: 584 lbs (264.9 kg)
• Product Weight: 24.2 lbs (11 kg)
• Voltage: 110-120 V/50-60 Hz
• Smallest Pipe Diameter: 3.5" (80 mm)

Accessories

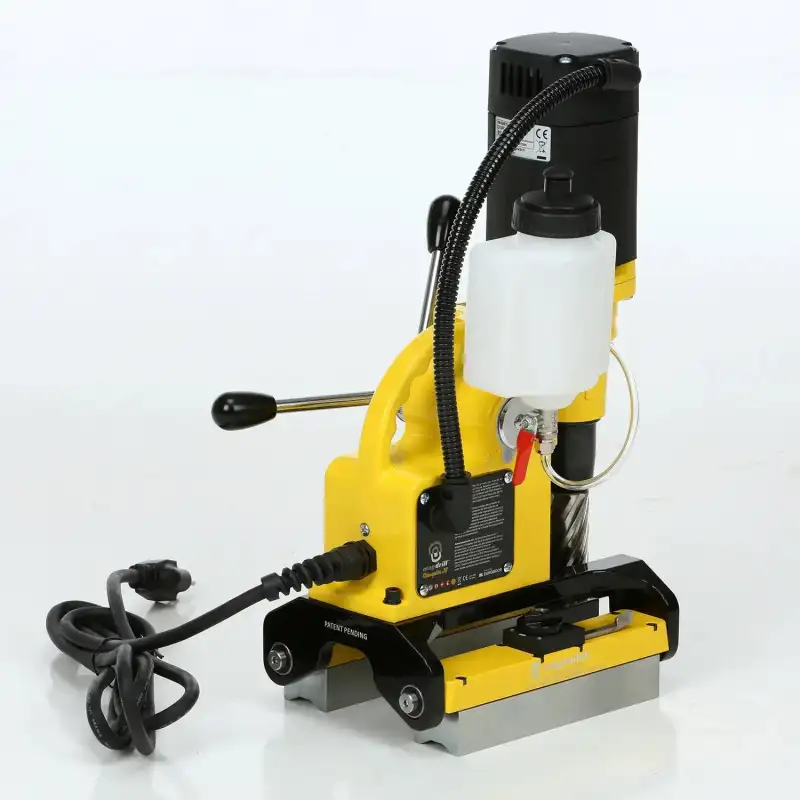

• Cooling system
• Extension adaptor
• Pilot pin
• Hex keys
• Gloves
• Hearing protection
