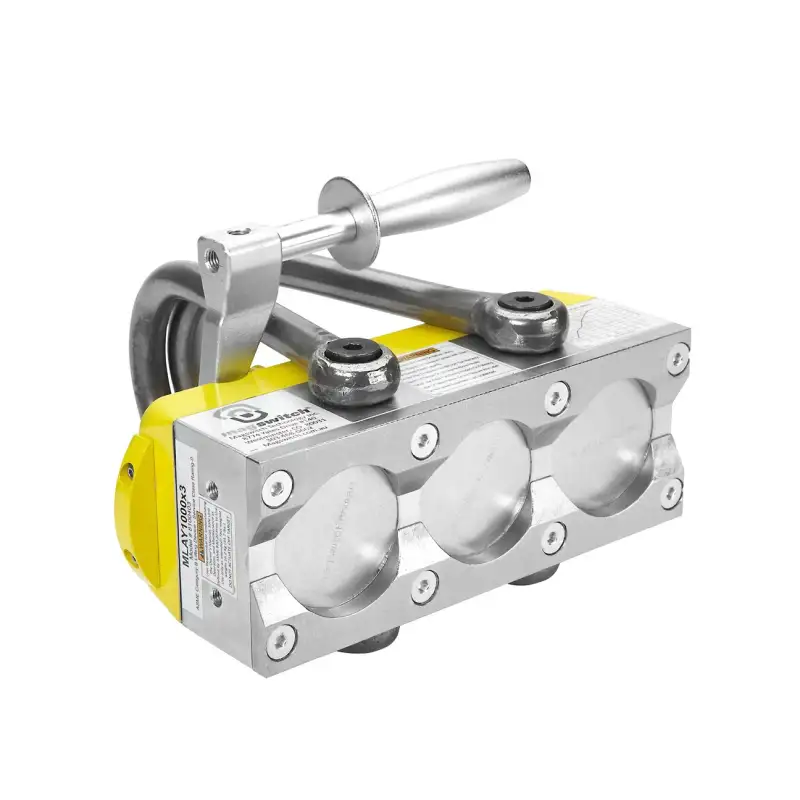

Magswitch MLAY 1000x3 - 8100403

Magswitch MLAY 1000x3 - 8100403

Reference: BG0052-9045626

Condition: New product

  • Magnetic field turns completely on and off mechanically.
  • Magnet stays clean.
  • Does not use an electrical power source.
  • Lock On/Off handle.
  • Superior hold force on Thin steel (70mm deep field).
  • Compact, lightweight and easy actuation.

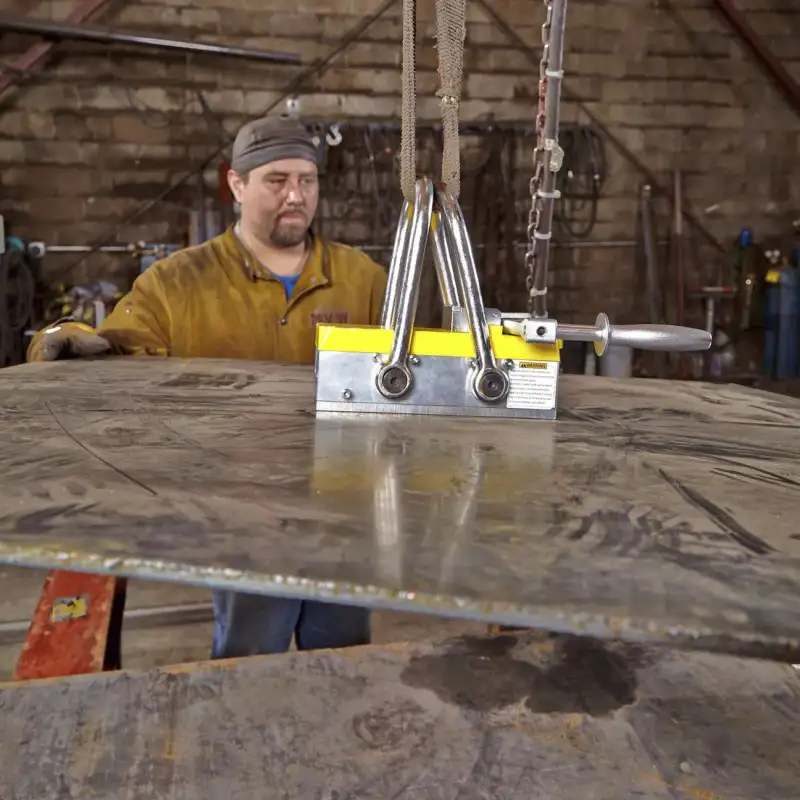

  • Lifts large flat sheets, beams, pipe.
  • Performs well on air gaps such as rust and dirt.
  • Customizable pole shoes to fit almost any application.

33 Items

$1,586.31

More info

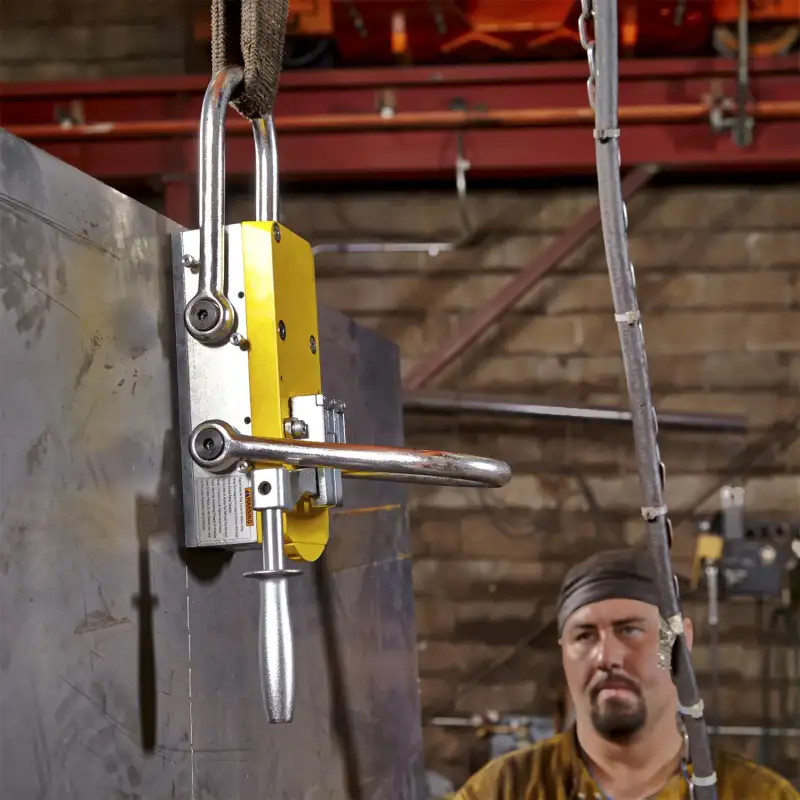

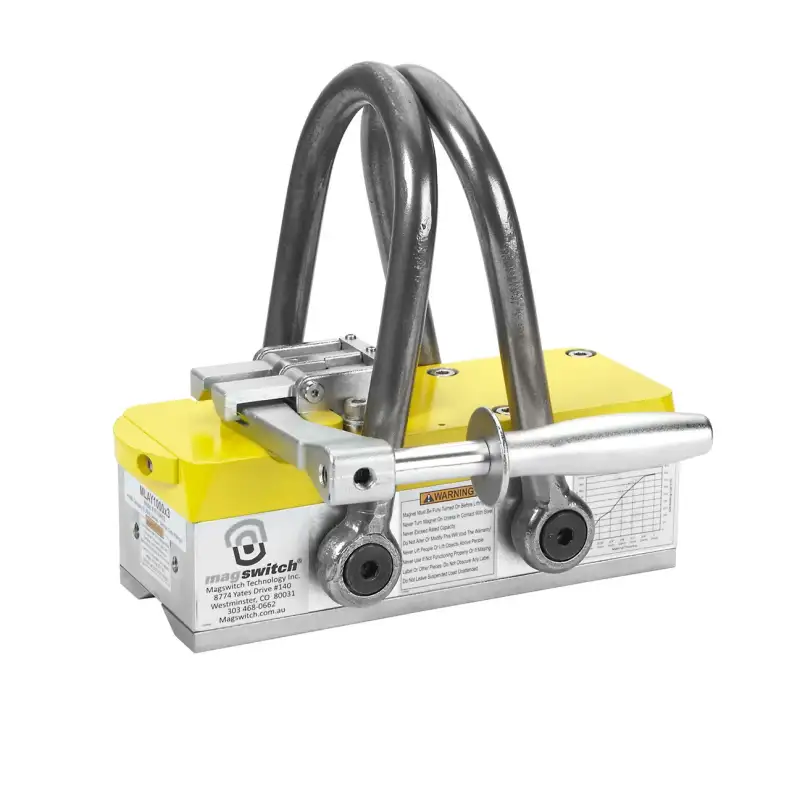

Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 913 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.

  • Max Breakaway: 2738 lbs (1242 kg) on 2'' steel
  • 3:1 Safe Working Load: 913 lbs (414.1 kg)
  • 2:1 Shear Working Load: 198 lbs (89.8 kg)
  • Full Saturation Thickness: 0.75 in (19 mm)
  • Minimum Thickness for De-Stack: 0.75 in (19 mm)
  • Product Weight: 36.5 lbs (16.5 kg)
  • Mounting Thread: M8 x 1.25
  • Dimensions: 10.7 x 7.7 x 10.4 in (271.7 x 195.5 x 264.1 mm)
  • Magnetic Pole Footprint: 255 mm x 97.6 mm
