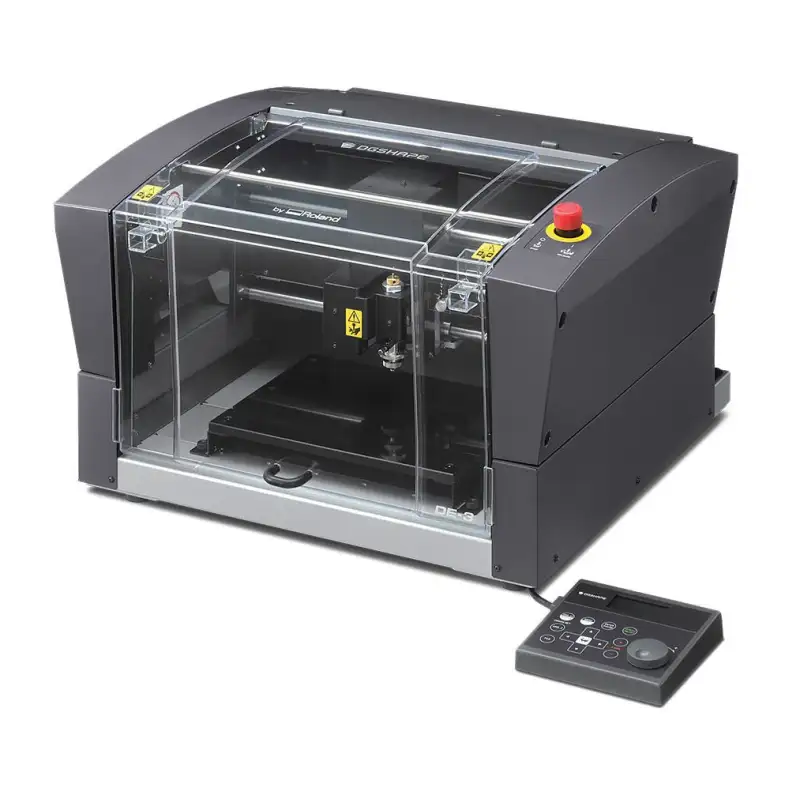

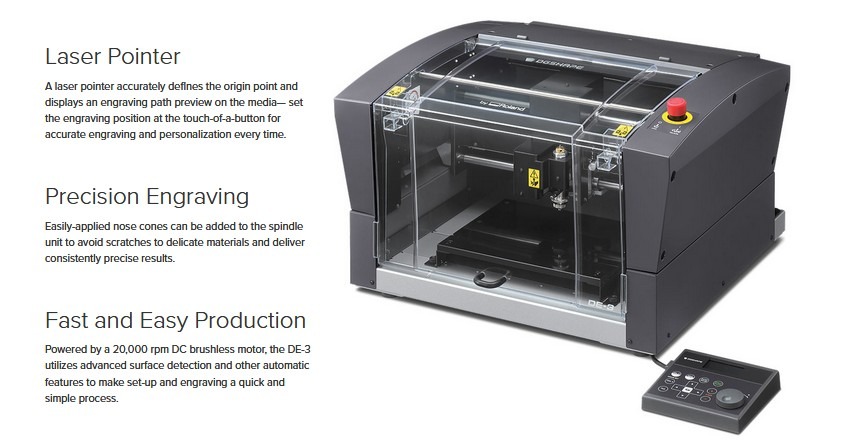

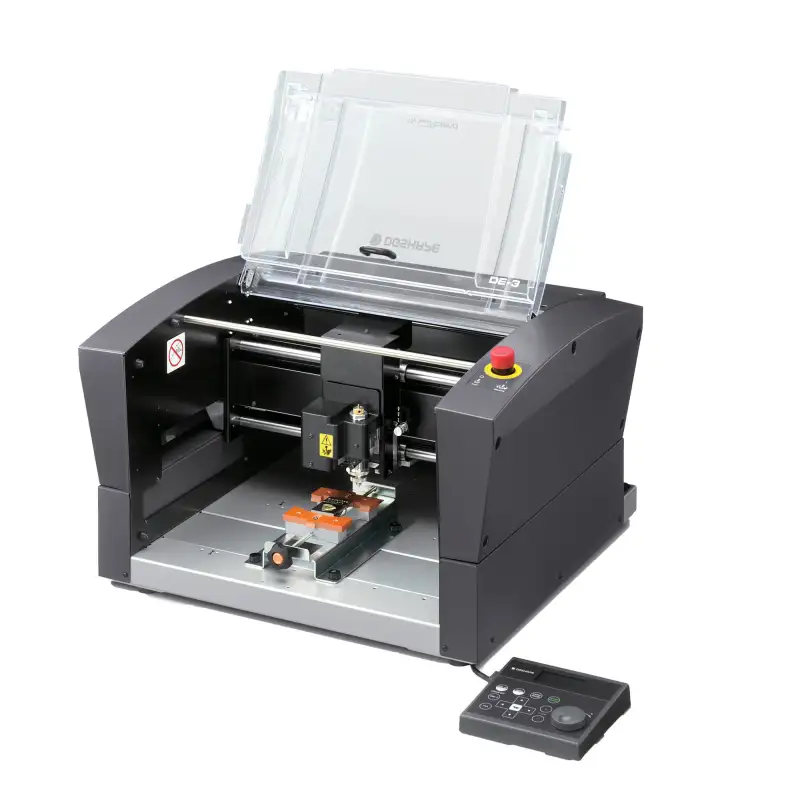

DGSHAPE DE-3 Desktop Rotary Metal Engraver

Reference: BG0052-9182991

Condition: New product

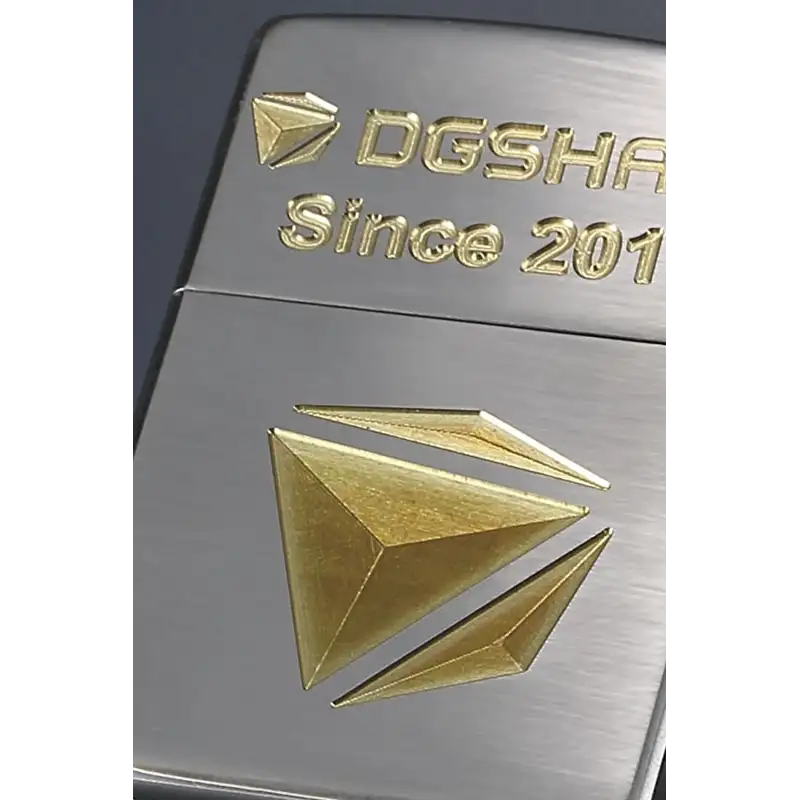

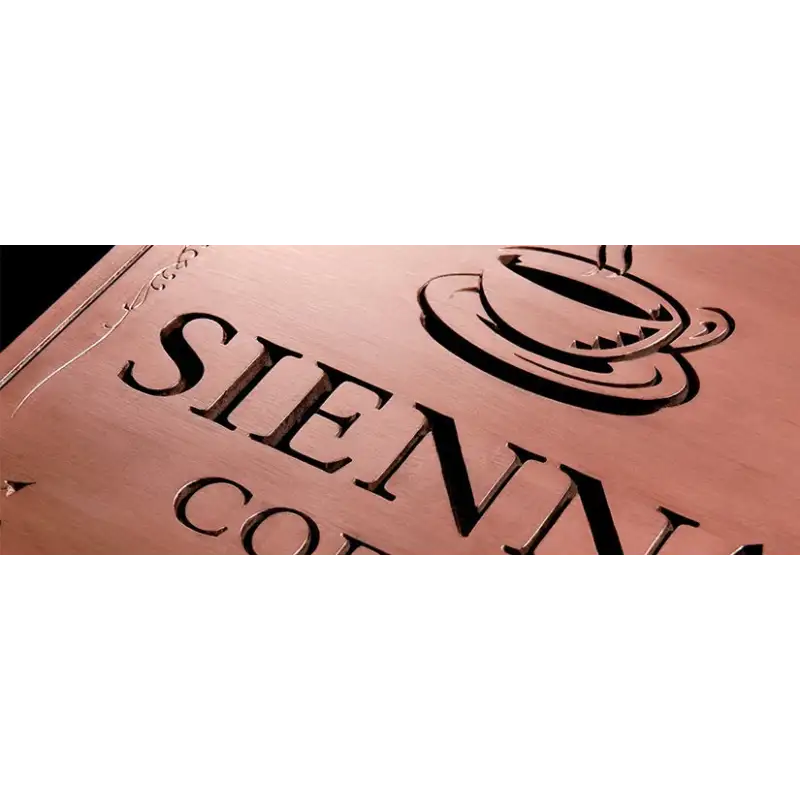

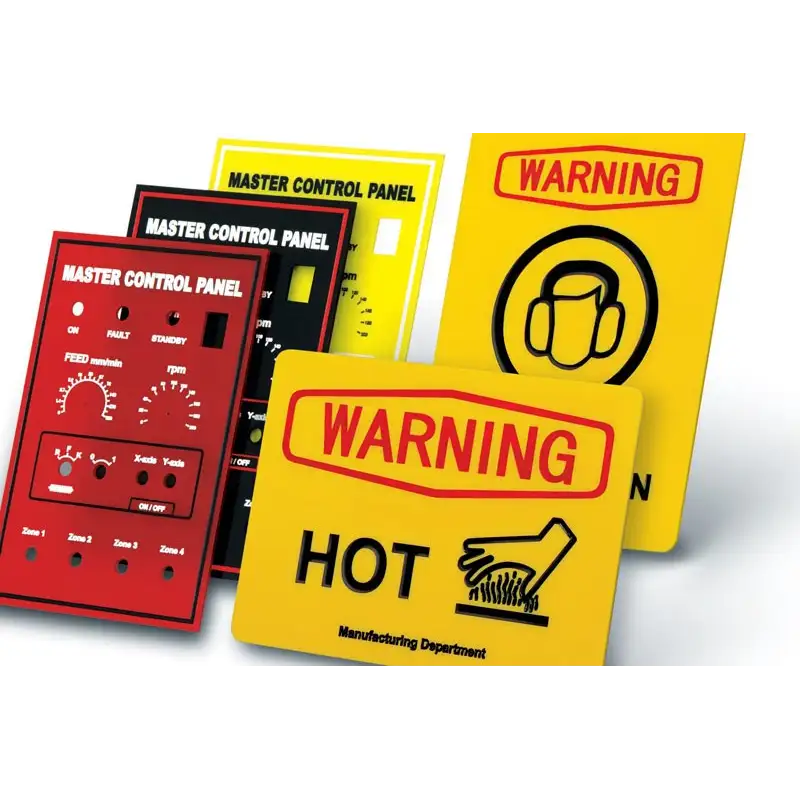

Effortlessly scribe and engrave onto a huge range of giftware, signage, trophies, tools and industrial products. Personalize brass, aluminum, copper, plastic engraving blanks, wooden items and more, with the speed, precision and ease of the powerfully compact DE-3

4 Item Items Warning: Last items in stock!

$6,505.28

Quantity

More info

DE-3 Specifications :

Work table size		305mm x 230mm 12.0079in x 9.05512in
Maximum Work Area (Work Envelope)		12” (X) x 9.1” (Y) x 1.6” (Z) 305 mm (X) x 230 mm (Y) x 40mm (Z)
XYZ Axis Drive System		Stepper motor, 3-axis simultaneous control
Operating Speed	XY axis:	0.1 ～ 60 mm/sec.
	Z axis:	0.1 ～ 30mm/sec.
Software Resolution		0.004” (0.01 mm) /step
Mechanical Resolution	XYZ-axis:	0.00125 mm/step
Spindle Motor		Brushless DC Motor
Spindle Speed		5,000 ～ 20,000 rpm
Tool Loading		Cutter Holder, Collet Type
Maximum Material Thickness		40 mm（38 mm when using the nose cone）

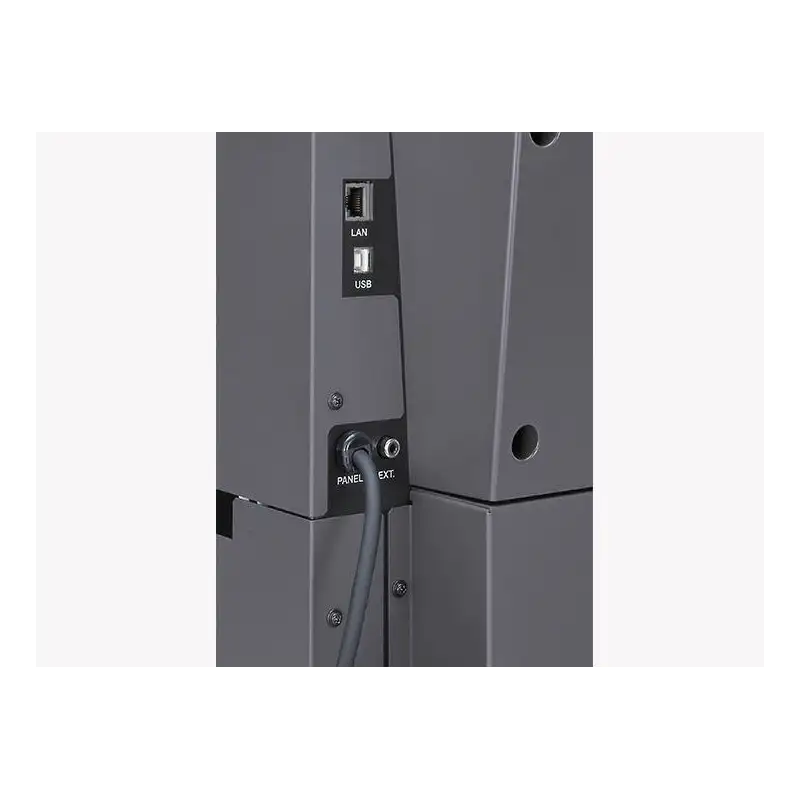

Connection		USB
		Ethernet（10 BASE-T/100 BASE-TX）
Machine Language		RML-1
Power Supply	Voltage and Frequency	AC 100V – 240V ± 10%、50/60Hz（Overvoltage category: Category Ⅱ, IEC60664-1)
	Rated Current	1.0 A
Power Consumption		80 W
Operating Noise	While Operating：	60 dB（or less)
	Standby：	40 dB（or less)
External Dimensions		2'02" (W) x 1'9" (D) x 1'2" (H) (616 mm (W) × 587 mm (D) × 390mm (H))
Machine Weight		75 lbs (35 kg)
Installation Environment	Indoor use, altitude:	2000 m or less
	Temperature	5 to 40 °C
	Humidity	35 to 80% (no dew condensation)
	Environment pollution degree:	2
Bundled Accessories		"Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide"

Additional Features

A desktop engraving machine that performs like a production class engraver

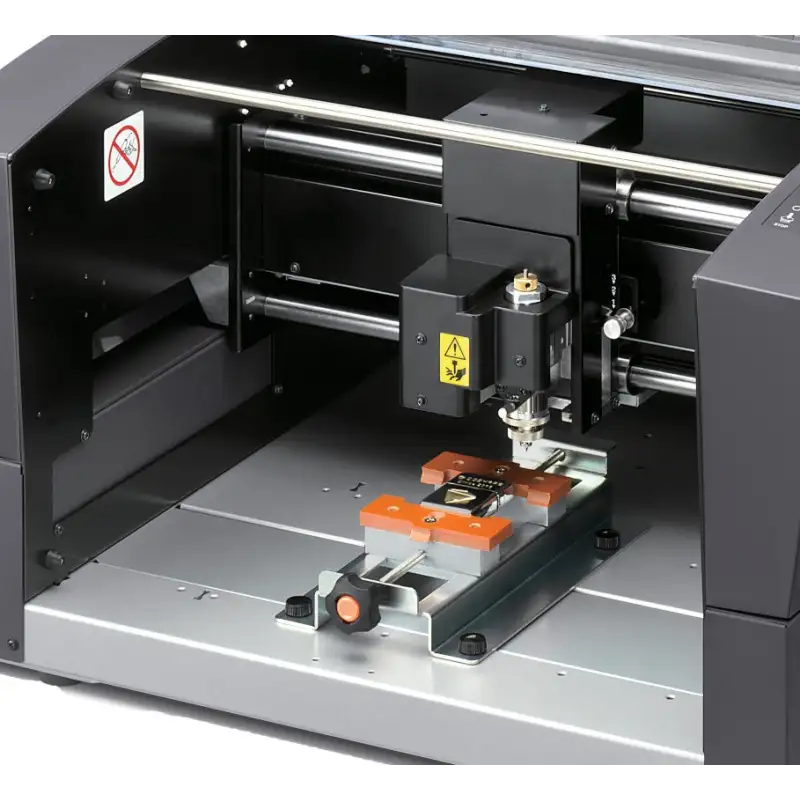

Optional center vise available that holds objects up-to 5.9” (X) by 5.8” (Y) by 1.3” (Z)
Small footprint machine with an ample 12” by 9” work area fits comfortably into offices, classrooms and workshops
Offers a safe and clean engraving solution with a fully-enclosed engraving operation

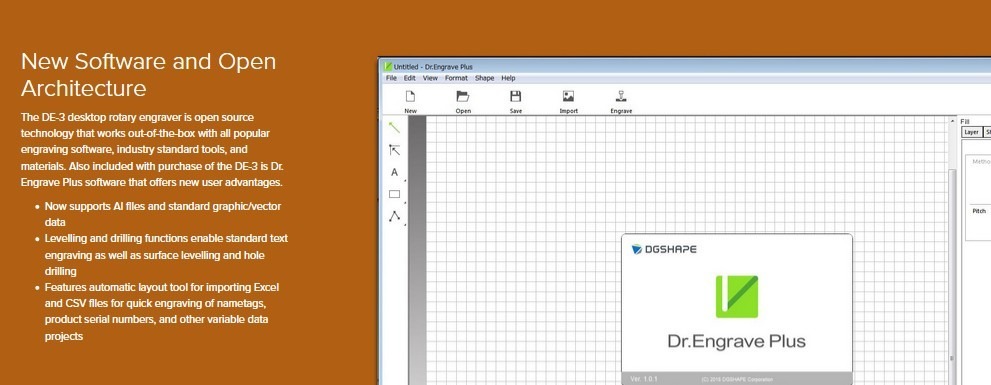

DE-3, like all DGSHAPE devices, is part of an "Open System" where any CAD, scanner, and CAM can be used to complete your own personal workflow that you are familiar with.
