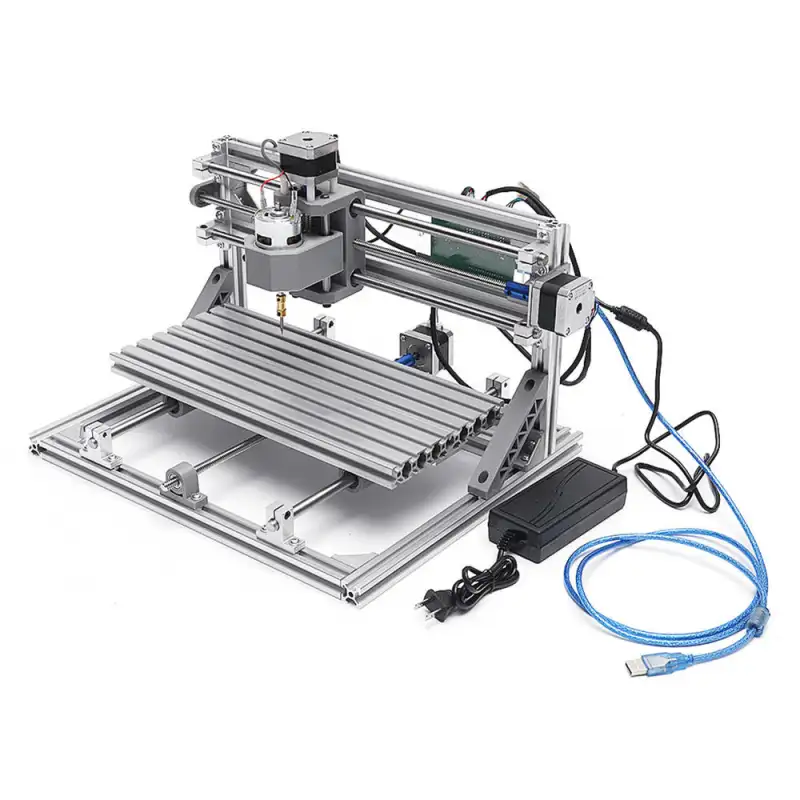

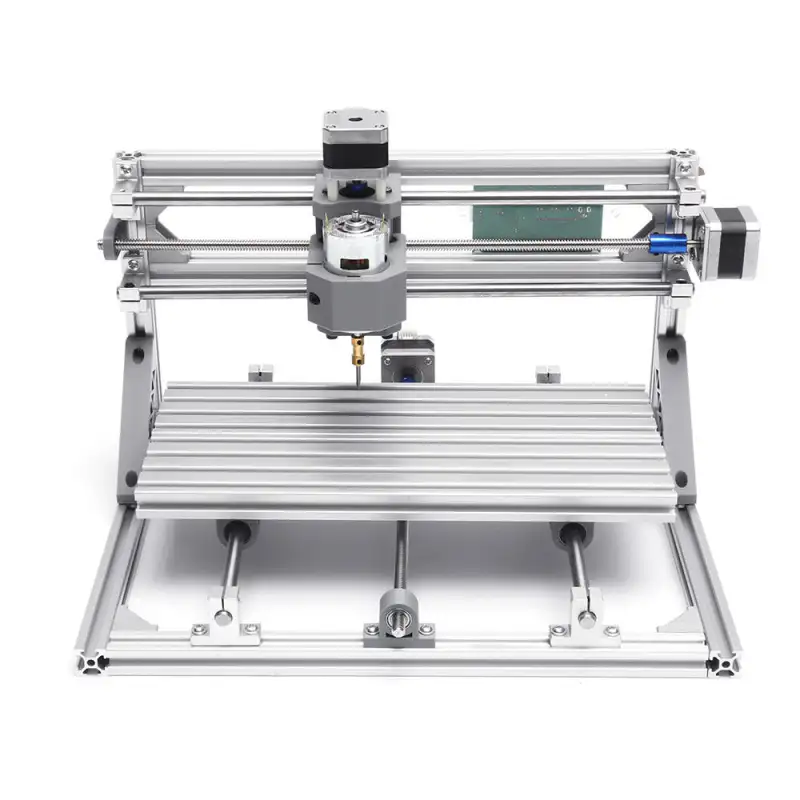

  3. 3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Engraver
Discounted!
3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood

3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine Milling Engraver

Reference: BG0052-9789119

Condition: New product

  • Assembly requires a certain mechanical skill. All assembly components are included.
  • Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
  • Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.

63 Items

$283.61

More info

Specification:

General Specification
 Model  Mini CNC3018
 Frame Material  Aluminum Alloy
 Color  Silver
 Table Area  Approx. 340x160mm

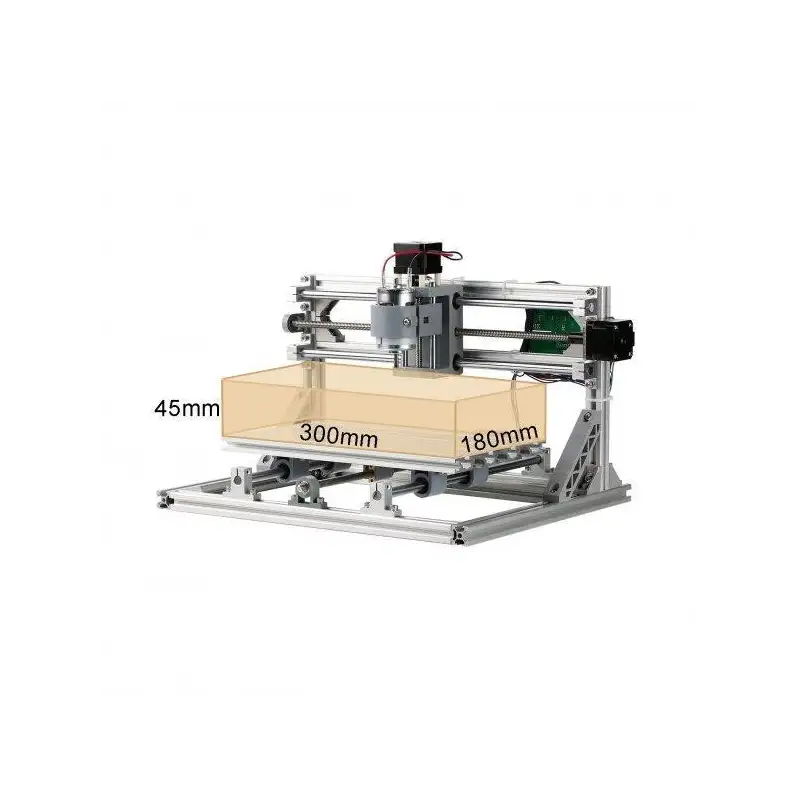

 Working Area  Approx. 340x160x40mm
 Product Weight  7.5kg
 Control Software for Spindle  GrblControl
 Control Software for Laser  Litefire
 System Requirements  Windows XP SP3, Win7, Win8, Win10.
 Adapter Plug  2-Pin US Plug
 Adapter Input Voltage  AC 110-240V 50/60Hz
 Adapter Output Voltage  DC 24V 4A
 Features  1. Aluminum Profile Stable Construction
 2. 3 Axis Movable, Powerful Spindle Motor
 3. Contains Quickstart Guide of GRBL Software
 4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs
 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
     Can Not Engrave Metal, Steel, Aluminum.
 Technical Parameters
 Working Voltage  DC 24V
 Interface  USB
 Stepper Motor  42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m

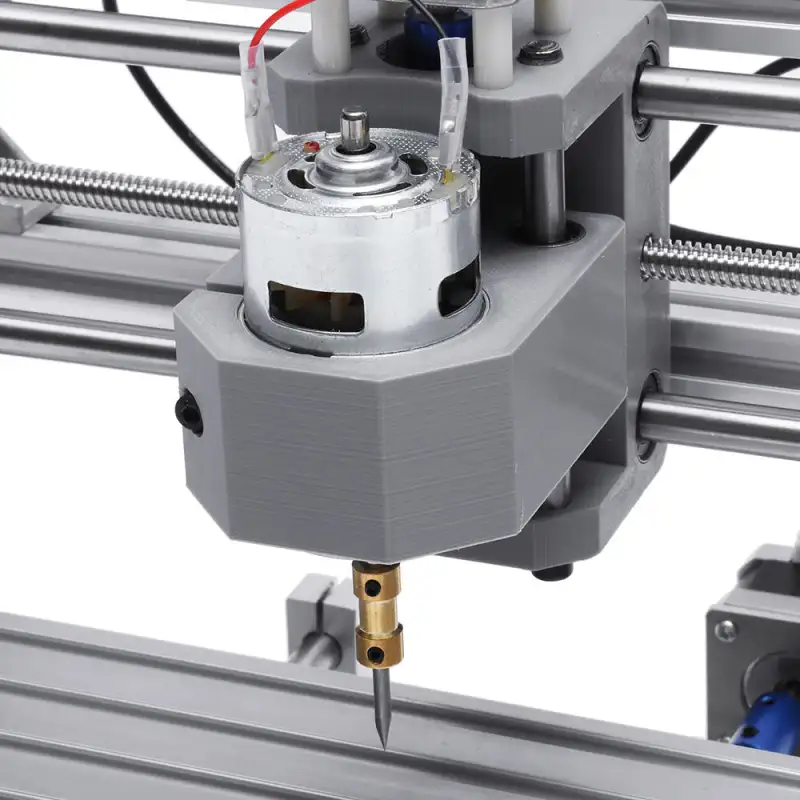

 Spindle Motor  775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
 Spindle Motor Shaft Diameter   5mm



Note:
This item contains the spindle motor. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the
input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V)

Package Included:

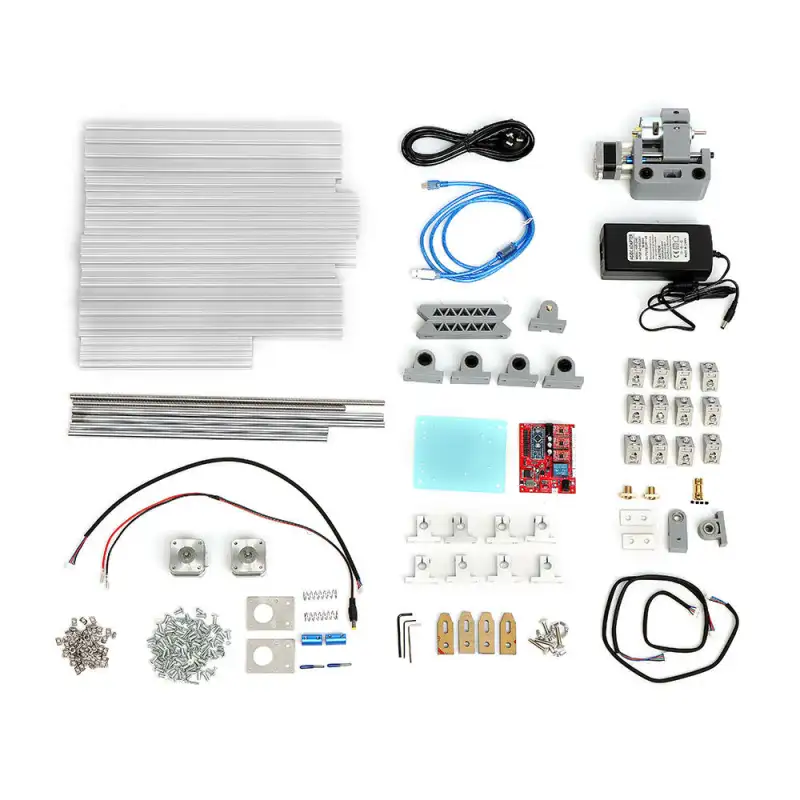

1 x Wood Engraving Machine Full Set (Unassembled Delivery)
