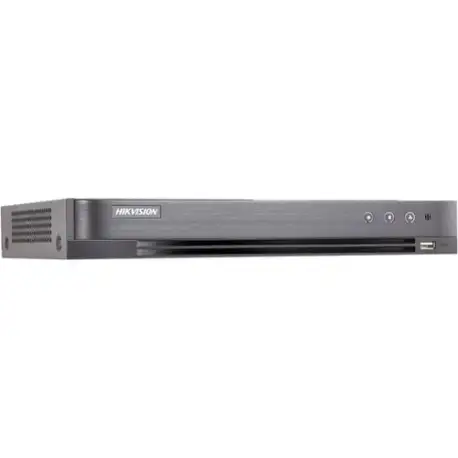

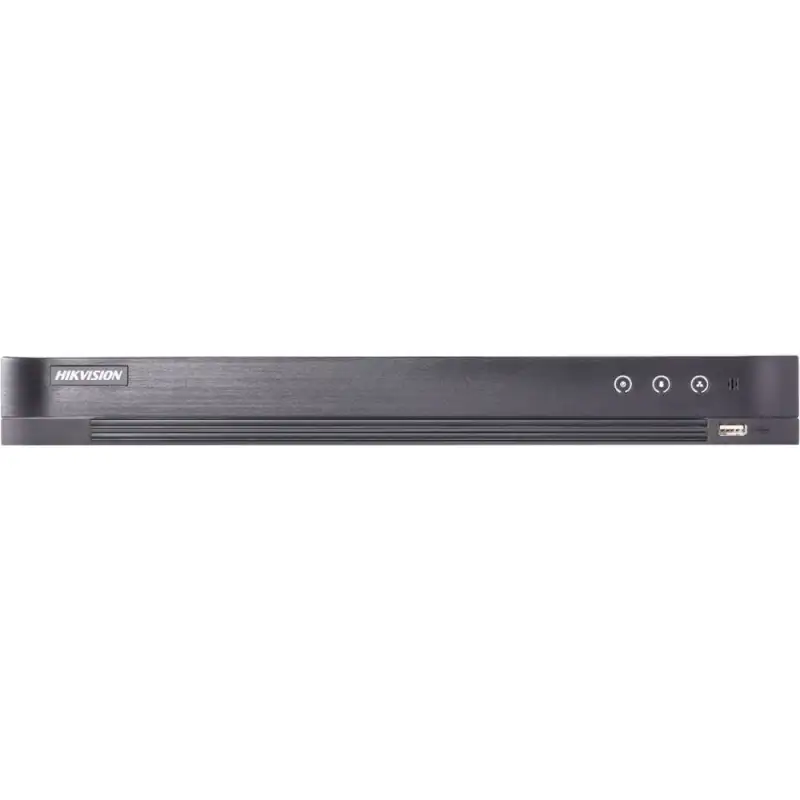

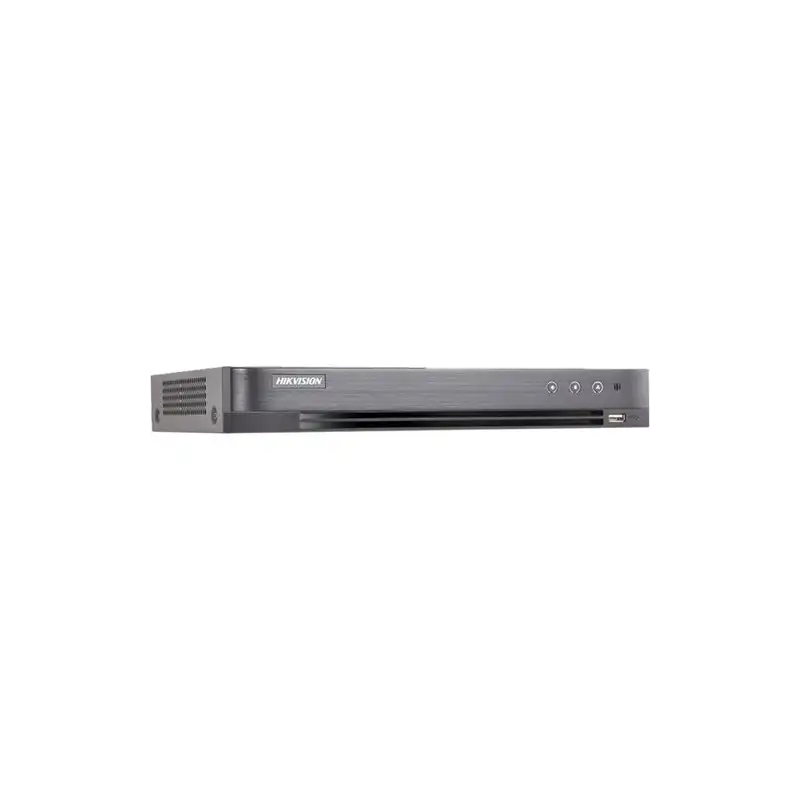

Hikvision DS-7216HUHI-K2 TurboHD 16-Channel 5MP DVR (No HDD)

Hikvision DS-7216HUHI-K2 TurboHD 16-Channel 5MP DVR (No HDD)

Reference: BG0052-9552404

Condition: New product

Delivery on: Jun 10 2026

  • Record from and Manage up to 16 Cameras
  • Supports 16 IP Channels
  • Up to 5MP Recording Resolution
  • 20TB HDD Capacity (Available Separately)
  • H.265+/H.264+/H.265/H.264 Video Codecs
  • Two-Way Audio
  • 128 Remote Connections
  • HDMI & VGA Video Outputs
  • 4K UHD HDMI Video Output Resolution

7 Items

$519.33

More info

Record from and manage up to 16 analog cameras at resolutions up to 5MP with the DS-7216HUHI-K2 TurboHD 16-Channel 5MP DVR (No HDD) from Hikvision. Additionally, this DVR supports up to 16 IP cameras. It is equipped with two SATA ports that support HDD storage up to 20TB (HDDs available separately). H.265+, H.264+, H.265, and H.264 video codecs keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.

This DVR features 128 remote connections. It has VGA and HDMI video outputs to connect to external monitors. The HDMI out resolution can be set at up to 4K UHD.

Supports HD-TVI and CVBS signals
Supports an additional 16 IP cameras at resolutions up to 8MP
VGA output
HDMI and VGA outputs
HDMI output at up to 4K UHD resolution
H.265+, H.265, H.264+, and H.264 video codecs
Supports long-distance transmission over HD-TVI a maximum of 3940' at 720p and 2630' at 1080p
16-channel synchronous playback
Dual stream support
Supported analytics include line crossing, intrusion, and scene change detection
1 x USB 3.0 and 1 x USB 2.0 port
Half-duplex RS-485 port
16 alarm inputs and four alarm outputs
1 x 1000M self-adaptive Ethernet port
Network management with Hik-Connect and DDNS
FCC, CE, and cUL certified

General

Signal Analog, HD-TVI, IP
Number of Channels 16 (Video)
Playback Resolution VGA:
1920 x 1080 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
HDMI:
3840 x 2160 at 30 Hz
2560 x 1440 at 60 Hz
1920 x 1080 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 720 at 60 Hz
1024 x 768 at 60 Hz
Recording Resolution 5 MP
PTZ Support Yes
Bit Rate 32 kb/s to 10 Mb/s
IP Camera Support 16
Dual Streaming Yes
Encoding Resolution 1080p, 720p, 4CIF, CIF, VGA, WD1, 3 MP, 4 MP, 5 MP
2-Way Audio Yes

Connectivity

A/V Ports CVBS, HD-TVI: 16 x BNC Video Input (1 V p-p, 75 Ohm)
1 x HDMI Output
1 x VGA Output
4 x RCA Audio Input (2 V p-p, 2 Kilohm)
1 x RCA Audio Output (1 Kilohm, Linear)
Communication Ports 1 x USB Type-A USB 2.0 (Front)
1 x USB Type-A USB 3.1 / USB 3.2 Gen 1 (Rear)
1 x RJ45 Gigabit Ethernet (Rear)
1 x RS-485 (Rear)
Audio Connections 4 Inputs
1 Output
Drive Interfaces 2 x SATA
Wi-Fi None
Remote Connections 128
Network Protocols DDNS, DHCP, DNS, HTTPS, Hik-Connect, NFS, NTP, ONVIF, PPPoE, SADP, TCP/IP, UPnP, iSCSI
Max Frame Rate NTSC: 30 fps (1080p)

Compatibility

Supported Video Codecs H.264, H.264+, H.265, H.265+
Supported Audio Codecs G.711U

System

Installed Drive None
Max Capacity Supported 20 TB (Total)

Notifications

Alarm Connections 16 Inputs
4 Outputs
Event Trigger Analytics

Electrical

Power Consumption Without HDD: 12 VDC (10 W)

Environmental

Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 10 to 90%

Physical

Certifications CE, FCC, cUL, as per Manufacturer
Built-In Display None
Dimensions (W x D x H) 15.0 x 12.6 x 1.9" / 380.0 x 320.0 x 48.0 mm
Weight 4.4 lb / 2 kg (Without HDD)

Packaging Info

Package Weight 7.25 lb
Box Dimensions (LxWxH) 17.1 x 15.3 x 5.3"
