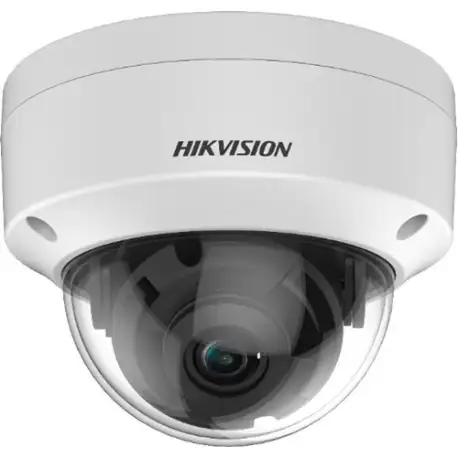

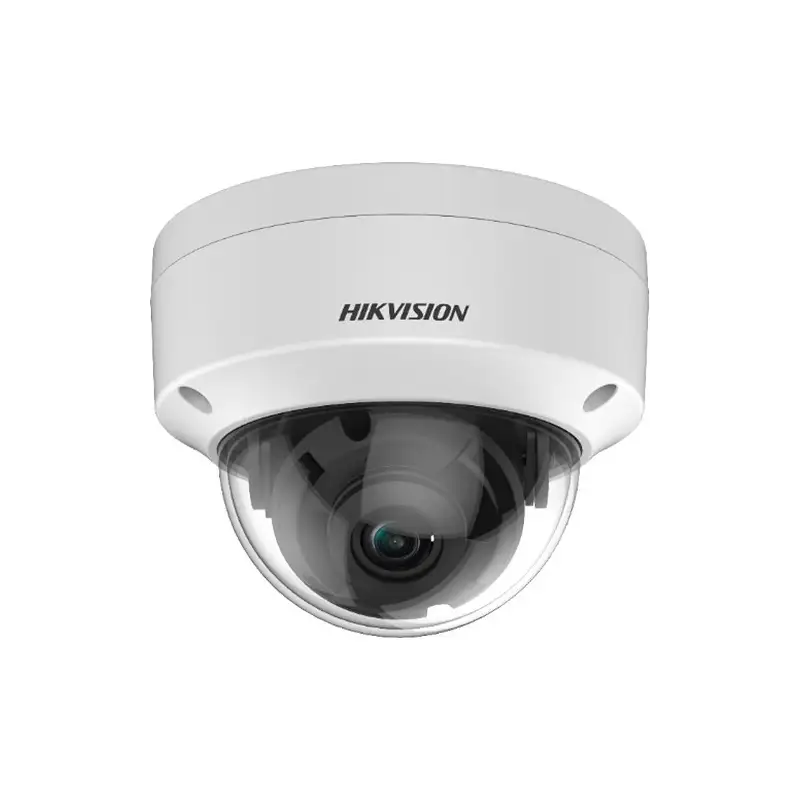

Hikvision DS-2CE57H0T-VPIT 5MP Outdoor Analog HD Dome Camera with Night Vision & 6mm Lens
Reference: BG0052-9423605
Condition: New product
Delivery on: Jun 10 2026
- 2560 x 1944 Resolution at 20 fps
- EXIR 2.0 for Night Vision up to 66'
- 6mm Fixed Lens
- 57° Horizontal Field of View
- Supports HD-TVI, HD-CVI, AHD & CVBS
- BNC Connection
- IP67 Rated for Outdoor Use
- IK10-Rated Vandal Resistance
100 Items
More info
Monitor an indoor or outdoor area with the DS-2CE57H0T-VPIT 5MP Analog HD Dome Camera from Hikvision. This camera uses a 5MP progressive scan CMOS sensor to transmit 2560 x 1944 resolution video at 20 fps. IR LEDs provide up to 66' of night vision. The camera's 6mm fixed lens delivers a 57° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported.
This dome camera is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
Camera
| Sensor | 5 MP CMOS |
| Lens Mount | M12 |
| Focal Length | 6mm |
| Lens Field of View | Horizontal: 57° Vertical: 43° Diagonal: 72° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/50,000 to 1/30 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 75° |
Video Output
| Video Output Connectors | 1 x BNC (AHD / HD-CVI / HD-TVI / Composite) |
| Output Formats | AHD, HD-TVI: 2560 x 1944 at 20 fps AHD, HD-CVI, HD-TVI: 2688 x 1520 at 30 fps Composite: 640 x 480 |
| Automatic Gain Control | Yes |
PTZ Control
| Up-the-Coax Communication | Yes |
| Supported Control Protocols | HIKVISION-C |
| Event Trigger | None |
| Data Streaming | Yes |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 90% |
| IP Rating | IP67 |
| IK Rating | IK10 |
General
| Media/Memory Card Slot | None |
| Pan/Tilt | None |
| I/O Connections | 1 x BNC 1 x Power |
| IR Range | 66' / 20.1 m |
| Supported Languages | English |
| Internal Storage | None |
| Power Source | DC |
| Power Consumption | DC: 4.3 W |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | ø: 4.0 x H: 3.2" / ø: 100.4 x H: 82.4 mm |
| Weight | 0.8 lb / 362 g |
