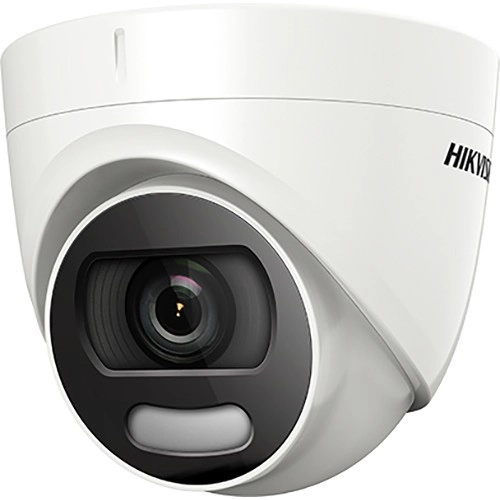

Hikvision ColorVu DS-2CE72DFT-F 2MP Outdoor Analog HD Turret Camera with Spotlight & 3.6mm Lens
Reference: BG0052-9892051
Condition: New product
Delivery on: Jun 10 2026
- 1920 x 1080 Resolution at up to 30 fps
- Auto Spotlight Illuminates up to 65'
- 3.6mm Fixed Lens
- 83° Horizontal Field of View
- Supports HD-TVI, HD-CVI, AHD & CVBS
- UTC (Up-the-Coax) Connection
- IP67 Rated for Outdoor Use
100 Items
More info
Monitor an outdoor area with the ColorVu DS-2CE72DFT-F 2MP Outdoor Analog HD Turret Camera from Hikvision. This unit uses a 2MP progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at up to 30 fps. A built-in spotlight provides up to 65' of illumination. The camera's 3.6mm fixed lens delivers an 83° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. The UTC (Up-the-Coax) connection allows for OSD control of the camera's settings and spotlight.
This turret camera is housed in an IP67-rated enclosure that is suitable for outdoor use.
Camera
| Sensor | 2 MP CMOS |
| Lens Mount | M16 |
| Focal Length | 3.6mm |
| Lens Field of View | Horizontal: 83° Vertical: 44.4° Diagonal: 98° |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.0005 Lux |
| Shutter Speed | 1/50,000 to 1/30 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Horizontal: 0 to 75° |
Video Output
| Video Output Connectors | 1 x BNC (AHD / HD-CVI / HD-TVI / Composite) |
| Output Formats | AHD, HD-CVI, HD-TVI: 1920 x 1080 at 30 fps Composite: 640 x 480 at 30 fps |
| Automatic Gain Control | Yes |
PTZ Control
| Up-the-Coax Communication | Yes |
| Supported Control Protocols | HIKVISION-C |
System Integration
| Analytics | Motion Detection |
| Event Trigger | Yes |
| Event Action | Recording, Notification |
| Data Streaming | Yes |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 90% |
| IP Rating | IP67 |
General
| Media/Memory Card Slot | None |
| Pan/Tilt | None |
| I/O Connections | 1 x BNC 1 x Power |
| Internal Storage | None |
| Power Source | DC |
| Power Consumption | 3 W |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | ø: 4.3 x H: 3.4" / ø: 109.8 x H: 85.6 mm |
| Weight | 0.7 lb / 336 g |
Packaging Info
| Package Weight | 1.06 lb |
| Box Dimensions (LxWxH) | 5.45 x 5.4 x 4.3" |
