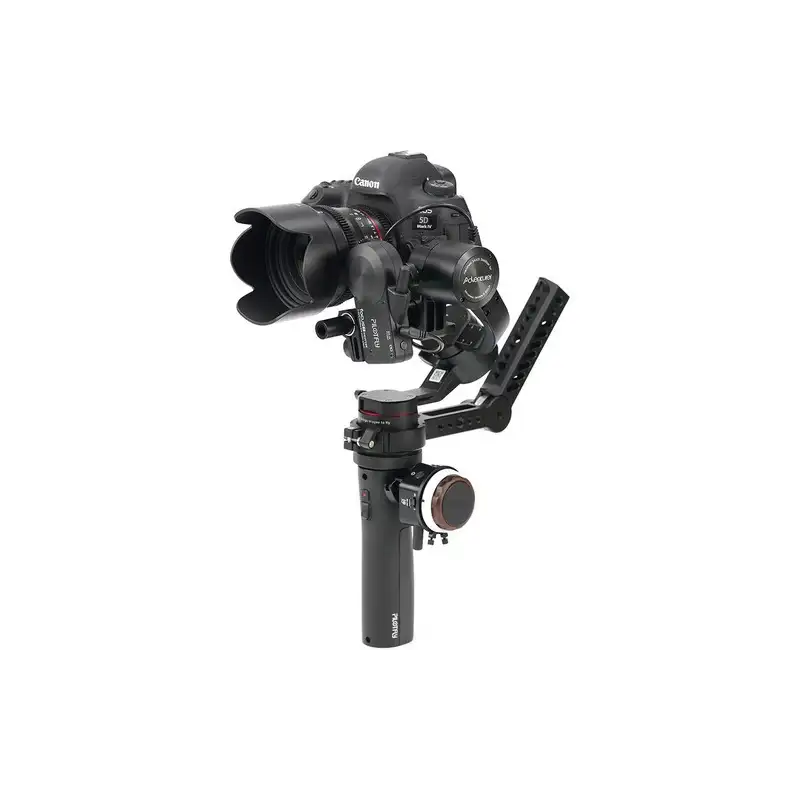

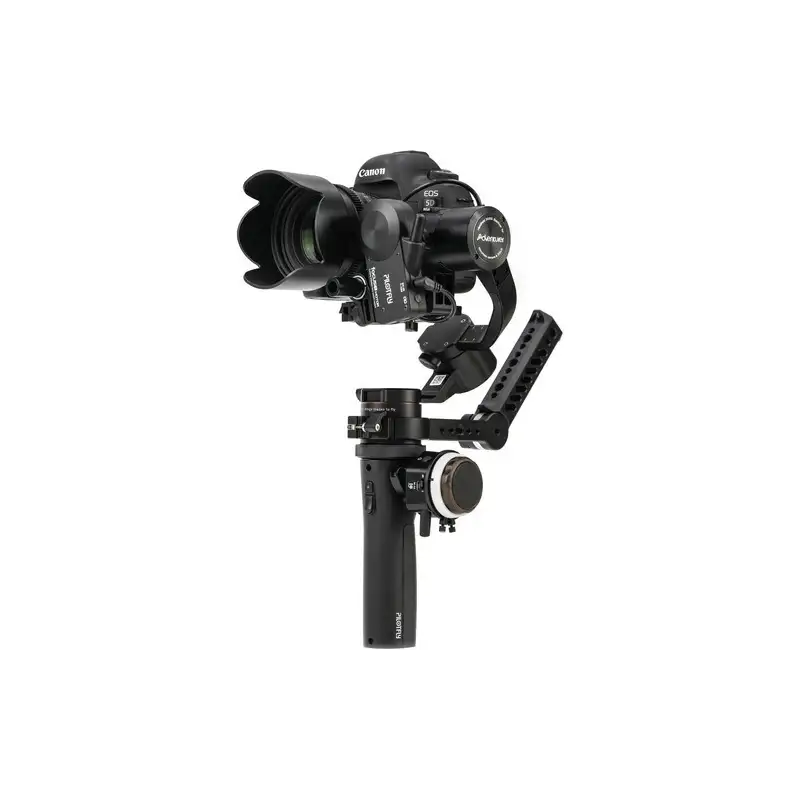

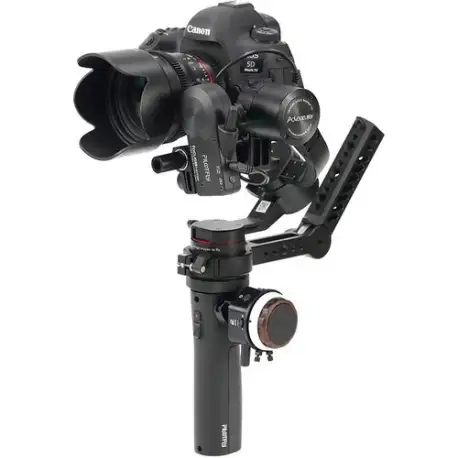

Pilotfly Adventurer Warrior

Adventurer Warrior boasts a versatile and ergonomic structure that even revolutionizes the entire appearance.

The CNC machined alloy gimbal heads have been optimized to bring durability and stability to the Adventurer Warrior, which reduces the overall weight to under 1kg (including battery). These newly developed motors offer 40% more payload capacity than our prior gimbals.

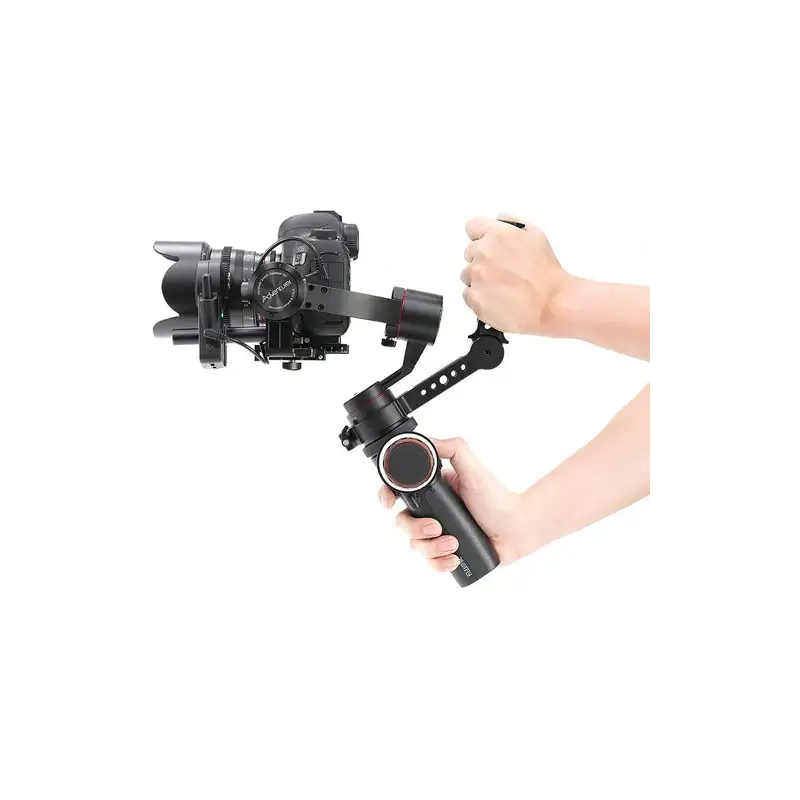

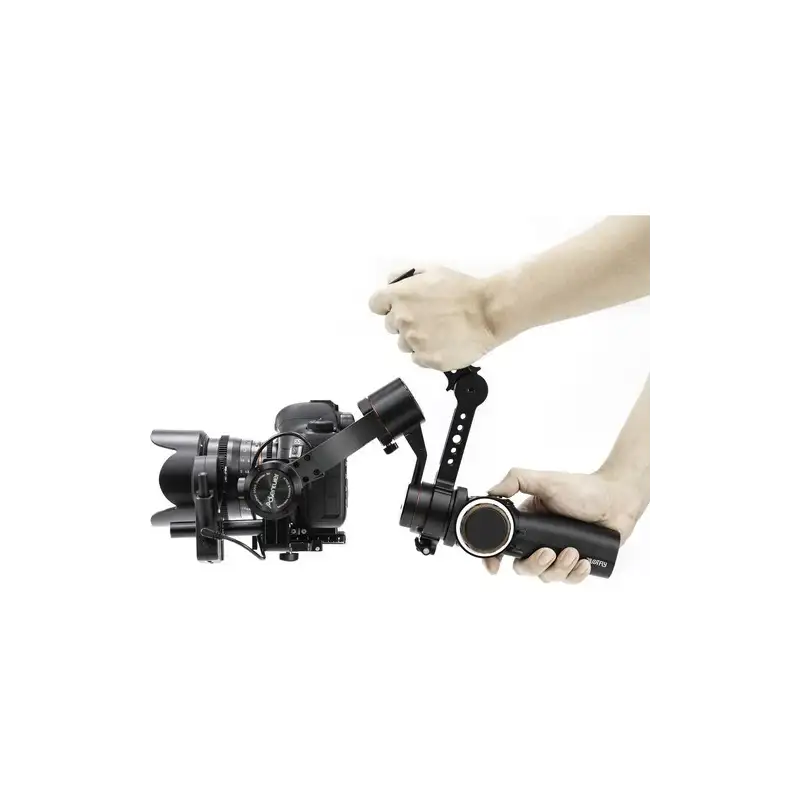

With all-new 1HT handgrip to enter a handy underslung position and provide multiple mounting points for accessories. The 1HT handgrip allows 180° adjustment so that you can use it as a side handle and free stop in any position via the rosette. It features a cold shoe and multiple 1/4”-20, 3/8”-16 and Arri locating holes for monitor and microphone. Additionally, the handle comes with a female rosette which is compatible with any other accessories features a male Arri rosette.

The external follow focus motor equipped to ADVENTURER WARRIOR supports precise and smooth focus control to SONY, Panasonic, Canon camera systems. With the versatile wheel on its body, you can easily pull focus while moving and shooting.

．Weighs only 0.92kg with a battery included

．Ergonomic external handle allows 180° of handle adjustment via the rosette. features 3/8”-16, 1/4”-20 and arri 3/8” locating holes for accessories.

．Rod-mount focus motor and 100m 2.4ghz Multi-functions wireless lens control system with a glow-in-the-dark marking disk, start/stop record trigger and other controls, and an OLED screen that displays focus record points A~D, Range switch A-B (the transmitter can also be used attached on the side of the gimbal)

．8-hour runtime off an interchangeable battery

．360° pan, tilt, and roll rotation with increased motion accuracy thanks to 12-bit digital position encoders on each axis

．Tilting motor direct screen design

．Function can be customized 5-way joystick

．Zoom in/out (Sony)

．Camera battery chargeable switching (Sony)

．Record start/stop button

．Photo capture button

．OLED screen on the handle

．Pilotfly APP support (iOS, Android)

1. Focus1 wheel controller with antenna

2. Focus1 Motor with clamp 15mm/19mm and antenna

3. Quick-release adapter for 1/4 screw hole (Adventurer, H2)

4. Hot shoe clamp 15mm

5. Power cable for Adventurer

6. Power cable for H2 series

7. Power cable for D-tap

8. Universal follow focus gear

9. 15mm Carbon tube (Length 16cm)

10. Quick Guide and Warranty Card

11. USB cable

12. Camera control cable x4 (Sony, Panasonic, Canon)

13. Carry case.
