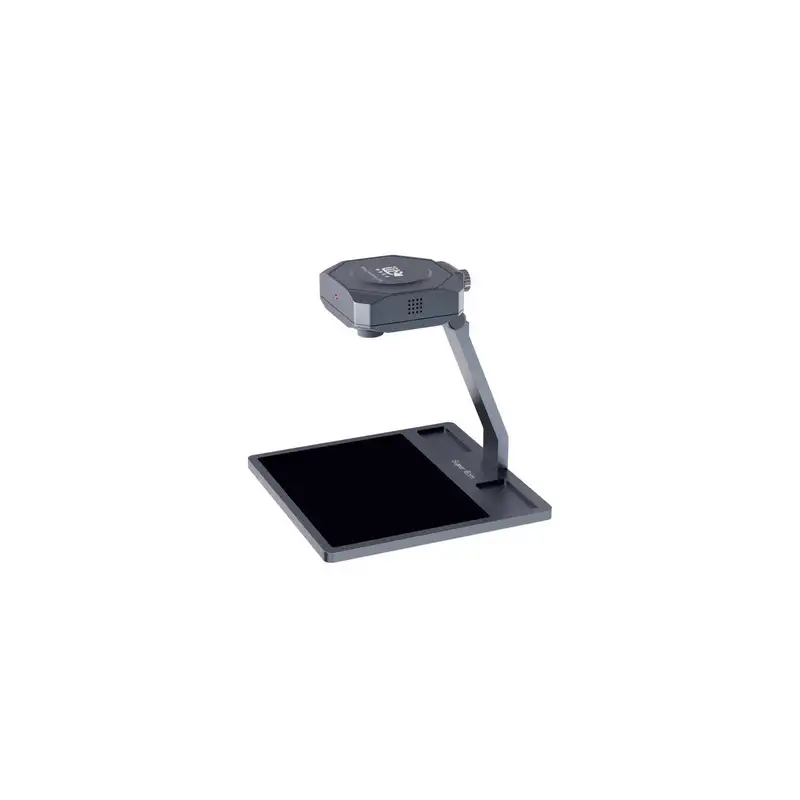

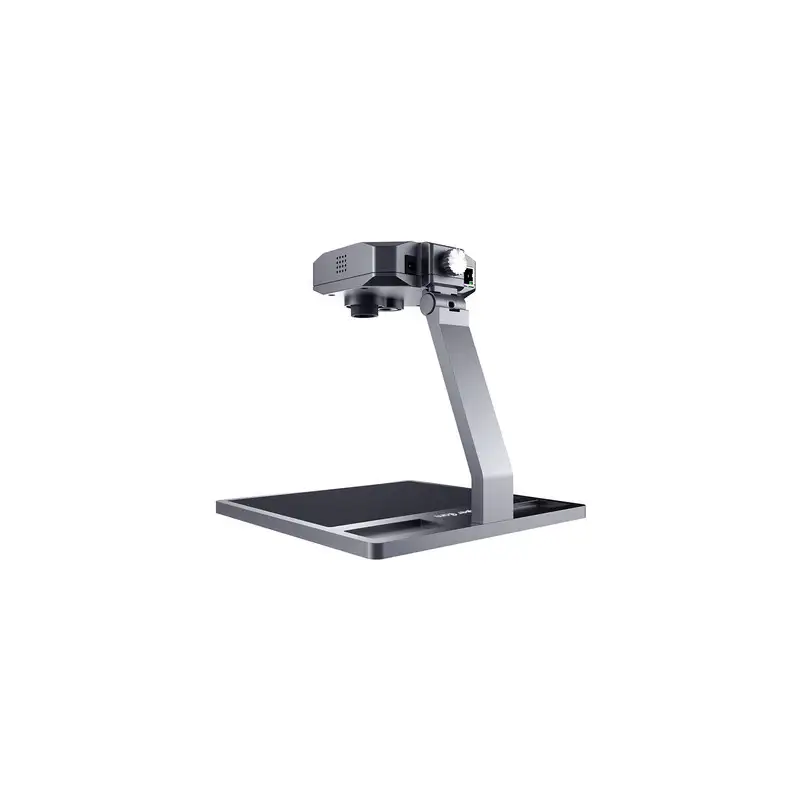

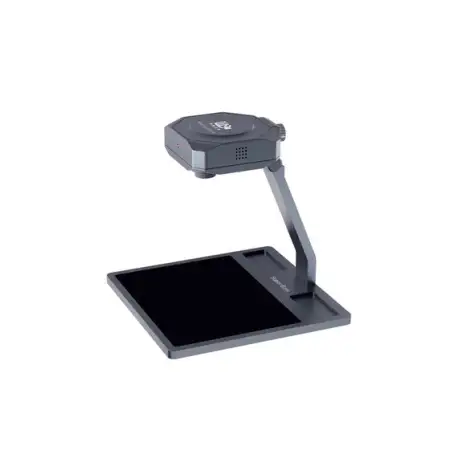

SuperCam Thermal Imager Camera for Mobile Phone PCB Troubleshoot

Motherboard detection:

• Use one-button power cord to supply power to the motherboard, adjust the display mode to thermal imaging mode, and enable the software quick check function to detect faulty parts.
• Optional network cable to USB interface adapter
• It can be connected to the computer USB interface through the adapter, which is more convenient to use and avoids the network cable interface being occupied.

Feature:

1. Maximum temperature range
2. Test area maximum temperature
3. Test area minimum temperature
4. Minimum temperature range

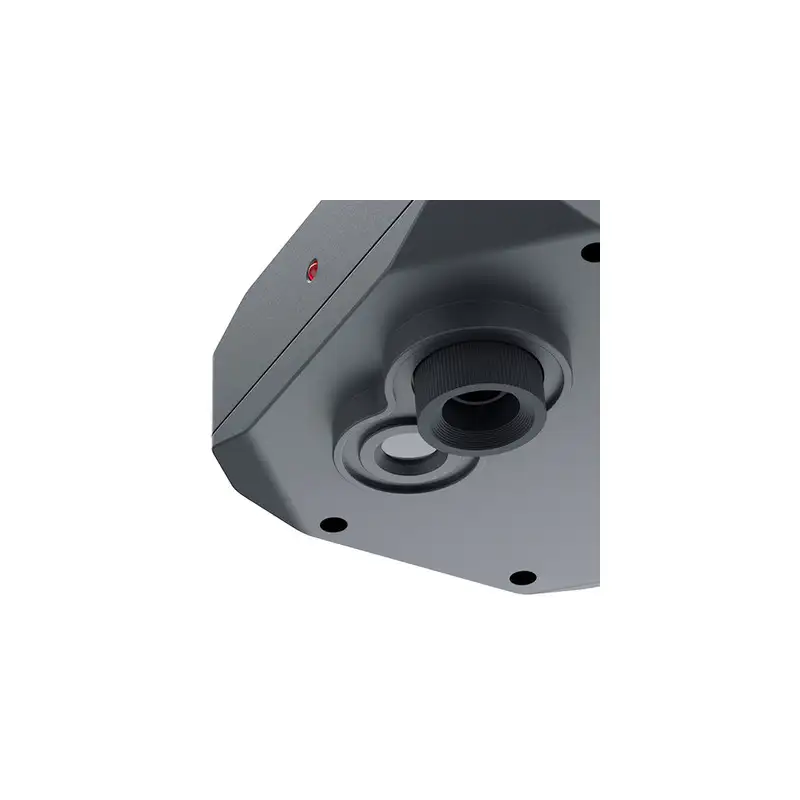

5. Can adjust the angle of the visible light camera
6. Adjustable fusion of infrared thermal imaging and visible light image is clearer image
7. Switchable display mode
8. You can capture pictures taken by PCB and save the data of infrared imaging.
9 can record images taken by PCB and save data of infrared thermography
10. Turn on quick check to quickly find the hottest place

Packing List:

• Thermal Imaging Host
• Thermal Imaging Holder
• Thermal Imaging Base
• Power Adapter
• Network Cable
