  5. 2023 Polygon Xtrada 5 - Hardtail Mountain Bike
Discounted!

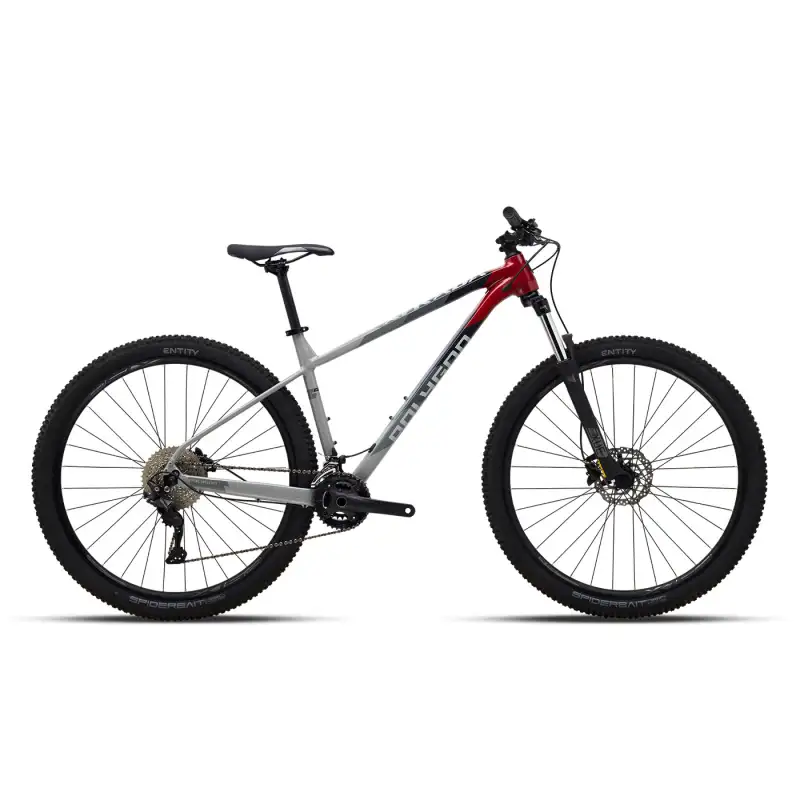

2023 Polygon Xtrada 5 - Hardtail Mountain Bike

2023 Polygon Xtrada 5 - Hardtail Mountain Bike

Reference:

Condition: New product

Manufacturer:

ADVENTURE STARTS HERE

Created for chasing endless tracks,As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
Features :

21 Items

$486.36

-12%

$552.68

More info

Specifications:

Frameset : ALX XC TRAIL

Fork : SR SUNTOUR XCM-HLO 120mm (27.5" & 29") TRAVEL

Rear Shock : -

Frame Color : CHARLESTON - QUICK SLIVER

Decal Color : QUICK SILVER

Shifter : SHIMANO DEORE SL-M5100-L & SL-M4100-R, 2x10-SPEED TRIGGER

Crank :PROWHEEL VORTEX 551-TT BOOST 36/22T, 170mm (S, M) / 175mm (L, XL)

Cassette : SHIMANO DEORE CS-M4100 11-42T

Rear Derailleur : SHIMANO DEORE RD-M4120-SGS DIRECT ATTACH

BB : SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm

Chain : KMC X-10

Pedal : PP FLAT PEDAL W/ REFLECTOR

Saddle : ENTITY VOID, STEEL ø 7mm

Seatpost : ENTITY XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

Handlebar : ENTITY SPORT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree

Handlestem : ENTITY SPORT ALLOY, EXT: 45mm, BAR BORE: 31.8mm, RISE/DROP: 3degree

Headset : ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40

Wheel Set : ENTITY XL2 DISC

Wheel Size : 27.5" / 29"

Tire : ENTITY MIZT 27.5"x2.25" / 29"x2.25"

Hub : F: ALLOY QRx100mm 32H 6-BOLTS / R: ALLOY QRx141mm 32H 6-BOLTS

Brake Lever : TEKTRO HD-M275 HYDRAULIC DISC BRAKES

Brake Caliper : TEKTRO HD-M275 HYDRAULIC DISC BRAKES

Rotor : TEKTRO TR160-24 160mm 6-BOLTS

Geometry & Size:

S (27.5″) M (27.5″) L (27.5″) M (29″) L (29″) XL (29”)
Height (cm) 152-165 162-175 172-185 162-175 172-185 182-195
Seat Tube Length (A) 385 425 460 425 460 500
Seat Tube Angle (B) 75 75 75 75 75 75
Effective Seat Tube Angle (C) 75 75 75 75 75 75
Head Tube Length (D) 95 100 105 95 100 105
Head Tube Angle (E) 67 67 67 67 67 67
Effective Top Tube (F) 569 590 612 598 619 640
Bb Height (G) 310 310 310 309 309 309
Bb Offset (H) 45 45 45 65 65 65
Chainstay Length (I) 425 425 425 435 435 435
Wheelbase (J) 1106 1128 1150 1147 1169 1191
Frame Reach (K) 410 430 450 430 450 470
Frame Stack (L) 593.8 5993 603 629.3 633.2 637.8
Standover Height (M) 663 597 726 693 715 751
