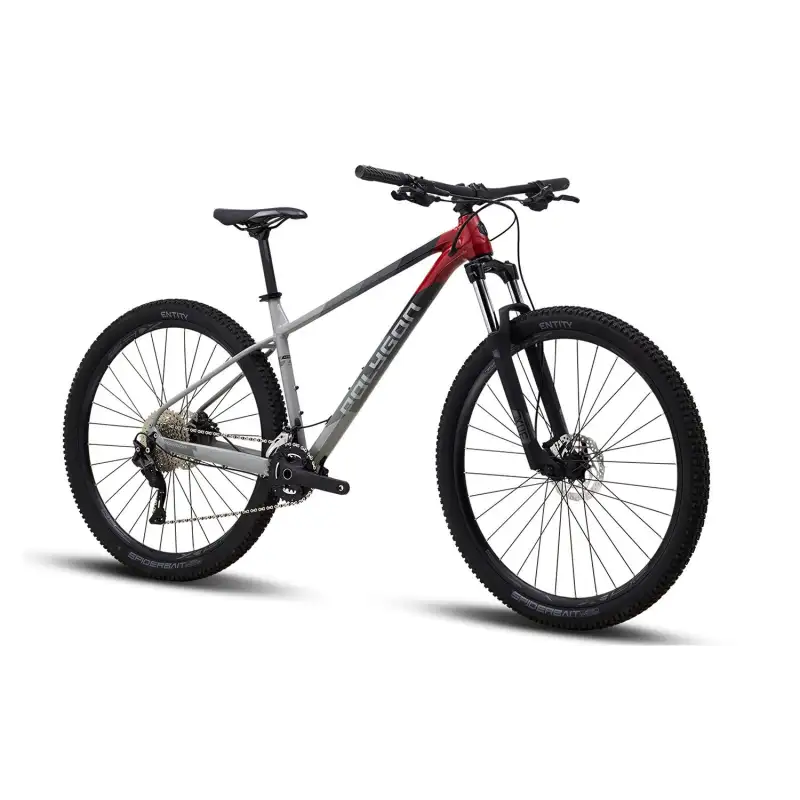

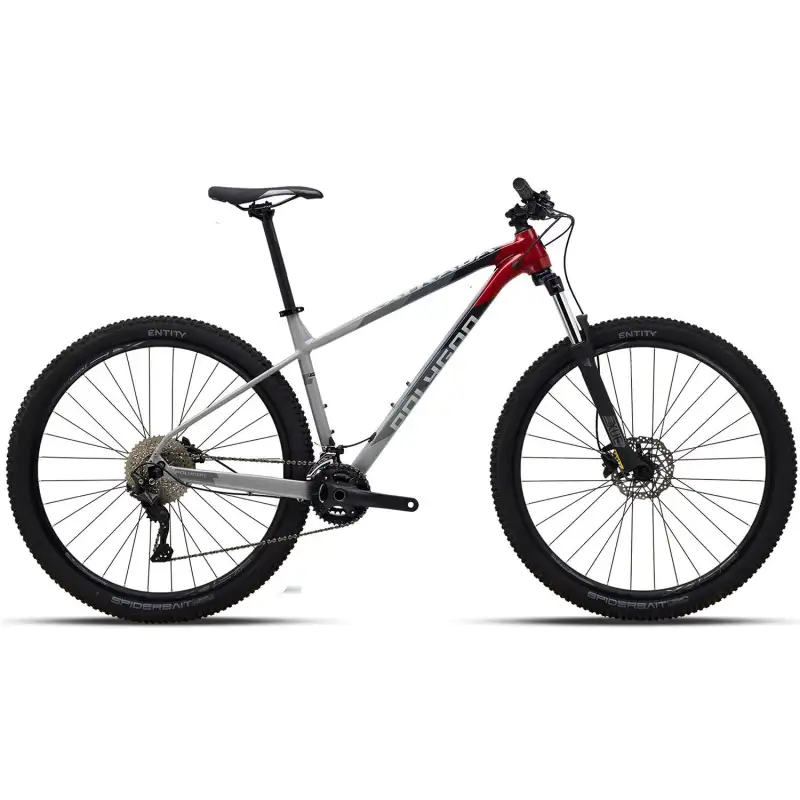

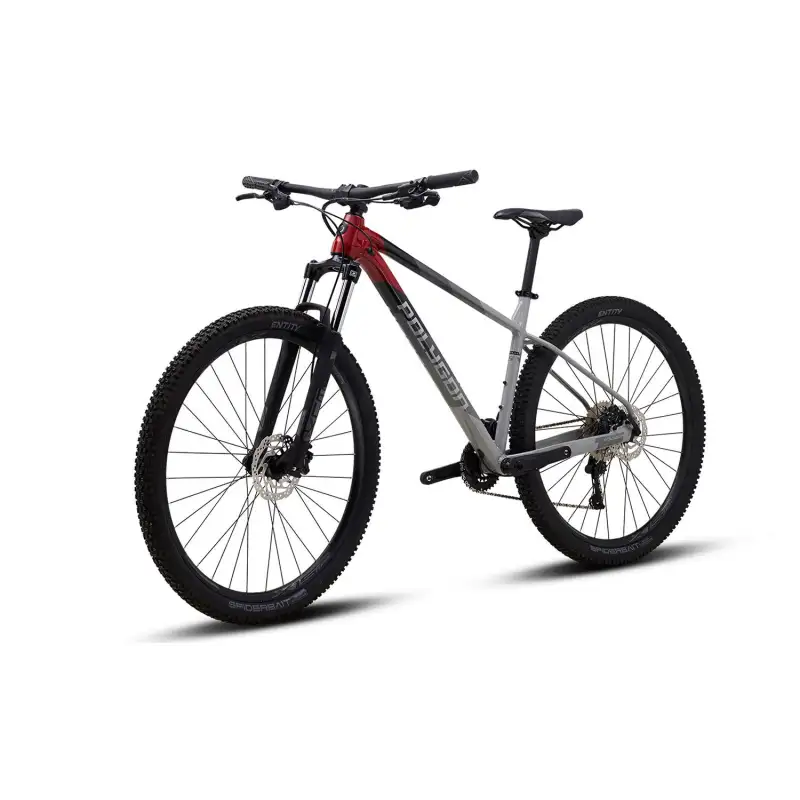

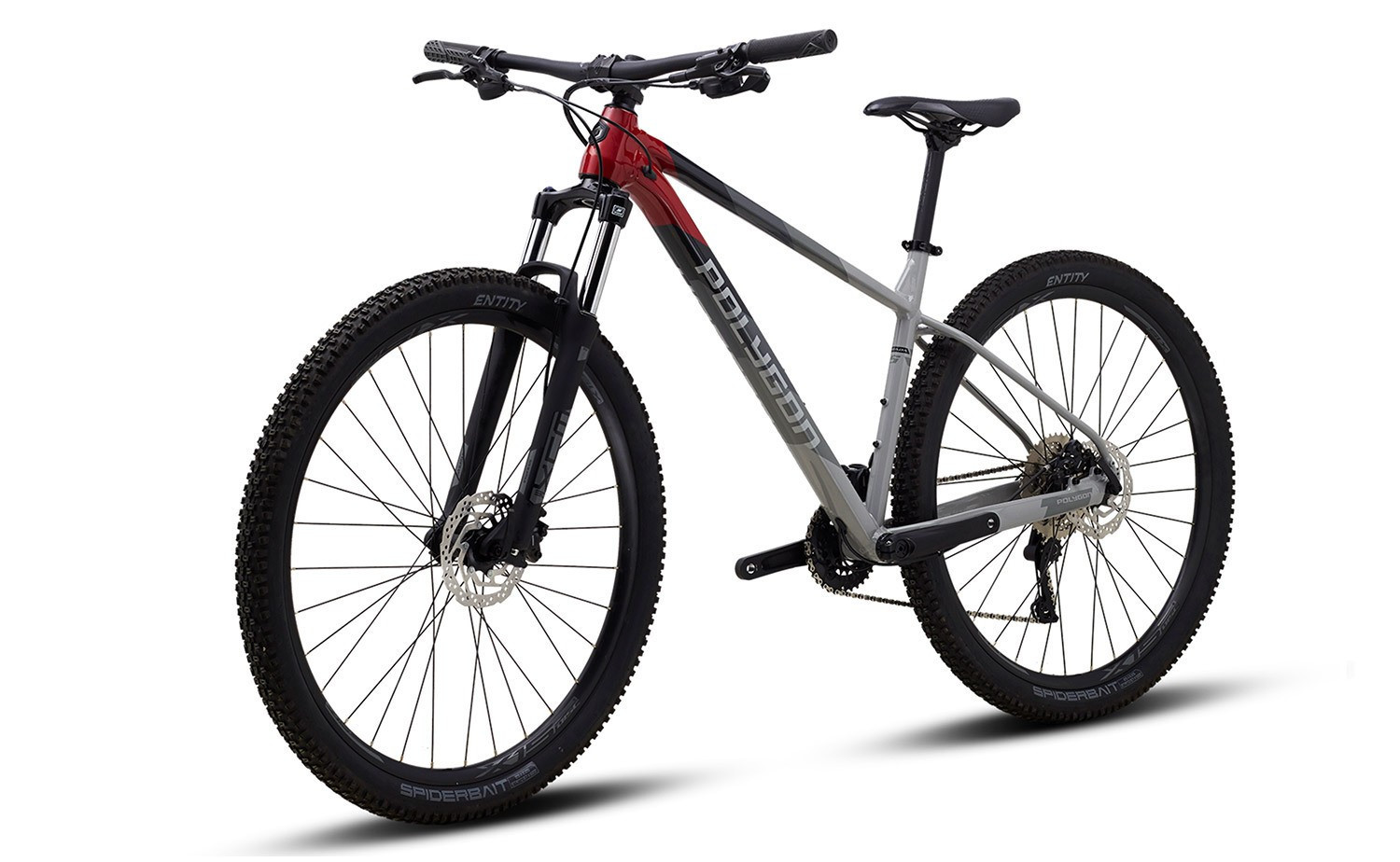

2022 Polygon Xtrada 5 Hardtail Mountain Bike - M - 27.5 Inches

Reference: BG0052-9864418

Condition: New product

Features:

SUNTOUR XCM HLO 120MM FORK
SHIMANO DEORE M4100 2X10 SPEED DRIVETRAIN
TEKTRO M275 HYDRAULIC DISC BRAKES
ALX XC SPORT ALUMINUM FRAME
MODERN XC GEOMETRY
INTERNAL CABLE ROUTING
LIFETIME WARRANTY ON FRAME

Finance:
Easy Credit and Debit Card EMI options from all major Credit and Debit Card providers*

Get essential accessories worth over 50 USD* absolutely free!! + Tuneup vouchers worth 25 USD* with every unit purchased!!

Free accessories shipped with this product are:

1. PRO BIKE TOOL CO2 Inflator (any color) + Co2 Cartridge (1 nos)

2. Entity RC15 Waterproof Bicycle Cover for Mountain Bikes

3. Entity ST30 Frame Protection Sticker Kit

4. Entity WB600 Water Bottle + Entity BC45 Side-Pull Bottle Cage Bundle.

* Accessories cannot be exchanged for other products or services, however you can choose color combinations (if available), you also have the option of waiving the free accessories bundle and ask for its equivalent value to be donated to a charity of your choice worldwide.

* Tune up vouchers are redeemable at any service center of your choice worldwide and are made available on the date of delivery.

4 Item Items Warning: Last items in stock!

$752.11

-12%

$854.67

Quantity

More info

ALX XC SPORT ALUMINUM FRAME

Ligh & durable, butted and hydroformed 6061 aluminum frame features 73mm threaded bottom bracket, internal cable routing and Boost 141 rear axle for increased wheel strength & better tire clearance.

MODERN XC GEOMETRY

Using the most of the modern features, Xtrada models utilise slack head tube and steep seat tube angle to ensure that the bike handles perfectly and travels effortessly up and down the mountain.

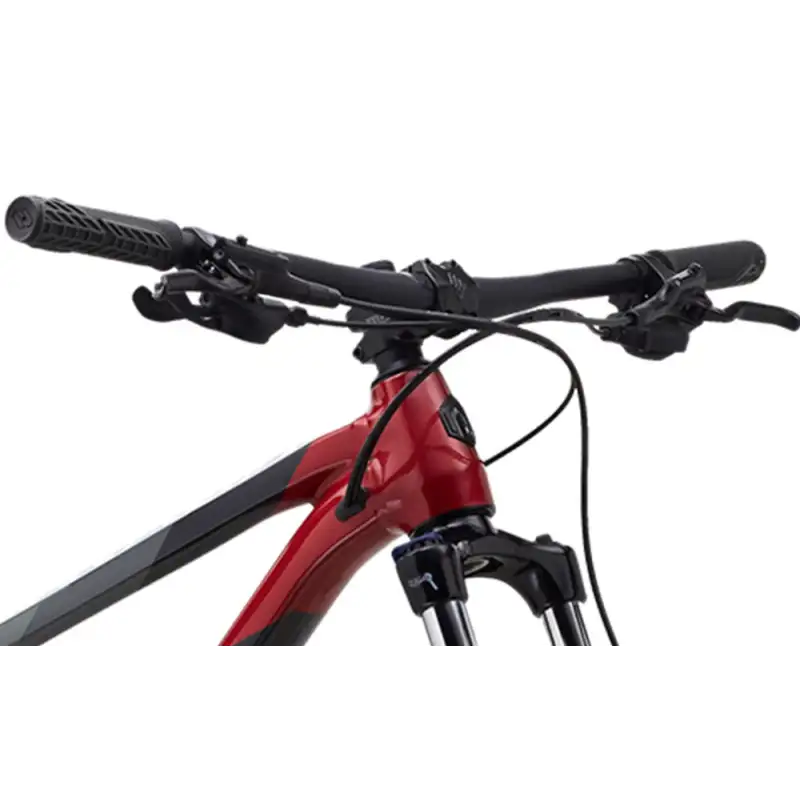

INTERNAL CABLE ROUTING

Xtrada models use full internal routing with all-new internal cable routing system, providing a clean and rattle free cable set up.

SPEC HIGHLIGHTS

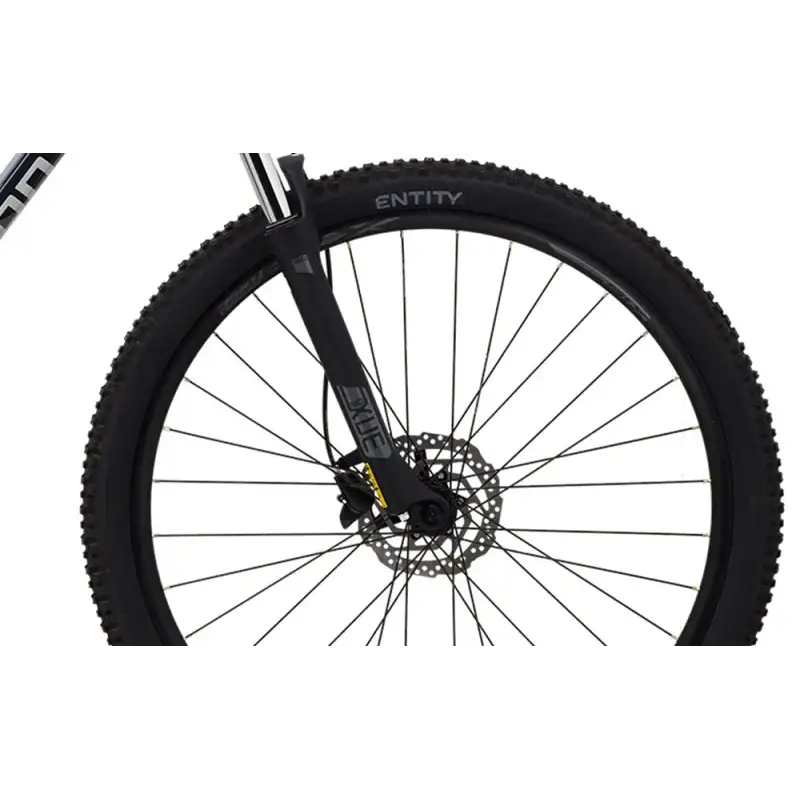

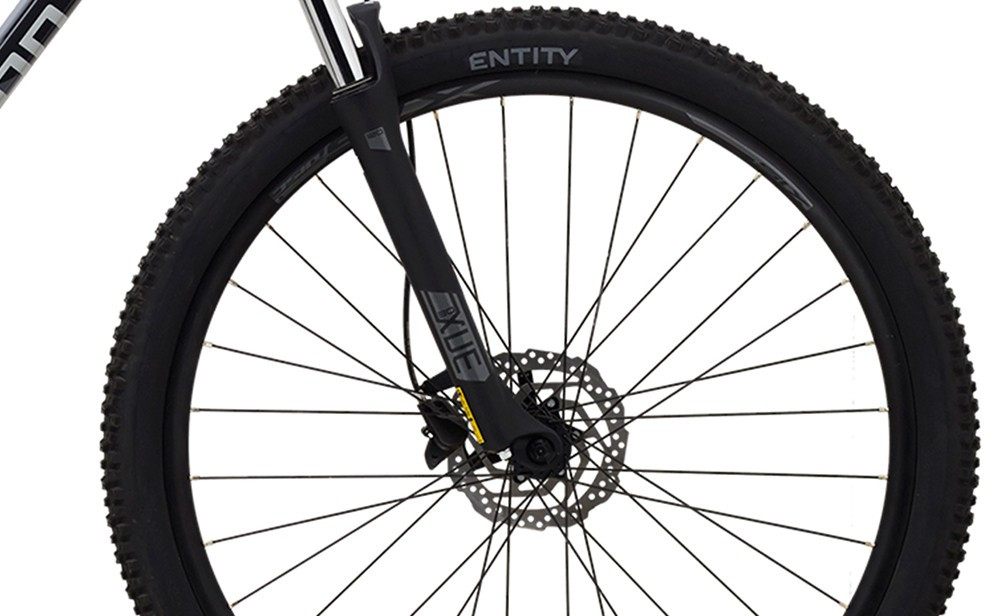

SUNTOUR XCM HLO 120MM FORK

With 120mm of travel available, the XCM glides over small trail imperfections with ease and can be lock anytime on smooth surfaces.

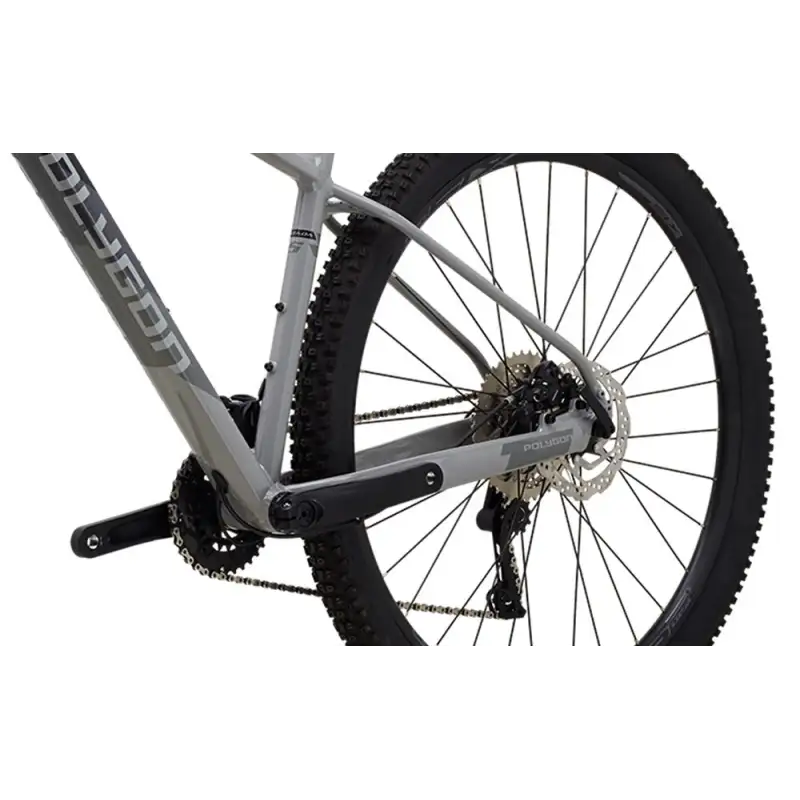

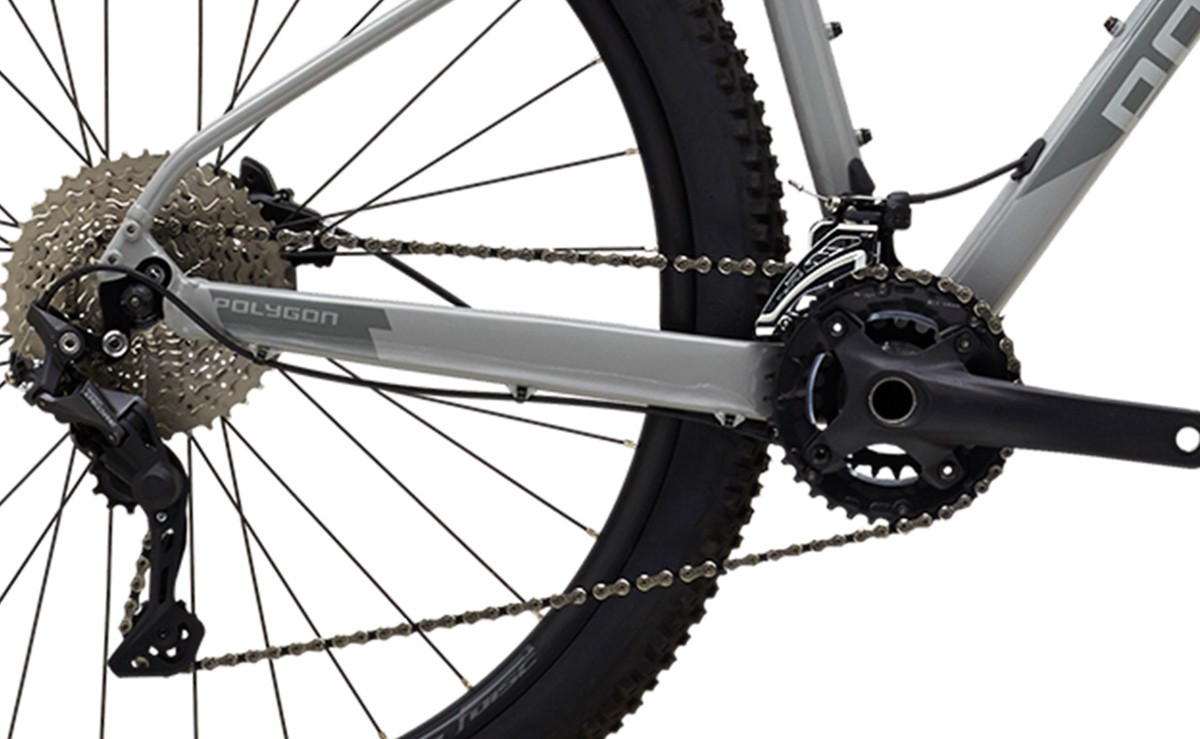

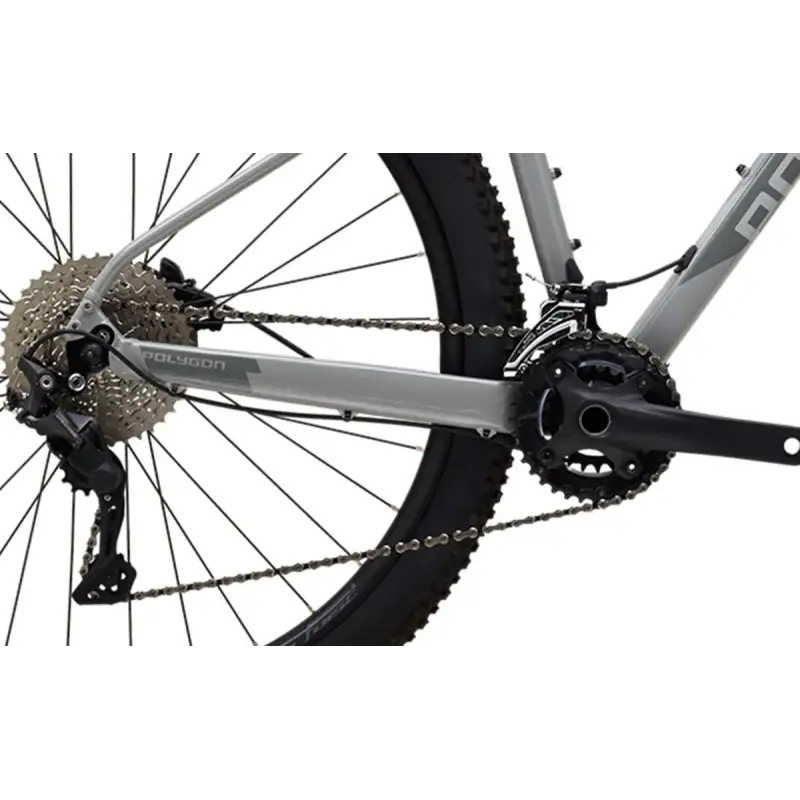

SHIMANO DEORE M4100 2X10 SPEED DRIVETRAIN

The new and easy-to-use Deore groupset guarantees quick and precise shifting over its 2x10 wide-range gears combined with 11-42t cassette.

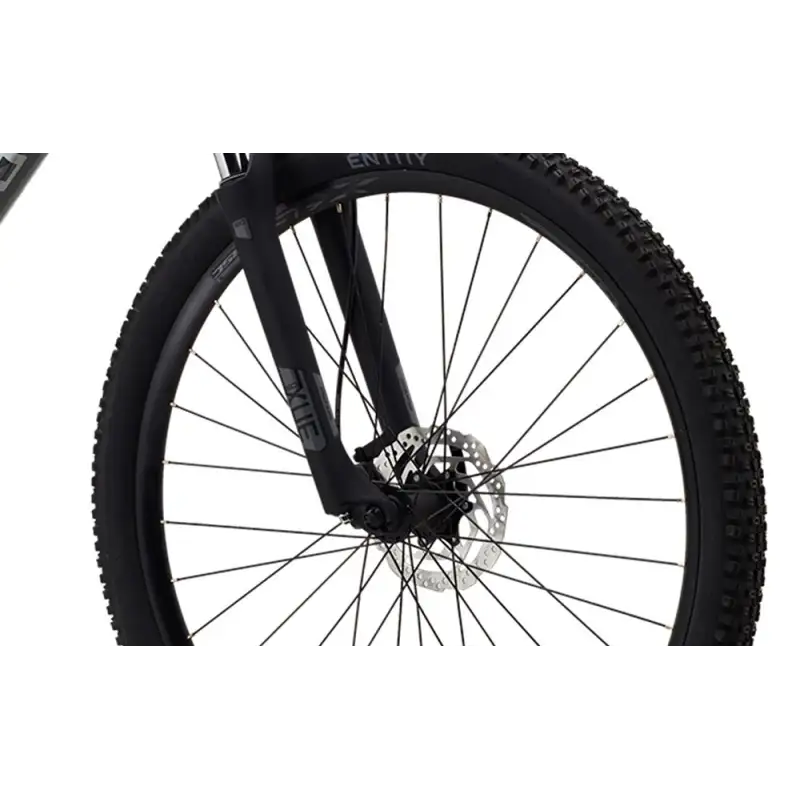

TEKTRO M275 HYDRAULIC DISC BRAKES

More braking power and modulation on your fingertips.

LIFETIME WARRANTY ON FRAME

So, you're new to mountain biking and want a high-value bike with progressive modern geometry that's perfect for local XC trails, racing or multi-day adventures? The new 2022 Xtrada is the ticket to all of it - a versatile, capable and lightweight aluminum hardtail bike that will take you anywhere you want to go.

Xtrada’s new lightweight frame features high-performance Hydroformed 6061 Aluminum, extensive weight-saving butting and super-smooth welds with internal cable routing, giving you clean looks, cable protection thus allowing easy upgrades such as a dropper post for even more capability. The Xtrada frame has been designed around Polygon's Wheel Fit Size System whereby each frame size is paired with the wheel size that best fits the rider and sets them up for optimal efficiency and power transfer. We pair 29er wheels with 18.5" and larger bikes, and more proportional, better-fitting 27.5-inch wheels for 17.5" and smaller bikes.

The Xtrada series features a 120mm forks for a controlled, engaging, smooth ride. This travel is the sweet spot for modern cross-country riding and can handle steep climb and challenging descents. Spec'd with Shimano Drivetrains, you can be assured that performance is not compromised and that confidence is had in every ride!

The 2022 Xtrada is a great cross-country mountain bike with a lightweight frame, modern handling creating a lively, stiff, and most of all, fun ride.

Specifications:

Note: Occasionally, without notice, manufacturers change product design and/or specifications.

Sizing and Geometry

	S	M	M	L	XL
Wheel Size	27.5"	27.5"	29"	29"	29"
Rider Height	5'1" - 5'5"	5'5" - 5'8"	5'5" - 5'8"	5'8" - 6'1"	6'1" - 6'4"
(A) Stack	593	599	629	633	637
(B) Reach	410	430	430	450	470
(C) Head Tube Angle	67°	67°	67°	67°	67°
(D) Head Tube Length	95	100	95	100	105
(E) Seat Tube Angle	75°	75°	75°	75°	75°
Seat Tube Angle Effective	75°	75°	75°	75°	75°
(F) Seat Tube Length	385	425	425	460	500
(G) Top Tube Effective	569	590	598	619	640
(H) Bottom Bracket Height	310	310	309	309	309
(I) Bottom Bracket Offset	45	45	65	65	65
(J) Chainstay	425	425	435	435	435
(K) Wheel Base	1106	1128	1147	1169	1191
(L) Standover Height	663	697	693	715	751
Fork Travel	120	120	120	120	120
Handlebar Width	760	760	760	760	760
Stem Length	45	45	45	45	45
Crank Length	170	170	170	175	175

* All lengths in mm

MODEL	2022 Xtrada 5 2x10
FRAME	ALX XC Sport 6061 Aluminum Frame, Smooth Welding Technology, Internal Cable Routing, Tapered Headtube, 73mm Threaded Bottom Bracket, Boost QR Rear Axle 141mm
FORK	Suntour XCM-HLO, 120mm Travel, Preload Adjuster, Hydraulic Lock Out, QR Axle 100mm, Straight 1-1/8" Threadless Steerer
HANDLEBAR	Entity Sport
STEM	Entity Sport, 31.8mm Clamp
HEADSET	Threadless, ZS 44/28.6 \| ZS 56/40
SADDLE	Entity Void

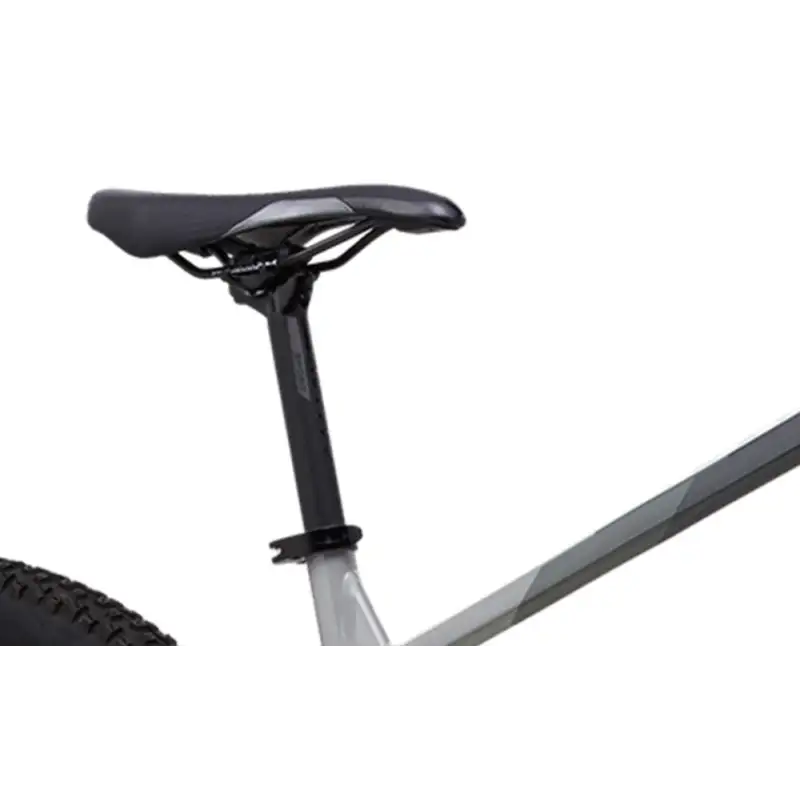

SEATPOST	Entity Sport, 27.2x350mm, 15mm Offset
CRANKSET	Prowheel, Vortex 551-TT-B 36-22T 10-Speed
BOTTOM BRACKET	BSA Threaded 73mm
CHAIN	KMC X-10 10-Speed
CASSETTE SPROCKET	Shimano Deore CS-M4100 11-42T 10-Speed
FRONT DERAILLEUR	Shimano Deore FD-M4100-E Type 2x10-Speed
REAR DERAILLEUR	Shimano Deore RD-M4120 10-Speed
SHIFTING LEVER:	Shimano Deore SL-M5100/SL-M4100 2x10-Speed
BRAKES	Tektro HD-M275 Hydraulic Disc
ROTOR	Shimano SM-RT10 160mm
TIRE	Entity Mizt 2.25" *
RIMS	Entity XL15 Disc, Double Wall Alloy Rims, 24mm Internal Width, Tubeless Ready **
FRONT HUB	QRx100mm 32H Center Lock, Alloy
REAR HUB	QRx141mm 32H 32H Center Lock, Alloy
PEDALS	Standard flat pedal
WEIGHT	31.5lbs (29" XL)
	* Not tubeless compatible ** Tubeless tape and valves sold separately.

Model Comparison Chart


	Xtrada 5 2x10	Xtrada 6 1x11	Xtrada 7 1x12
FORK	Suntour XCM-HLO, Hydraulic Lock Out	Suntour XCR 32 LO-R/ RST Omega, Hydraulic Lock Out	Suntour XCR 32 Air LOR, Air Spring
DRIVETRAIN	Shimano Deore M4100 2x10-Speed	Shimano Deore M5100 1x11-Speed	Shimano Deore M6100 1x12-Speed
CRANKSET	Prowheel Vortex 36/22T	Shimano FC-M5100-1 32T	Shimano FC-MT-510-1 32T
CASSETTE	11-42T 10-Speed	11-51T 11-Speed	10-51T 12-Speed Microspline
HUB FRONT/REAR	QR 100mm / 141mm	QR 100mm / 141mm	Thru-Axle 15x100 / 12x148mm
WEIGHT	31.5lbs	30.6lbs	29.5lbs
PRICE	From $719.00	From $849.00	From $1,099.00

Transit packing & crating for bikes:

Your bike will arrive in a custom VirtusFab bike guard box.

Bikes under Finance/EMI's:

*EMI's at the sole discretion of finance providers.
*Shipping will be initiated after finance authorization only.

Warranty Coverage:

Polygon warranty only covers bike frame and non-suspension fork.
ENTITY-branded parts and electricity components equipped on E-bike.
Paint and stickers are not covered in warranty.
Warranty does not cover wear items such as: bearings, bushings, tires, tubes, rims, brake pads, brake and shifter cables-casings-hose, chains, gears, handle grips, bar tapes, and saddles which are subject to varying wear life depending on use, load, weather, road conditions etc.

(*) Premature wear or defect will be taken into account in any claim involving a wear item.
