KEY FEATURES

UK MADE ALL VALVE AMPLIFIER

Just like the original that kicked off the Marshall crunch revolution and changed the face of modern amplifiers forever.

POWER REDUCTION

Switch between 20W and 5W power to capture that huge tone at home, studio or stage.

AUTHENTIC JCM800 2203 TONE

Featuring the master volume control and series FX loop, so you can recreate that signature sound.

PORTABLE

Iconic tone scaled down into an easily movable frame.

PRODUCT SPECIFICATIONS

PRODUCT CODE: 70/SC20C

PRODUCT BRAND: Marshall

DESCRIPTION:

The Marshall JCM800 2203 is a certified beast — it’s the tone that defined heavy metal. The Studio Classic takes that incendiary tone and packs it into a 20-watt combo. It conjures up everything from rich and full cleans to high-gain mayhem, but in an amp you can carry with one hand. The Studio Classic is loaded with all the player-friendly features you need, including a master volume, 3-band EQ with Presence control, preamp volume, effects loop, and DI output. You also get a power reduction circuit for attaining cranked-up tones without violating a noise ordinance. When you want JCM800 tone but aren’t rocking in an arena, reach for the Studio Classic — it delivers the goods.

ELECTRONICS

Output wattage: 20W (with power reduction option to 5W)

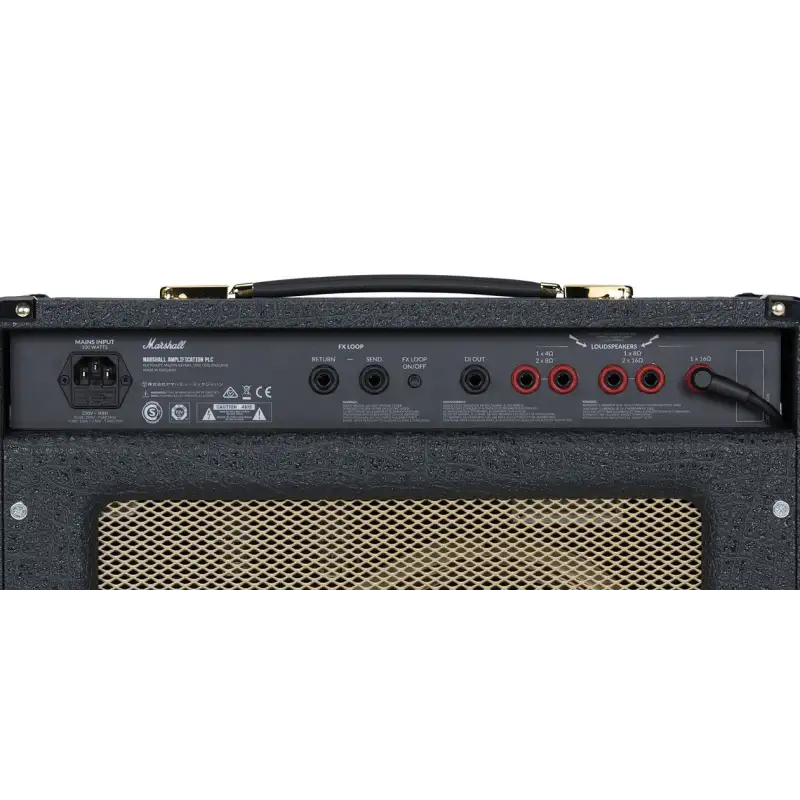

Outputs: 5 x 1/4” jack sockets, selectable 16O / 8O / 4O load
Inputs: 2 x 1/4" jack instrument inputs (high/low sensitivity)

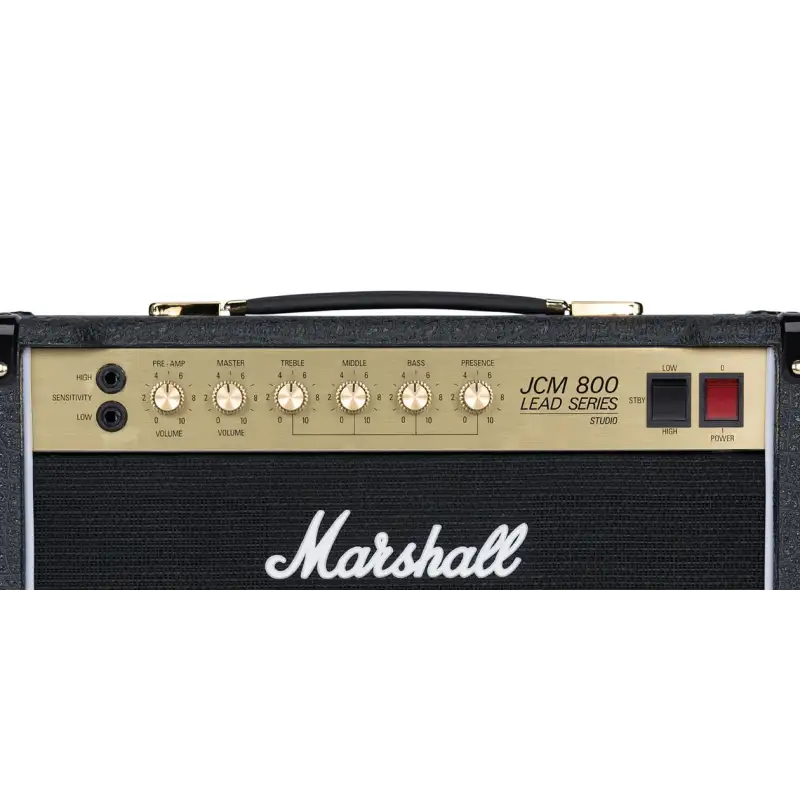

Controls: Presence, bass, middle, treble, master volume, preamp volume
Effects: None
Effects: loop, Yes, series, send/return

SPEAKERS

Speaker configuration: 1x10"
Speaker model: Celestion V-type 10” (16O, 50W)
Unit impedance: 16O

VALVES

Preamp valves: 2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves: 2 x EL34

ACCESSORIES

Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

Weight: 14.55 kg / 32 lbs
Width: 510mm / 20.1"
Height: 460mm / 18.1"
Depth: 255mm / 10"

WEIGHT

Shipping Weight: 17.15kg
