iFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC for

iFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC for X-Class RC Drone FPV Racing

Reference: BG0052-9652103

Condition: New product

97 Items

$55.53

More info

iFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC for X-Class RC Drone FPV Racing

Introduction:
- SucceX X80A 32bit BLHeli Dshot1200 Single ESC was designed to give your motors smooth power
   with great stability and durability.
- The 32bit 48mHz STM32F051K66 MCU and total 240UF Low ESR capacitors
   bring faster-responding speed and smoother flying experience.

- The optional heatsink effectively pulls heat away from the MOSFET, protecting the critical parts of your ESC.40*17mm size,
   rational layout design with high extended solder pads ensured easy fixes or adjustments.

Specification:

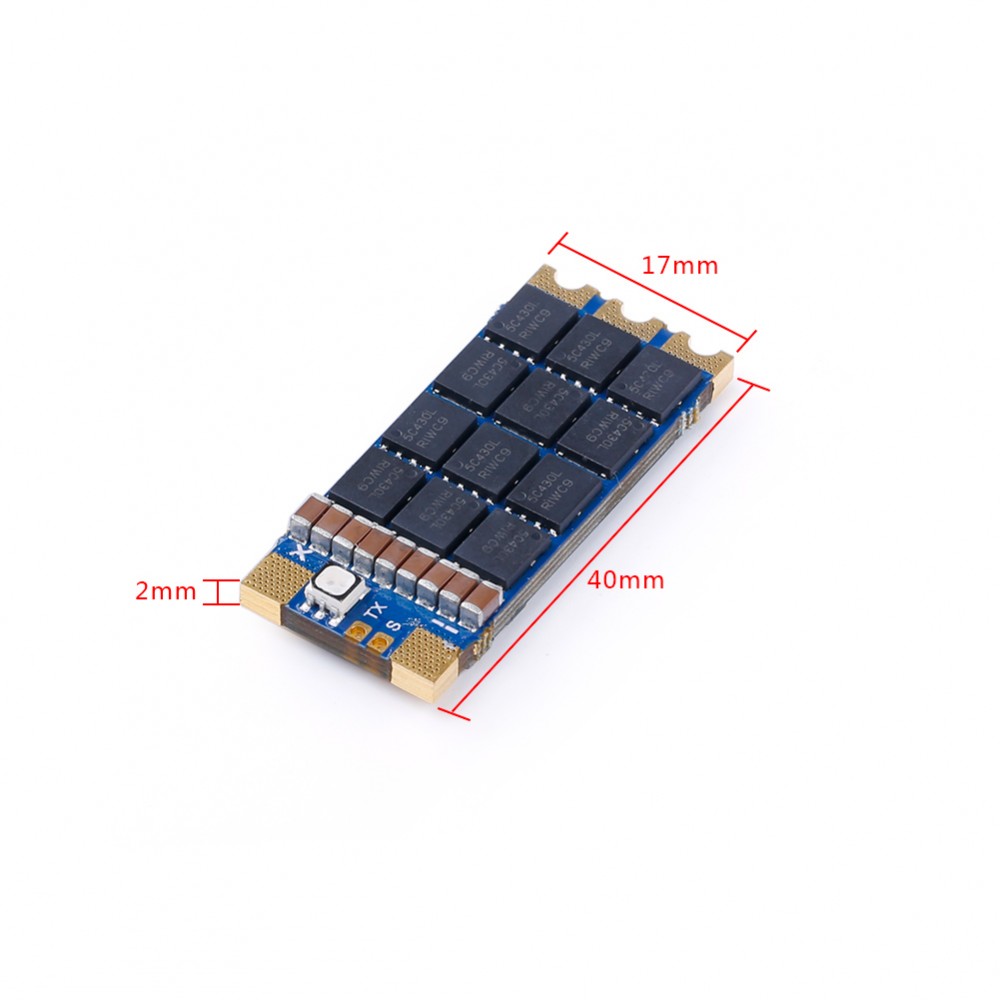

Dimension: 40*17mm

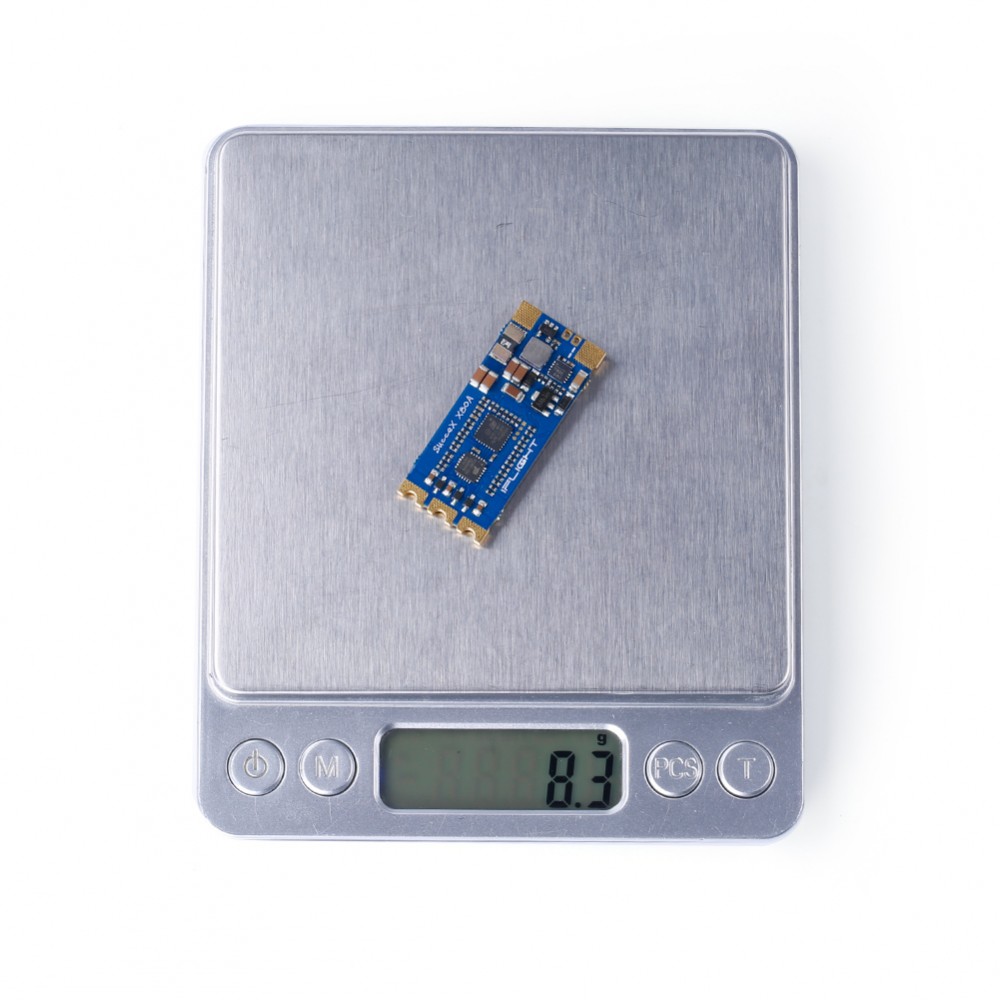

Weight:8.3g without wire
Supports 2-8S lipo input
STM32F051K66 MCU, 48Mhz Runs BLHELI 32.X Firmware
Capacitance: total 240UF Low ESR
Telemetry noutput
BEC: No
Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
Target: iFlight-BL32-PRO
Support:
- Current Sensor
- Telemetry output
- Motor Timing
- Brake on Stop

Features:
- 2-8S input (max 10S 50V)
- 48mHz running speed integrated 3 in 1 STM32F051K66;
- 80A 8 layers 4OZ copper PCB, better operating load capacity;
- Total 420UF Low ESR capacitors, lower ripple and more stable;
- Top grade NTMFS5C430NL MOSFET, stable and reliable;
- 1 * 3528 LED for power- on display;
- Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Package Included:

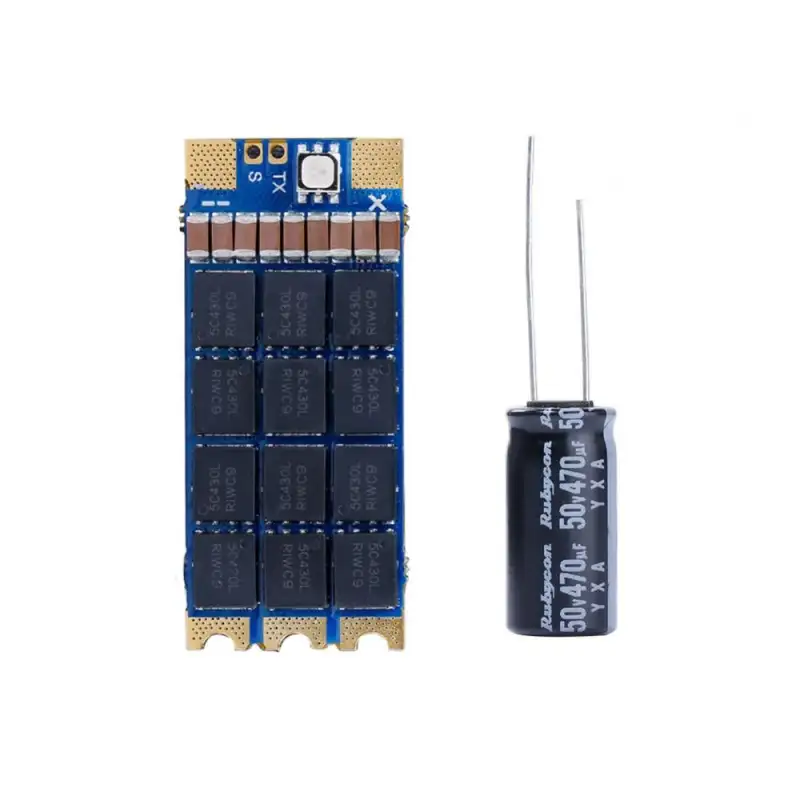

1x SucceX X80A  ESC
1x 50V 470uf capacitor
1x Set of Power cables & ESC signal wires



iFlight-SucceX-X80A-80A-BLheli_32-2-8S-DShot1200-ESC-for-X-Class-RC-Drone-FPV-Racing-1522974
iFlight-SucceX-X80A-80A-BLheli_32-2-8S-DShot1200-ESC-for-X-Class-RC-Drone-FPV-Racing-1522974
iFlight-SucceX-X80A-80A-BLheli_32-2-8S-DShot1200-ESC-for-X-Class-RC-Drone-FPV-Racing-1522974
iFlight-SucceX-X80A-80A-BLheli_32-2-8S-DShot1200-ESC-for-X-Class-RC-Drone-FPV-Racing-1522974
  • Brand: iFlight
  • RC Drone Spare Parts: ESC
Precise details>>

Precise details:

iFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC for X-Class RC Drone FPV Racing

Introduction:
- SucceX X80A 32bit BLHeli Dshot1200 Single ESC was designed to give your motors smooth power
   with great stability and durability.
- The 32bit 48mHz STM32F051K66 MCU and total 240UF Low ESR capacitors
   bring faster-responding speed and smoother flying experience.

- The optional heatsink effectively pulls heat away from the MOSFET, protecting the critical parts of your ESC.40*17mm size,
   rational layout design with high extended solder pads ensured easy fixes or adjustments.

Specification:
Dimension: 40*17mm
Weight:8.3g without wire
Supports 2-8S lipo input
STM32F051K66 MCU, 48Mhz Runs BLHELI 32.X Firmware
Capacitance: total 240UF Low ESR
Telemetry noutput
BEC: No
Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
Target: iFlight-BL32-PRO
Support:
- Current Sensor
- Telemetry output
- Motor Timing
- Brake on Stop

Features:
- 2-8S input (max 10S 50V)
- 48mHz running speed integrated 3 in 1 STM32F051K66;
- 80A 8 layers 4OZ copper PCB, better operating load capacity;
- Total 420UF Low ESR capacitors, lower ripple and more stable;
- Top grade NTMFS5C430NL MOSFET, stable and reliable;
- 1 * 3528 LED for power- on display;
- Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Package Included:
1x SucceX X80A  ESC
1x 50V 470uf capacitor
1x Set of Power cables & ESC signal wires
