Spektrum AR20310T 20CH PowerSafe Integrated Telemetry RX SPMAR20310T

This is the Spektrum AR20310T 20-channel PowerSafe integrated telemetry receiver. The AR20310T PowerSafe receiver is a feature-packed 20-channel receiver with integrated full-range telemetry. Each unit comes with built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options.

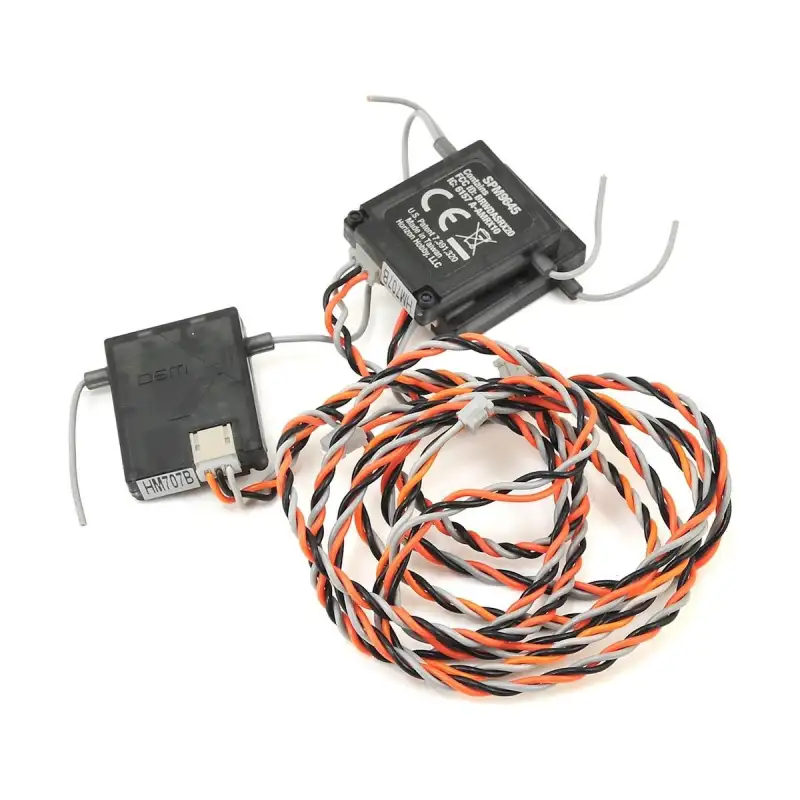

If you have a DSMX/DSM2 transmitter capable of 11ms frame rates, the AR20310T will deliver lightning-fast input-to-output responses that are perfect for high-performance applications such as aggressive 3D, IMAC, and Turbine Airplanes. Each receiver includes 2 remote receivers that take advantage of Spektrum MultiLink technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

A ground-breaking feature introduced on the AR20310T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery. Current Gen 2 radio firmware already supports this function. Also, as with most of the current receiver line up, these features a bind button that gives pilots an easy alternative to the age old bind plug.

Features:

• Sensor port allows the receiver to be upgraded with future Spektrum add-ons
• Compatible with all Spektrum DSM2 and DSMX transmitters

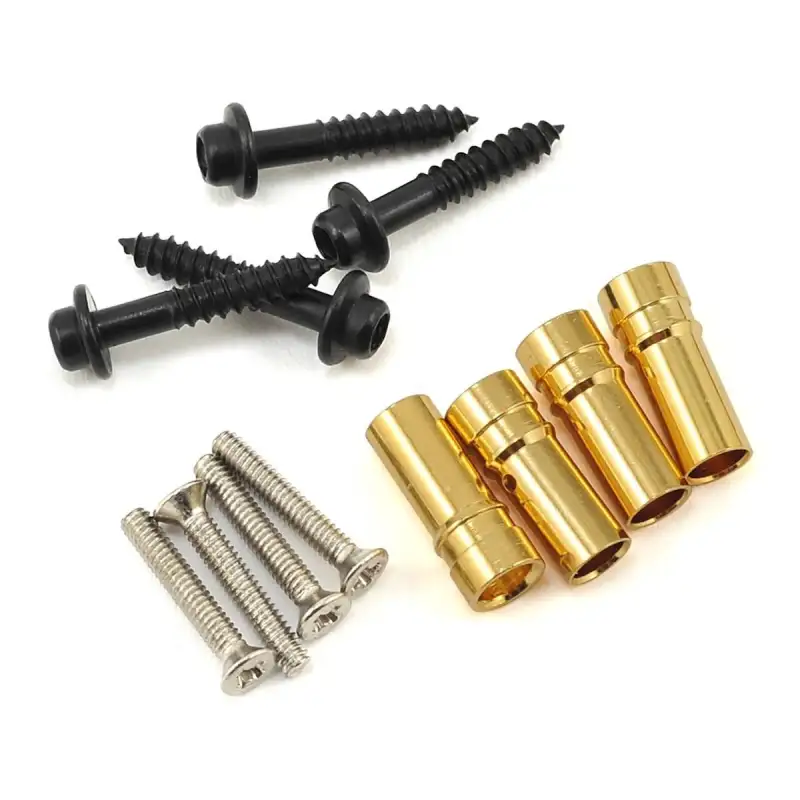

• Rubber grommet hard mounts and minimalistic labeling helps produce the cleanest model setups
• Capable of 11ms frame rates
• Binding is easier than ever by Binding through a button or familiar bind plug
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
• Receiver pack energy & voltage sensor and flight log data available without the need for additional sensors

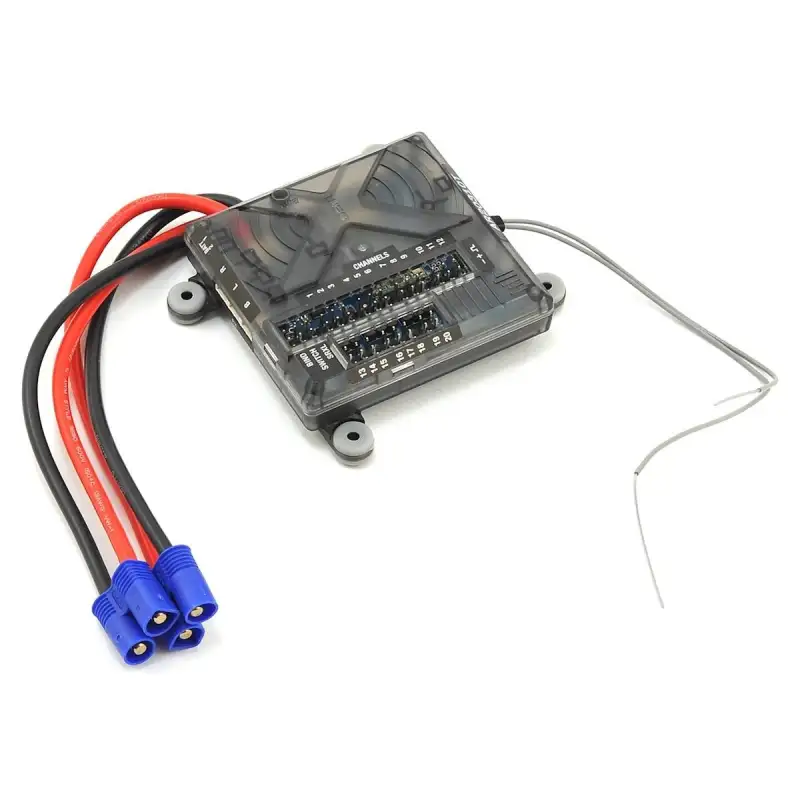

• PowerSafe redundancy system with dual 13 AWG battery leads with EC3 connectors. Perfect for power hungry aircraft and high current applications
• Not compatible with DSM2 AIRMOD JR Module

Specs:

Antenna Length: (1) - 6”, (1) - 7”
Band: 2.4GHz
Bind Method: Bind Button
Channels: 20
Data Port: Yes
Dimensions (WxLxH): 61.03 X 64.31 X 16.29mm
Failsafe: Yes
Flight Log Compatible: Yes
Governor: No
Input Voltage: 3.5-10V
Modulation: DSMX,DSM2
Number of Receivers: 4
Range: Full
Resolution: 2048
Rev Limiter: No
Telemetry: Yes
Type: AR20310T 20 Channel PowerSafe Telemetry Receiver
Water-Resistant: No
Weight: 59.5g
XPlus Compatible: Yes
