Autel Robotics Live Deck for EVO Drones
Reference: BG0052-9079710
Condition: New product
Delivery on: Jun 10 2026
- For Autel Robotics EVO Drones
- Receiver Displays EVO Video in Real Time
- Connect a Monitor, PC, or Phone
- Receives Video from up to 4.4 Miles Away

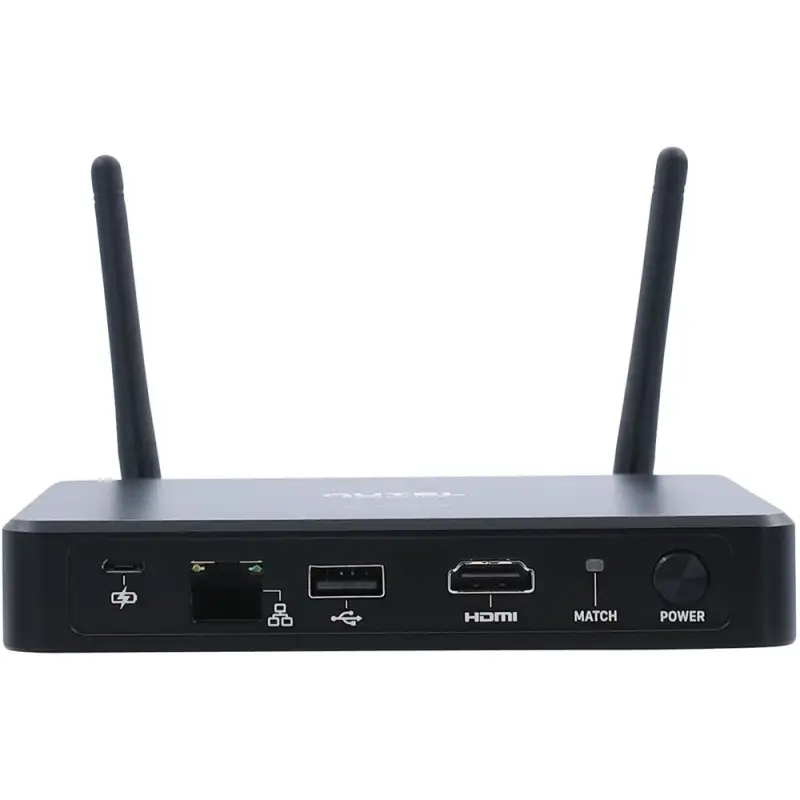

- 1 x HDMI / 1 x USB Type-A / 1 x Ethernet
- Displays Footage at 1080p/60 fps
- 5000mAh LiPo Battery for Portability
- One-Button EVO Drone Pairing
- Drop & Shock Protection
- Dual 2.4 GHz Antennas
6 Items
More info
Monitor your EVO's streaming video footage in real time with the Live Deck for EVO Drones from Autel Robotics. Normally a drone's streaming camera footage is displayed in FPV goggles or on the pilot's controller display, but with the Live Deck, you can display that footage on a Windows or Mac computer, smartphone, or over your local network.
With the press of a button, the Live Deck is engineered to pair with your EVO drone. To view the footage, just plug in a monitoring device (not included) into the available HDMI, USB, or Ethernet ports. Video is displayed at full HD 1080p/60 fps resolution from up to 4.4 miles away thanks to two built-in receiving antennas.
Additional Features
Wireless design features a built-in 5000mAh LiPo battery
| Outputs | 1 x HDMI 1 x USB 1 x Ethernet |
| Video | 720p/60 fps (H.264) 1080p/60 fps (H.264) |
| Maximum Transmission Distance | 4.4 Miles / 7 km |
| Operating Frequency | 2.4 GHz |
| Battery Capacity | 5000 mAh |
| Battery Type | Lithium-ion polymer (LiPo) |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Weight | 14.1 oz / 400.0 g |
Packaging Info
| Package Weight | 0.91 lb |
| Box Dimensions (LxWxH) | 8.25 x 6.25 x 1.75" |
