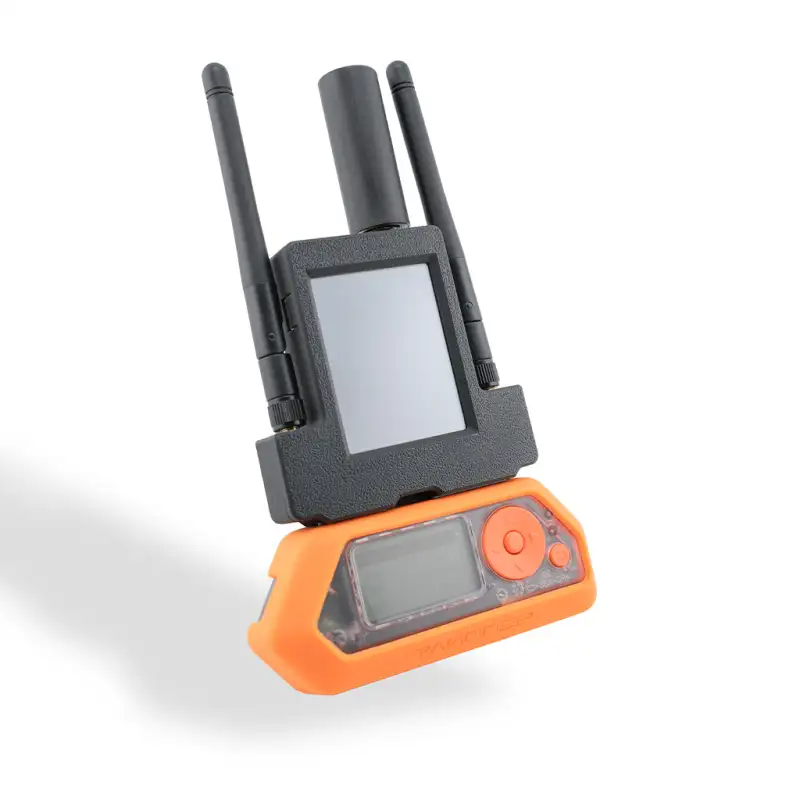

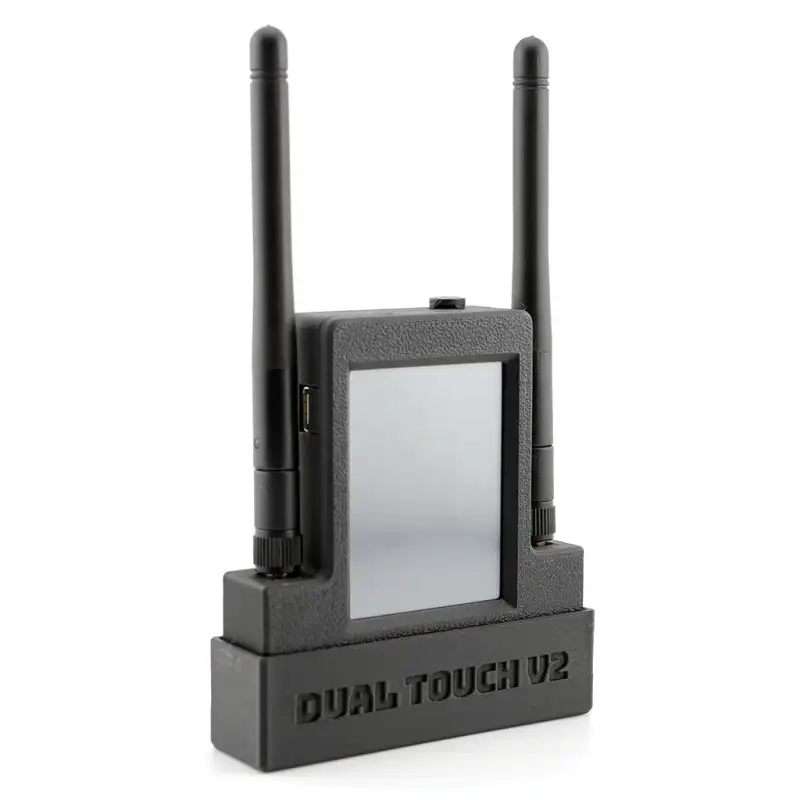

AWOK Dynamics Dual Touch v2

FEATURES

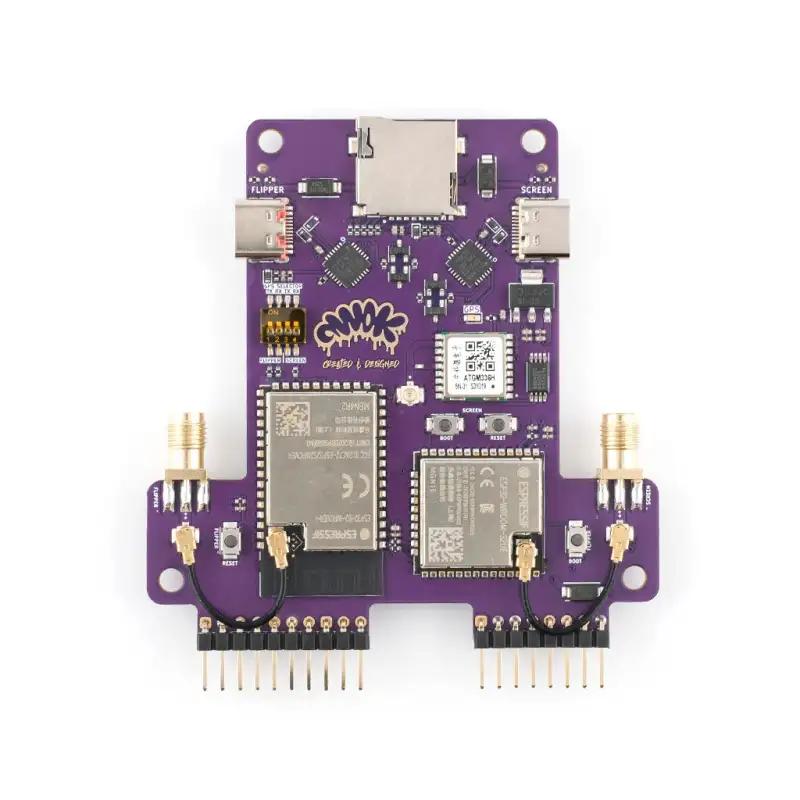

• This board has 2 ESP32 chips, and with version 2 you now have an on board GPS.

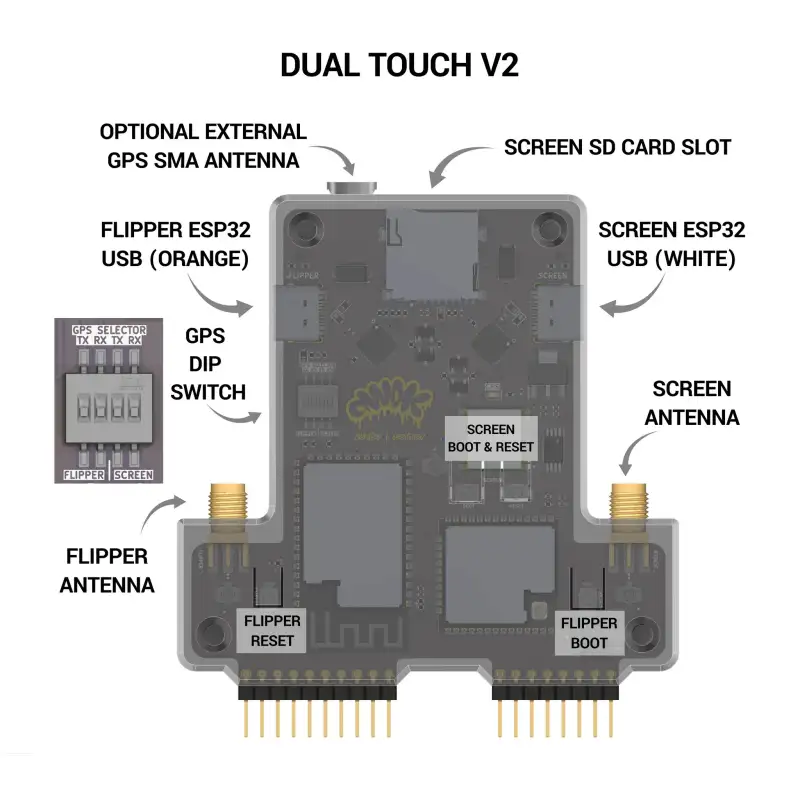

• The GPS can be toggled on and off for both ESP32 chips via the dip switches located on the back of the board.
• The GPS can be ran simultaneously to both chips (by default all switches will be flipped to the on position)
• The ESP32 that is running marauder to the touch screen is an ESP32-WROOM, and the other that is controlled by the flipper is a ESP32-S2-WROVER.
• Both the WROOM & WROVER are flashed with the latest marauder firmware from Just Call Me Koko. A video by TheTalkingSasquach can be seen here.
• Instruction on how to update firmware is available on SkeletonMan03's GitHub page, or on the FzeeFlasher page. (orange port programs the ESP32-S2-WROVER connected to the flipper, white port programs the ESP32-WROOM connected to the screen.)

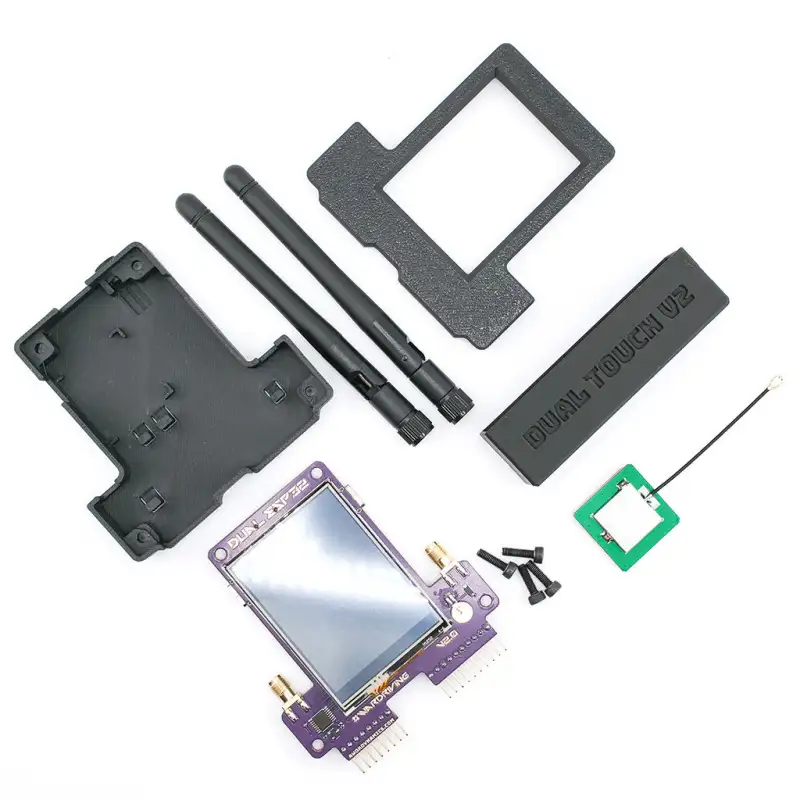

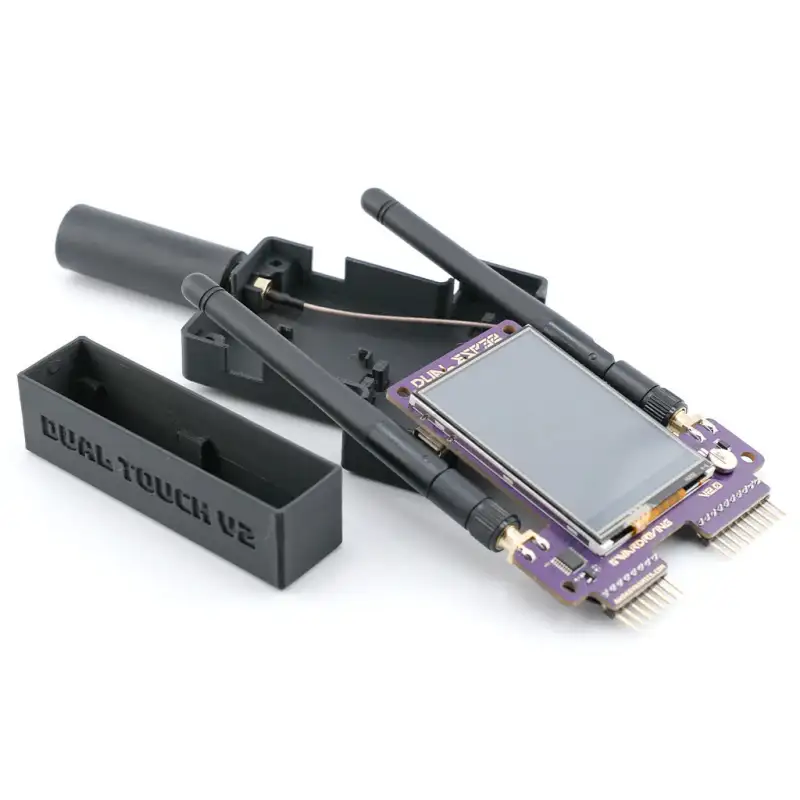

WHATS INCLUDED

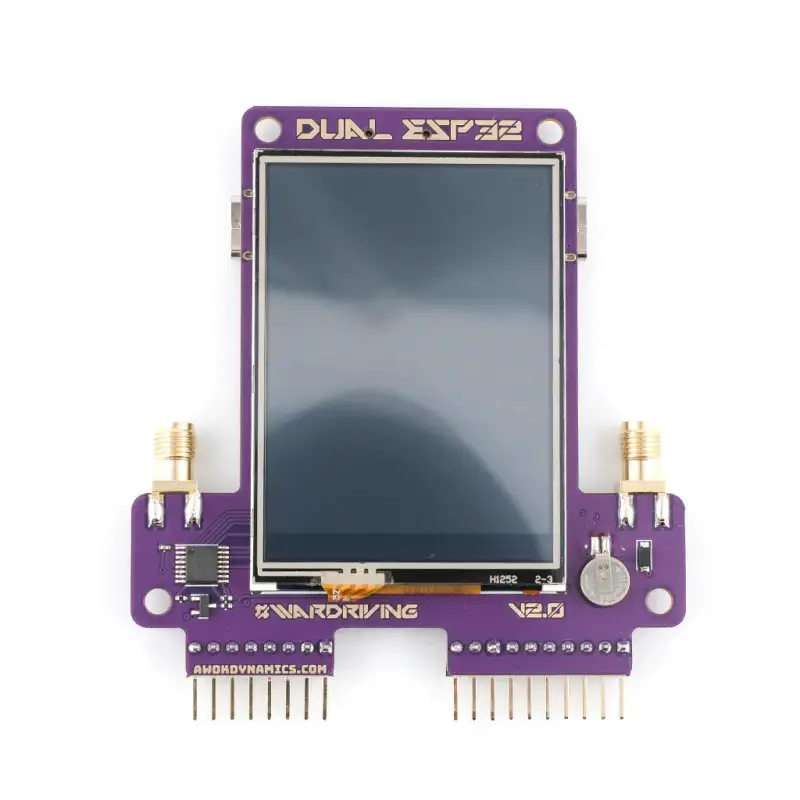

• 1x Dual Touch V2 PCB
• 1x Case (Black) with option SMA antenna mount hole
• 2x External 2.4ghz antenna
• 1x INTERNAL ceramic GPS antenna
