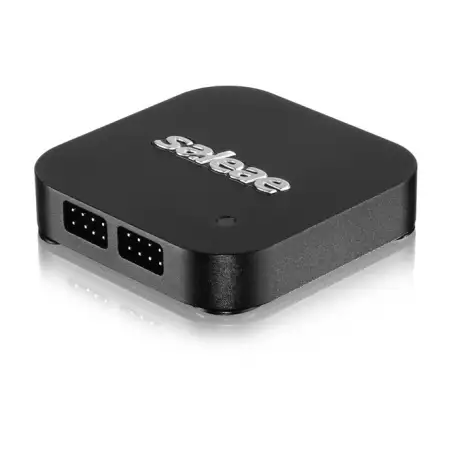

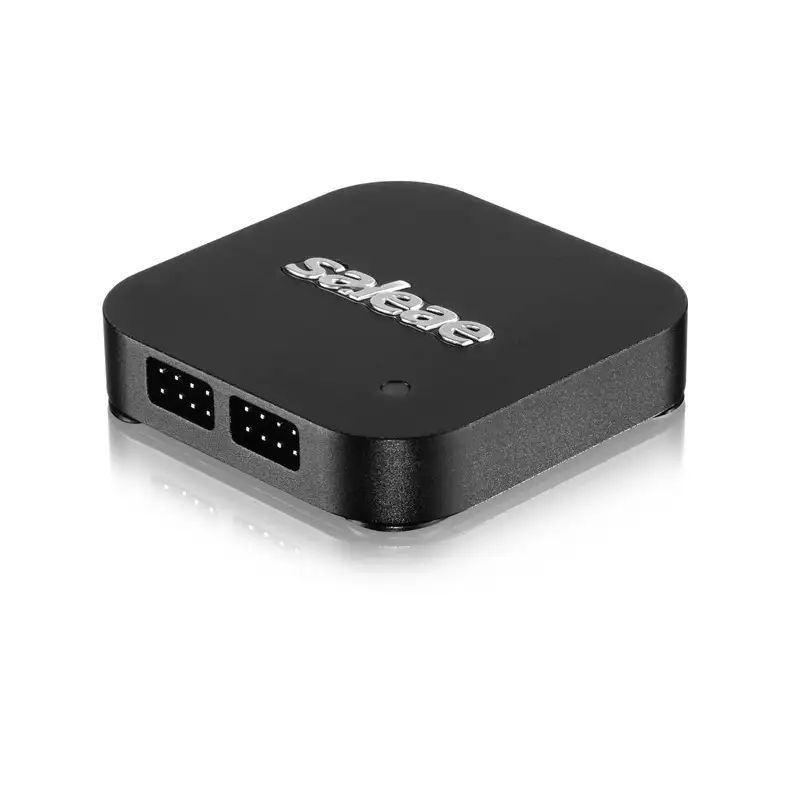

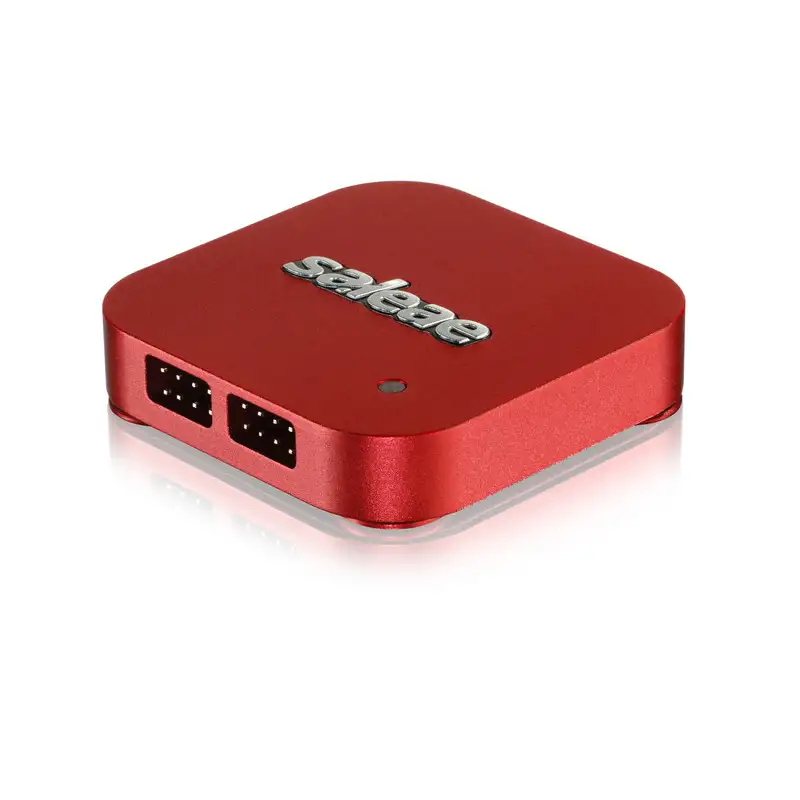

Saleae Logic Pro 8

Reference:

Condition: New product

Channels

  • 8 digital inputs, 8 analog inputs (shared with digital channels)

Maximum Sample Rates

  • Digital: 100 MSPS @ 3 channels, 50 MSPS @ 6 channels, 25 MSPS @ 8 channels
  • Analog: 10 MSPS @ 2 channels, 5 MSPS @ 5 channels, 2.5 MSPS @ 8 channels

Bandwidth

  • Digital: 25 MHz square wave when sampling at 100 MSPS
  • Analog: 1 MHz when sampling at 10 MSPS

Trigger

  • Edge or pulse width trigger

Software

  • Cross-platform Windows, Mac, and Linux support

Analog Resolution

  • 10 bits, 4.88 mV per LSB

Analog Input Range

  •  0V to 5V

Supported digital IO

  • 1.8V, 2.5V, 3.3V, 5.0V, RS-232, +12V TTL

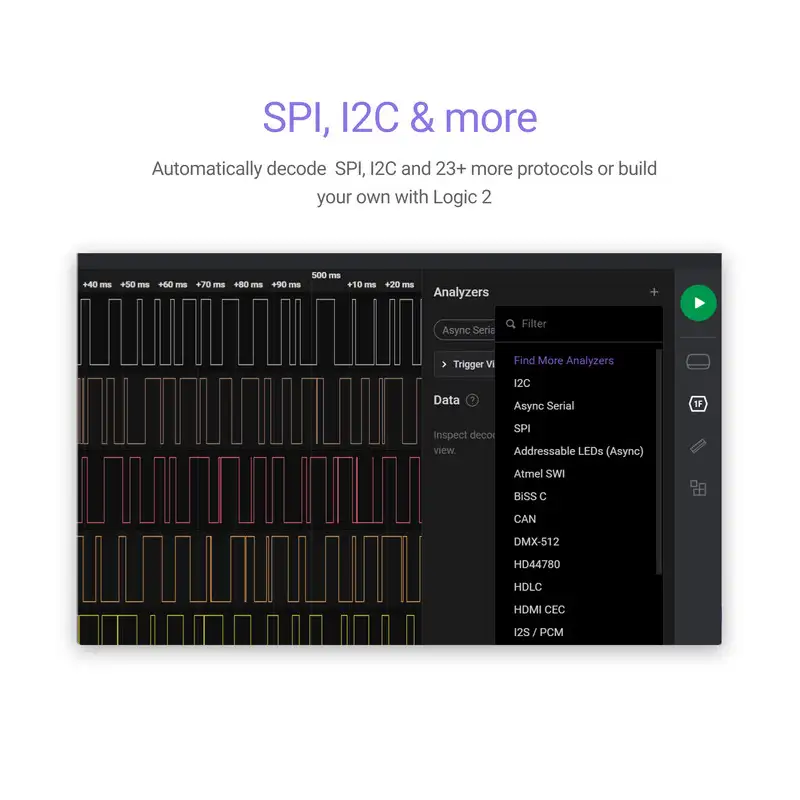

Supported Protocols

  • Serial
  • SPI
  • I2C
  • CAN
  • LIN
  • JTAG
  • MIDI
  • Modbus
  • USB
  • UNI/O
  • And more!

3 Items Warning: Last items in stock!

$860.00

More info

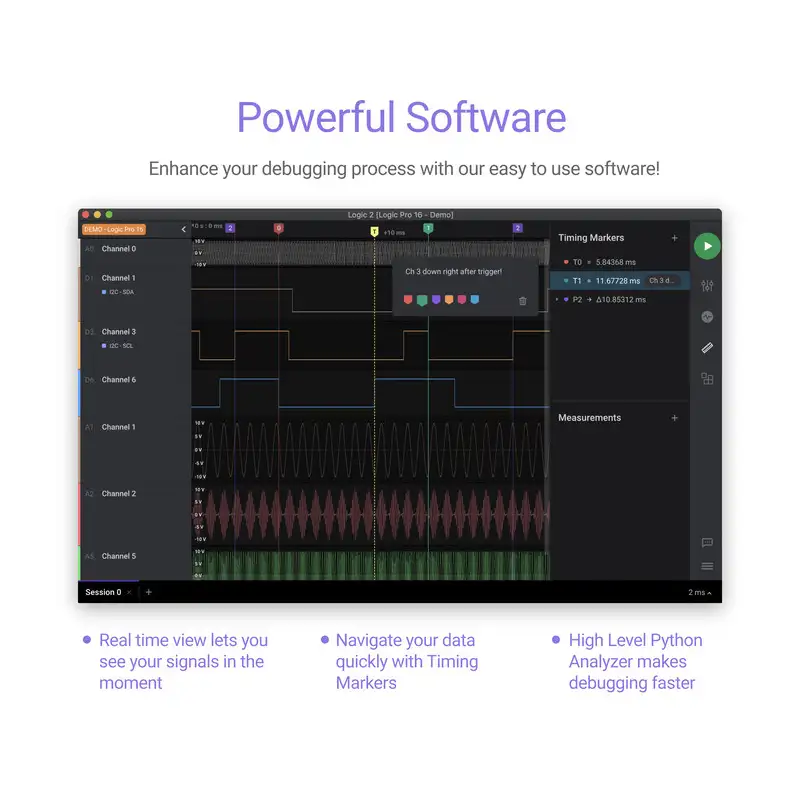

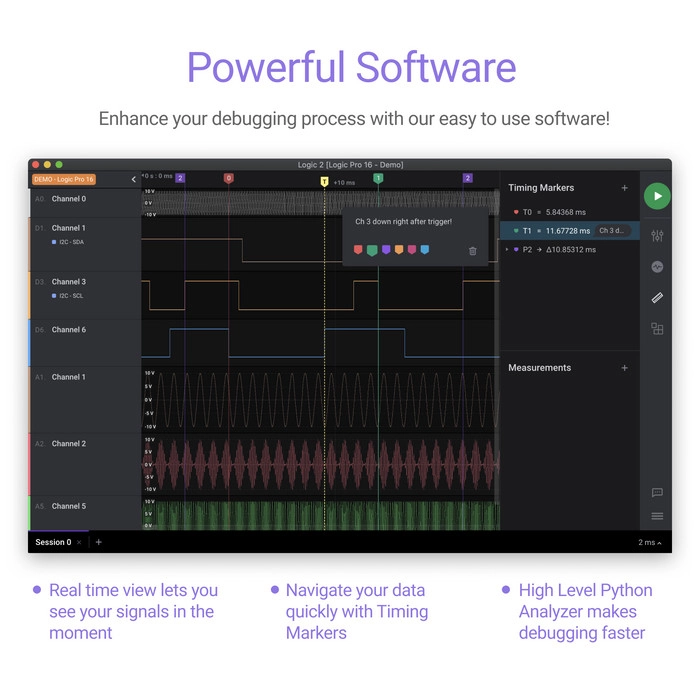

Logic analyzers are great for debugging embedded applications. They operate by sampling a digital input connected to a device under test(DUT) and then displaying the recording on your computer. The SaleaeLogic devices connect to your PC over USB. Just download the software at www.saleae.com. Navigate your data easily and intuitively with Logic's fluid and fullyanimated mouse-driven interface. The Saleae products support decodingfor over 20 different protocols.
