PORTAPACK H2 + Great Scott Gadgets HACKRF ONE SDR Radio + Havoc Firmware + 0.5ppm TCXO + 3.2 inch Touch LCD + 1500mAh Battery

About the PORTAPACK H2 + HACKRF ONE SDR Radio + Havoc Firmware + 0.5ppm TCXO + 3.2 inch Touch LCD + 1500mAh Battery:

The official firmware created for the PortaPack has  several decoders and transmitters built into it, but the third  party 'Havoc' firmware  is really what you'll want to use with  it since it contains many more decoders and transmit options.

You  can fully unleash the power of the Portapack as this comes with Havoc Firmware Installed!

HAVOC FEATURES INCLUDE

• IQ file replay
• Microphone FM transmit with CTCSS
• CTCSS decoder
• Frequency manager (save & load from SD card, with categories and notes)
• File manager
• "Soundboard" wave file player (put 8-bit mono files in SD card /wav directory)
• ADS-B receiver with map view
• SSTV transmitter
• Fully configurable transmit signals
• POCSAG transmitter
• POCSAG receiver/decoder
• Morse transmitter (FM tone and CW)
• OOK transmitter for common remote encoders (PT2262, doorbells, remote outlets, some garage doors, ...)
• RDS (Radio Data System) PSN, RadioText and Time groups transmitter
• Meteorological radiosonde receiver for M10 and M2K2...
• AFSK receiver
• AFSK transmitter (Bell202...)
• Nuoptix DTMF sync transmitter
• TouchTunes jukebox universal remote
• LCR (Language de Commande Routier) message generator
• Street lighting control transmitter (CCIR tones)
• "Play Dead" in case of emergency
• Fully configurable RF signal generator
• RSSI audio output as pitch (for direction finding)

Base Specifications:

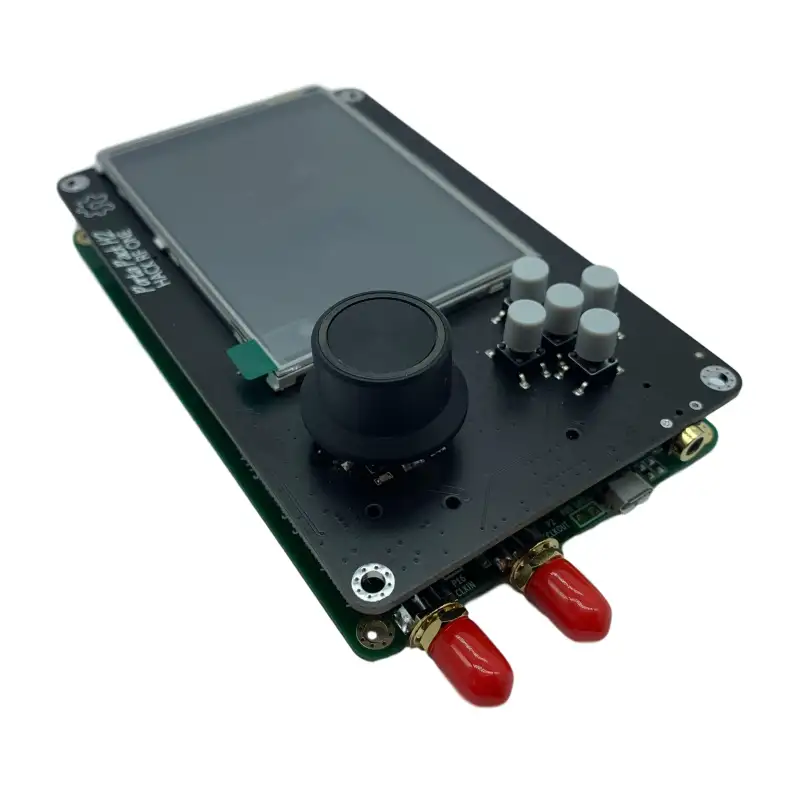

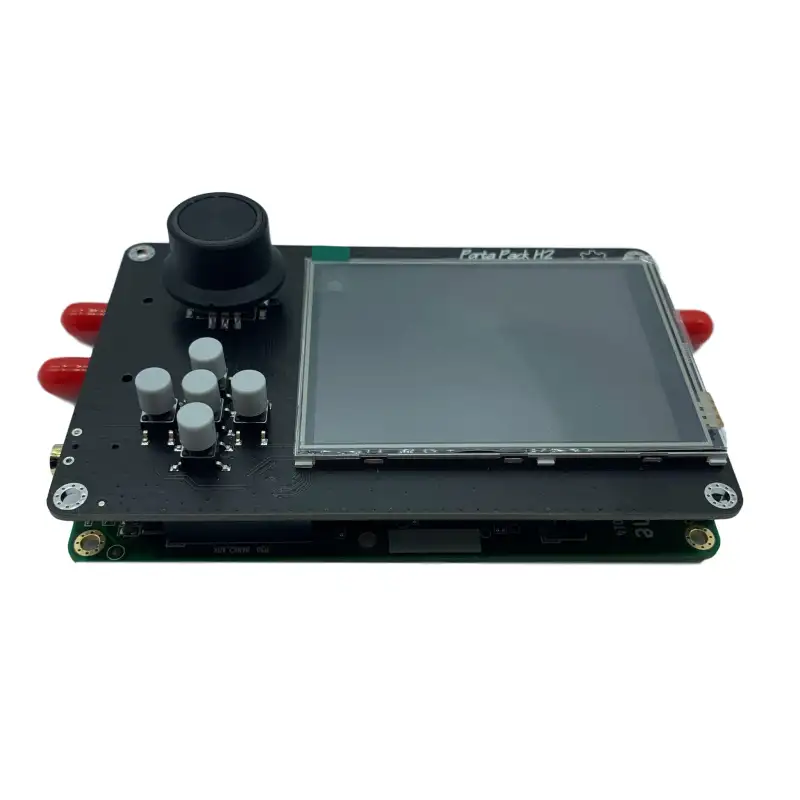

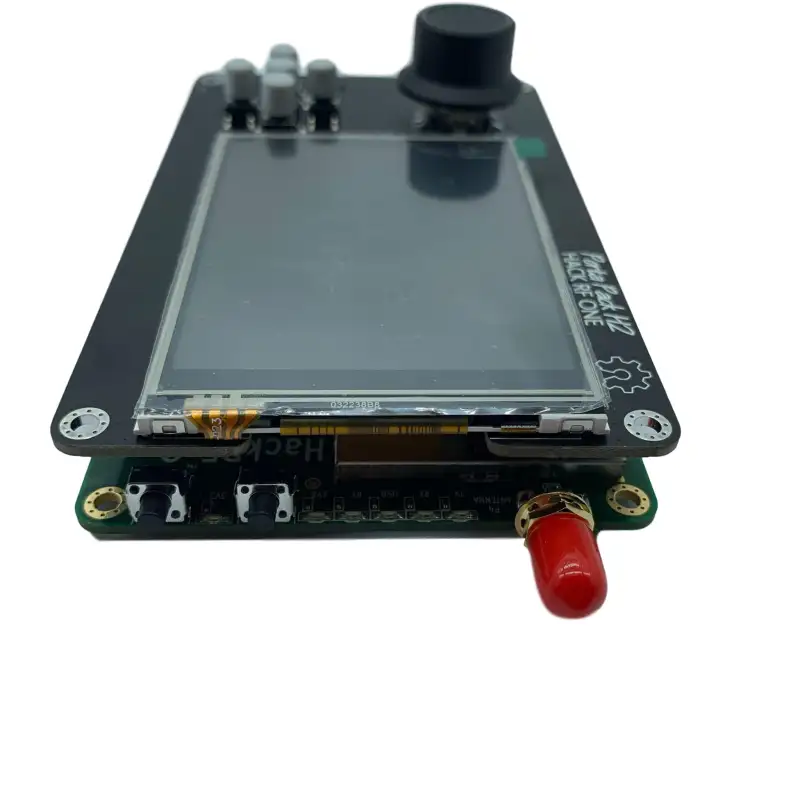

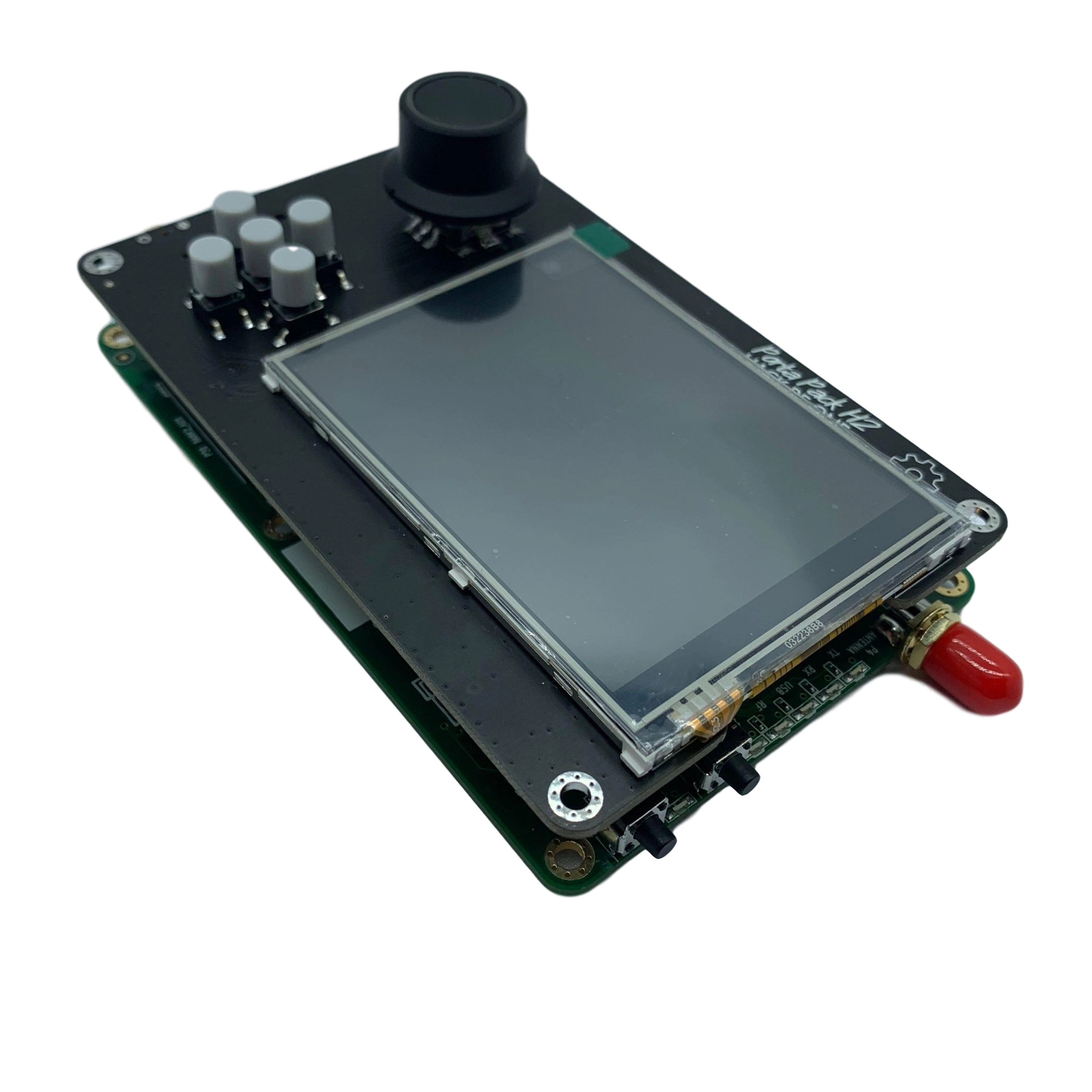

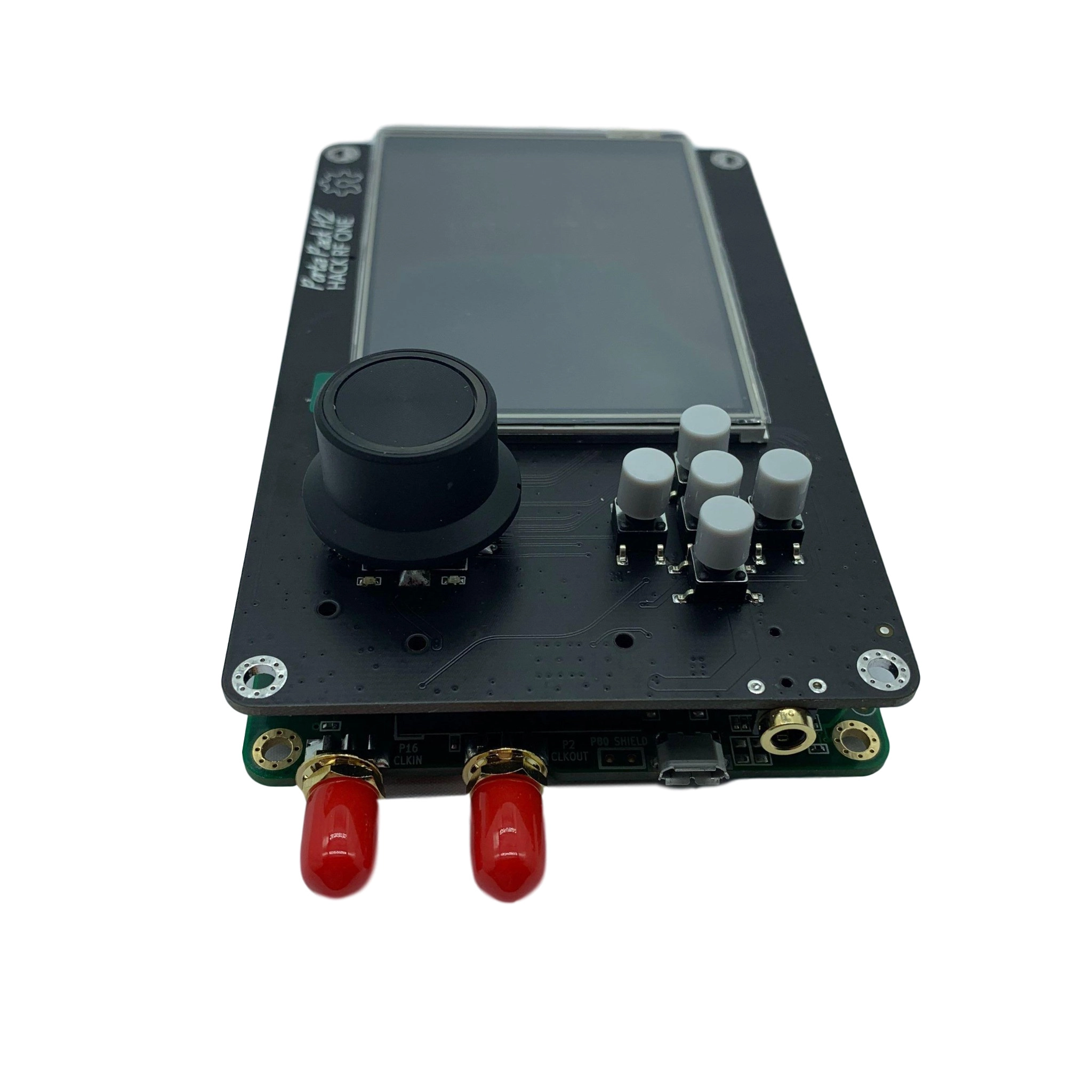

• 3.2  inch, 240 x 320 RGB LCD with resistive touch panel.
• Four-way arrow keys, rotary jog wheel, and select button.
• Coin battery for preserving settings and date/time.
• Micro SD card slot for data and code storage

Some features demonstrated in 2016 February 22 firmware video:

• SSB, AM, narrowband FM, wideband FM audio reception, with spectrum waterfall.
• Wideband (18MHz) spectrum analysis and waterfall.
• Monitoring of boat (AIS), automobile (TPMS), and utility meter transponders (ITRON ERT).
• HackRF mode runs HackRF firmware for use with host computer SDR software.
• PPM calibration for more accurate tuning.
• Sleep mode saves power by turning off just the display.

You may also find the Furrtek HAVOC firmware very interesting!

Some assembly is required. .

Your HackRF will continue to function with computer-based SDR software, when you put the PortaPack into "HackRF Mode".

PortaPack is compatible only with the HackRF One. It is not compatible with the earlier HackRF Jawbreaker design. If you have an RF shield installed on your HackRF, the PortaPack should fit just fine. Compatibility with the HackRF Blue is experimental. One Blue owner has reported good results with minor mechanical interference between the PortaPack audio capacitors and the baseband header. If your HackRF Blue does not have a baseband header installed, you should have no mechanical problems.

PortaPack  requires an external battery. Any USB-connected battery should work, though they vary widely in quality and poorly-designed batteries may inject voltage regulator noise into the radio.

The PortaPack and HackRF One will not replace your handheld ham radio receiver. Receive sensitivity varies from band to band, but will not perform as well as a true ham radio receive.
