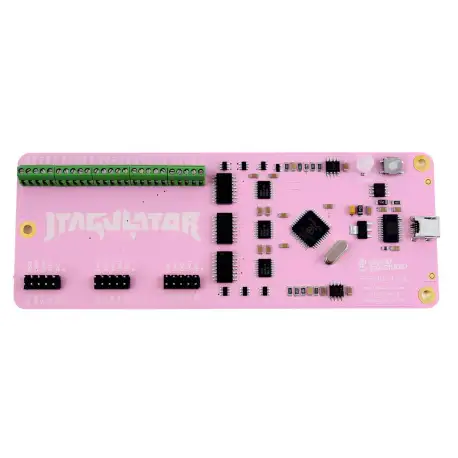

JTAGulator Kit

Reference: BG0052-G7202492686

Condition: New product

Key Features:

  •     24 I/O channels with input protection circuitry
  •     Adjustable target voltage: 1.2 V to 3.3 V
  •     Supported target interfaces (as of firmware v1.1): JTAG/IEEE 1149.1, UART/asynchronous serial
  •     USB interface for direct connection to host computer (PC, Macintosh, or *nix)

4 Items

$163.31

More info

JTAGulator is an open source hardware tool that assists in identifying On-chip debug (OCD) connections from test points, vias, or component pads on a target device.

Application Ideas:

  •     Discover on-chip debug interfaces
  •     Simple logic analyzer
  •     Propeller development board

Includes: JTAGulator device, one set of data probes

Supporting Documentation:

  • http://www.grandideastudio.com/portfolio/jtagulator/
