Flipper zero Marauder esp32, cc1101, nrf24l01 with Standard Antenna

All orders now include case, triple module board, custom 4gb sd card and high gain long range antennas, mini antennas, and orange hand strap.

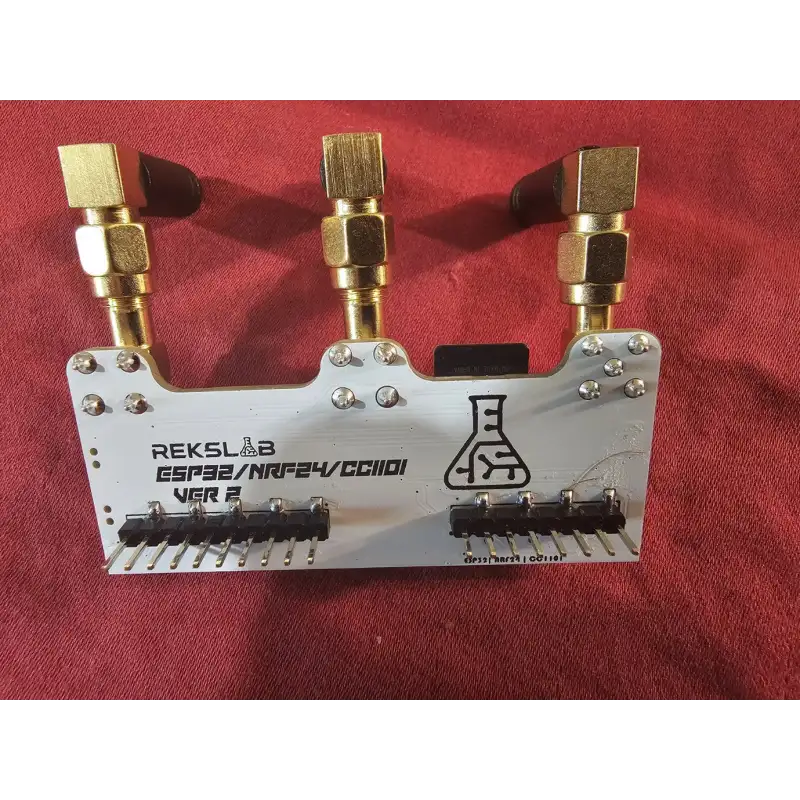

The Flipper Zero expansion board is revision 10, The newest triple board design available, with the capability of having all three modules on the board at one time as well as a microsd card for the esp32 to save pcaps or for evil portal files. The board includes 3 modules a CC1101, NRF24, and ESP32 all with external antennas, providing users with flexibility in their testing.

This board is the perfect solution for external sub ghz, WiFi, Bluetooth, and 2.4GHz nrf24l01 module. It contains an ESP32 and an NRF24l01 LNA + PA, and a CC1101 external sub GHz radio module. Compatible with all major esp32 firmware's available.

Customers have the option to choose between 9dBi dual high gain antennas or stock small rubber ducky antennas for all modules and the base board. The high gain antenna pack includes 2 high gain antennas for the ESP32 and NRF24l01, and a single 433Mhz antenna for the CC1101 radio module.

Please note that only 1 module can be used at the same time. There is a power switch to select which module is in use. Customers should use the switch to choose the module before loading the correct application.

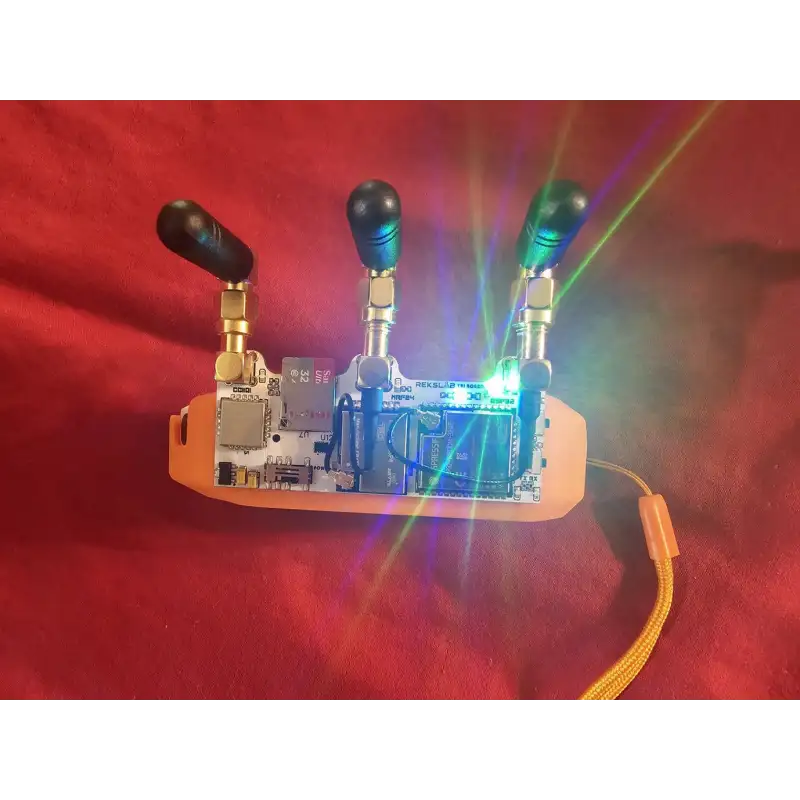

The newest board features a revamped 5V power delivery, power leds making it easy to identify which module is currently in use, status LEDs for TX and RX UART lines, and an RGB neopixel for esp32 status. The Flipper Zero expansion board provides advanced features and capabilities in a compact and user-friendly package, making it an ideal tool for security professionals and enthusiasts alike.

The board uses surface mount headers to provide a low profile connection between the Flipper Zero and the PCB, reducing the overall size and profile of the device.

Tantalum capacitors are included for power filtering, ensuring smooth power delivery and stable operation. The AMS1117 5V to 3.3V regulator further enhances the board's power delivery capabilities.

The board also features a microSD card slot for saving all captures from esp32 or for running evil portal firmware, making it convenient to store and analyze captured data. With its advanced features and capabilities, the Flipper Zero expansion board is a valuable tool for security professionals and enthusiasts alike.

Board runs the latest version of Marauder LDDB from Justcallmekoko https://github.com/justcallmekoko/.
