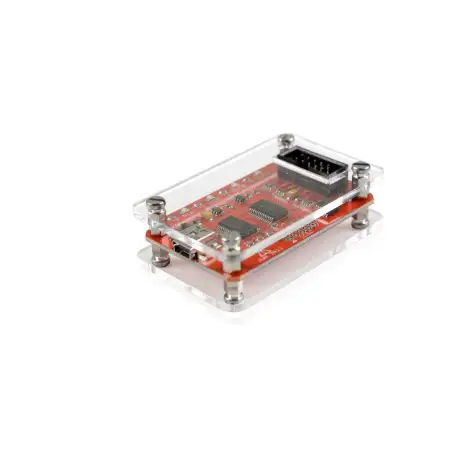

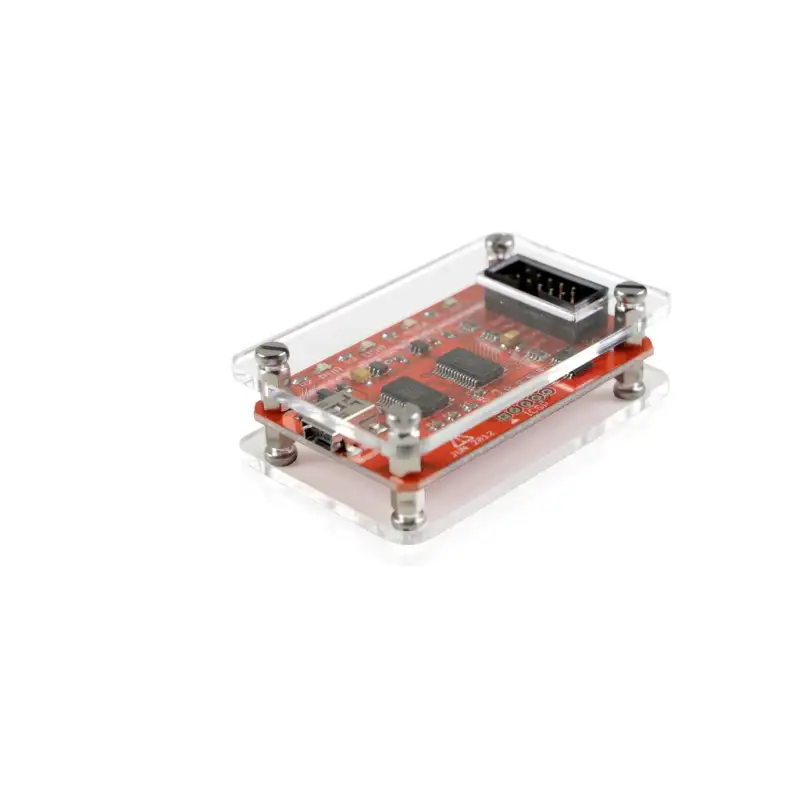

Bus Pirate Kit

Reference: BG0052-G7202492685

Condition: New product

The Bus Pirate is a universal electronic open hardware tool to program and interface with communication buses and program various chips, such as AVRs from Atmel and PICs from Microchip Technology. A primary usage case for this device as intended by the designers is to “Eliminate a ton of early prototyping effort with new or unknown chips.”Using a Bus Pirate, developers can use a serial terminal to interface with devices over a variety of hardware protocols, such as SPI and 1-Wire.

22 Item Items Warning: Last items in stock!

$39.21

Quantity

More info

Support for many serial protocols with line levels of 0 – 5.5 volts:

1-Wire
I²C
SPI
JTAG
Asynchronous serial
MIDI
PC keyboard
HD44780 LCD
2- and 3-wire libraries with bitwise pin control
Scriptable binary bitbang, 1-Wire, I2C, SPI, and UART modes

Other capabilities:

0 – 6 volt measurement probe
1 Hz – 40 MHz frequency measurement
1 kHz – 4 MHz pulse-width modulator, frequency generator
On-board multi-voltage pull-up resistors
On-board 3.3 volt and 5 volt power supplies with software reset
Macros for common operations
Bus traffic sniffers (SPI, I²C)
A bootloader for easy firmware updates
Transparent USB -> serial mode
10 Hz – 1 MHz SUMP compatible low-speed logic analyzer
AVR STK500 v2 programmer clone
Supported in AVRDude programmer
Scriptable from Perl, Python, etc.

Supporting Documentation:

http://dangerousprototypes.com/docs/Bus_Pirate

Reference Cards:

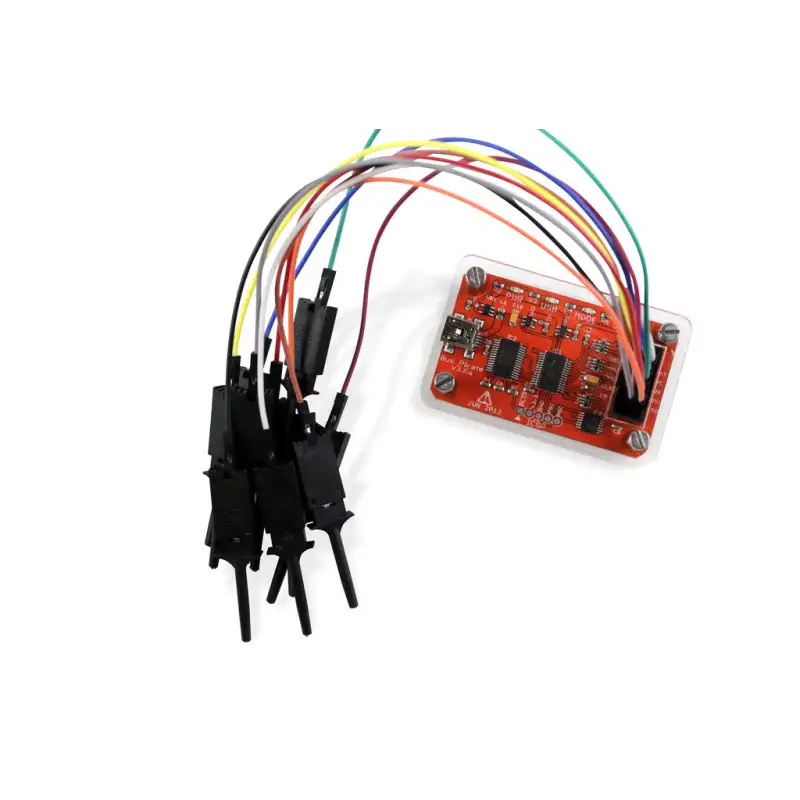

Includes: Bus Pirate, Acrylic Case, Data Probes

Additional Information

Weight	0.3 lbs
Dimensions	2 × 1 × .4 in
Brand	Dangerous Prototypes
