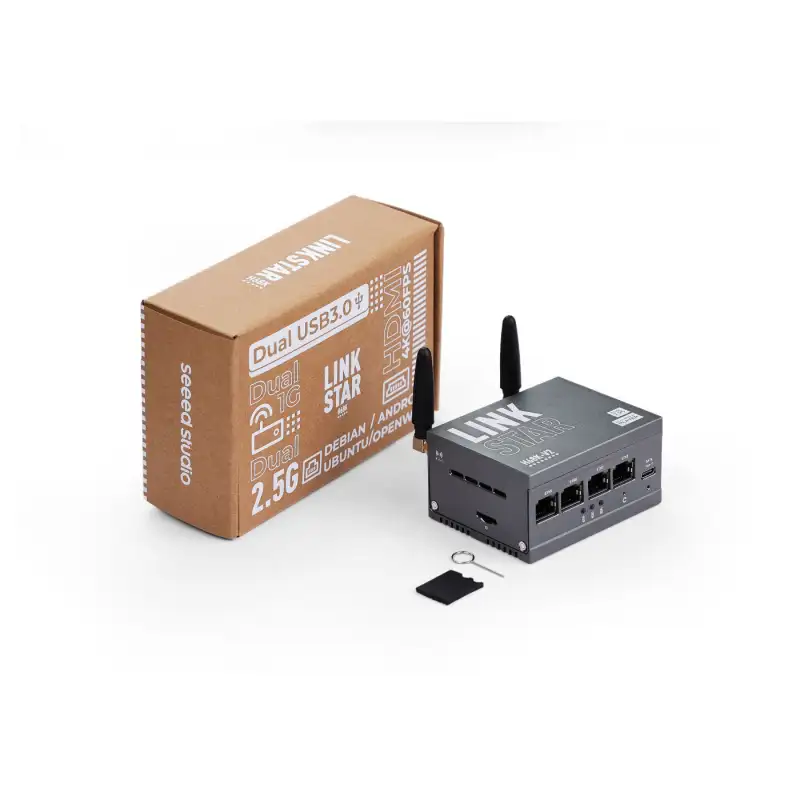

LinkStar-H68K-1432 V2

Reference: BG0052-G27409976

Condition: New product

Manufacturer: SEEED STUDIO

LinkStar-H68K-V2 router equips quad-core Cortex-A55 RK3568 chip, featuring 4 Ethernet interfaces for dual-2.5G and dual-1G, along with Wi-Fi 6 technology, while providing high storage capacity and media player functionality, functioning recommended for indoor use. Compared with the first H68K generation, it not only has better communication and heat dissipation effect, but also the interface layout is more reasonable and convenient.

15 Item Items Warning: Last items in stock!

$95.50

Quantity

More info

Description

jpeg

Comparison of H68K and H68K-V2

Difference	H68K	H68K-V2
USB	Number of external USB2.0-A ports: 2Number of external USB3.0-A ports: 2	Number of external USB2.0-A ports: 1Number of external USB3.0-A ports: 1Number of internal USB2.0-A ports: 1, located in the PCIE M2 slot, enabling MT7921 Bluetooth function
SATA	The Type-C does not support the SATA function in the docking dock	The Type-C supports the SATA function in the docking dock
Type-C Power	Not supported, use 12V DC interface for power supply	Support CC line PD fast charging Supports 5V-20V wide voltage DC input, power requirement >10W 12V DC interface power supply canceled

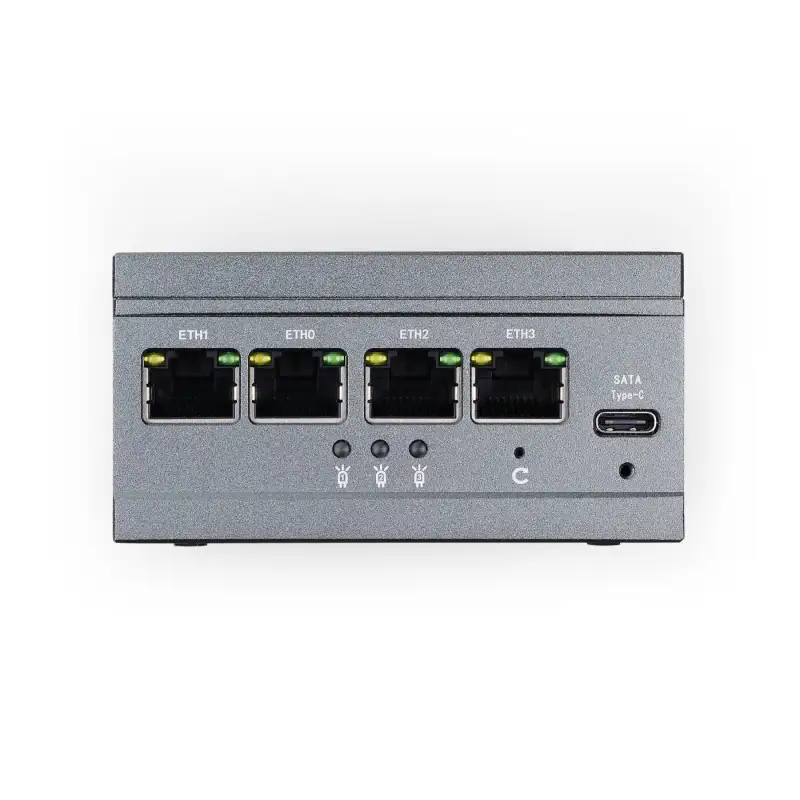

Interface layout	The network port layout is not neat	Neat layout of network ports

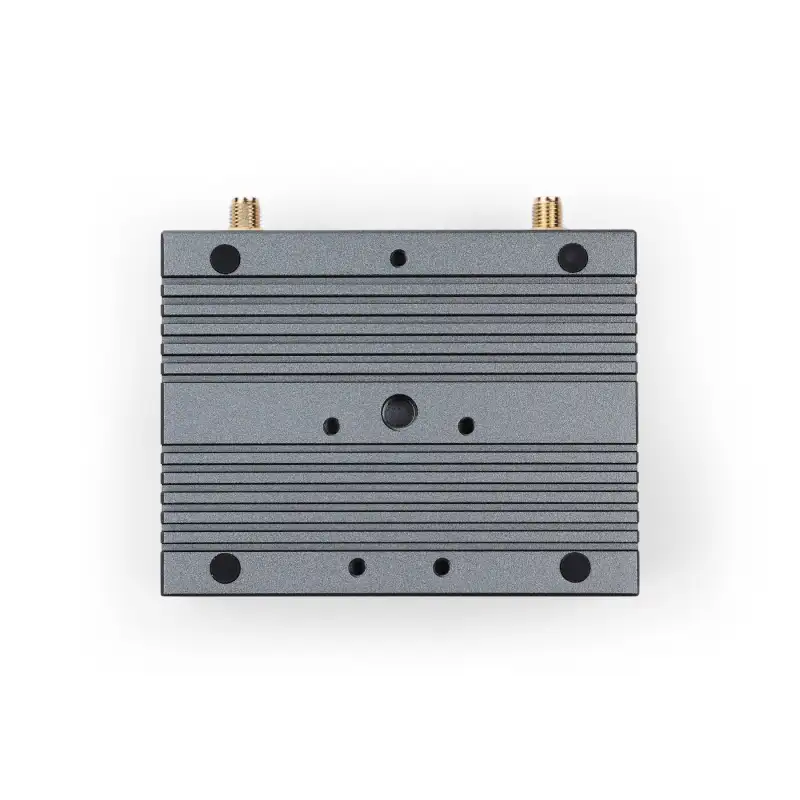

Equipment appearance	Appearance CNC sandblasting fine. CNC cooling strip, with technology style	Appearance CNC sandblasting coarse. Integrated heat dissipation strip, with industrial style and better cooling effect
Production support	EOL(end of life)	MP(mass production)

Feature

Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gdps Ethernet,4 interfaces overall for fast speed router deployment
Outstanding Wi-Fi 6 Technology:Up to 1200Mbps, support 2.4G/5G dual-band for high throughput performance
4K Multimedia Player:Pre-installed Android 11 OS, mounted with one HDMI 2.0 port for 4K@60fps display with HDR support
High Storage Capacity:Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, Type-C supports the SATA function in the docking kock
Pocket-sized Metal Box:Carry everywhere, built around with metal for passive heat dissipation
Multiple Operating Systems Supported:OpenWRT, Armbian

Description

LinkStar-H68K-V2 equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual2.5G Etherent as 4 network inferfaces overall, assembled in one portable metal box, carrying dual-band Wi-Fi 6, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

High Storage Capacity

This compact equipment equips onboard 32GB eMMC, along with one SD card slot and one USB3.0 Type-C which supports an external hard drive for storage extension. Combined with fast-speed Ethernet, you can use it to establish a NAS(Network Attached Storage) to store and access abundant information over a network without physical file transformation.

Outstanding Wi-Fi 6 Technology

With wireless capability, it can perform as a repeater and connect different Wi-Fi at different places like hotels and cafes, then convert them to a network you set up, to link all your devices, which is beneficial for your travel or business trip.

4K Multimedia Player

With such storage and network capability, it houses an HDMI 2.0 port and a 3.5mm microphone port, installing Android 11 OS in advance, outputting 4K immersive visuals, all of which make it a neat network media player to stream media and display instantly, while providing access to online services like Spotify or YouTube.

Great Extensibility

Additionally, it provides an SD card slot, one USB 3.0, and one USB 2.0 ports for further usage. You can connect a USB printer with it for print serving in the office which can be available to the entire network. And Type-C supports the SATA function in the docking dock. Meanwhile,you can switch to a different Opreaing System by inserting different SD cards without SD cards without overwriting the original one.

Multiple OS support

You can also run it with a dedicated routing system like OpenWRT for building a fast speed and secure router in concentration. You can utilize it to establish a VPN router of your own, realize remote control, avoid advertising, and other personal customization by your definition.

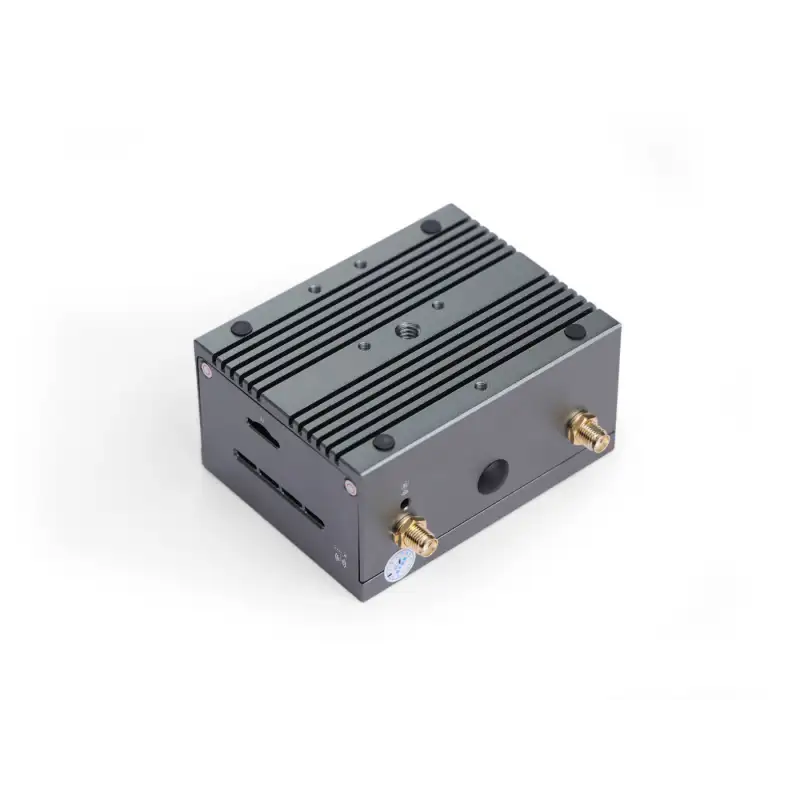

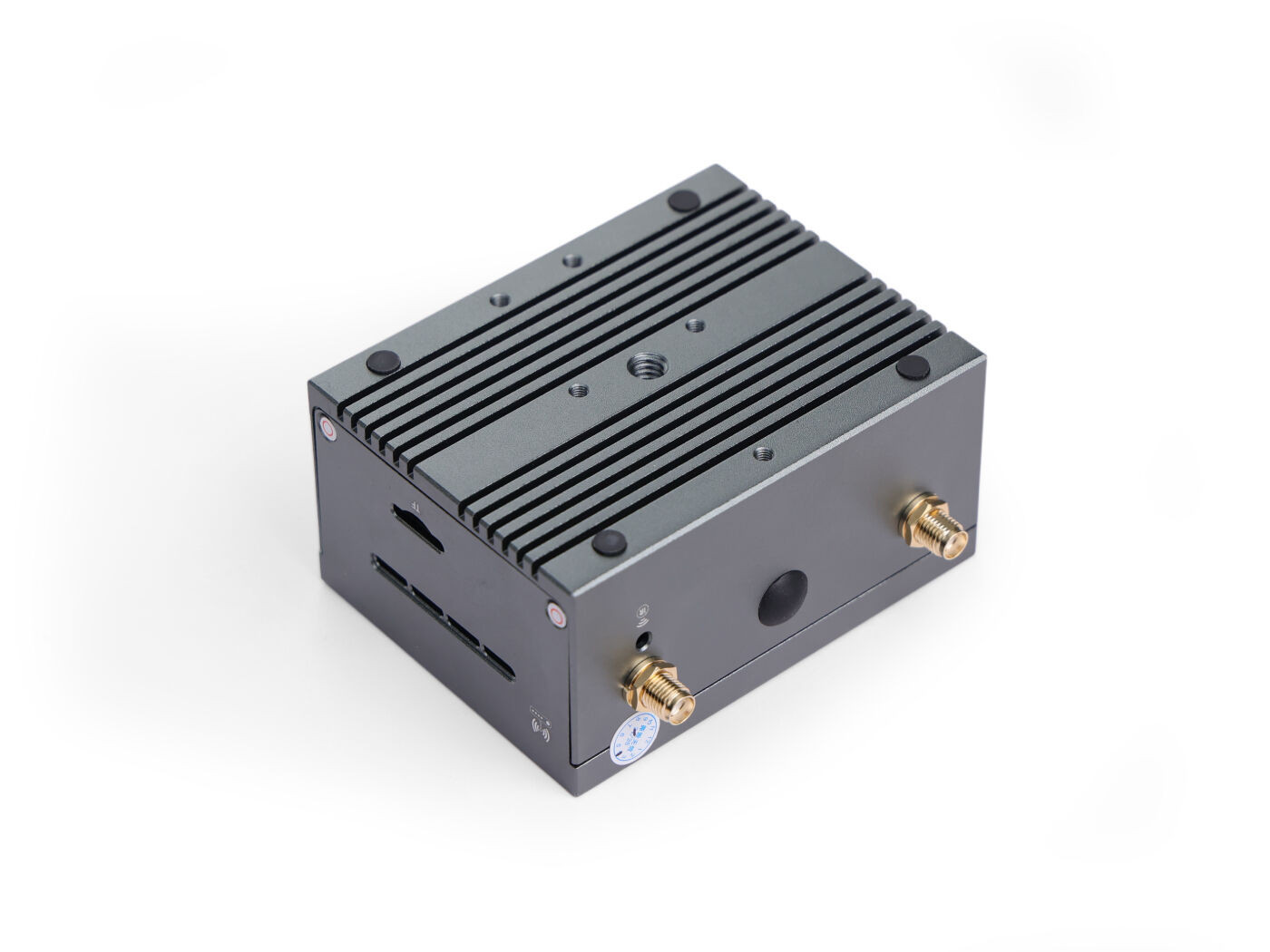

The design of LinkStar-H68K-V2 is light and mini-sized that it can be lifted by one singular hand. It is built around metal for passive heat dissipation. You can charge it with a 5-24V power adaptor and 5V Type-C connector.

Application

VPN router
NAS
Remote control/work
Game server
Block advertising
Print server
Firewall
Tethering

Specification

Parameters	Details
Processor	Rockchip RK3568 for up to 2.0GHz
CPU	Quad-core 64-bit Cortex-A55
GPU	ARM G52 2EE
NPU	1 TOPS@INT8
Multi-Media	4K@60fps H.265/H.264/VP9 video decoder 1080@60fps H.265/H.264 video encoder
Multi-Media	Support 8M ISP, HDR
Storage	onboard 32GB eMMC

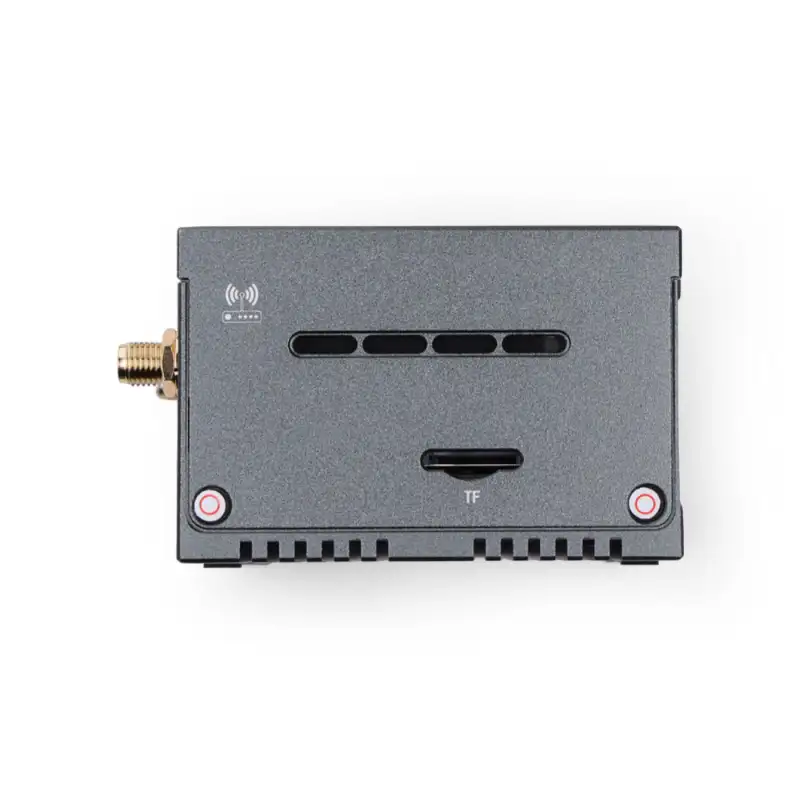

Storage	1x SD card slot for storage expansion
Operating System	Pre-installed Android 11 OS
Operating System	Support Armbian, OpenWRT
Wireless	Dual-band 2.4G/5G Wi-Fi 6
Wireless	M7921E module
NIC	2x 1G Ethernet NIC RTL8211F
NIC	2x 2.5G Ethernet NIC RTL8125B

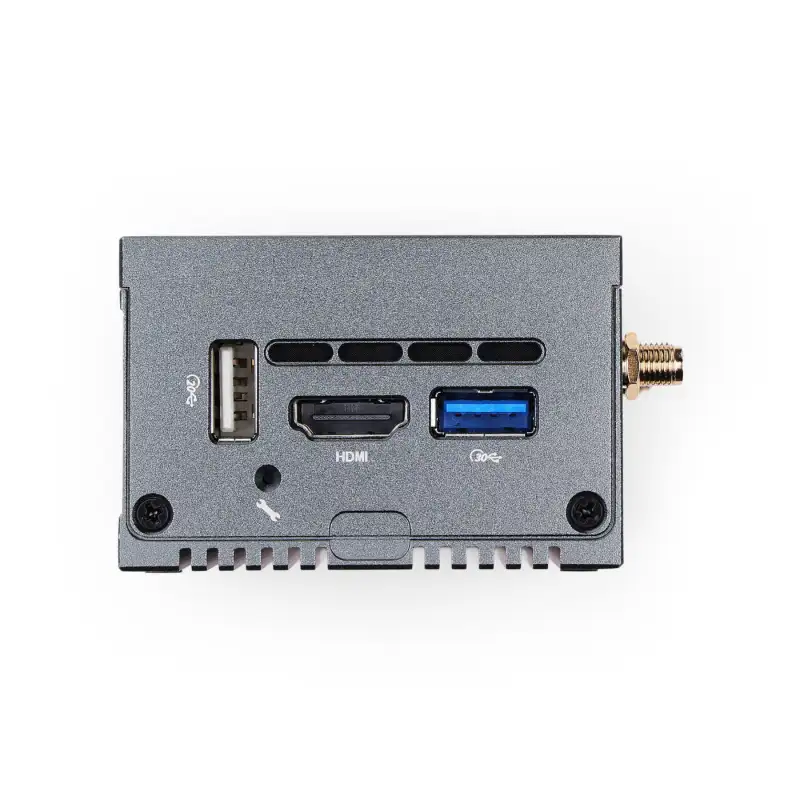

Video Output	1x HDMI2.0 interface for 4K output
USB	1x USB 3.0 Type-A
	1x USB 3.0 Type-C, capable of storage expansion and support 5V-20V wide voltage DC input, power requirement >10W
	1x USB 2.0 Type-A
Power Supply	Support CC line PD fast charging Supports 5V-20V wide voltage DC input, power requirement >10W 12V DC interface power supply canceled
Power Consumption	7.5W（With a fully loaded network port）
Operating Temperature	-10 ~ 55°C

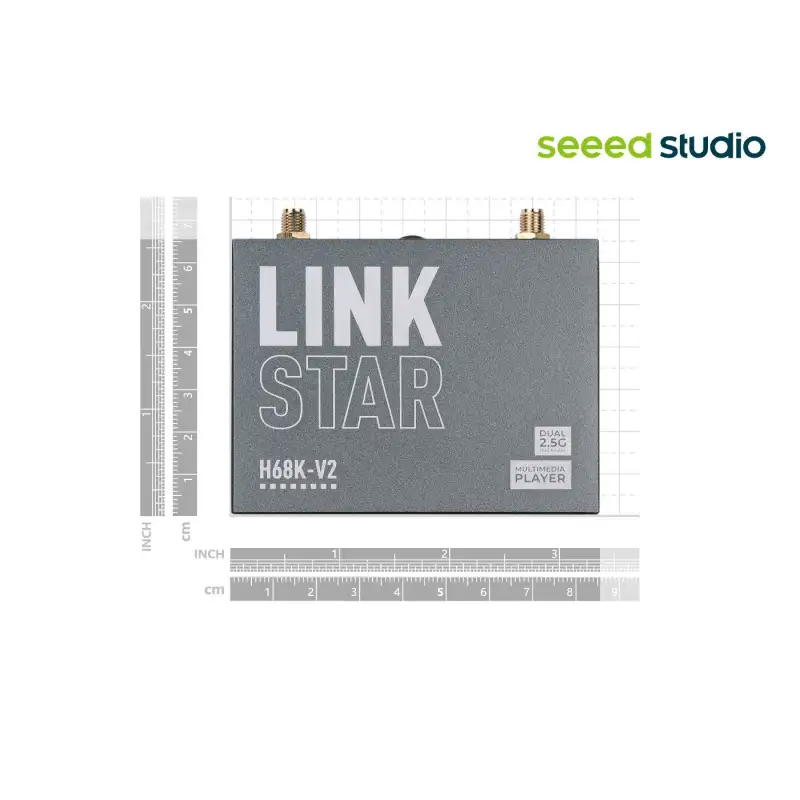

Dimensions	806040mm
