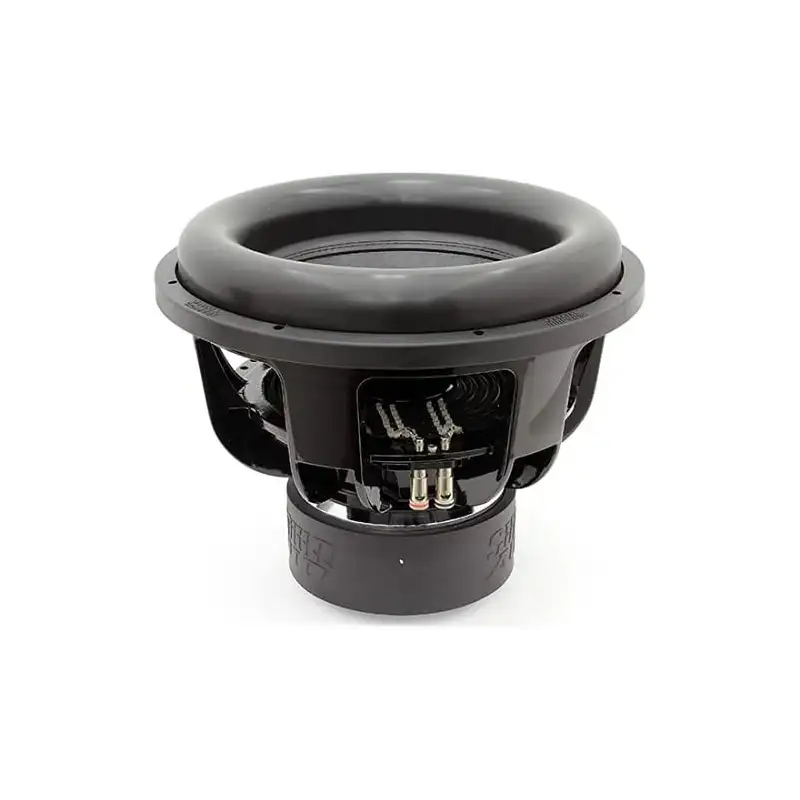

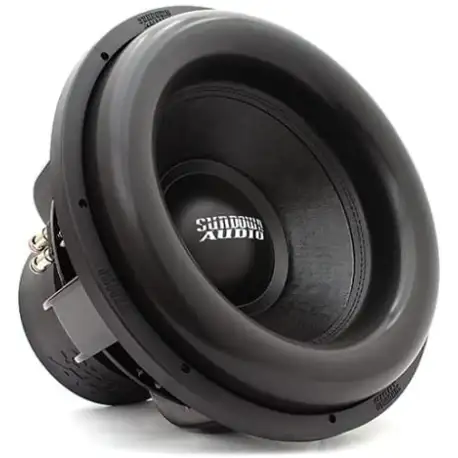

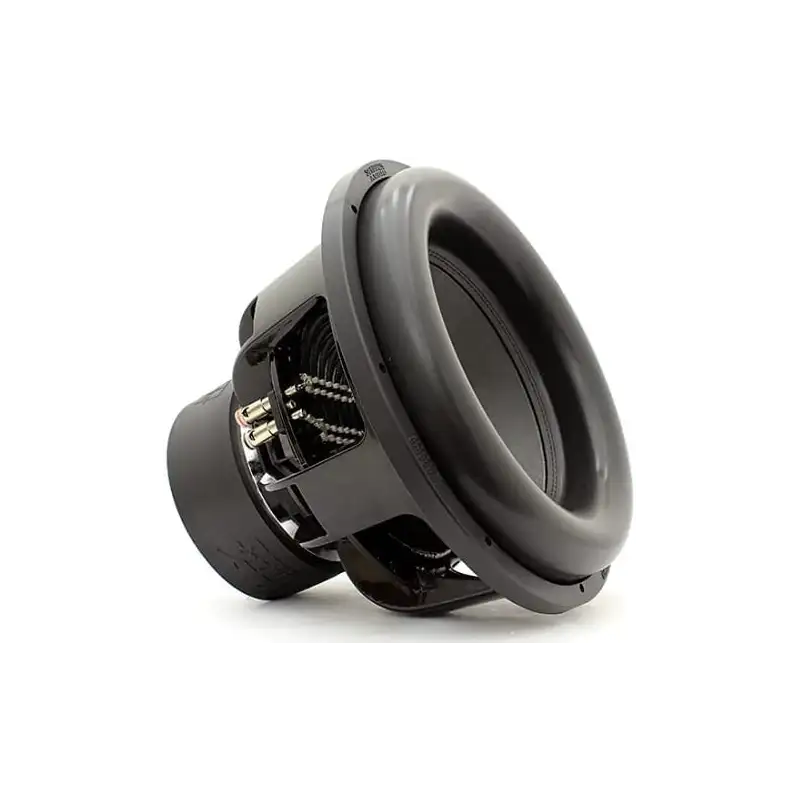

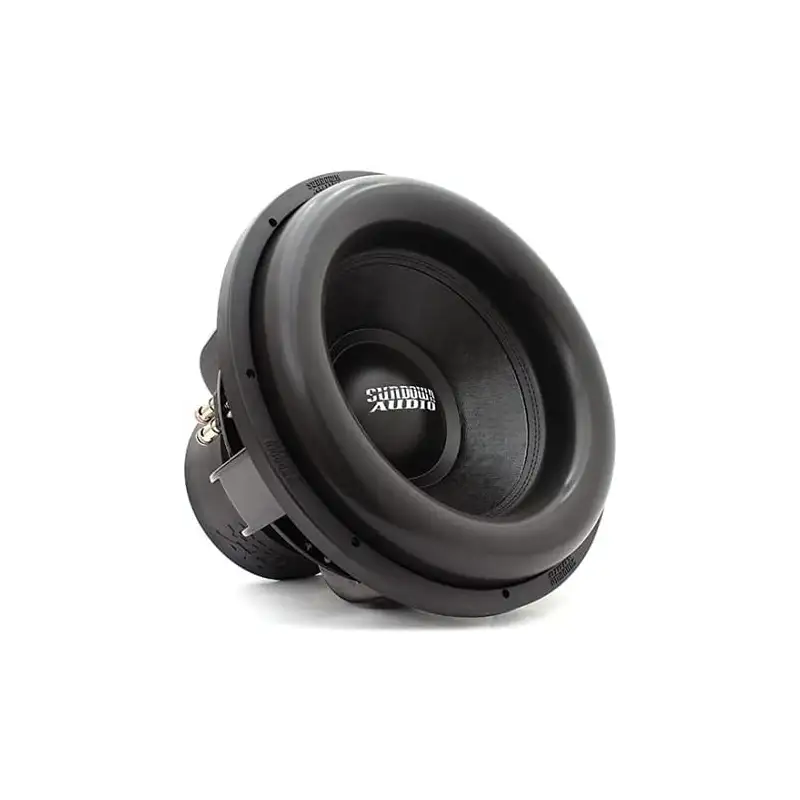

Sundown Audio X-15 v3 D1 Pro 15" Dual 1-Ohm 2000W RMS Bass Subwoofer

Product Description

X-15 V.3 D1 - Sundown Audio 15" 2000W RMS Dual 1-Ohm X V.3 Series Subwoofer

Xmax = 30mm one-way by 70% BL
RMS Power = 2000-watts

Specifications:
DC Resistance (Re): 3.80 Ω
Resonance Frequency (Fs): 29.6 Hz
Equivalent Volume (Vas): 58.9 L
Electrical Q Factor (Qes): 0.40
Mechanical Q Factor (Qms): 4.65
Total Q Factor (Qts): 0.37
Voice Coil Inductance (Le): 2.53 mH
Force Factor (BL): 25.6 NA
Moving Mass (incl. Air Load) (Mms): 366.8 g
Suspension Compliance (Cms): 0.08 mm/N
Sensitivity: 87.7 dB 1w / 1m

Box Recommendations:
Sealed: N/A
Ported:4.25 cu. ft.
Displacement: 0.22 cu. ft.
Depth: 10.85 in
Outside Diameter: 15.51 in
Cutout Diameter: 13.83 in
Recommended Tuning: 32 Hz
Recommended Port Area: 68 sq. in
