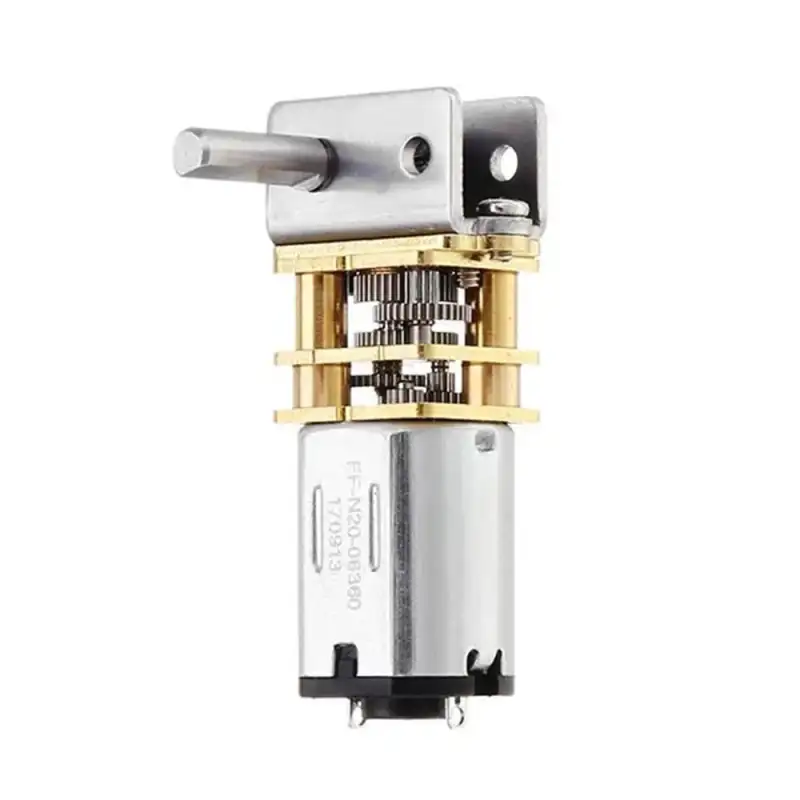

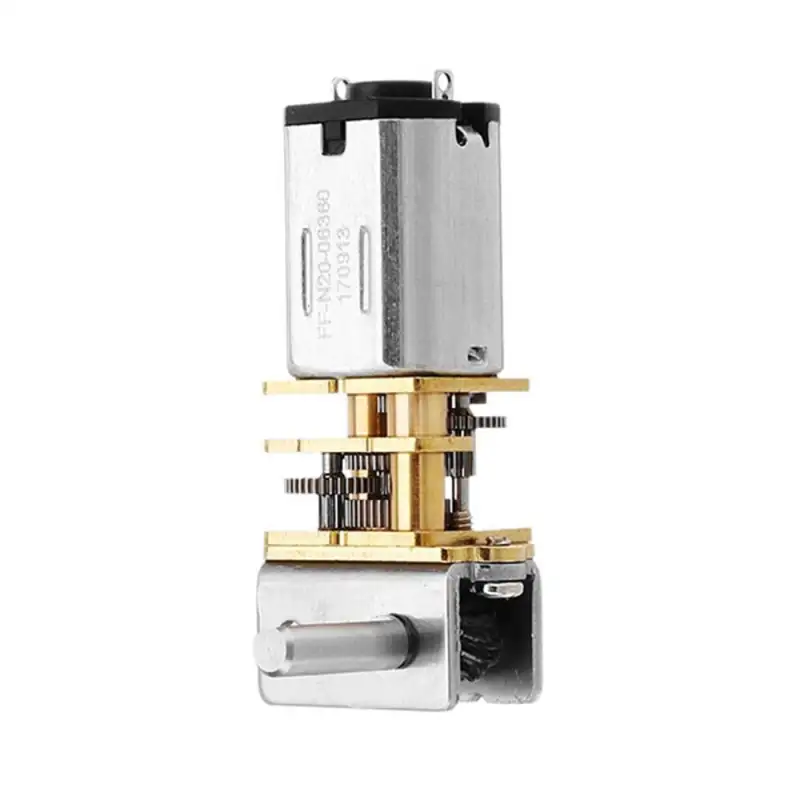

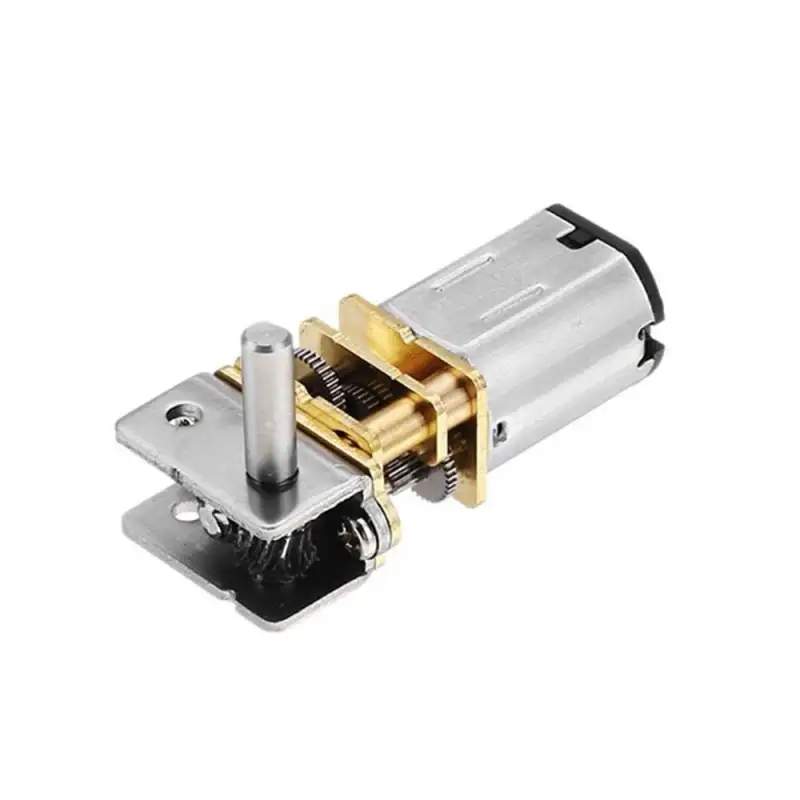

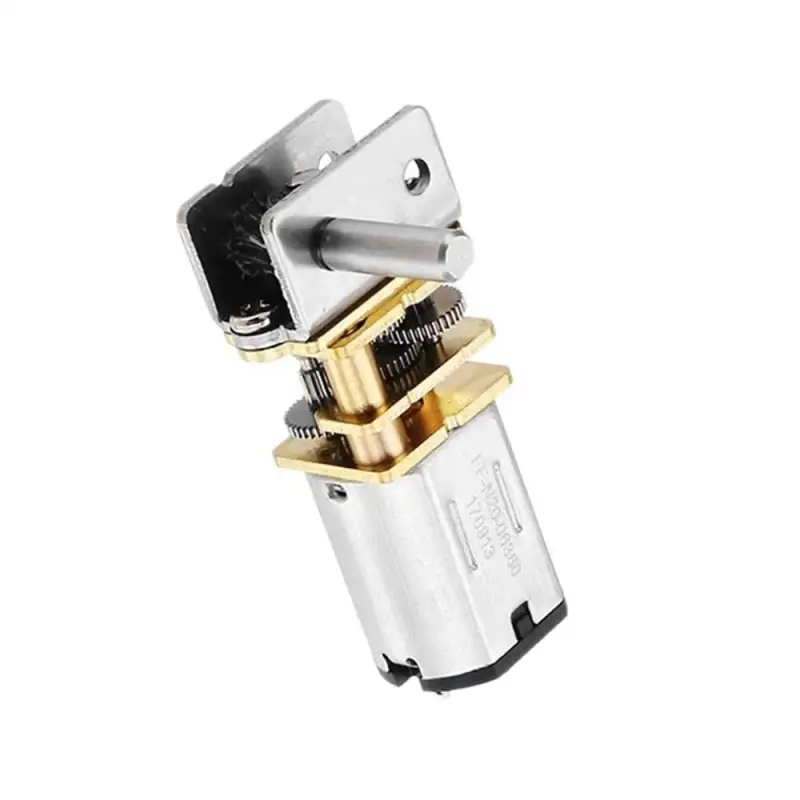

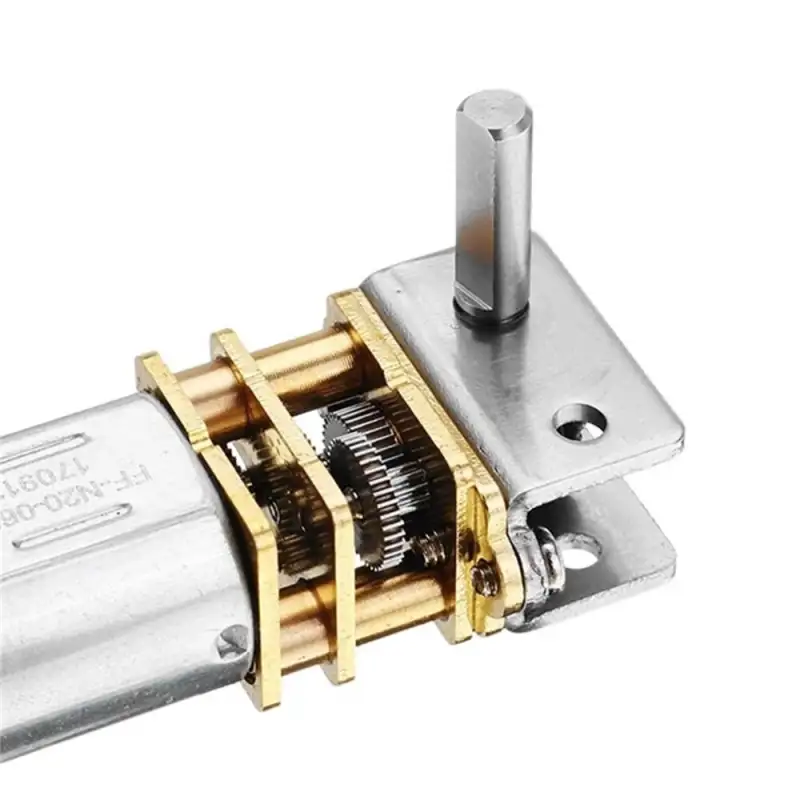

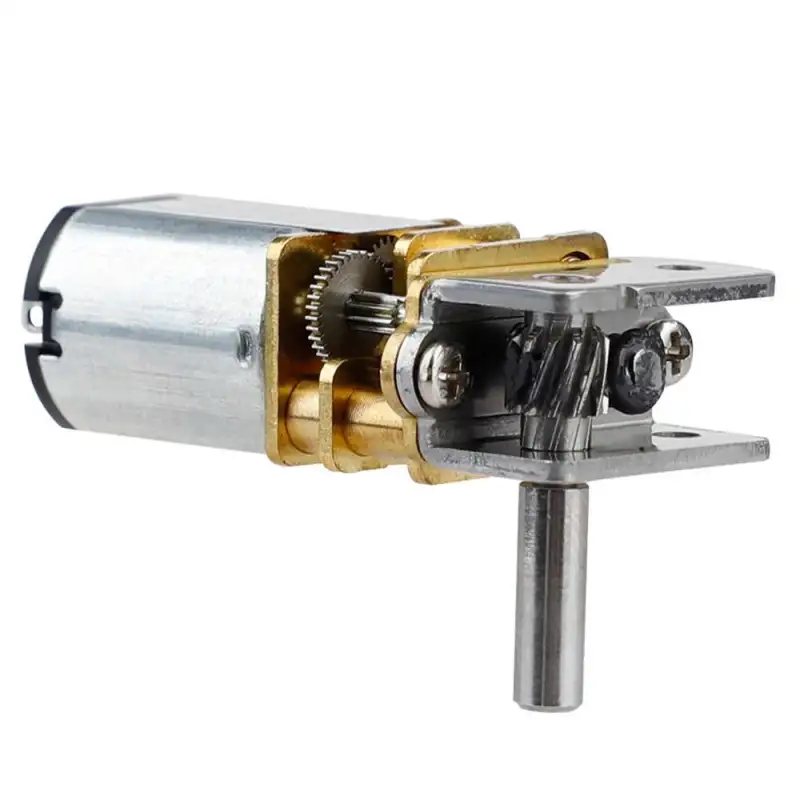

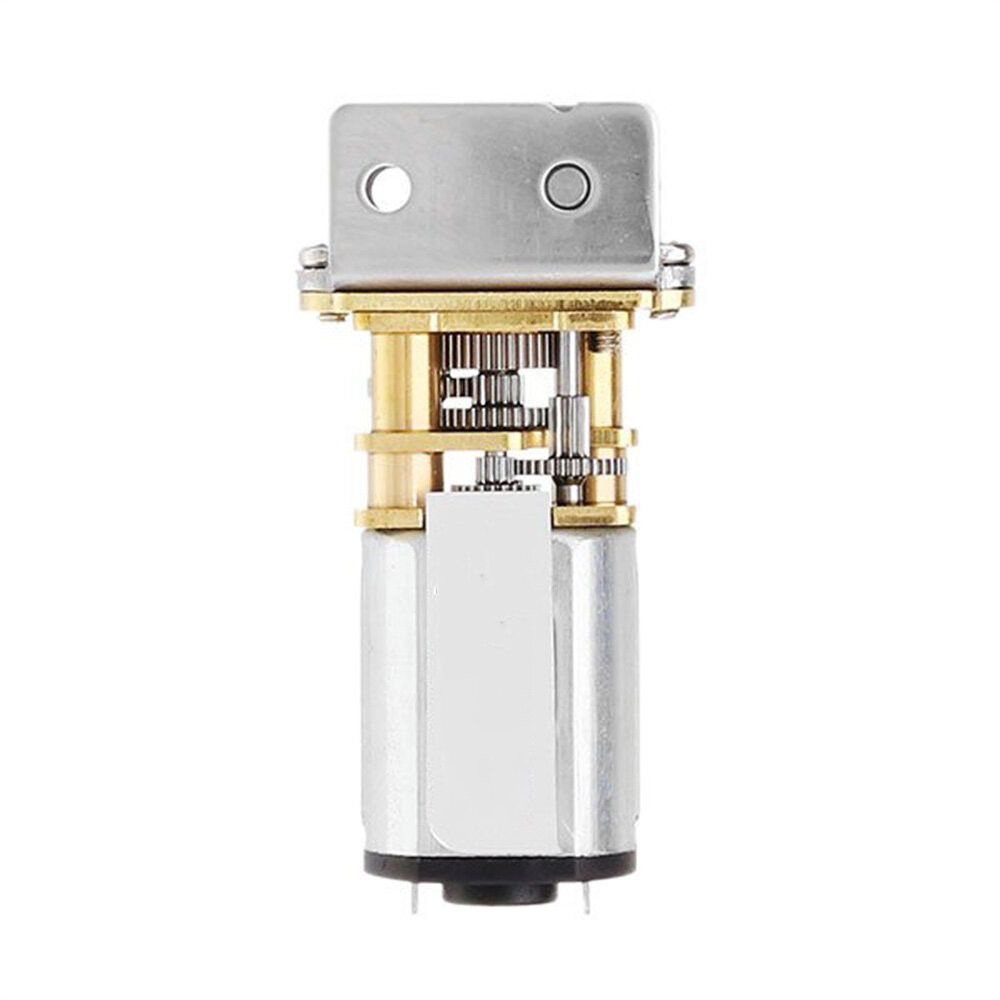

N20 DC6V Gear Motor Encoder Speed Reduction Gearbox 10/30/55/100RPM Reducer Replacement Motor

Reference:

Condition: New product

399 Items

$8.37

More info

Features:

- [Widely Used]: Gear motors can be found in many different applications, and are probably used in smart toy car, robot, printer, etc.

- [Multiple Speed Options]: There are four reduction gear motors of different speed and you can choose the one you need, Speed: 10RPM, 30RPM, 55RPM, 100RPM.

- [Full Metal Gears]: The metal gear in the gear box has a strong carrying capacity, high temperature resistance, wear resistance, ruggedness and other characteristics effectively protect the main body of the worm gearbox motor.

- [High Torque]: Gear motors are primarily used to reduce speed in a series of gears, which in turn creates more torque.

- [Specifications]: Voltage: DC 6V | Shaft length: 9±0.1mm | Shaft diameter: 2.5mm.


Specification:

Produce type

Brushed DC motor

Model

GW12N20

Material

Metal

Voltage

DC 6V

Shaft length

9±0.1mm

Shaft diameter

2.5mm

Total length

34.4±0.1mm

Rotating speed (Optional)

10RPM, 30RPM, 55RPM, 100RPM

Certification

CE,ROHS


Voltage

Gear Ratio

No load

Load Torque

Stall

Speed

Current

Speed

Current

Torque

Current

Torque

6V

1:1260

10RPM

35ma

9RPM

55ma

300g.cm

≤1.1A

1.7kg.cm

6V

1:800

30RPM

70ma

28RPM

136ma

330g.cm

≤1.1A

1.75kg.cm

6V

1:450

55RPM

75ma

52RPM

120ma

200g.cm

≤1.1A

1.1kg.cm

6V

1:240

100RPM

70ma

88RPM
