Reference: BG0052-9082454
Condition: New product
100 Item Items Warning: Last items in stock!
Availability date: 05/17/2021
| Item | Specification |
| Rated Voltage | DC 6.0V |
| Gear Ratio | 1/298 |
| Rotation | CW |
| Motor Position | All position in horizontal |
| Temperature | 0 - 30 Degree Celsius |
| Humidity | 30% - 95% |
| Item | Specification |
| No-load Speed | 16000 +/- 10%rpm |
| No-load Current | 35mA (Max) |
| Stall Current | 600mA (Max) |
| Stall Torque | 10g.cm |
| Item | Specification |
| Outer Speed | 55 +/- 10%rpm |
| No-load Current | 50mA (Max) |
| Stall Current | 600mA (Max) |
| Stall Torque | 3.0kg.cm |
| Rated Torque | 750g.cm |
| Rated Current | 150mA (Max) |
| Rated Speed | 40 +/- 10%rpm |
| Noise | 50dB |
| Item | Specification |
| The Outside Shafft Length | 20mm |
| Shaft End Play | 0.05 - 0.50mm |
| Screw Size | M1.6 x 0.35 |

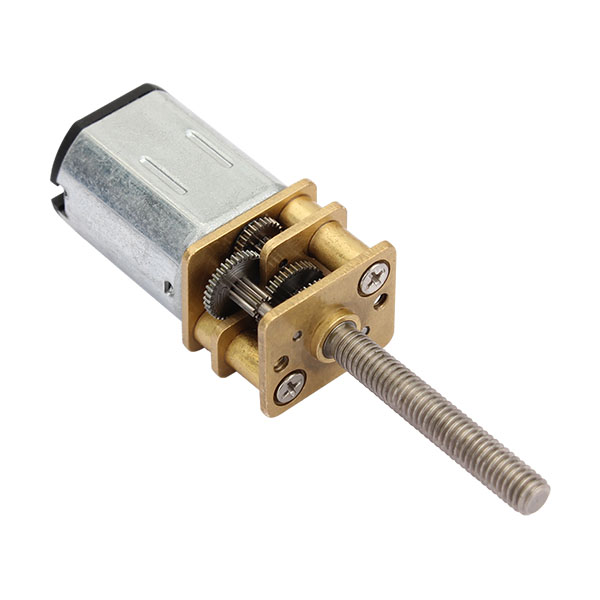

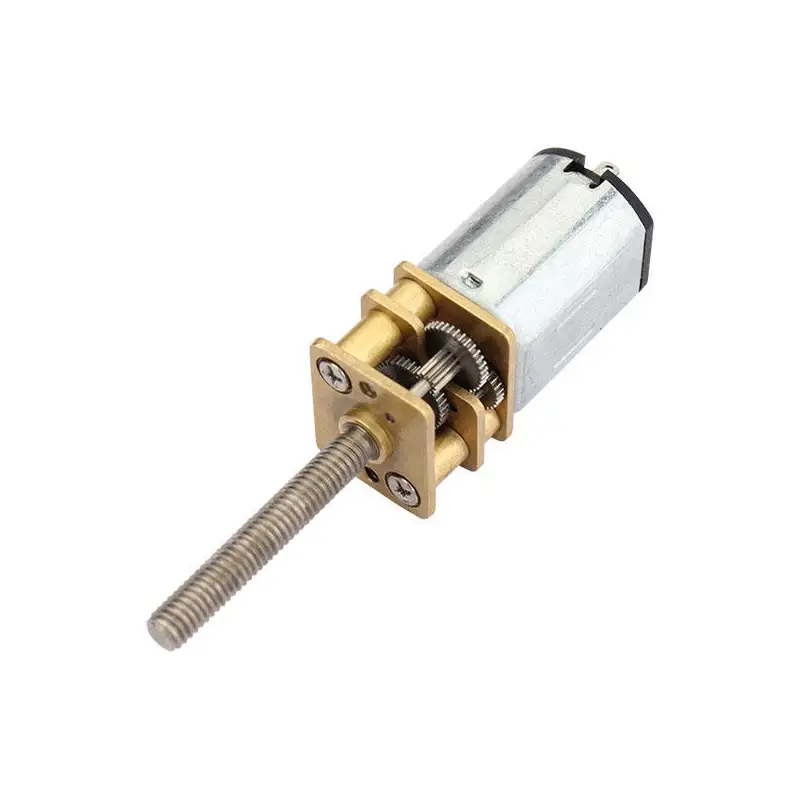

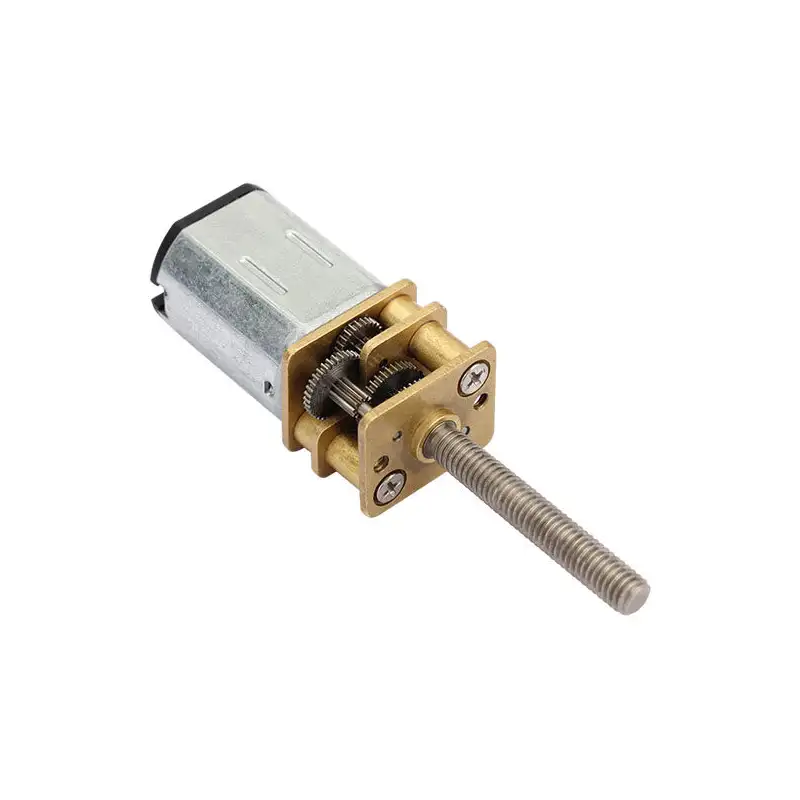

| Diameter of Shaft | M3 threaded shaft |

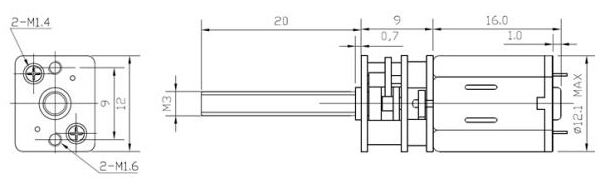

| Outline Mounting Dimension | Refer to the Outline Drawing |
