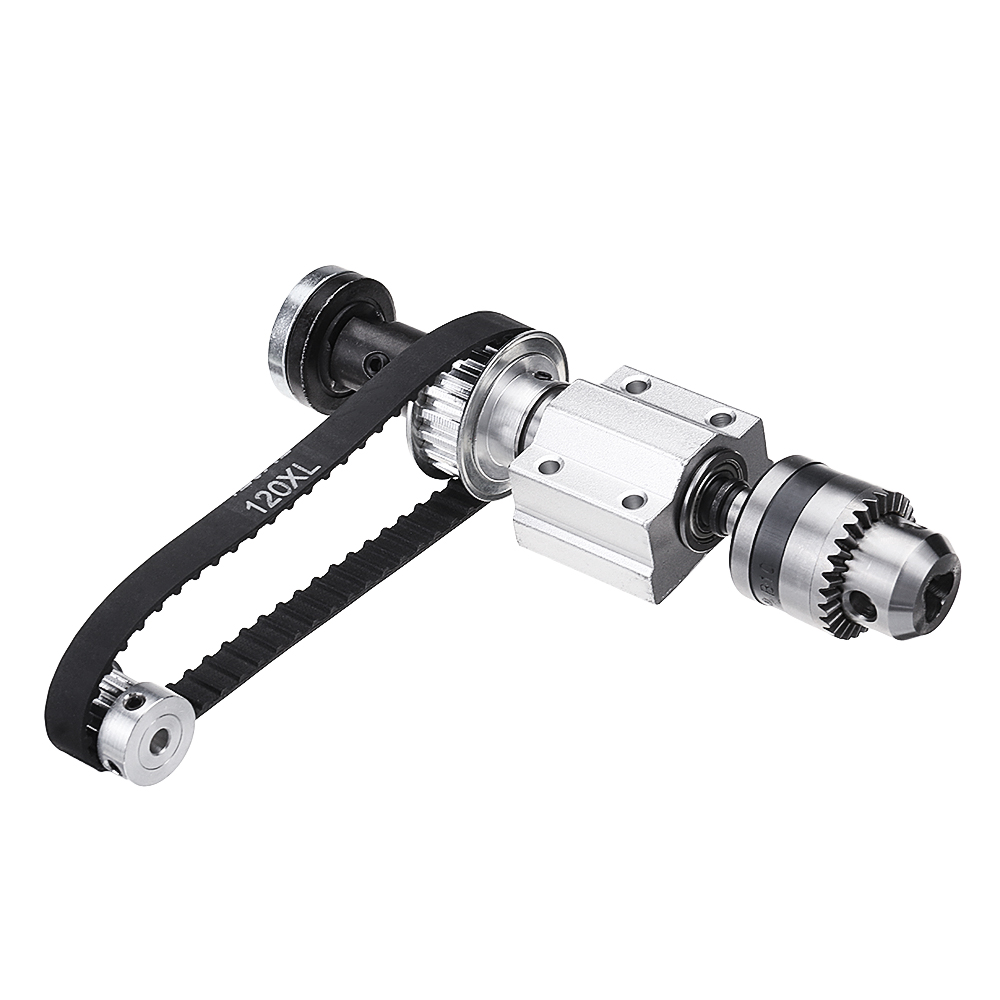

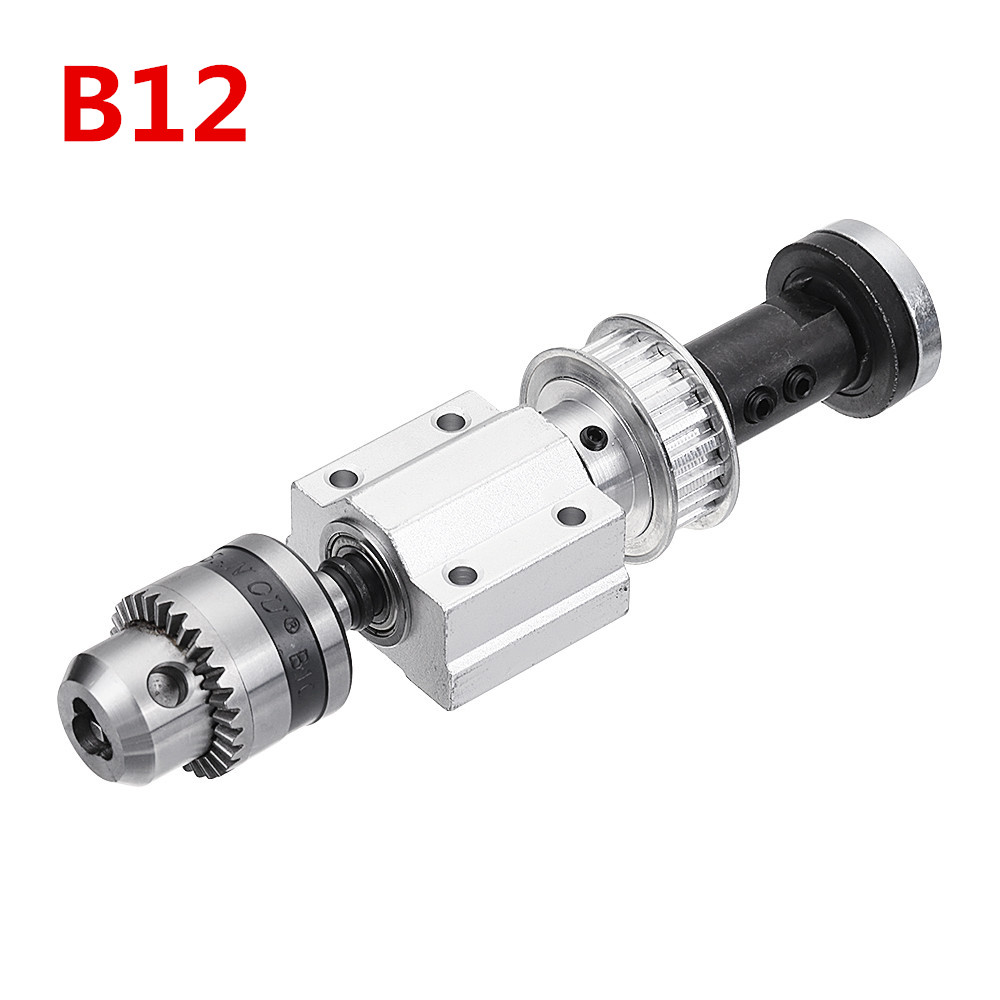

Machifit No Power Spindle Assembly B12 Drill Chuck Trimming Belt Small Lathe Accessories Set

Description:
No power DIY woodworking cutting grinding spindle small lathe accessories fit for table saw / bench drill / electric drill.

Specification:

Cutting ability	Unpowered spindle
Cutting depth	10 (mm)
Saw blade size/diameter	90 * 10 (mm)
No load speed	10000 (RPM)
Scope of application	Making small saw
Power type	No power

Features:
- The shipper and the synchronous wheel are equipped with the gasket isolation of 1mm to lock tightly.
- The rotation is smooth and without phase grinding, and the accuracy is good.
- No power spindle, precision machining by grinding machine, precision of 0.005mm, that is, a high-precision spindle with less than one wire.
- DIY bench drill, bench mill, table saw and so on.
- Through the connecting rod, the shaft sleeve link is eliminated, and the drill clamp is installed directly, so the accuracy is higher.
- The non-powered spindle (Mohs drill chuck connecting rod) is precision machined with a grinding machine with an accuracy of 0.005MM. Can be used to make bench drills, bench mills, table saws, etc.

Installation tips:
1. Pay attention to the mounting direction of the bearing, and carefully look at the description diagram or video.
2. Do not damage the bearing blindly. Patience and carefulness are the key points of mechanical work.
3. Various methods: to activate the brain and complete the assembly.
4. The sliding block and the contact surface of the synchronous wheel shall be separated by gasket to prevent phase grinding.The gasket is small. Don't lose it.

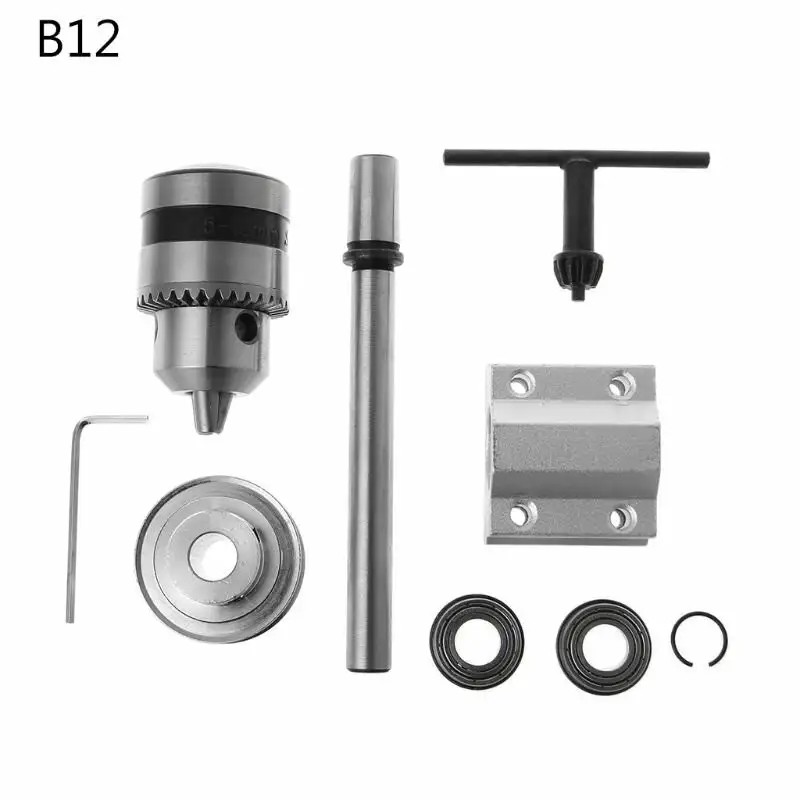

Package Included:

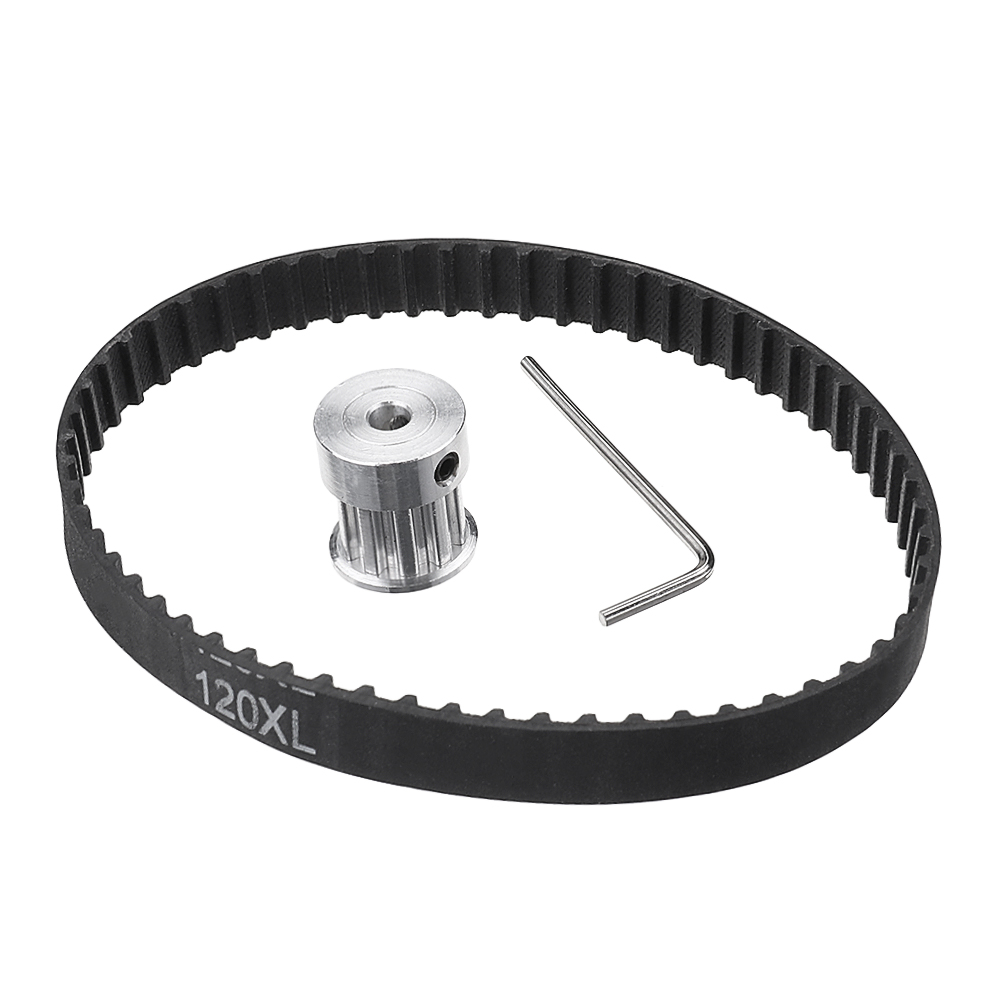

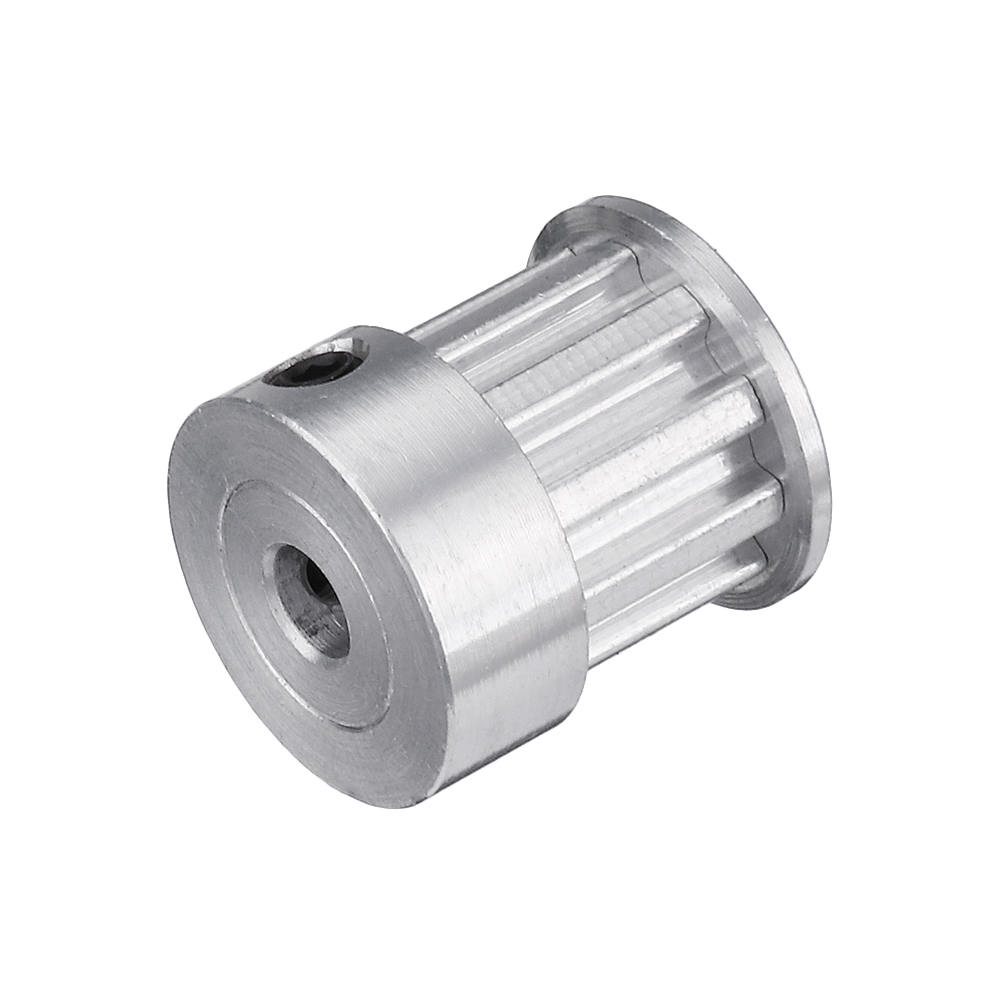

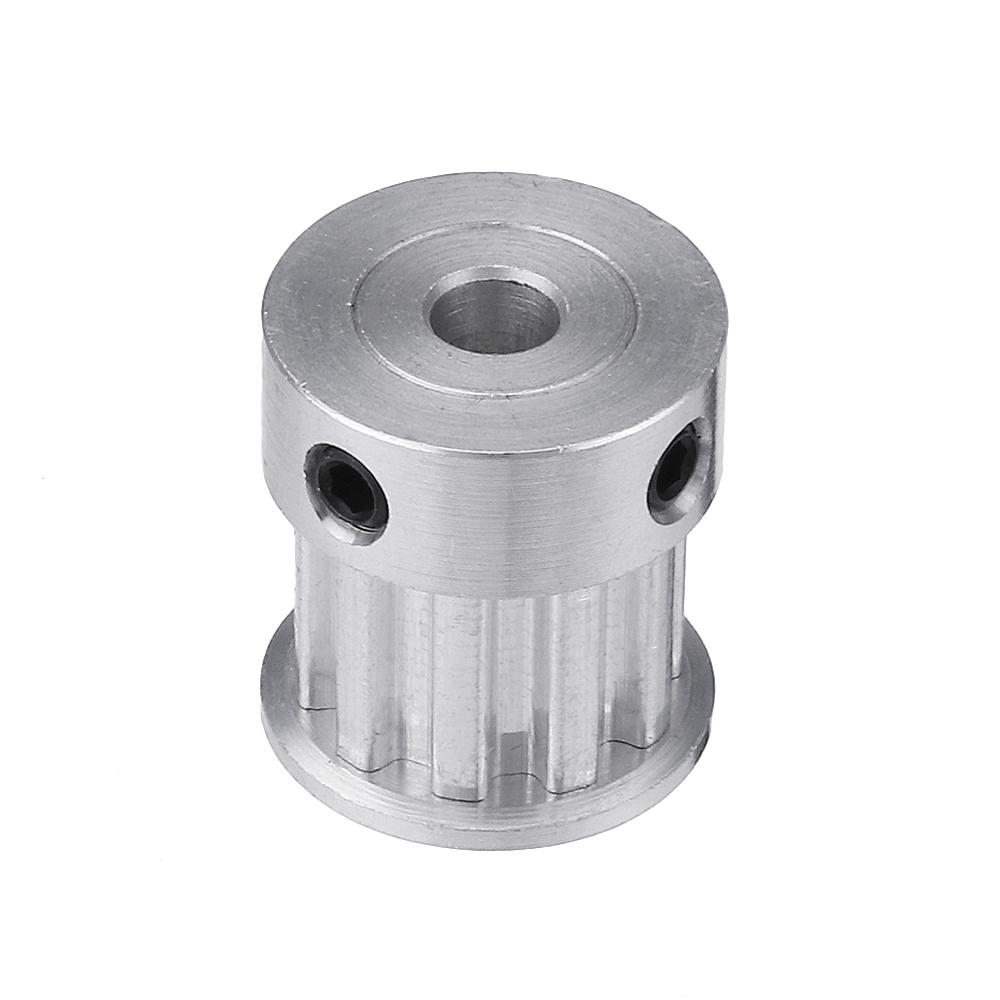

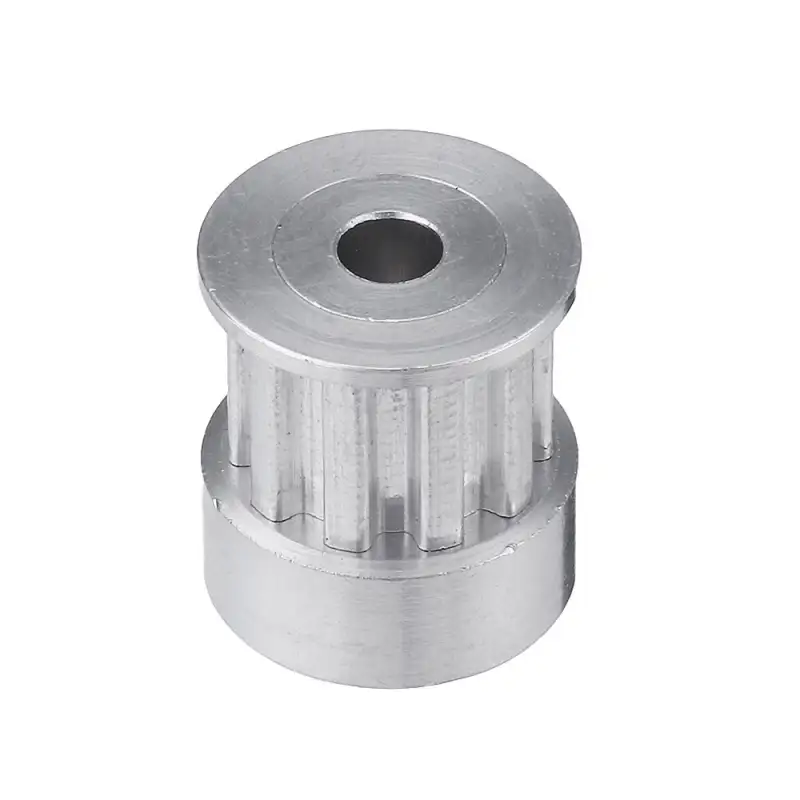

1 X XL10T 5mm hole synchronization wheel

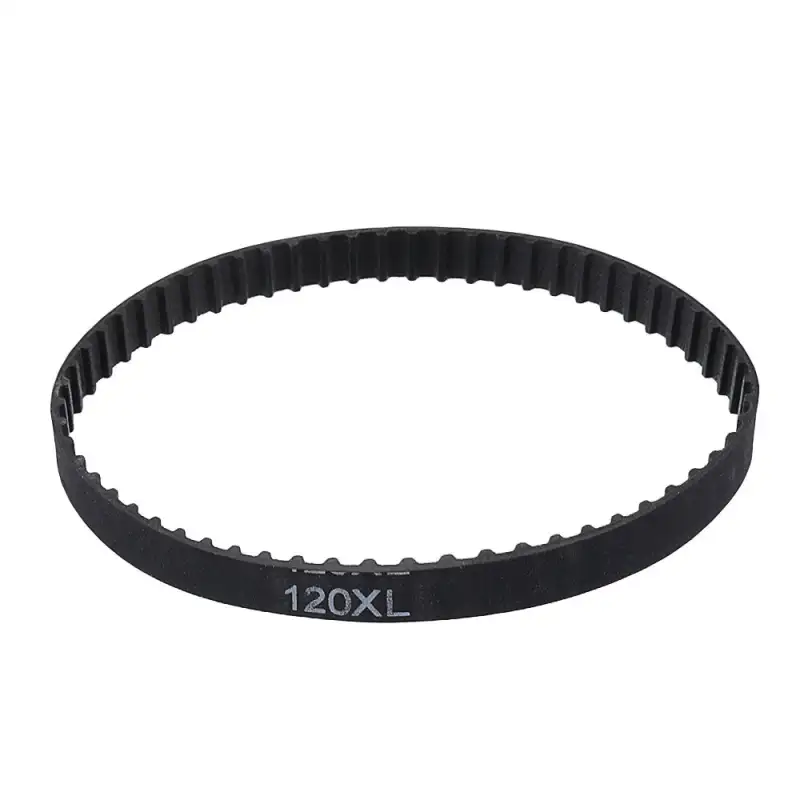

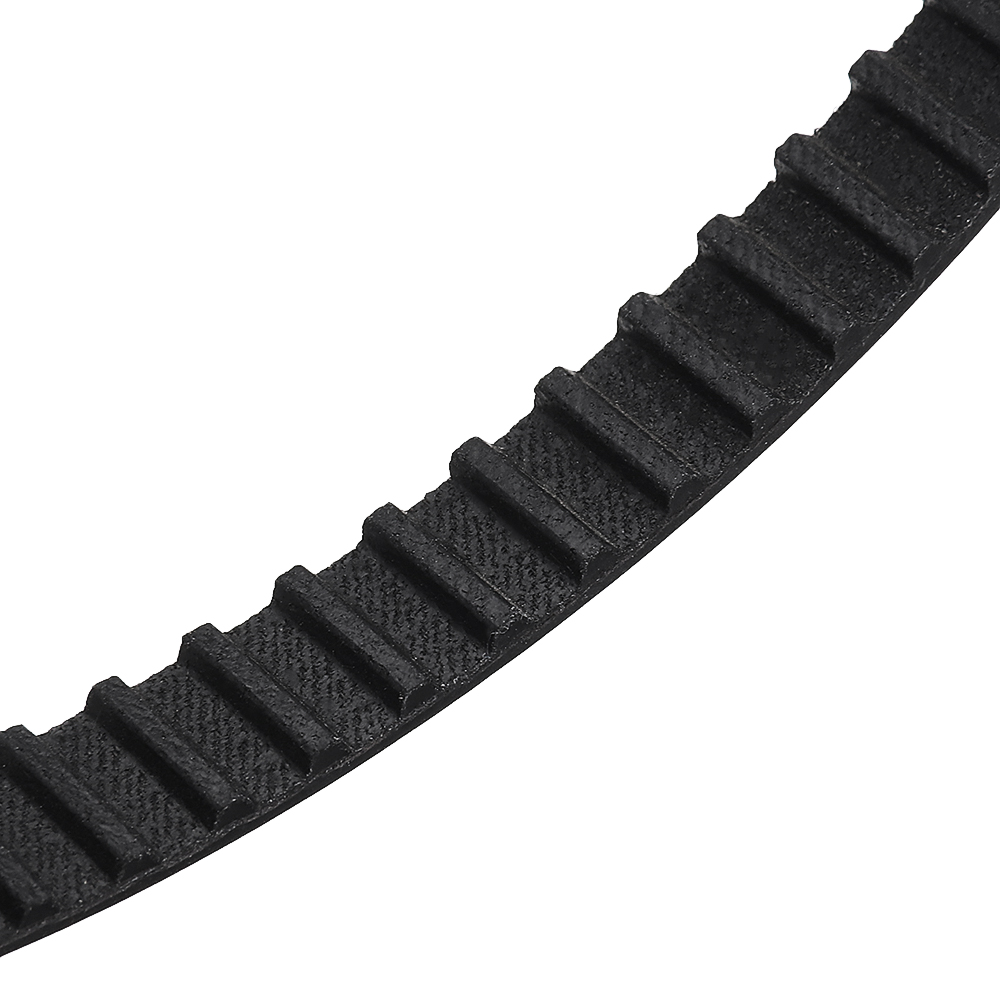

1 X 120XL Timing belt
1 X Wrench

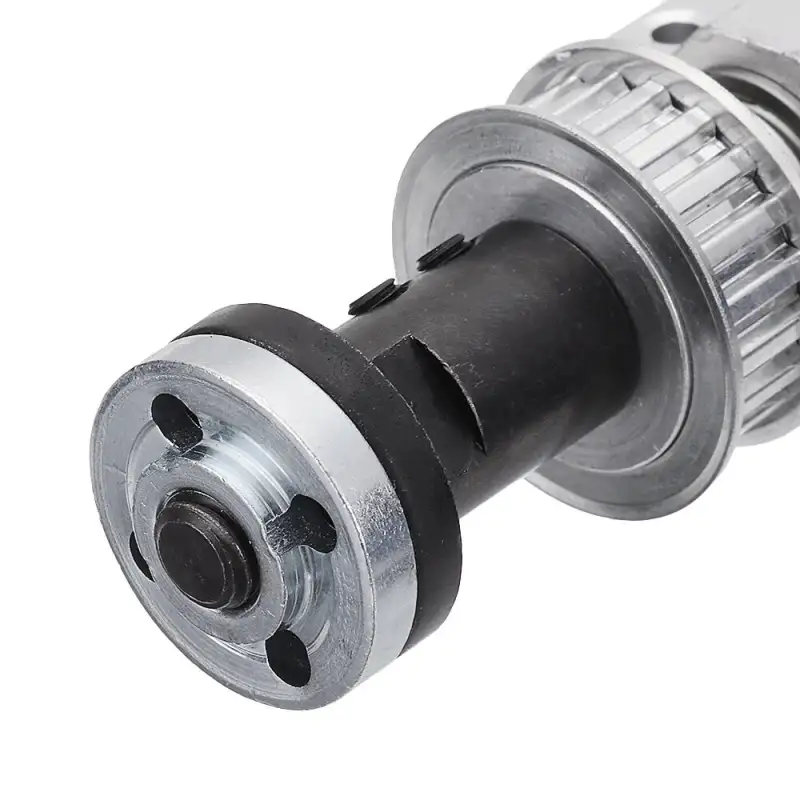

1 X Drill chuck connecting rod
1 X XL20T 10mm hole synchronization wheel

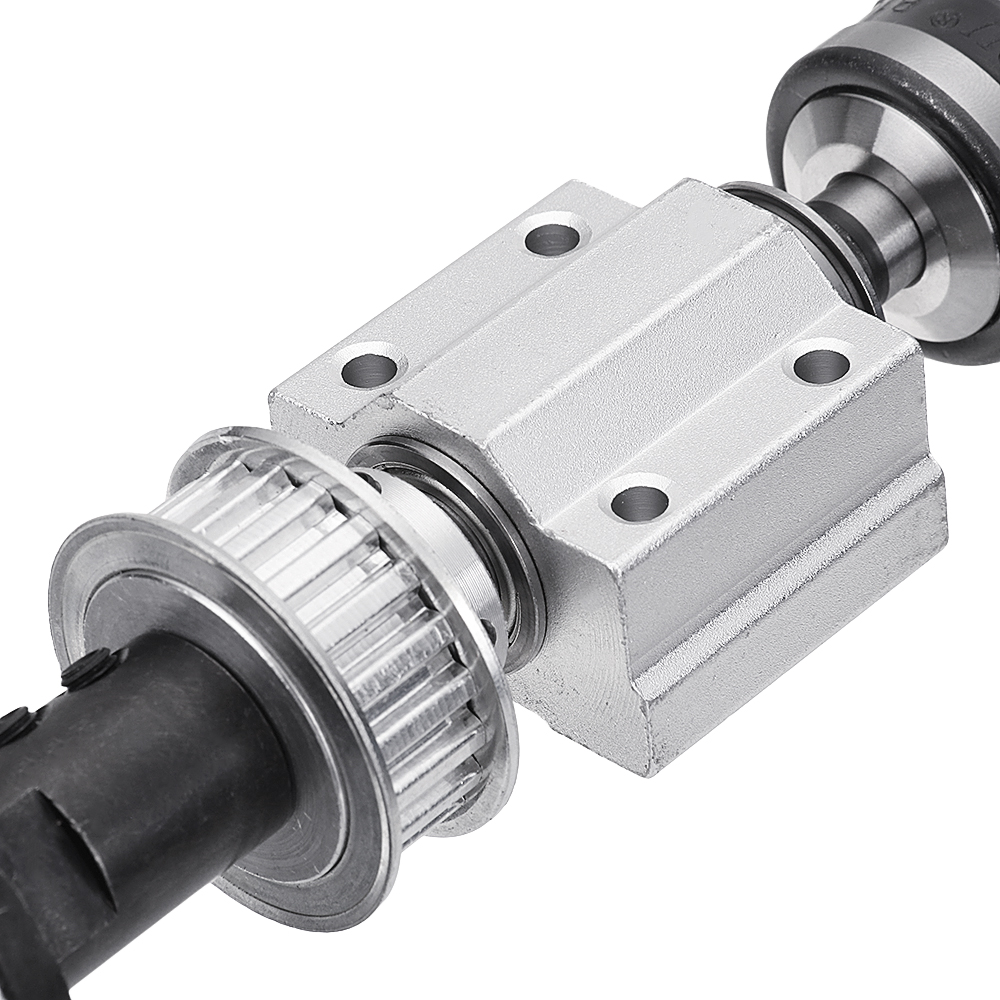

1 X 10mm hole slider (including 2 bearings)

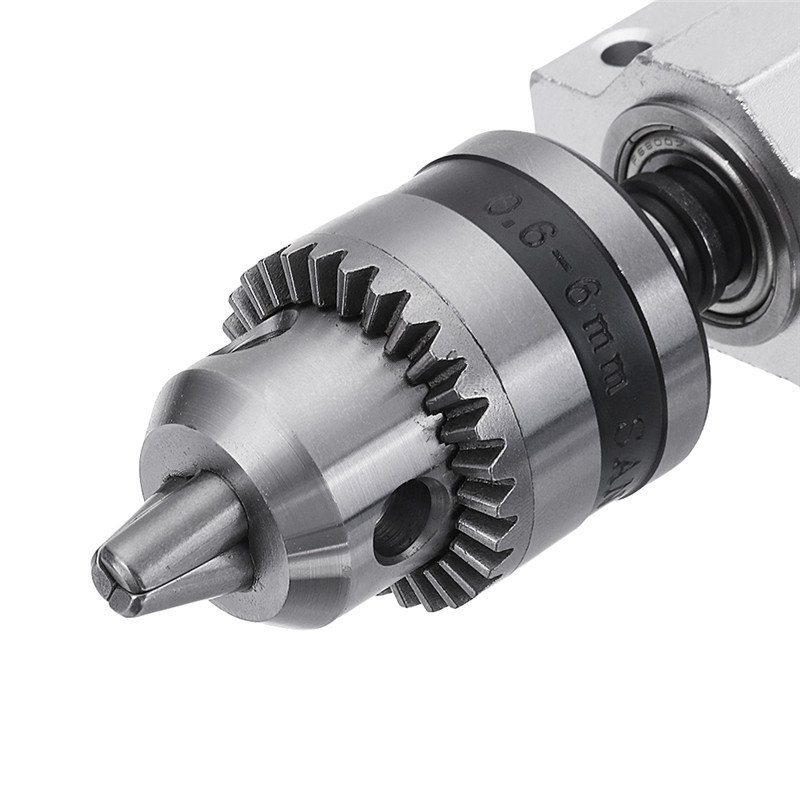

1 X 1.5-10mm B12 Drill Chuck
1 X M10 Shaft sleeve
(including shaft socket wrench, synchronous wheel wrench, drill clamp key)

More Details:
