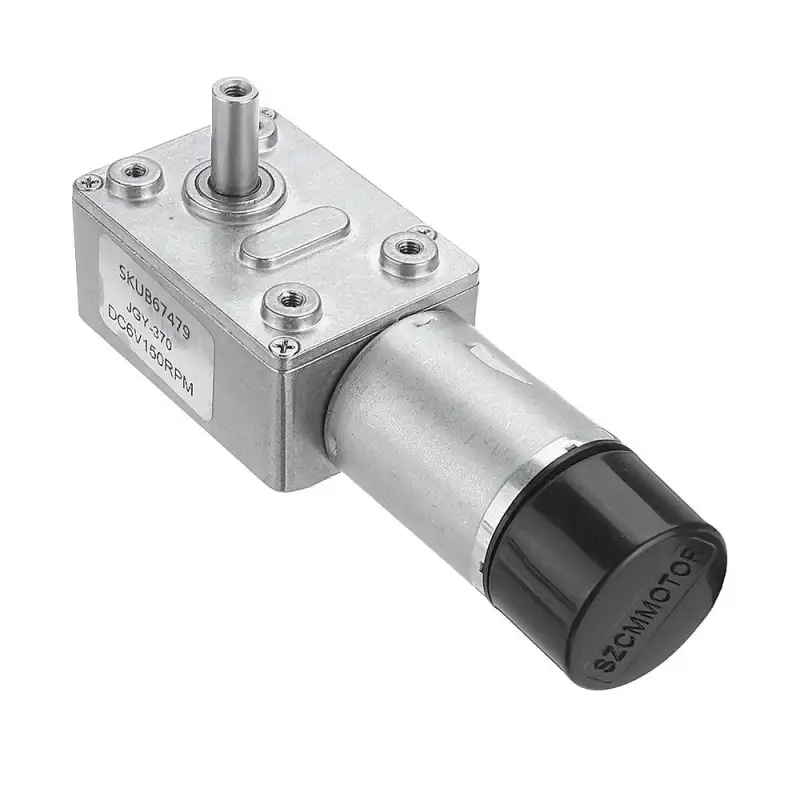

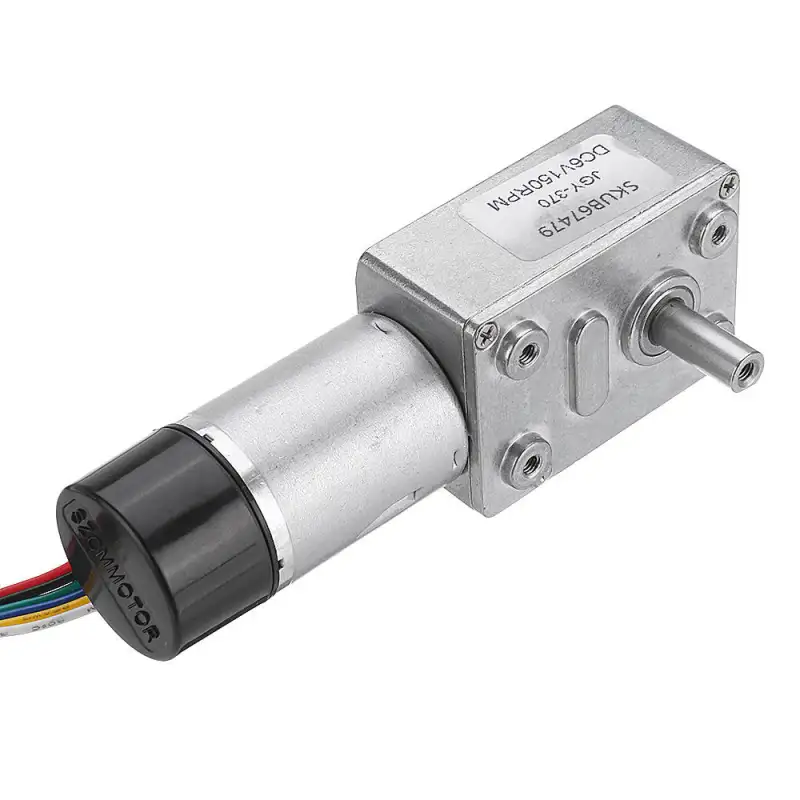

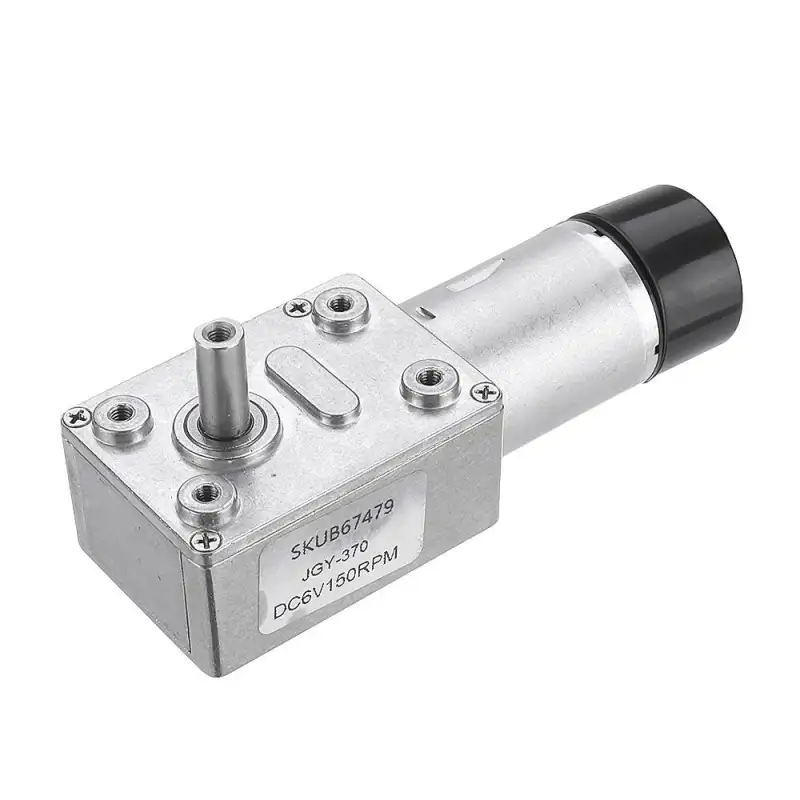

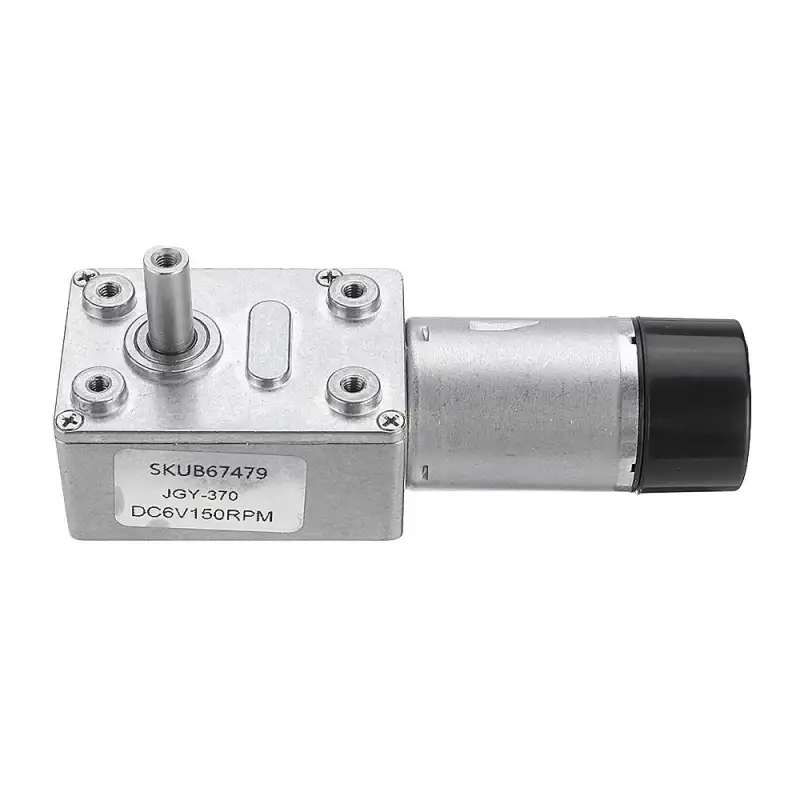

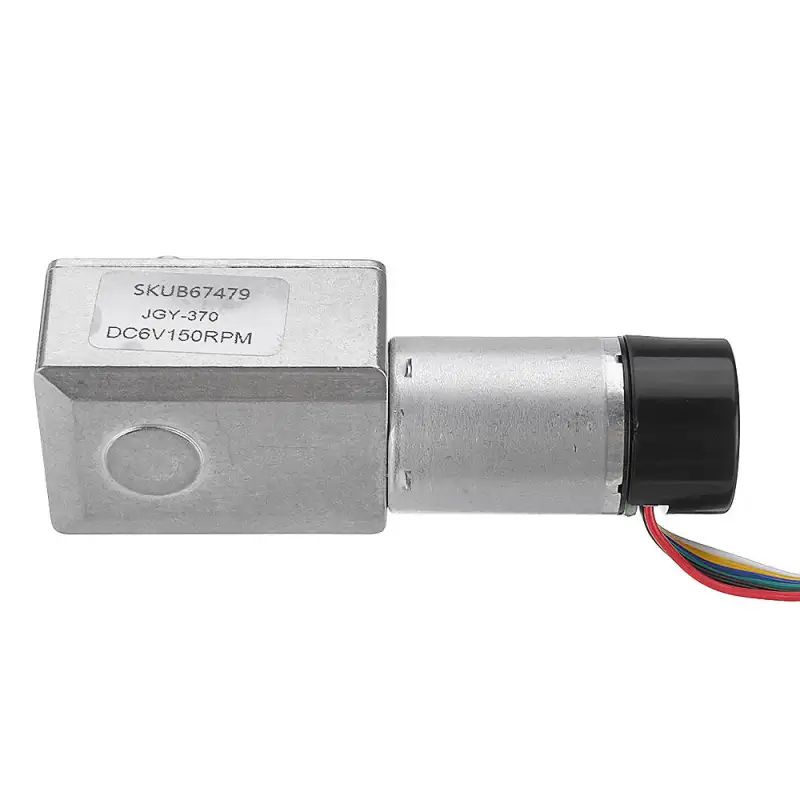

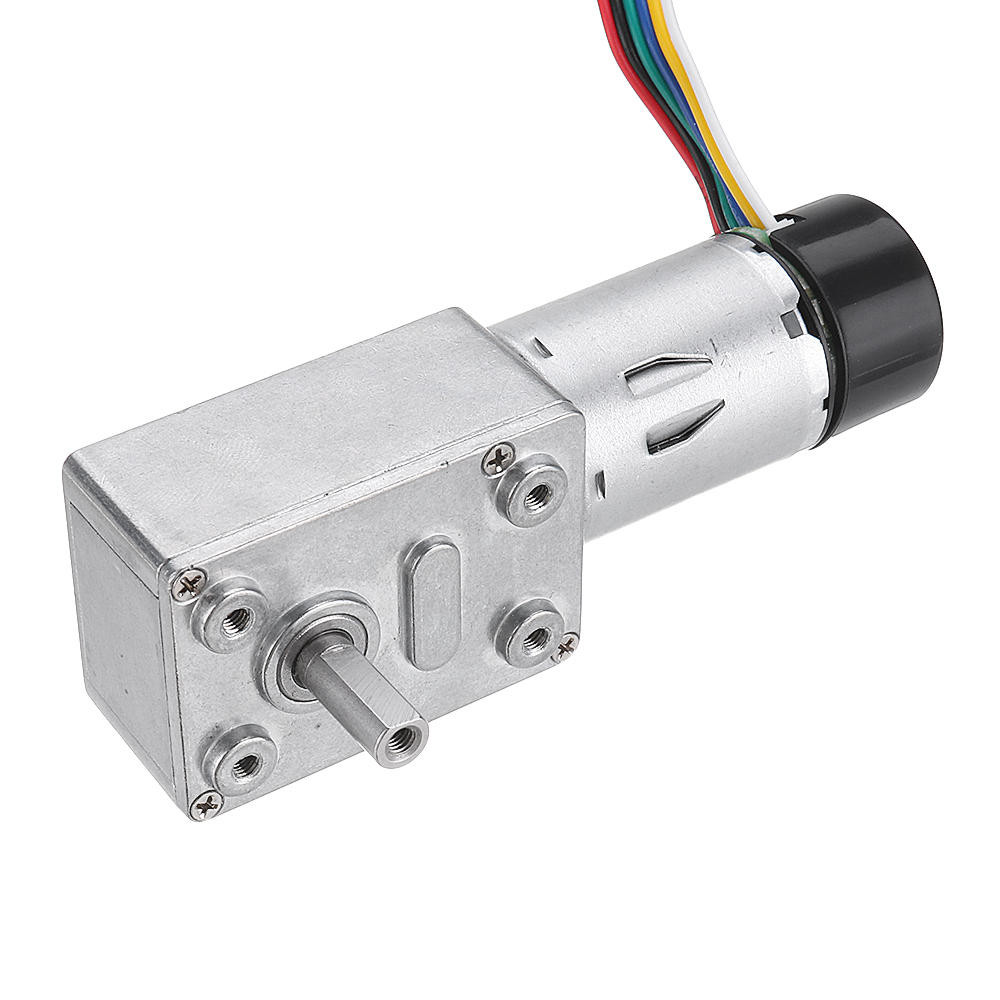

Machifit JGY-370 DC 6V Reduction Gear Turbine Motor Worm Self-locking Encoder Motor Signal Feedback

Reference:

Condition: New product

100 Items

$20.44

More info

Descriptions:
Machifit JGY-370 6V Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback

Specifications:
Brand: Machifit
Type: Reduction Motor
Material: Metal
Voltage: DC 6V
Weight: 167g
Power: 3W
Rated Voltage: 3 - 24V
Speed Regulation: Yes
Rotation In Both Directions: Yes
Size:
Outer Dia.: 6mm
Motor: 46 x 32mm(without shaft)
Line Length: 230mm

Reduction Ratio    600     200     65     40
No-load Current (MA) ≤100
No-load Speed (rpm) 10 30 90 150
Rated Torque (Kg.cm) 15.9 5.3 0.5 0.2
Rated Speed (rpm) 7.5 22 70 120
Rated Current (A) ≤0.6
Maximum Torque (Kg.cm) 30 10 1.6 0.9
Stop Current (A) 3.3

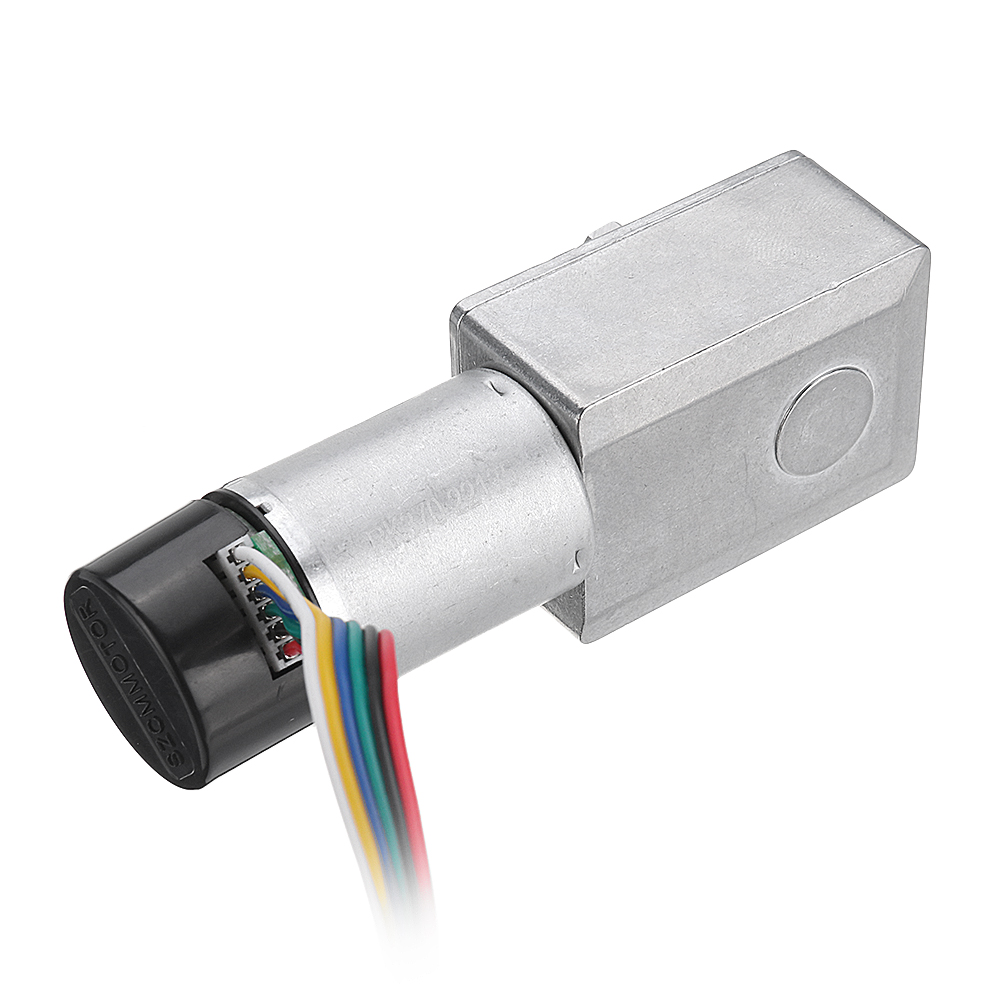

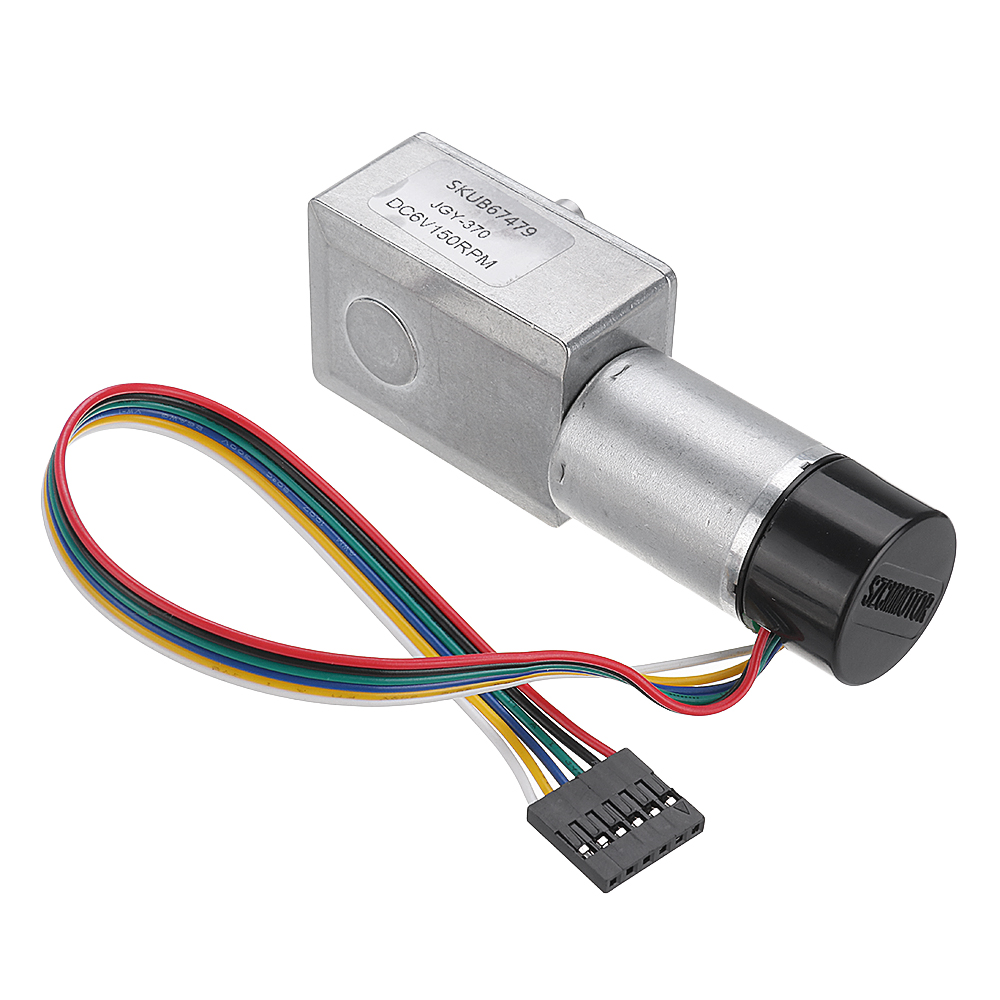

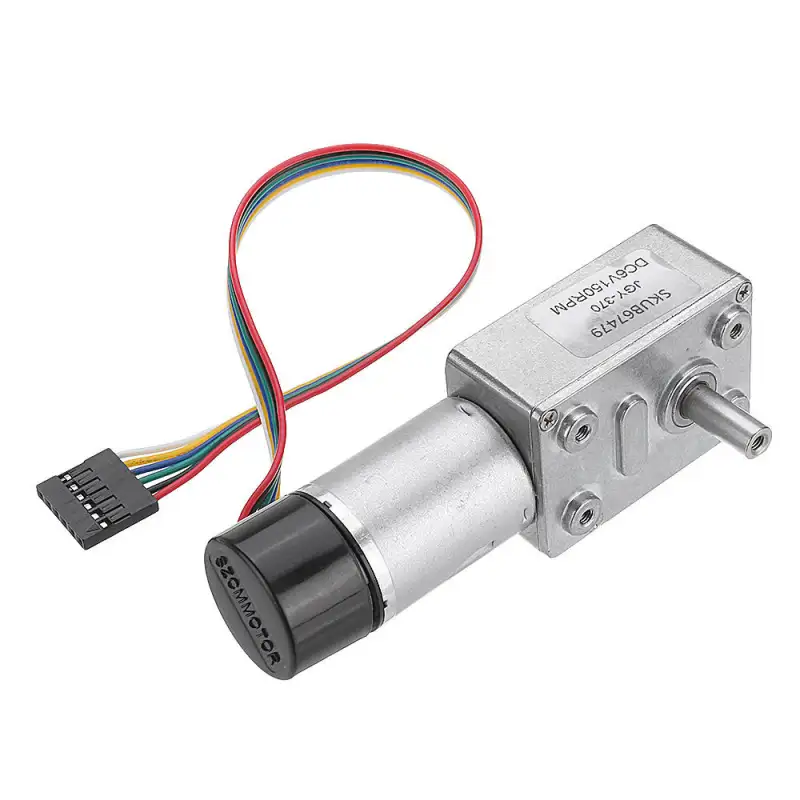

Wiring:
Red: red motor + positive
Black: black motor - negative
Green: Green sensor ground wire - (5-12V)
Blue: blue sensor power + (5-12V)
Yellow: Signal A output point (11 pulses)
White: Signal B output point (11 pulses)

Features:
- D-axis Display
More fixed, superior thermal conductivity, high hardness and anti-friction;
- Internal Gearbox
All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere;
- Covered Encoder
The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating;
- High quality motor with a service life of up to 1000 hours;
- Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc.

Package Included:
1 Pc x 6V Reduction Gear Motor

More Details:

Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
Machifit-JGY-370-DC-6V-Reduction-Gear-Turbine-Motor-Worm-Self-locking-Encoder-Motor-Signal-Feedback-1504106
