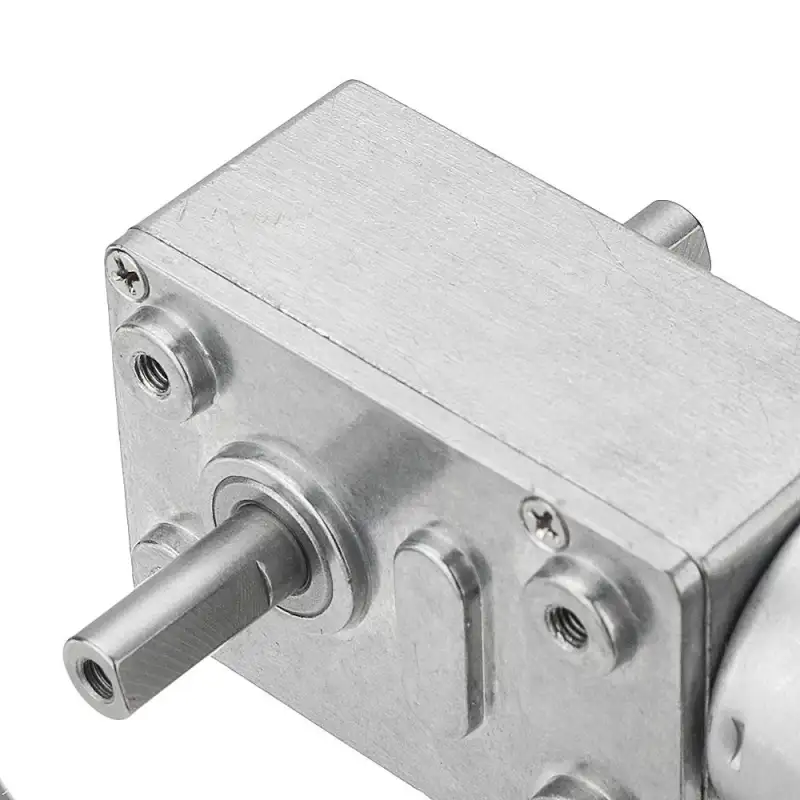

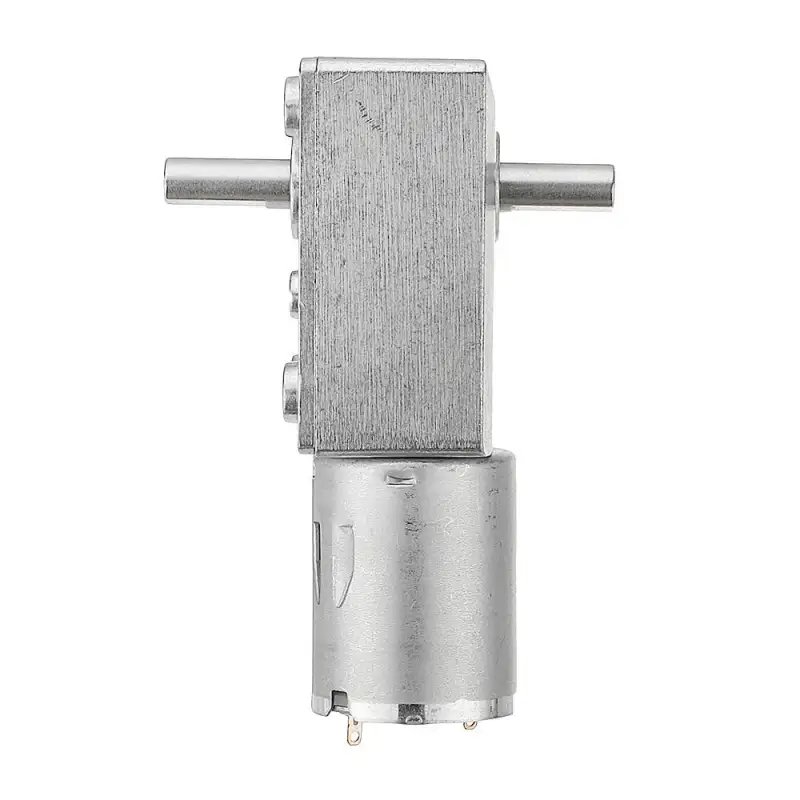

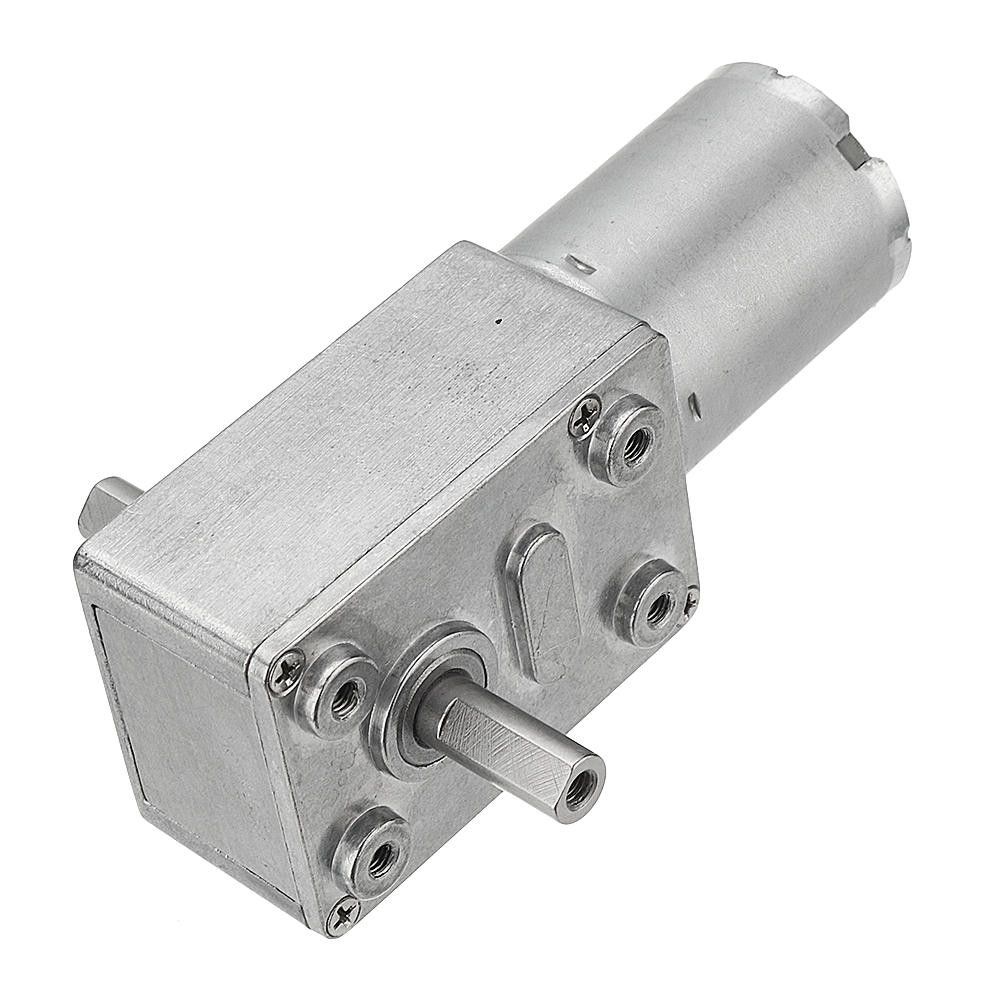

Machifit JGY-370 DC 6/12/24V 150RPM Double Shaft Worm Gear Motor Self-locking Reduction Gear Motor

Reference:

Condition: New product

301 Item Items Warning: Last items in stock!

$15.41

Voltage

Quantity

More info

Descriptions:

Machifit JGY370 DC 6/12/24V 150rpm double shaft micro DC worm gear reducer reduction motor

Specifications:

Brand: Machifit

Material: Metal

Voltage: DC 6/12/24V (optional)

Rotate Speed (No-load Speed) : 150rpm

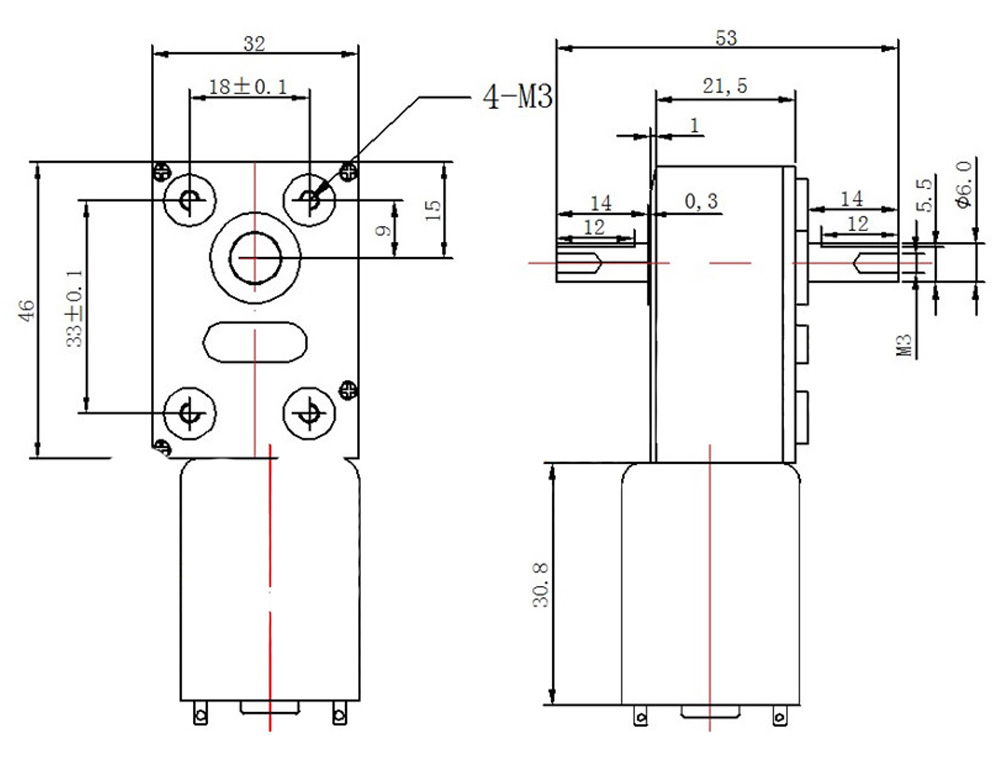

Size:

Outer Dia.: 31.5mm

Axial Length: 33mm

Screw Shaft: 6mm

Suitable For: Window, a door opener, miniature winch

Input Voltage(V)	6	12	24
Retarder Reduction Ratio	1:40	1:65	1:40
No Load Current (mA)	≤100	≤60	≤40
No Load Speed(RPM)	150	150	150
Rated Torque(Kg.cm)	0.2	0.2	0.2
Rated Speed(RPM)	120	120	120
Rated Current(A)	≤0.6	≤0.6	≤0.3
Max Torque(Kg.cm)	0.9	0.9	0.9
Stalling Current(A)	3.3	1.7	0.85

Features:

- Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking.

- Gear box output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion.

Note:

- When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor.

- The rod of rotation of the motor's life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items.

- Manufactured heavy eccentric load of radiation, harmful life of the motor.

- Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect.

- Do not run the motor in the surrounding temperature and moisture.

Package Included:

1 Pcs x 150rpm Worm Gear Reducer

More Details:
