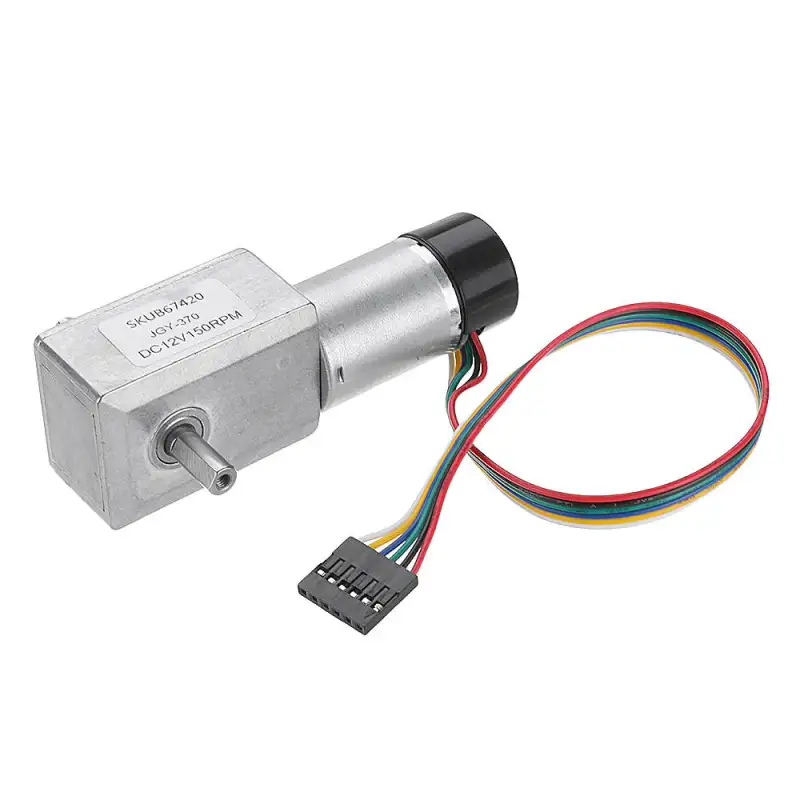

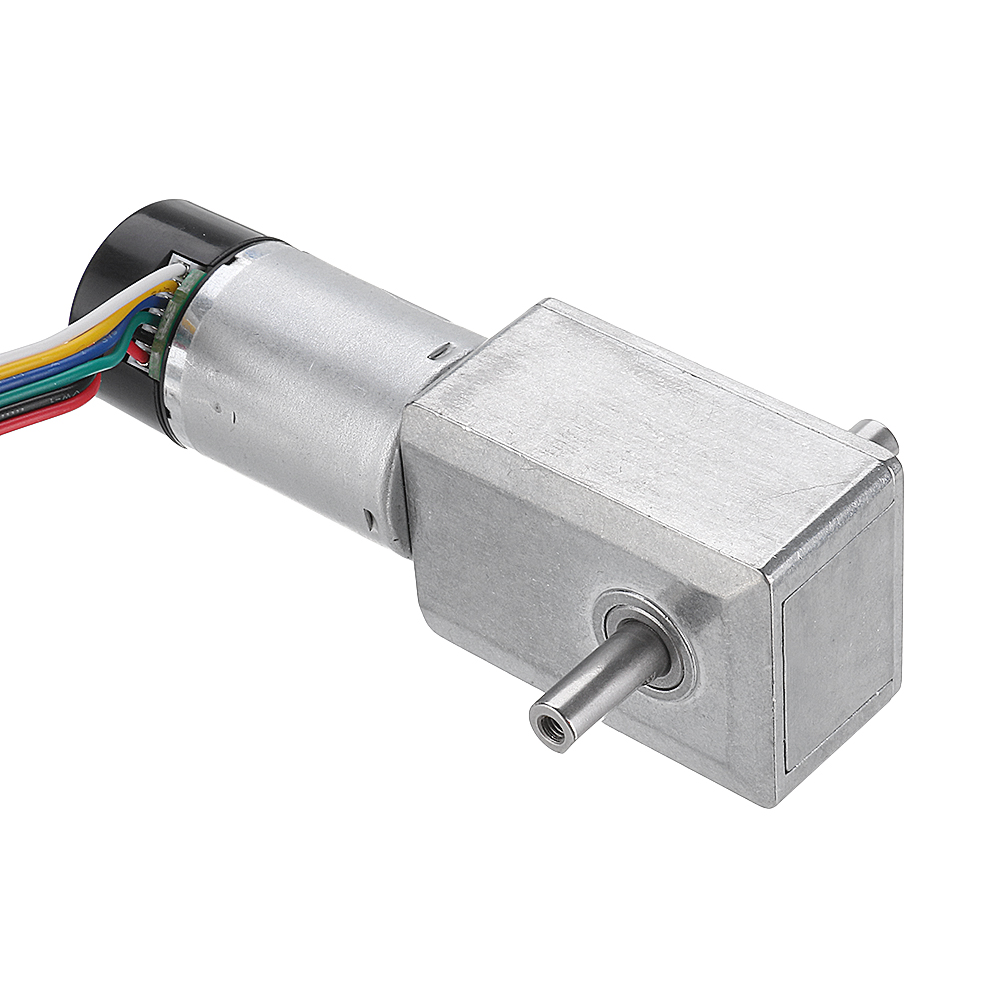

Machifit JGY-370 DC 12V Double Shaft Motor Reduction Gear Turbine Worm Self-locking Motor

Reference:

Condition: New product

399 Items

$22.42

More info

Descriptions:
Machifit JGY-370 12V Double Shaft Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback

Specifications:
Brand: Machifit
Type: Reduction Motor
Material: Metal
Voltage: DC 12V
Weight: 172g
Power: 3W
Speed Regulation: Yes
Rotation In Both Directions: Yes
Size:
Outer Dia.: 6mm
Motor: 46 x 32mm(without shaft)
Line Length: 230mm

Reduction Ratio    600     200     65     40
No-load Current (MA) ≤60
No-load Speed (rpm) 10 30 90 150
Rated Torque (Kg.cm) 15.9 5.3 0.5 0.2
Rated Speed (rpm) 7.5 22 70 120
Rated Current (A) ≤0.6
Maximum Torque (Kg.cm) 30 10 1.6 0.9
Stop Current (A) 1.7

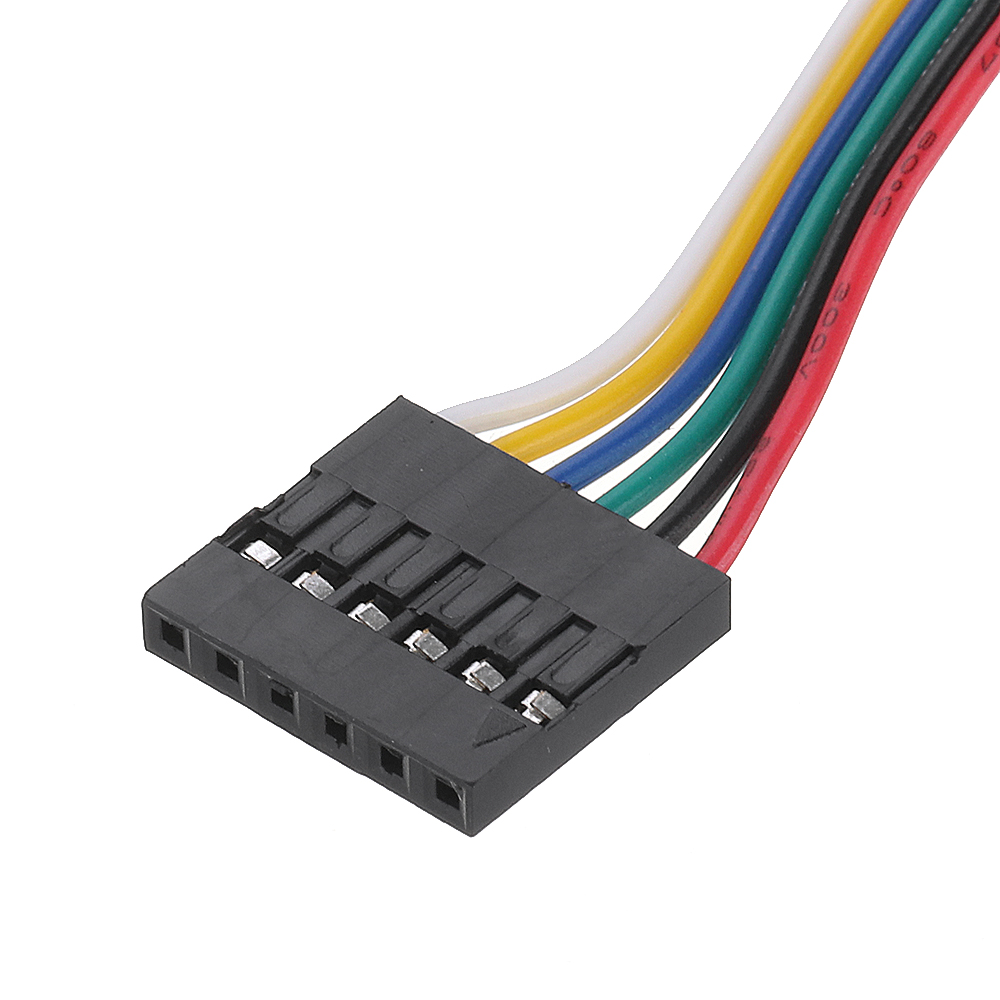

Wiring:
Red: red motor + positive
Black: black motor - negative
Green: Green sensor ground wire - (5-12V)
Blue: blue sensor power + (5-12V)
Yellow: Signal A output point (11 pulses)
White: Signal B output point (11 pulses)

Features:
- D-type Double Shaft
More fixed, superior thermal conductivity, high hardness and anti-friction;
- Internal Gearbox
All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere;
- Double Shaft Covered Encoder
The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating;
- High quality motor with a service life of up to 1000 hours;
- Suitable for massage chairs, electronic locks, smart devices, fishing equipment, etc.

Package Included:
1 Pc x 12V Double Shaft Reduction Gear Motor

More Details:

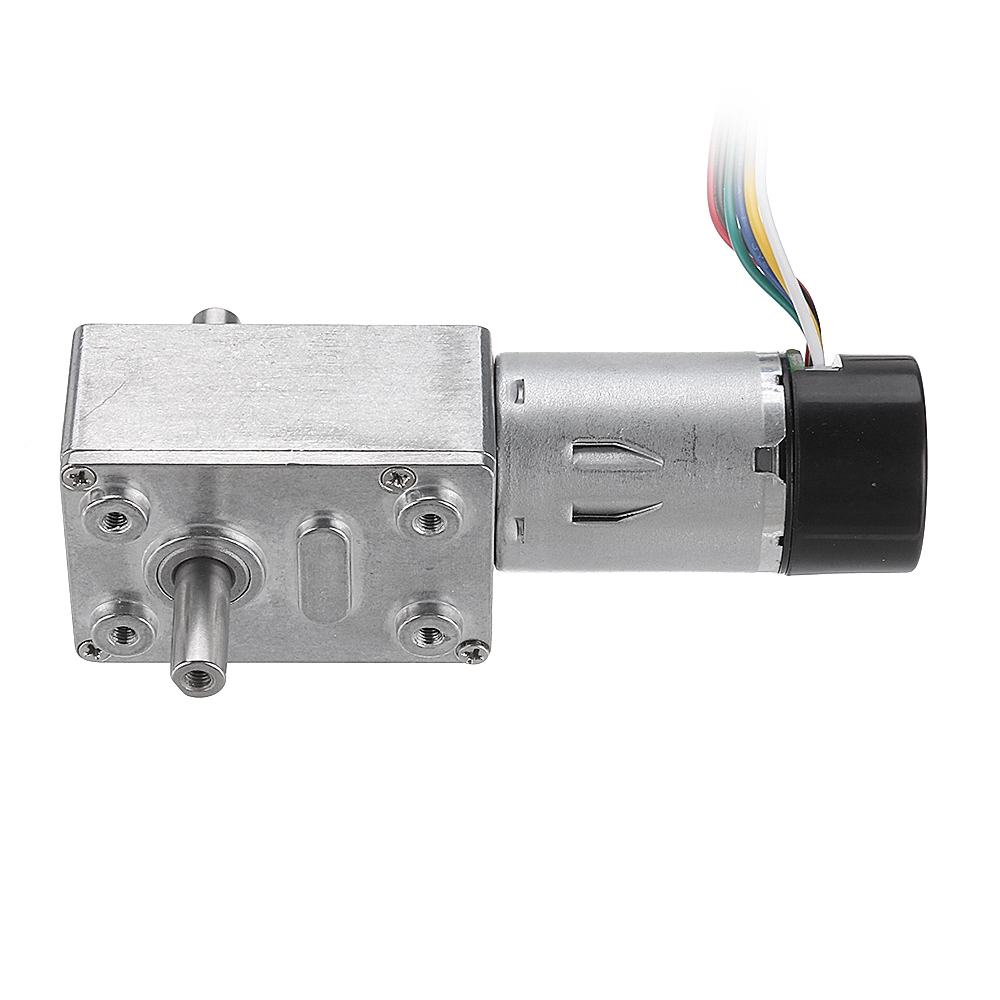

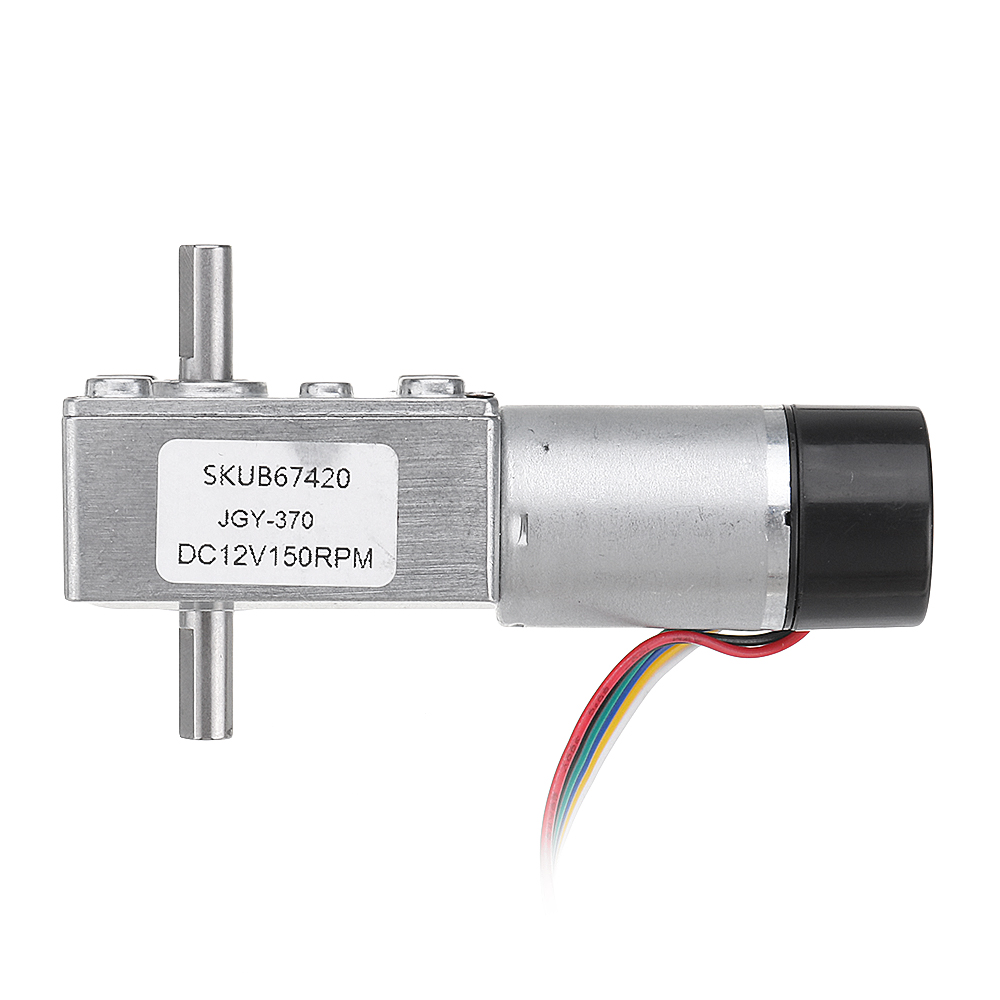

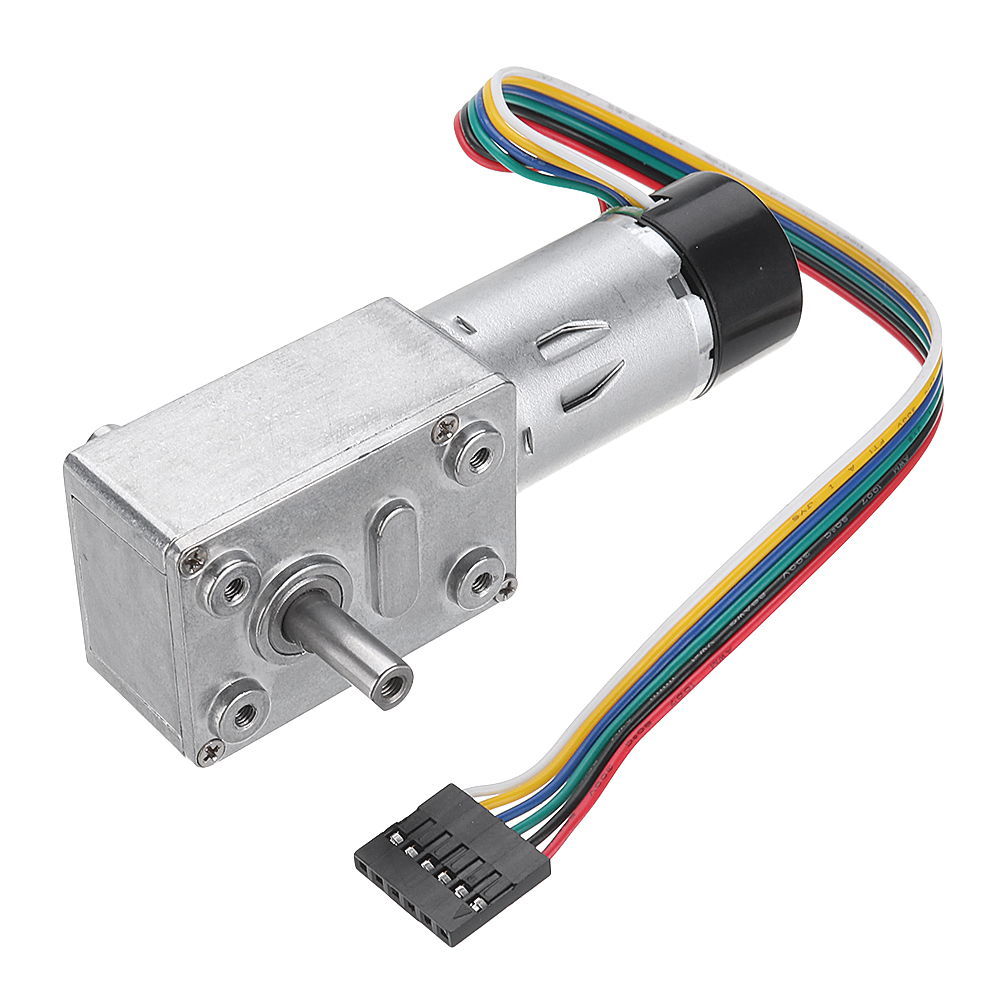

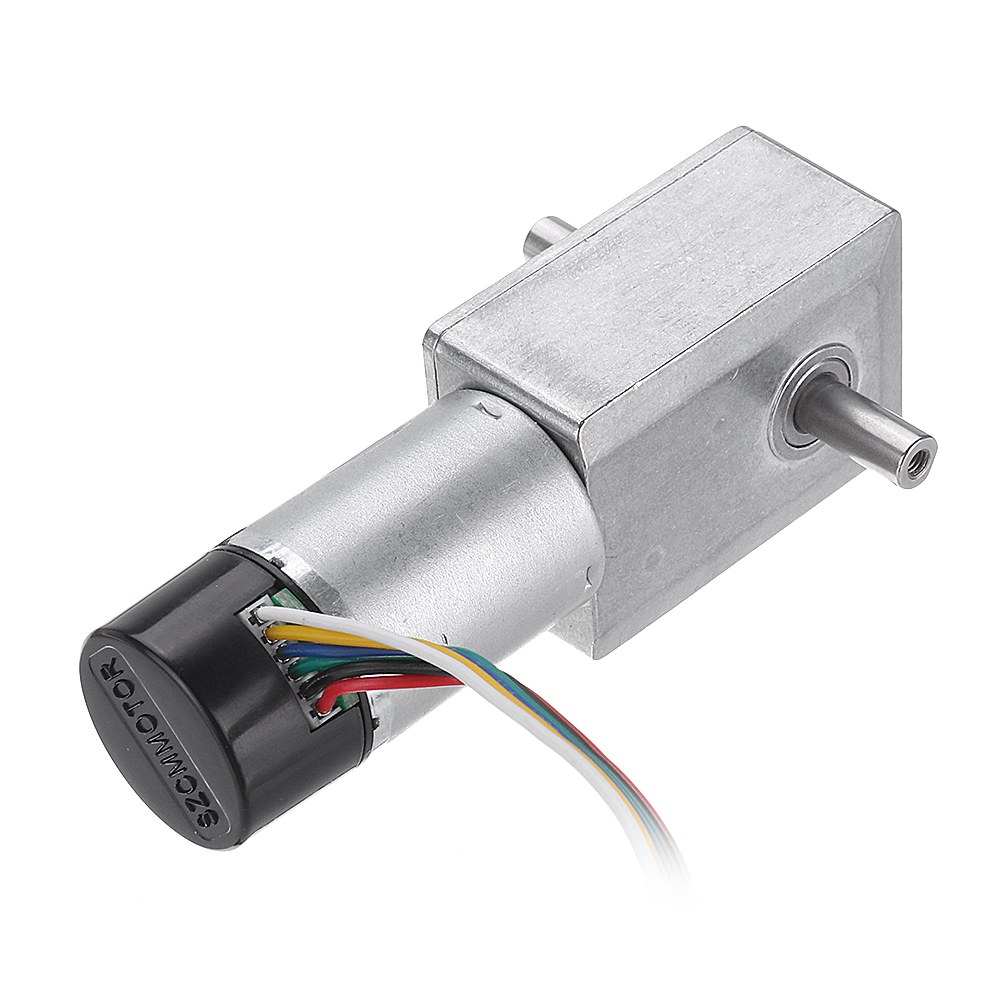

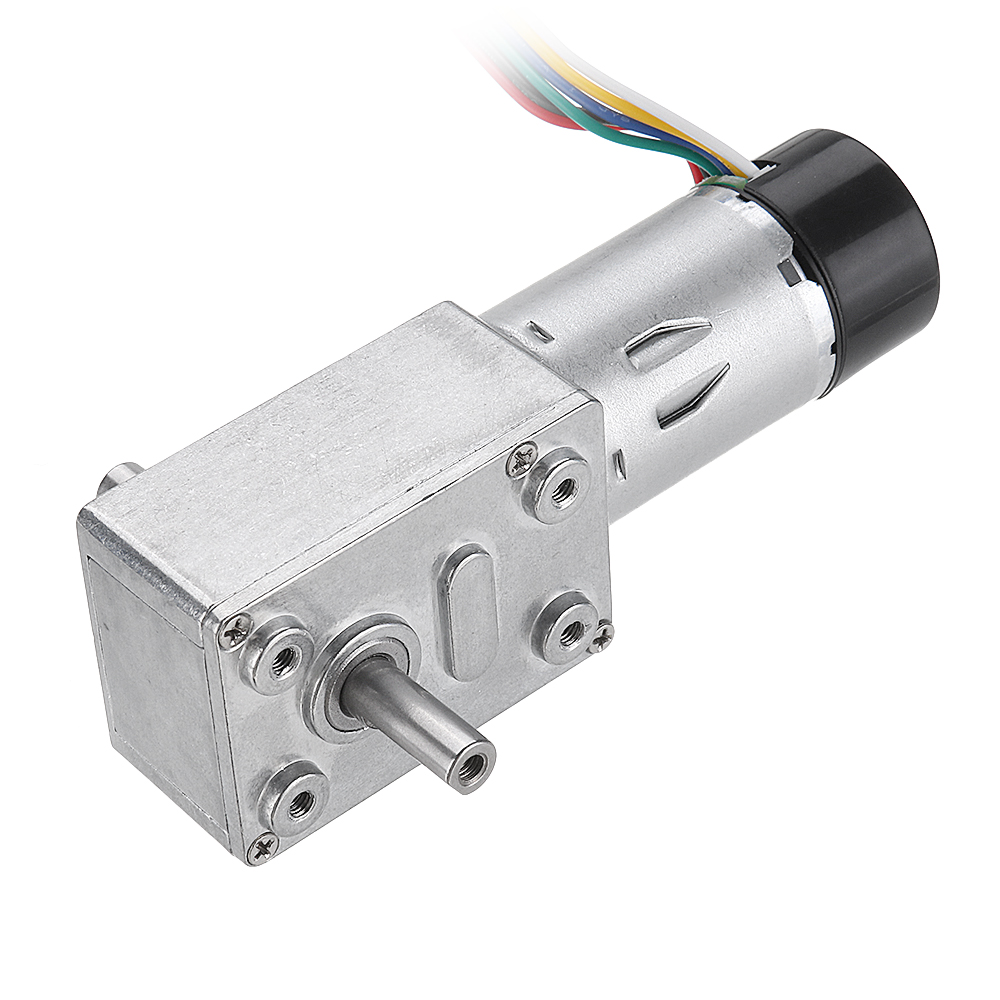

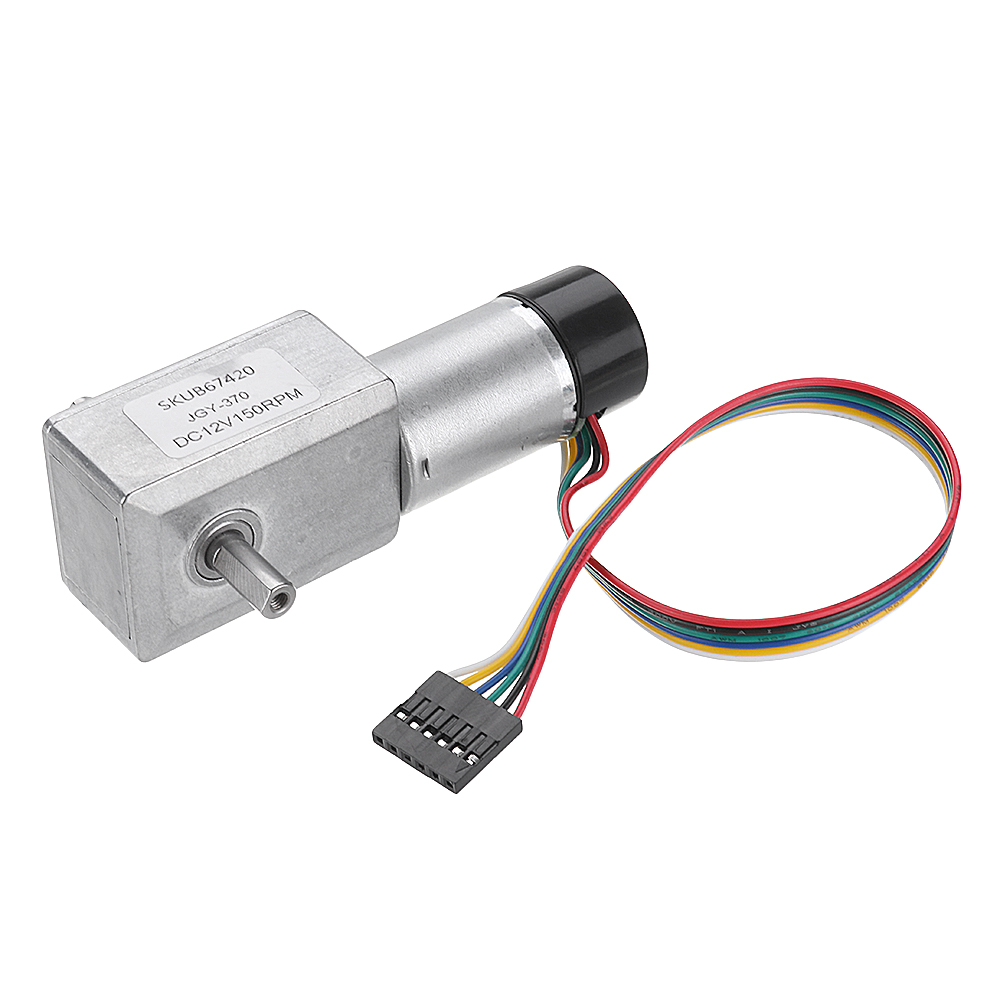

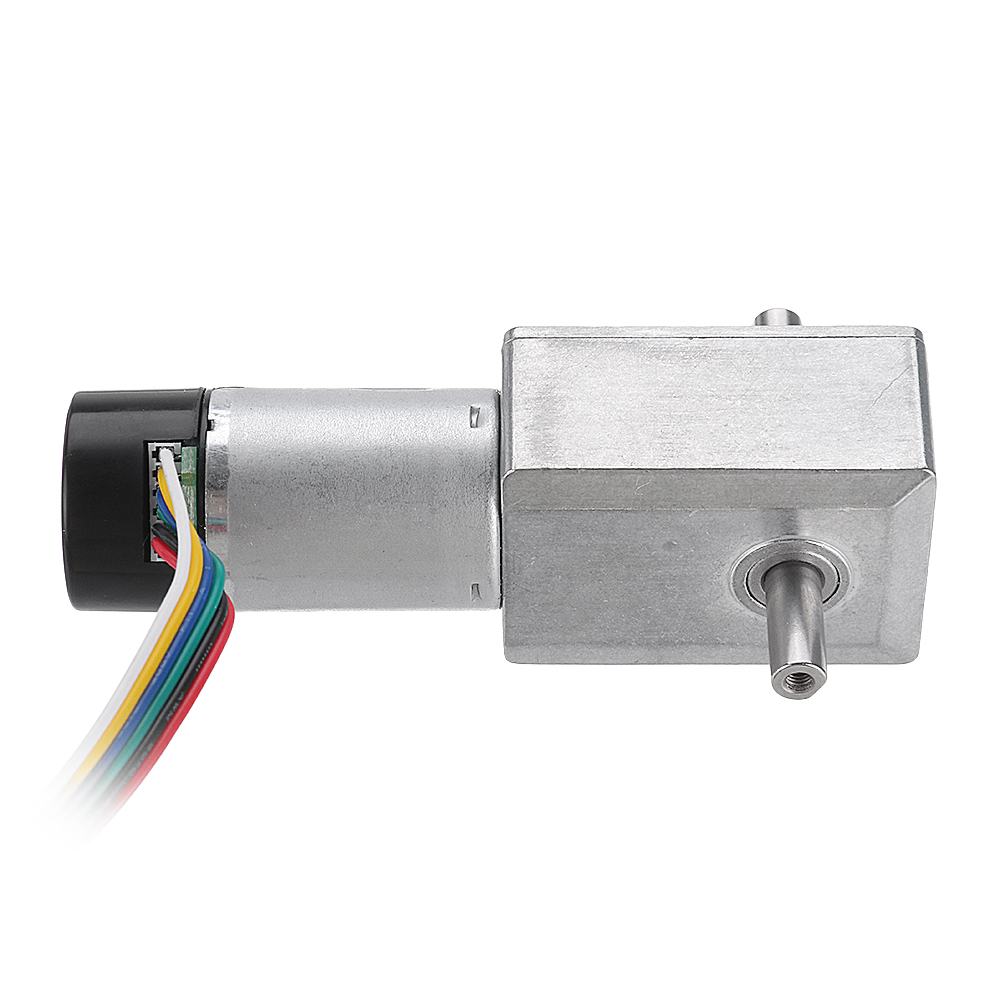

Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
Machifit-JGY-370-DC-12V-Double-Shaft-Motor-Reduction-Gear-Turbine-Worm-Self-locking-Motor-1504104
