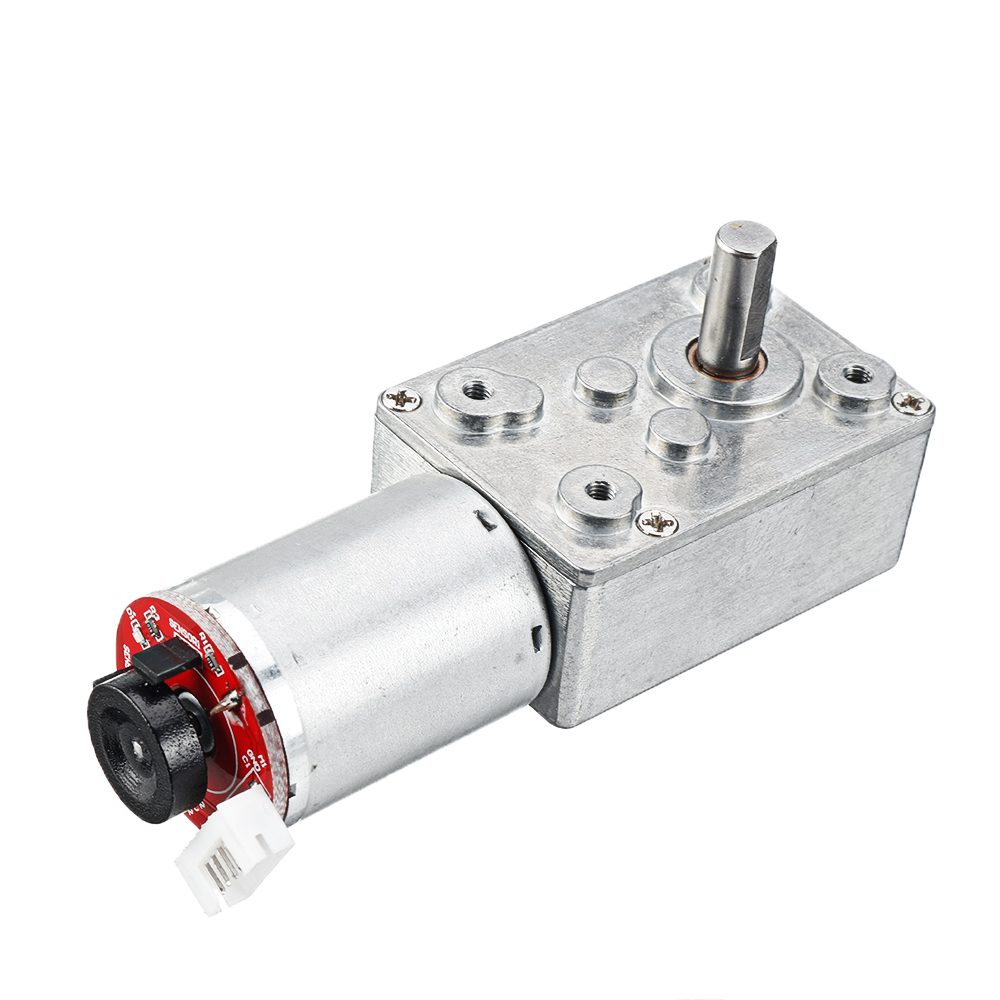

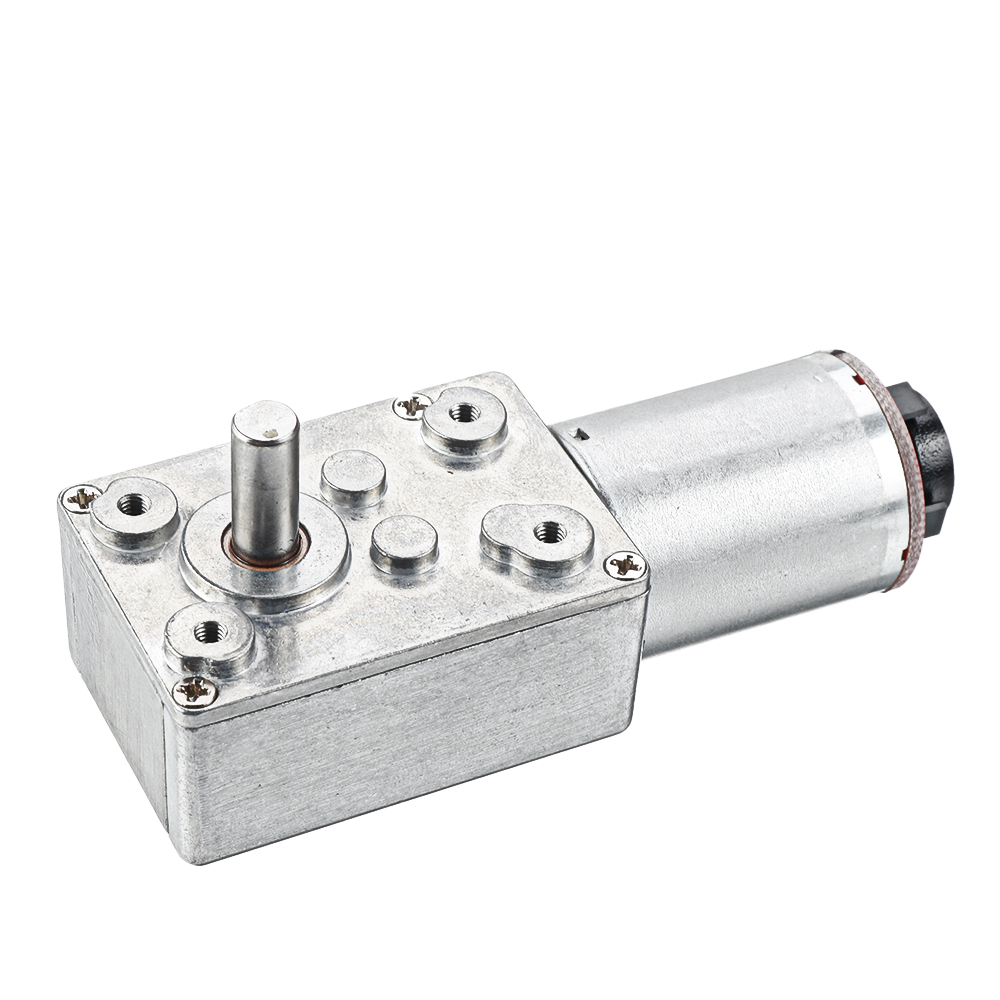

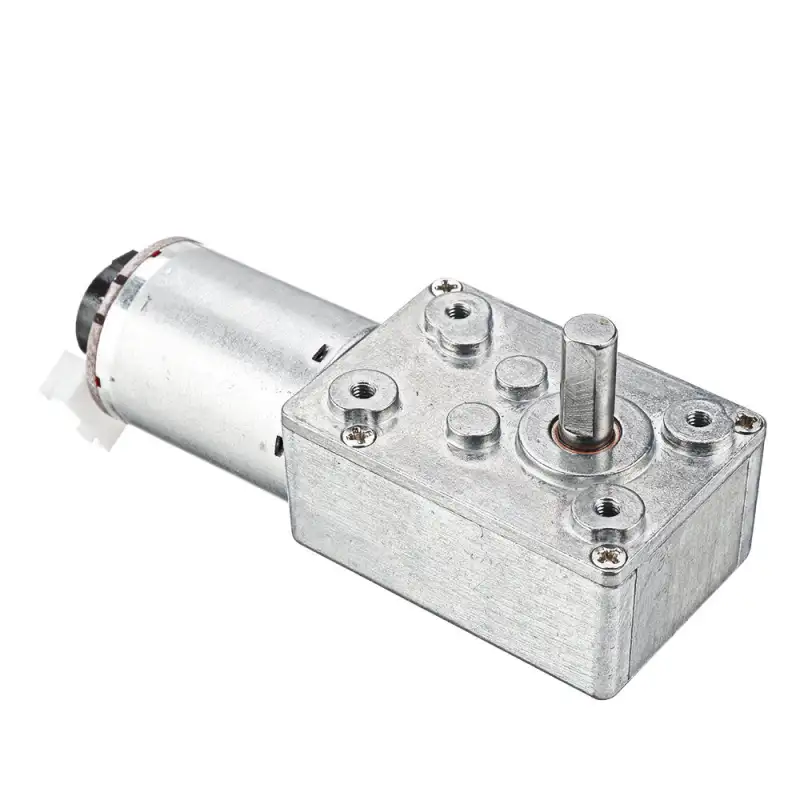

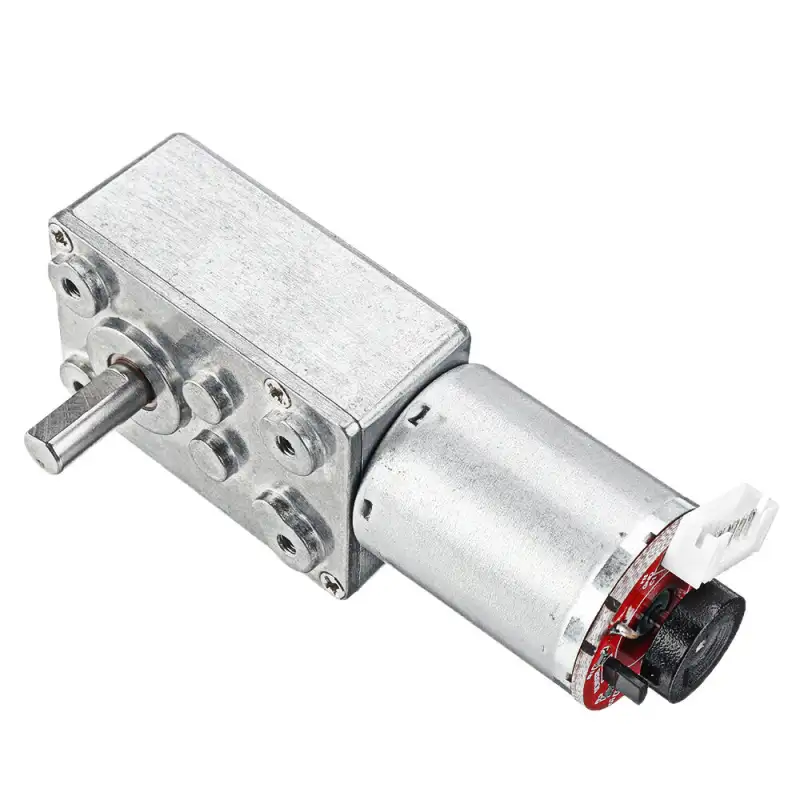

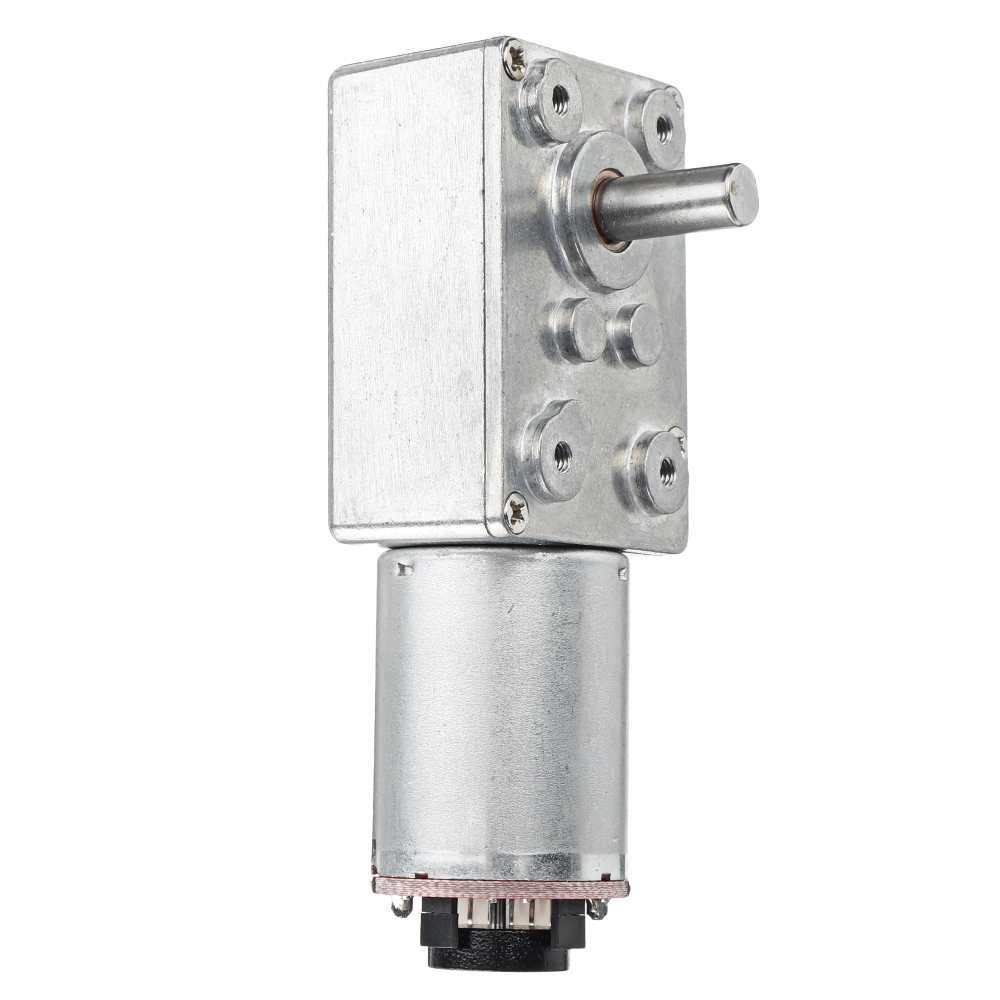

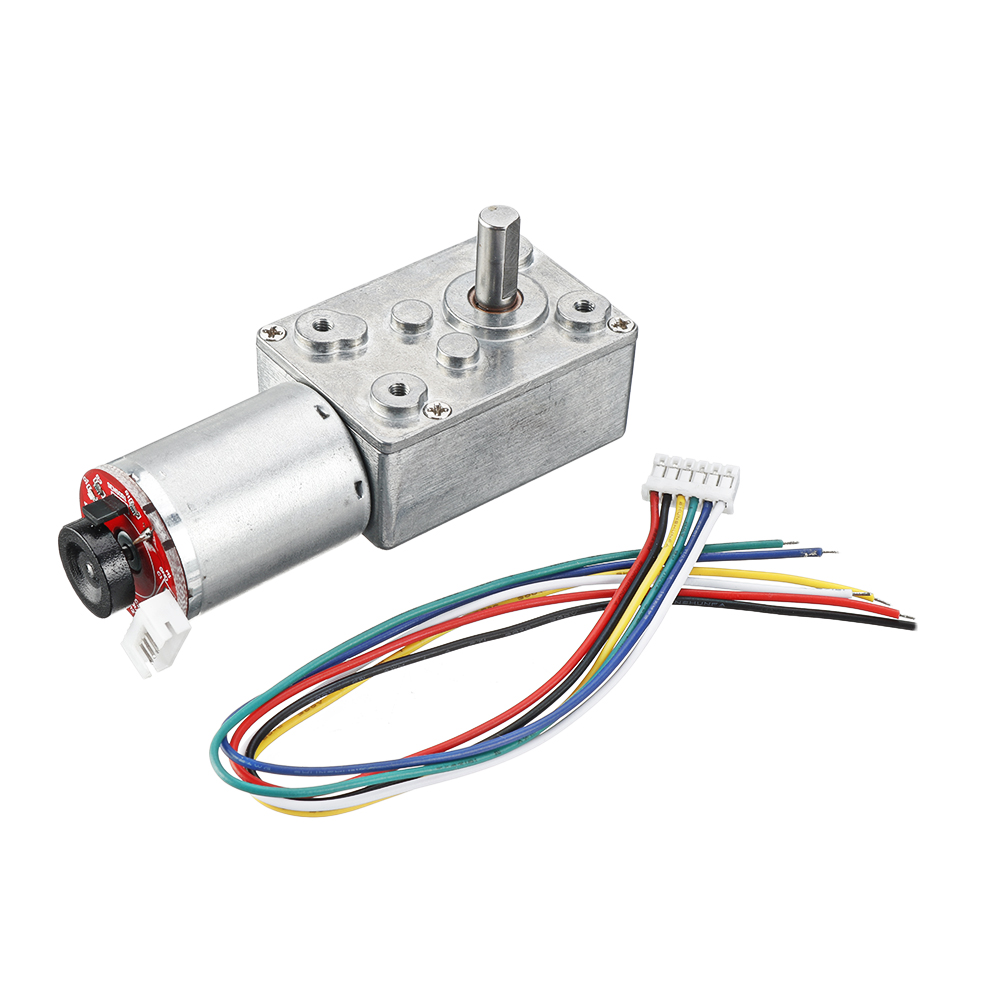

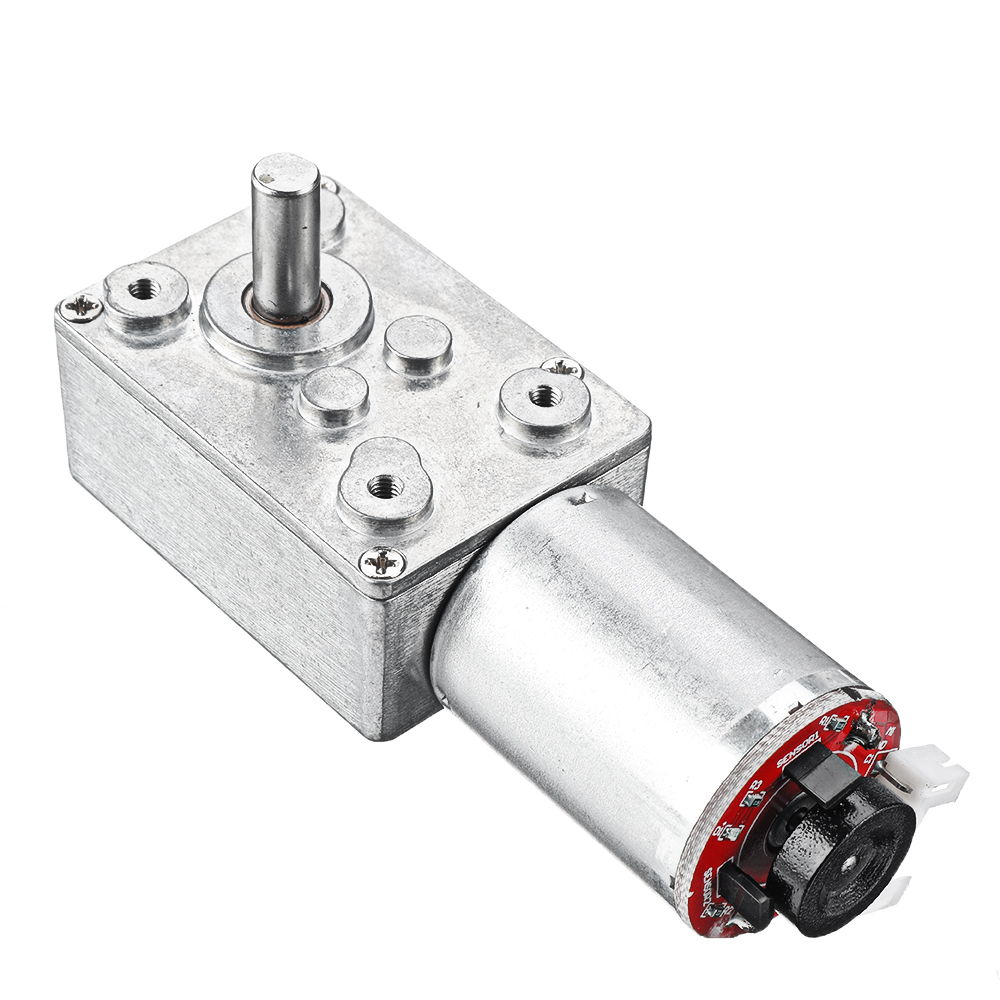

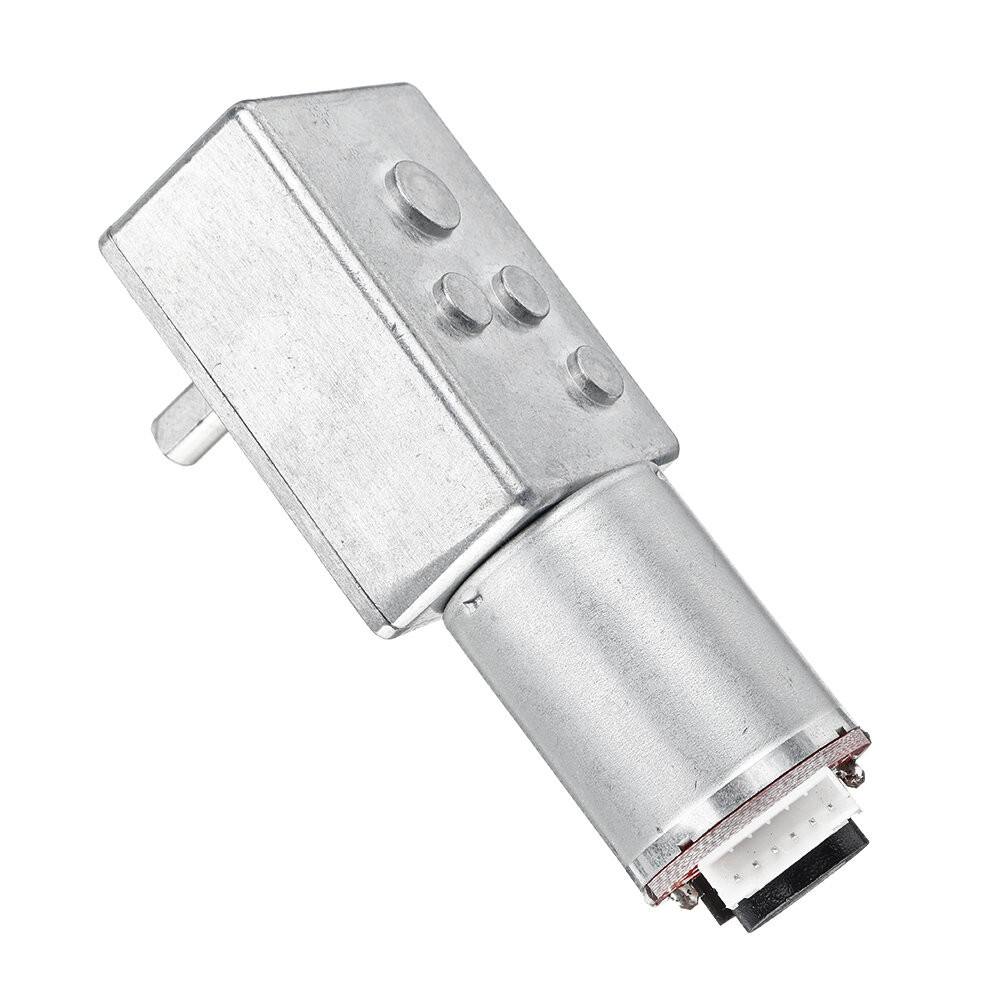

Machifit GW370 DC 12V 20/40/70/100/400RPM Mini-turbine Rod Geared Motor With Encoder For Automatic Sprayer

Description:

Machifit GW370 DC 12V 20/40/70/100/400RPM Mini-turbine Rod Geared Motor With Encoder For Automatic Sprayer

Specifications:

Product Name	Reduction Motor
Brand	MACHIFIT
Material	Metal
Voltage	DC 12V
Rotate Speed	20/40/70/100/400RPM(optional)
Color	Silver
Quantity	1 Pc × Reduction Motor

VOLTAGE GEAR RATIO NO LOAD LOAD TORQUE STALL SPEED CURRENT SPEED CURRENT TORQUE CURRENT TORQUE 12V 1:380 20RPM ≤60MA 19RPM ≤170MA 1150g.cm ≤2.1A 25.4KG.CM 1:147 40RPM 38RPM 980g.cm 24.8KG.CM 1:85 70RPM 65RPM 550g.cm 21.8KG.CM 1:60 100RPM 91RPM 82g.cm 20.5KG.CM 1:15 400RPM 372RPM 58g.cm 18.6KG.CM

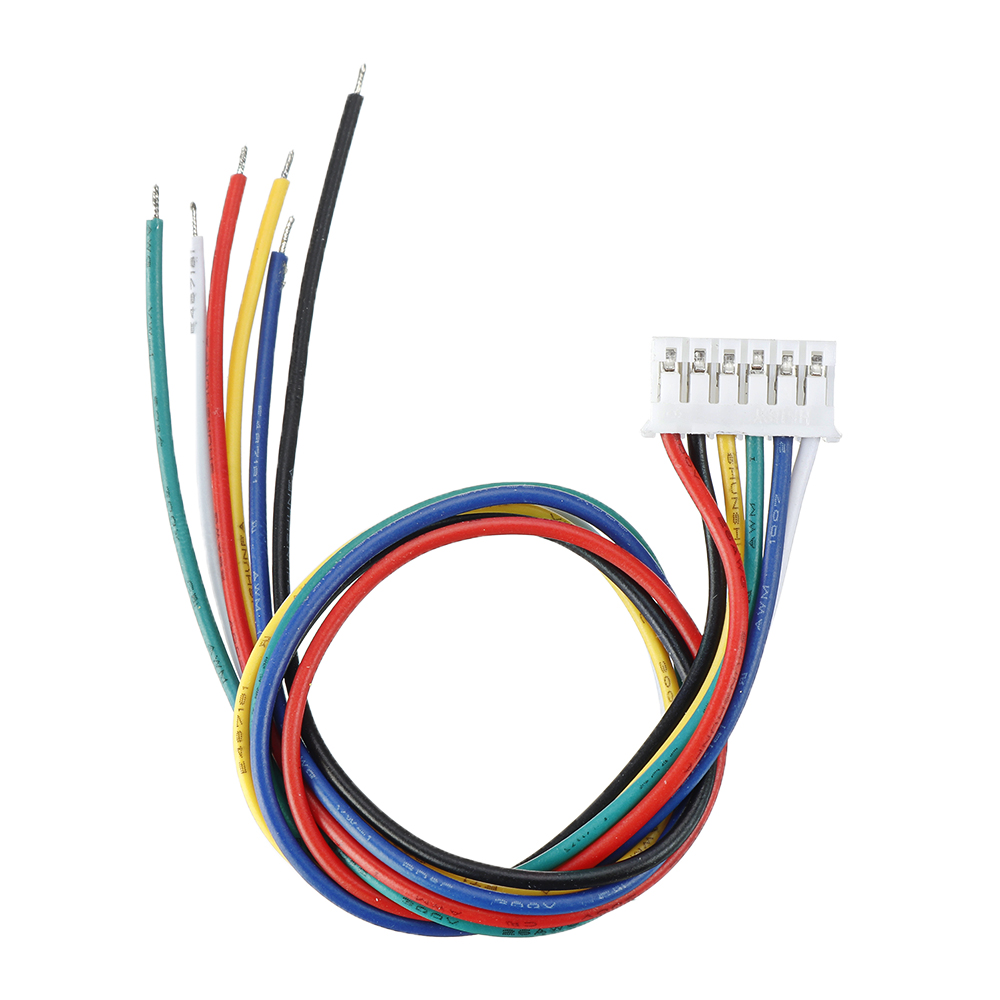

Wiring:

Red: Motor power + positive (change can control motor forward and reverse)

Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)

Yellow: Signal feedback (11 signals from the motor)

Green: Signal feedback (11 signals from the motor)

Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)

White: Motor power - negative (change can control motor forward and reverse)

Features:

- D-axis Display

More fixed, superior thermal conductivity, high hardness and anti-friction;

- Internal Gearbox

All metal materials are used for more wear resistance, long service life, no rust, high-end atmosphere;

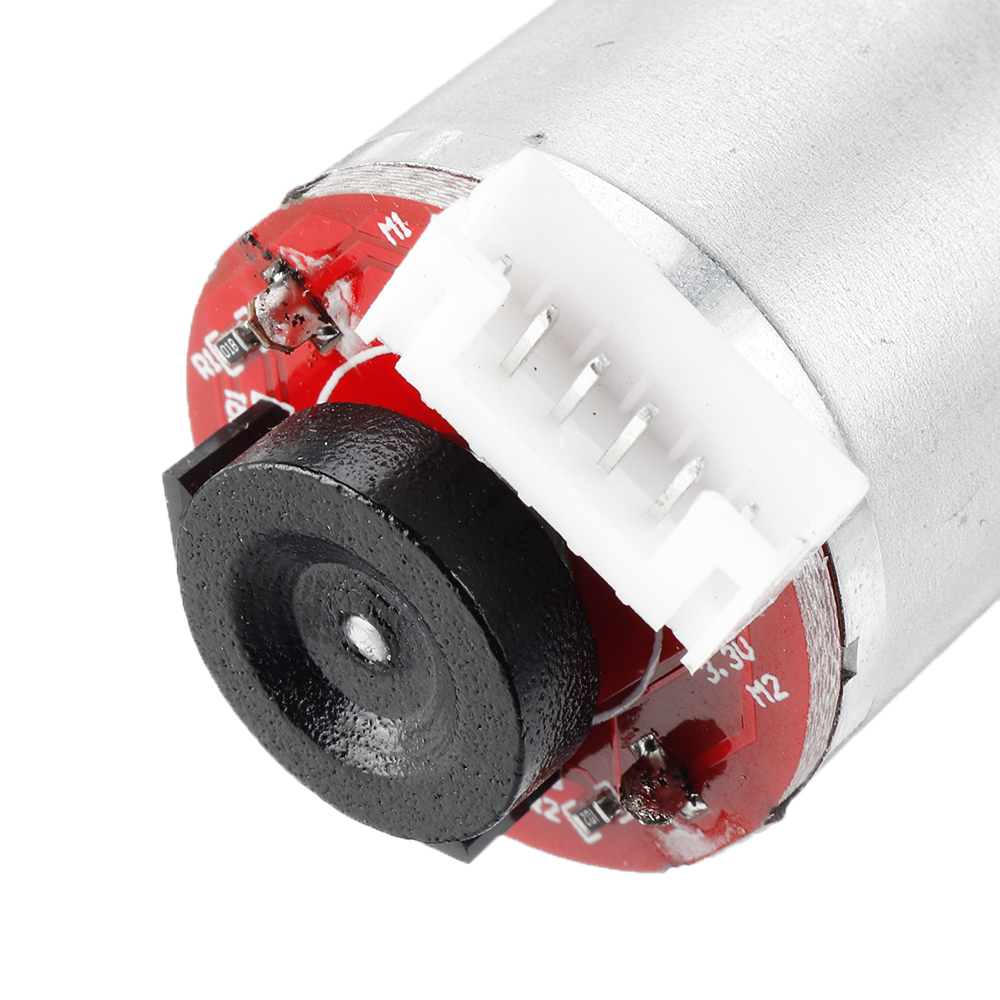

- Covered Encoder

The copper wire has super-conductivity, so that the motor power output is smoothly, and the three-layer high-density molecular paint effectively isolates dust, is not easy to damage, and has 10 times longer life than ordinary coating;

- High quality motor with a service life of up to 1000 hours;

- Suitable for massage chairs, electronic locks, fishing equipment, medical equipment (massage, automatic applicator), smart home (dishwasher, microwave oven), household equipment (automatic sprayer, automatic sprinkler), etc.

Package Included:

1 Pc ×

Reduction Motor
