Machifit DC 12-24V Lathe Press 895 Motor Table Saw Kit with Bracket and Saw Blade for Woodworking

Reference:

Condition: New product

210 Items

$41.73

More info

Description:

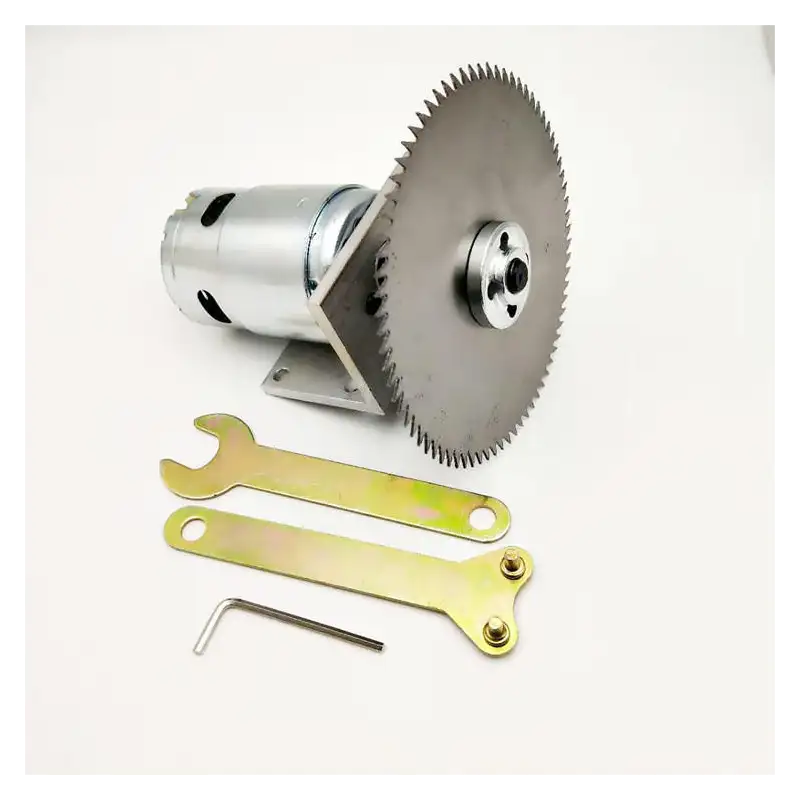

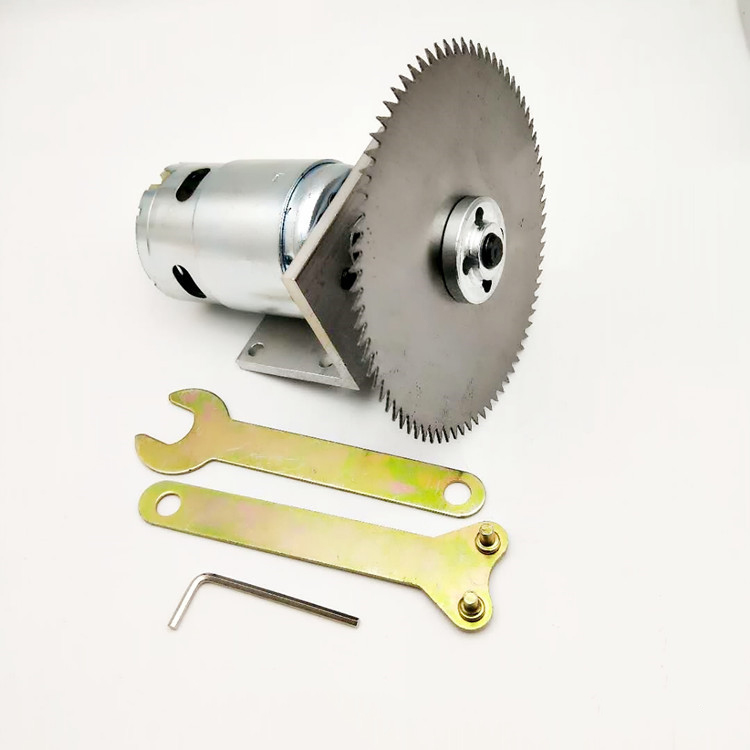

DC 12-24V Lathe Press 895 Motor Table Saw Kit with Ball Bearing Mounting Bracket and Saw Blade for Woodworking Cutting Polishing Engraving

Specification:

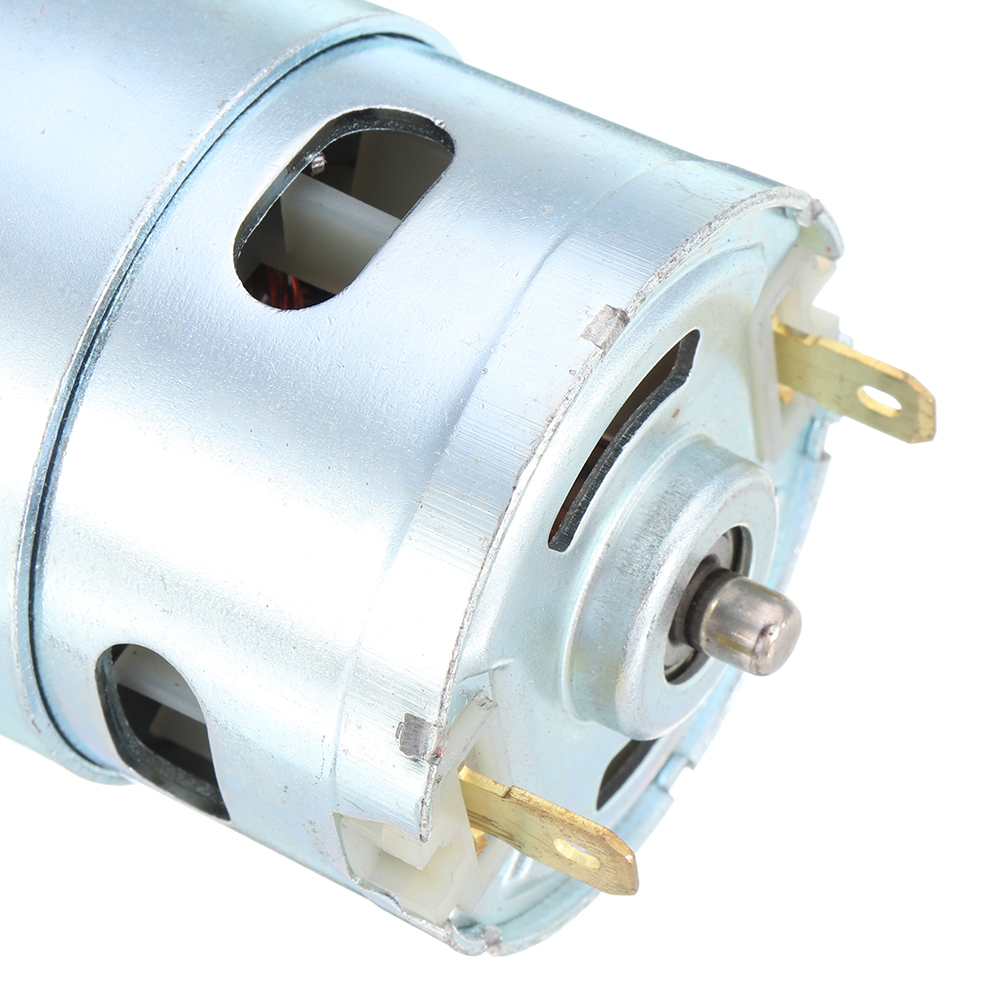

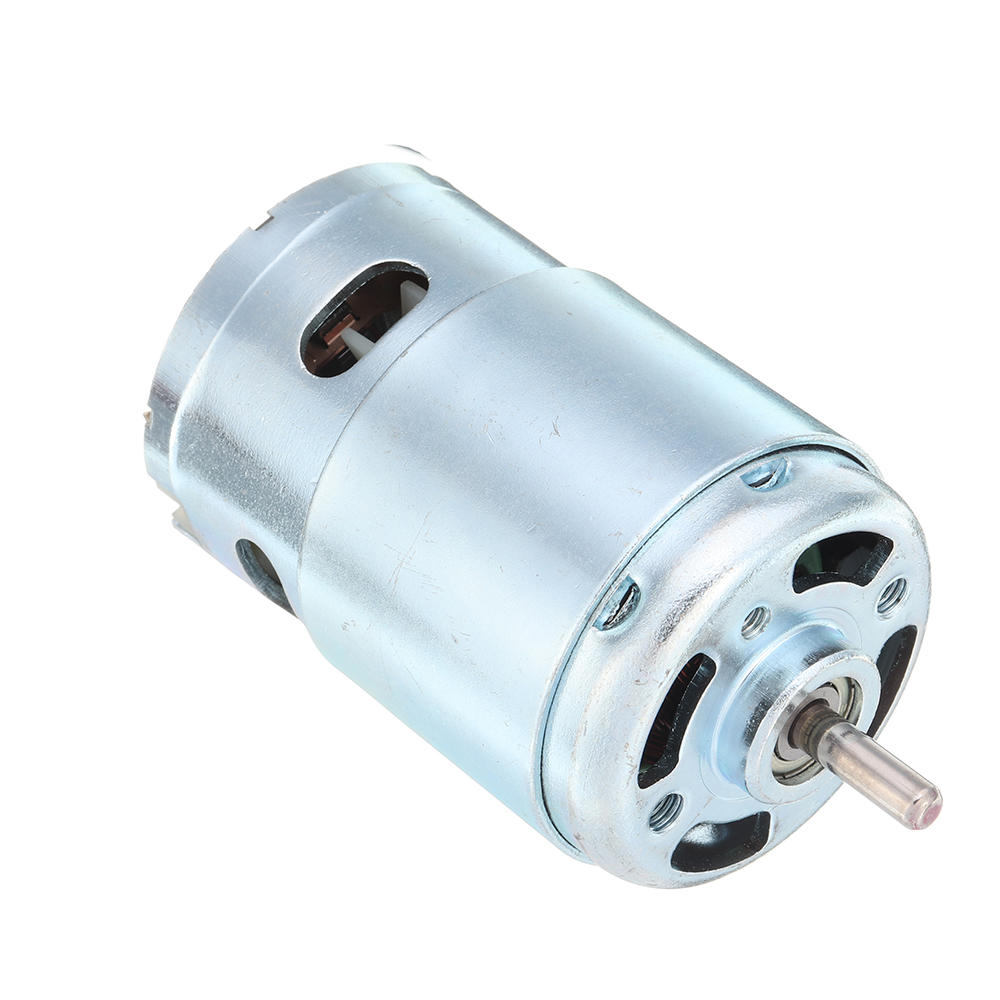

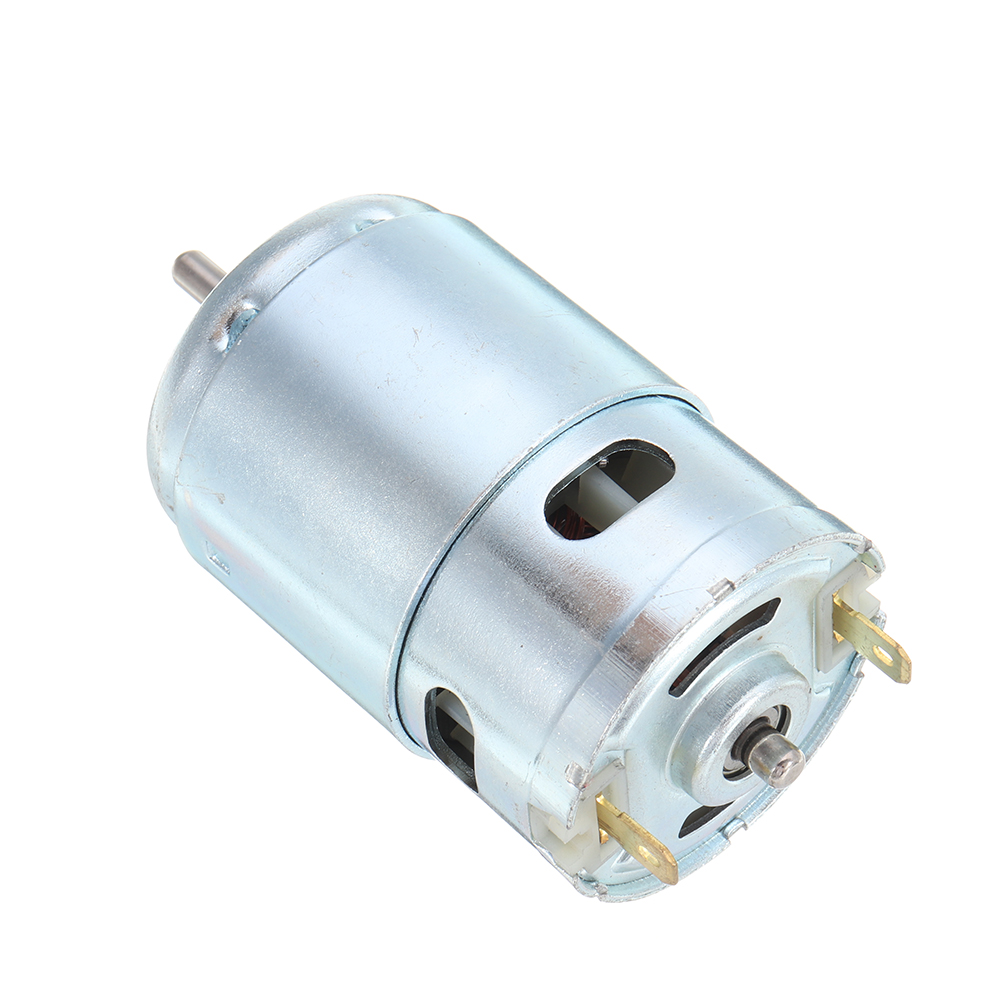

Type: 895 Motor
Material: Aluminum Alloy + Stainless Steel
Rated Voltage: DC 12-24 V
No-load Speed: 6000-12000(rpm)
Saw Blade Diameter: 100mm / 110mm / 120mm (optional)

Model 895
Rated voltage 12-24V
Speed 12V 6000rpm
24V 12000rpm
Torque 12V: 4.2kg.cm
24V: 8kg.cm
Former high level 4.5mm
Front steps diameter 18mm
Body diameter 48mm

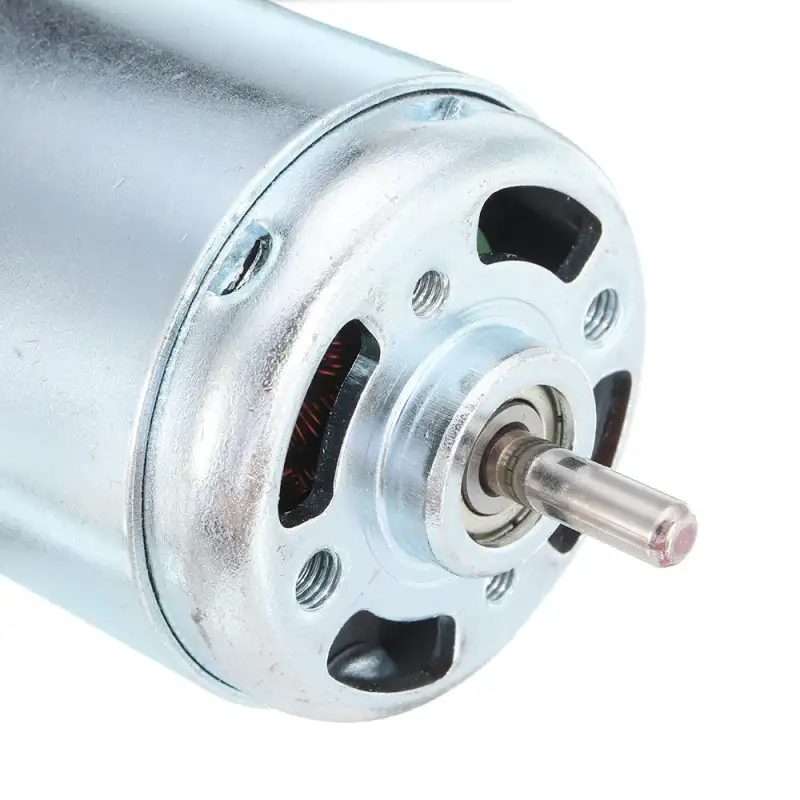

Shaft diameter 5mm
Body length 72mm
Length of output shaft at tail 6mm
Diagonal installation pitch 29mm
Mounting hole size M4 M5
Power 200W

Features:
- This small table saw can be used directly, but to DIY, you need to assemble it yourself.
- The motor contains five windings of thick copper wire with a cooling fan.
- The overall engine speed setting, not even high speed, but the torque is large.
- Extensive power supply, all DC 12-24V power supply can be directly powered, and work perfectly.
- It provides great help for use, and it is faster and more convenient.
- Can be used for various applications of debris deflection, include PCB design, etching, polishing,
cutting, woodworking, remote control models, robotics, home and gardening, and so on.

Note:
- Do not tighten the bolts and rotate at high speeds in the opposite direction of the bolts
to avoid unnecessary problems when dropping, or cover with a protective cover.

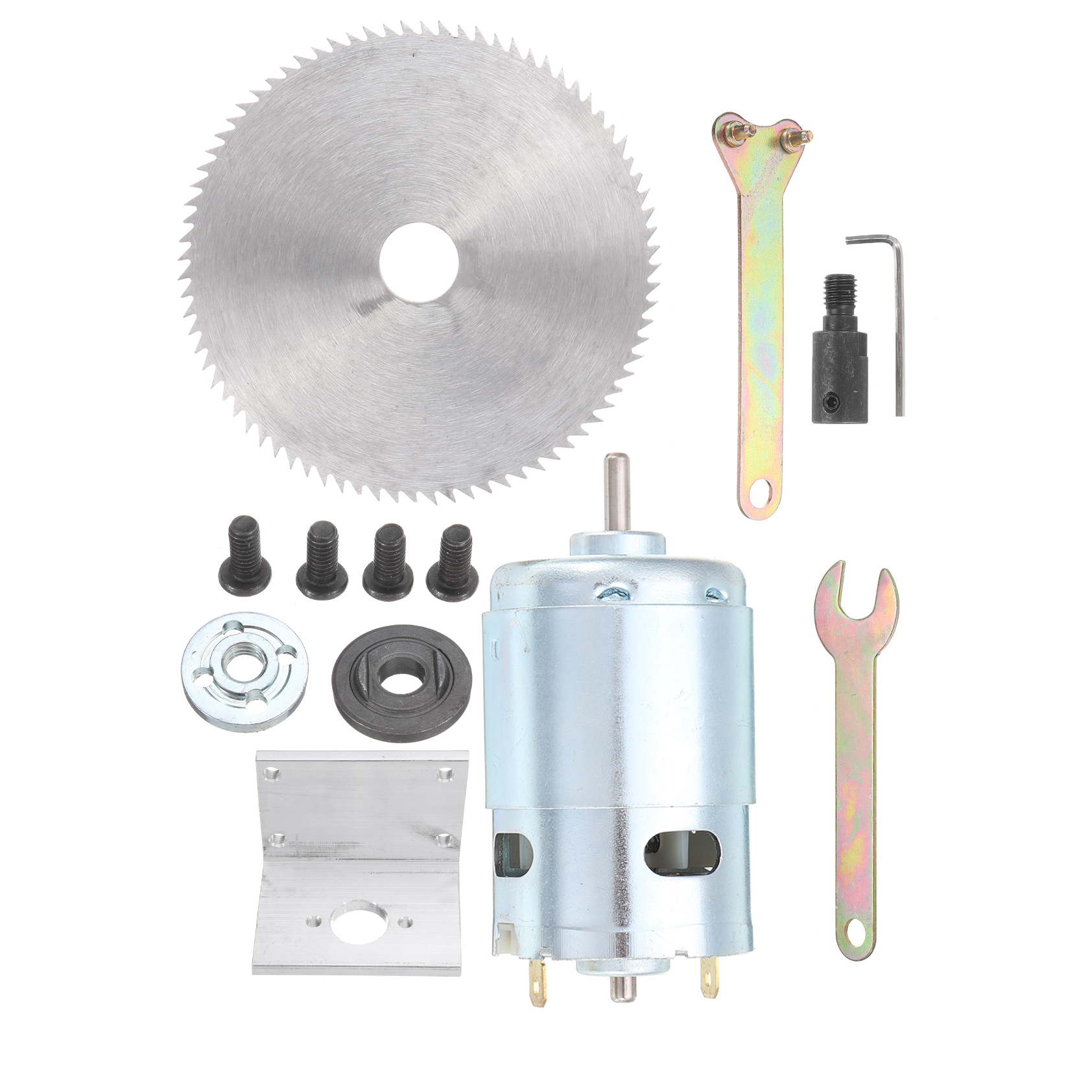

Package included:
1 x 895 Motor

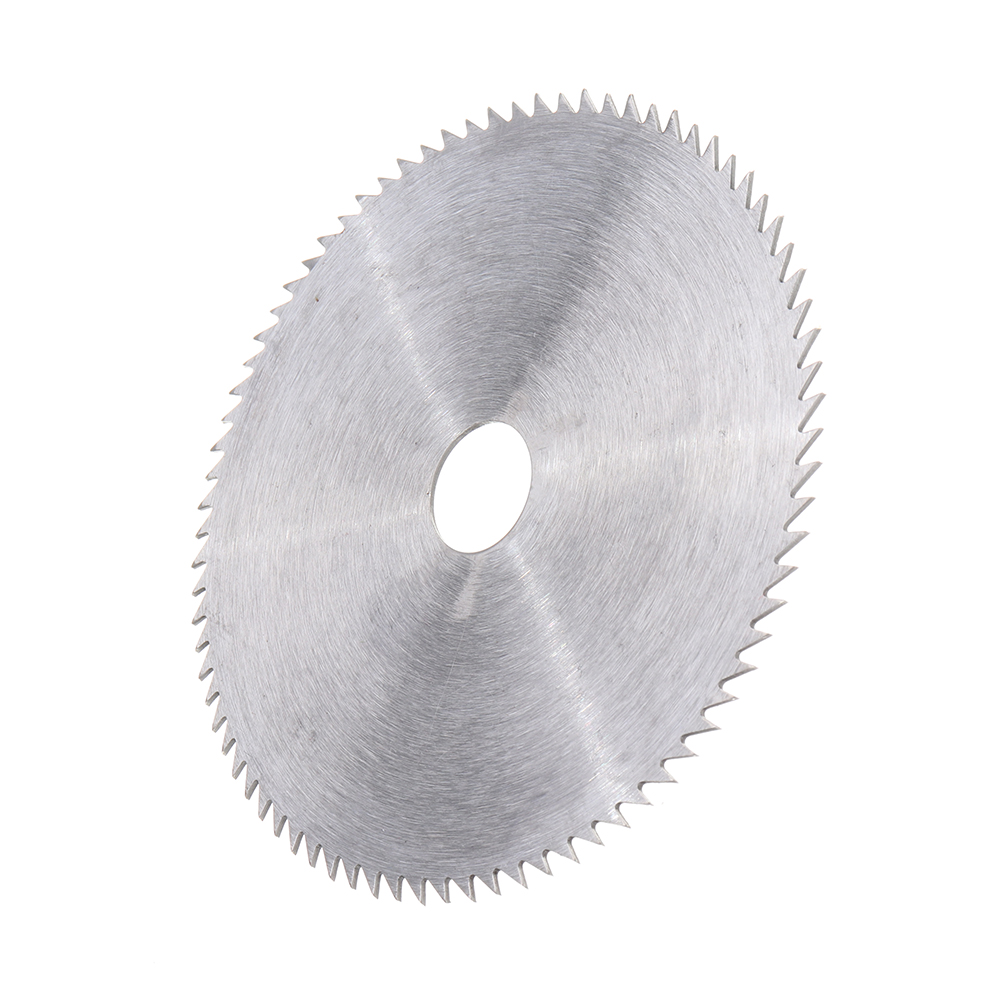

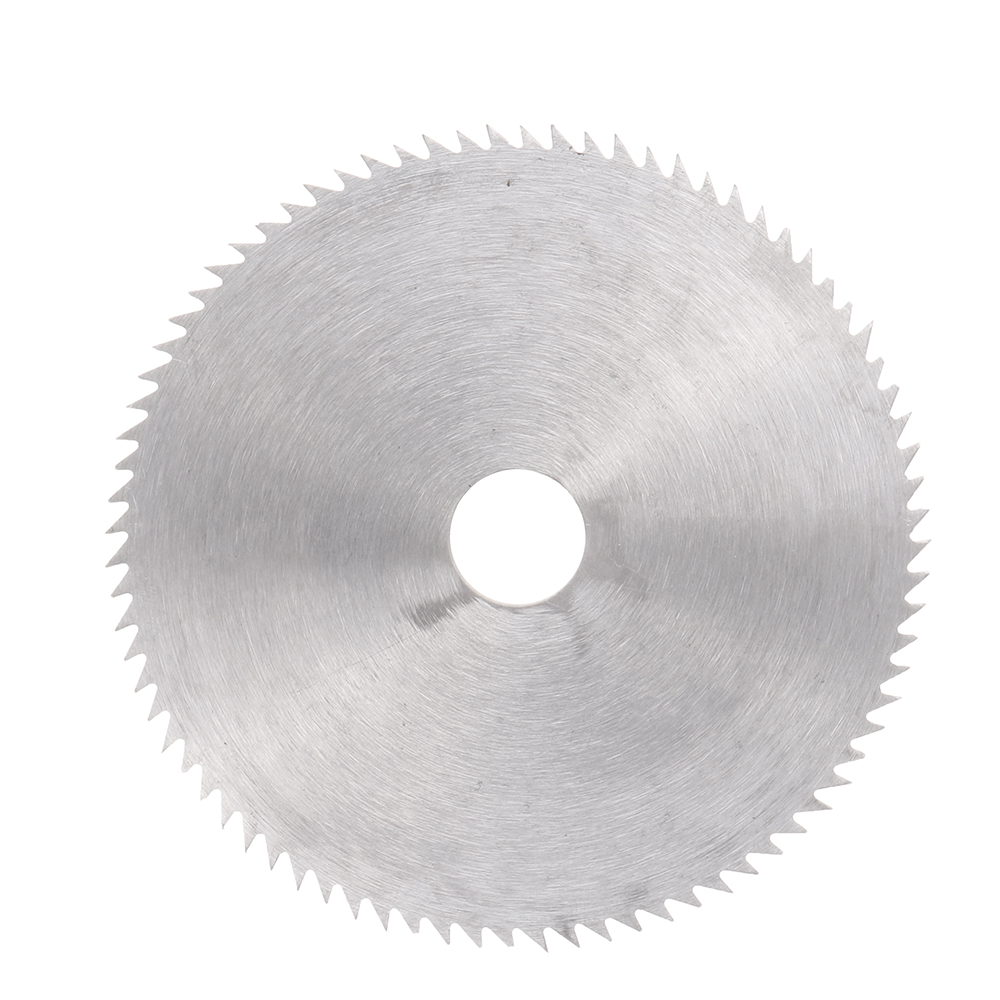

1 x HSS Saw blade

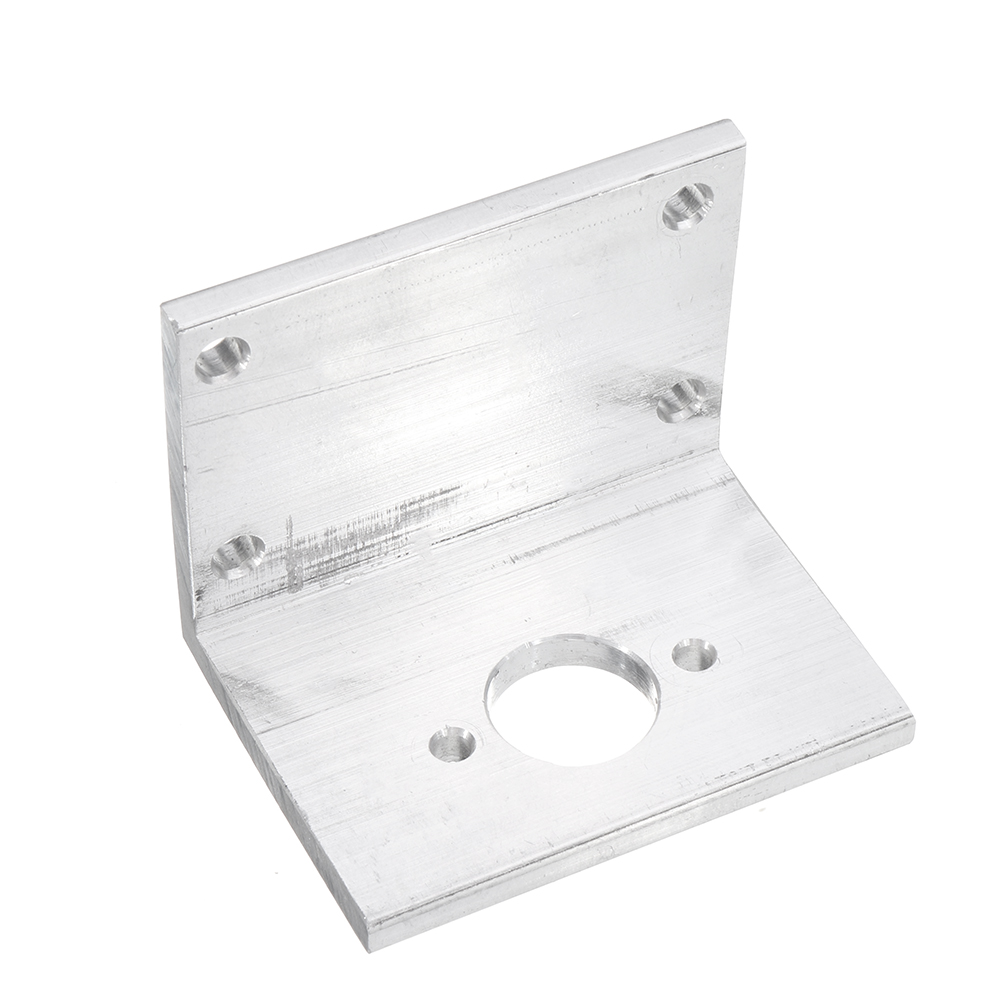

1 x Mounting Bracket

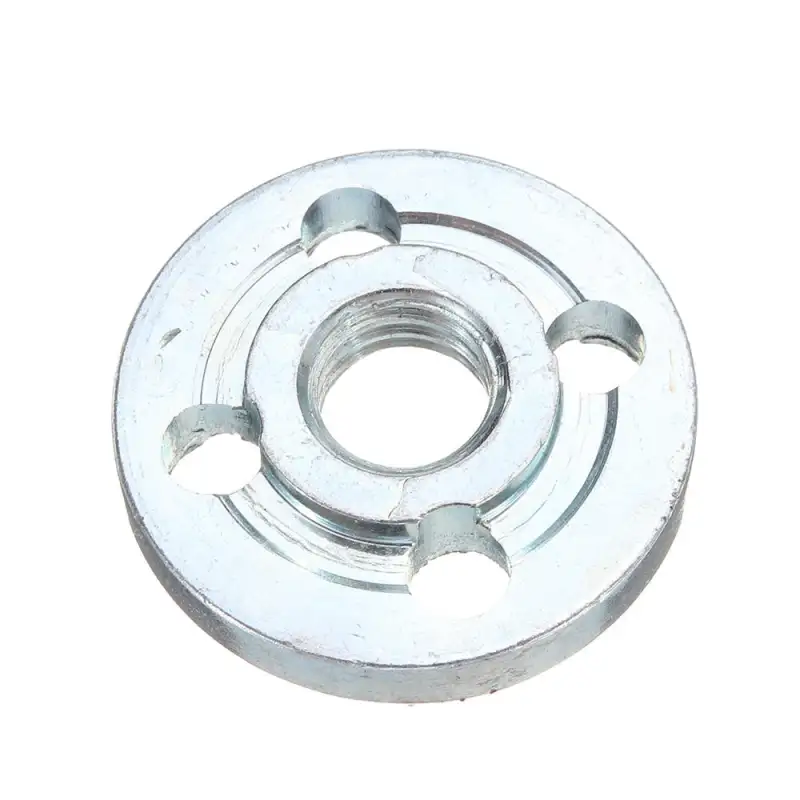

1 x Saw Blade Connecting Rod

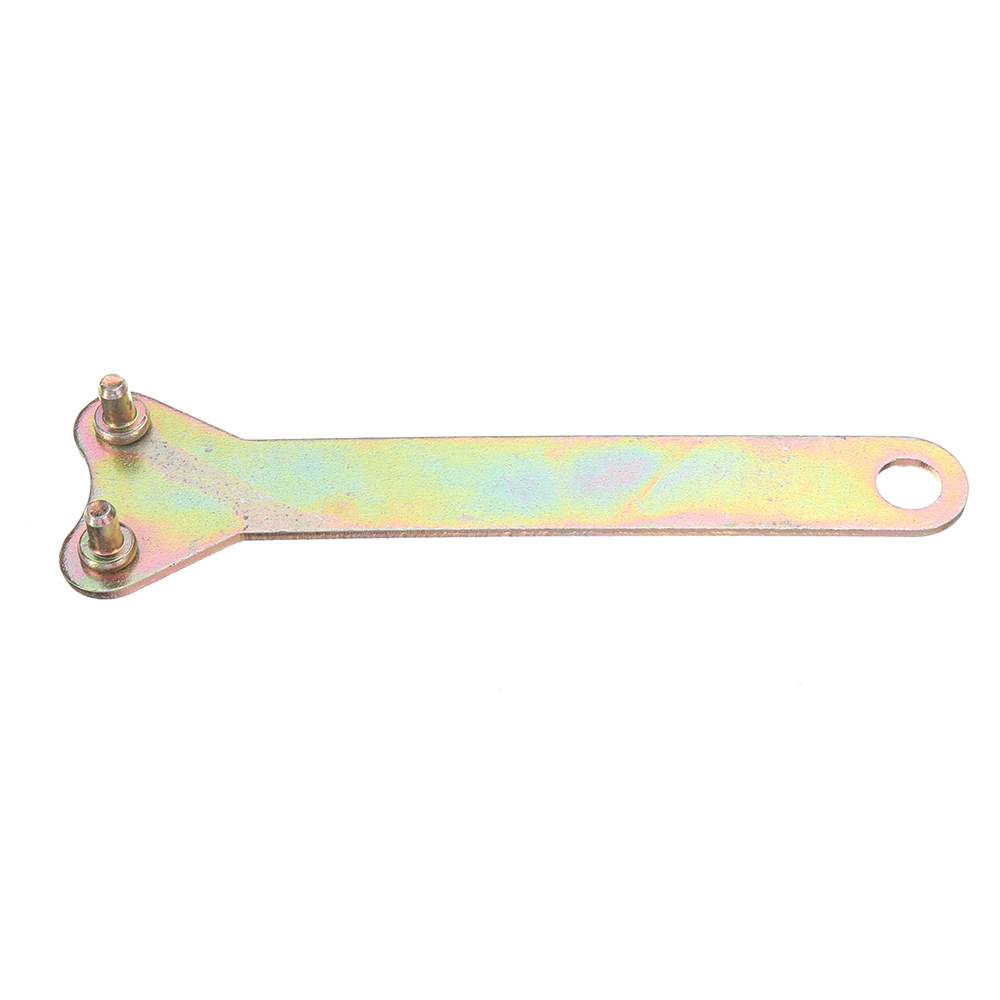

1 x Small Wrench
2 x Screws
