Machifit 42BYGH40-1704B Nema17 Stepper Motor 42mm Dual Shaft 1.7A Motor for CNC Engraving Machine

Reference: BG0052-9918204

Condition: New product

100 Items

$20.35

More info

Description:

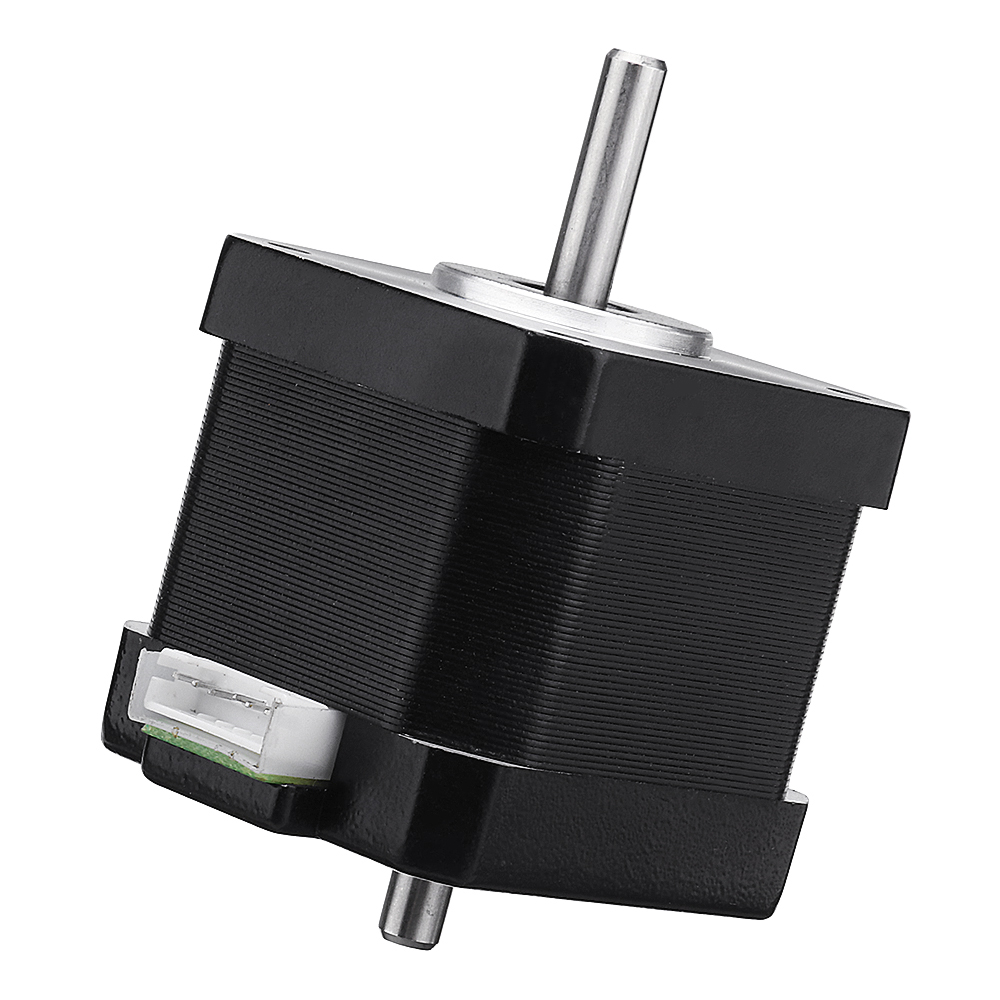

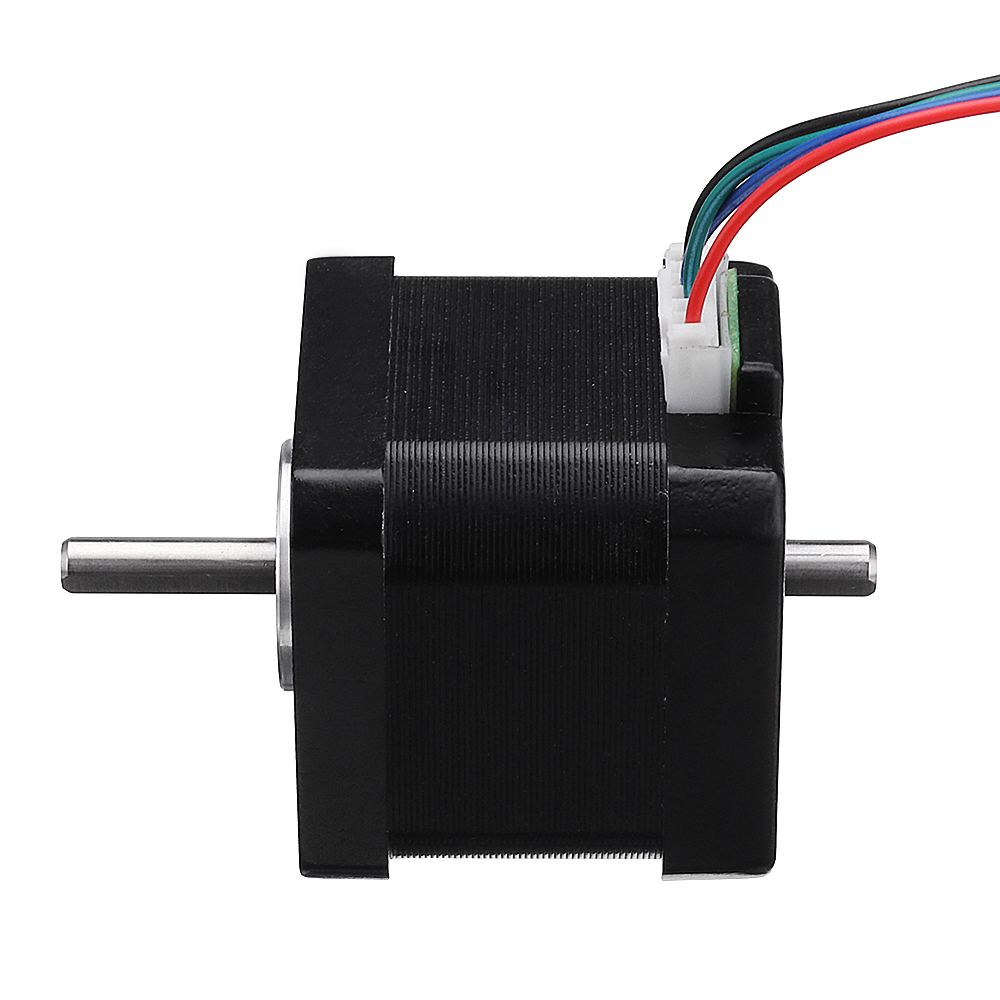

Machifit Nema 17 42mm stepper motor dual shaft 1.7A 0.45N.m 12V 42BYGH40-1704B engraving machine fits for 3D printer CNC tools.

Specification:

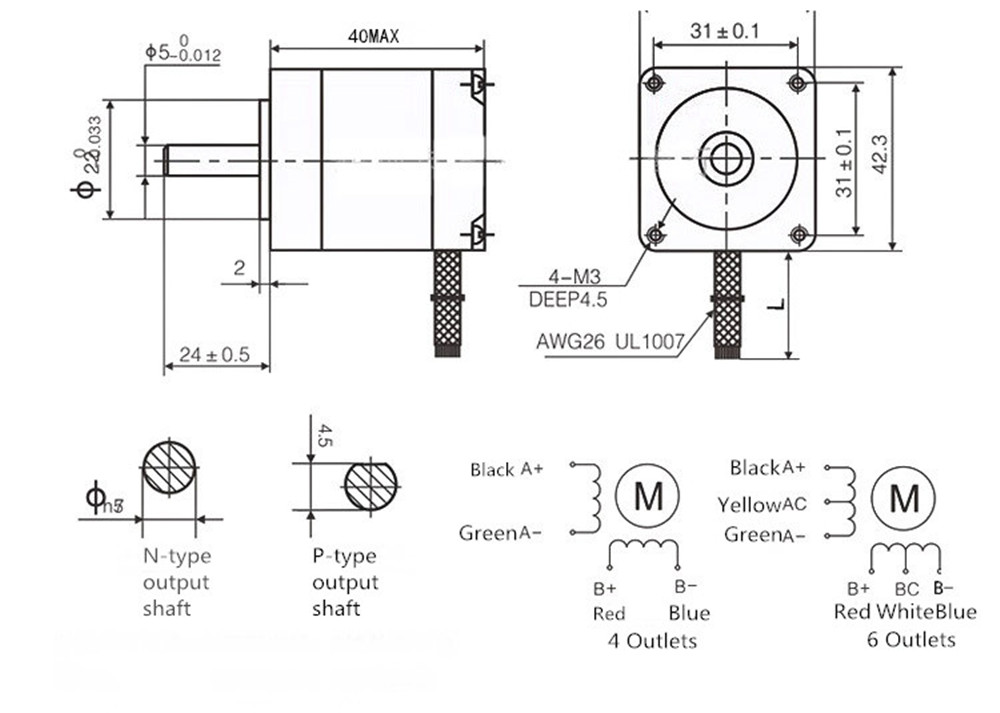

Model: 42BYGH40-1704B
Body height: 40mm
Shaft diameter: Φ5mm, D-axis
Shaft high: 23mm
Rront axle length: 20mm
Socket type (rear): 10mm
Outgoing mode: Two-phase four outlets (Black A + Green A / Red B + Blue B - )
Scope: Widely used for 3D printers, monitor equipment, medical/textile/packaging machinery, stage lighting, ect.

Model No. Step Angle Rated Current
/Phase		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque Leads Rotor Inertia                 Thickness
(°) A Ω mH N.m  No. g.c㎡ mm(Inch)
42BYGH40-1704B  1.8 1.68 1.65 3.2 0.45 4 54 40(1.57)

Axis type optional: N round optical axis, P milling single flat table
Shaft exit mode optional: A single-end shaft exit, B two-end shaft exit

Features:
- The motor wire adopts pure copper, copper wire layout is uniform, corrosion resistance, good thermal conductivity, strong electrical conductivity.
- Good quality bearing, strong steeliness, high precision, durable.
- Stable torque, low temperature, low noise, long service life.

Package Included:
1 x 42 Stepper Motor

More Details:


Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515

Machifit-42BYGH40-1704B-Nema17-Stepper-Motor-42mm-Dual-Shaft-17A-Motor-for-CNC-Engraving-Machine-1409515
