Machifit 25GA370 DC 6V Micro Gear Reduction Motor with Encoder Speed Dial Reducer

Reference:

Condition: New product

400 Item Items Warning: Last items in stock!

$12.02

Rotate Speed

Quantity

More info

Descriptions:

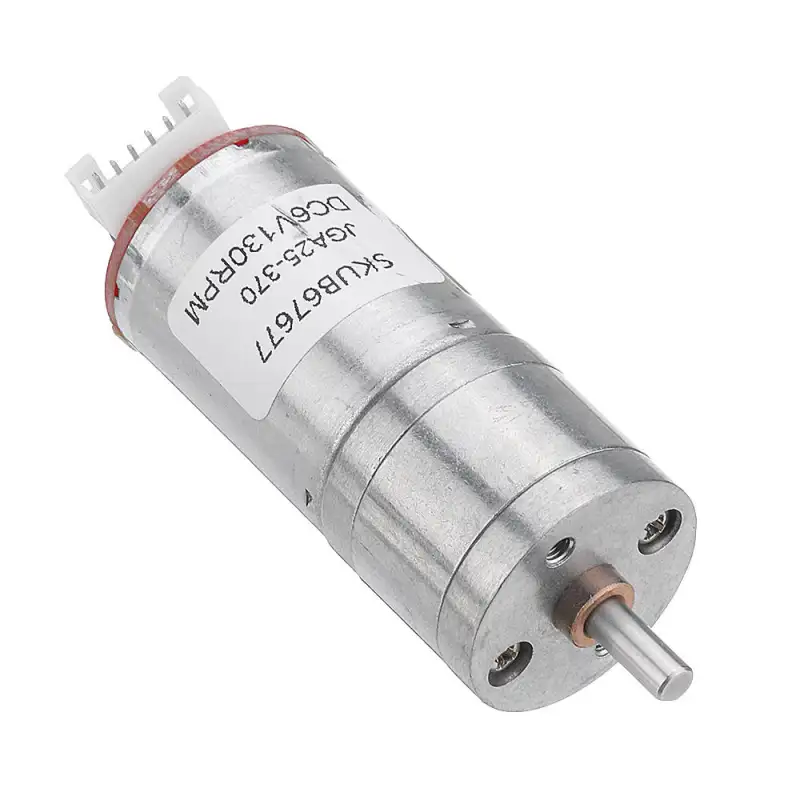

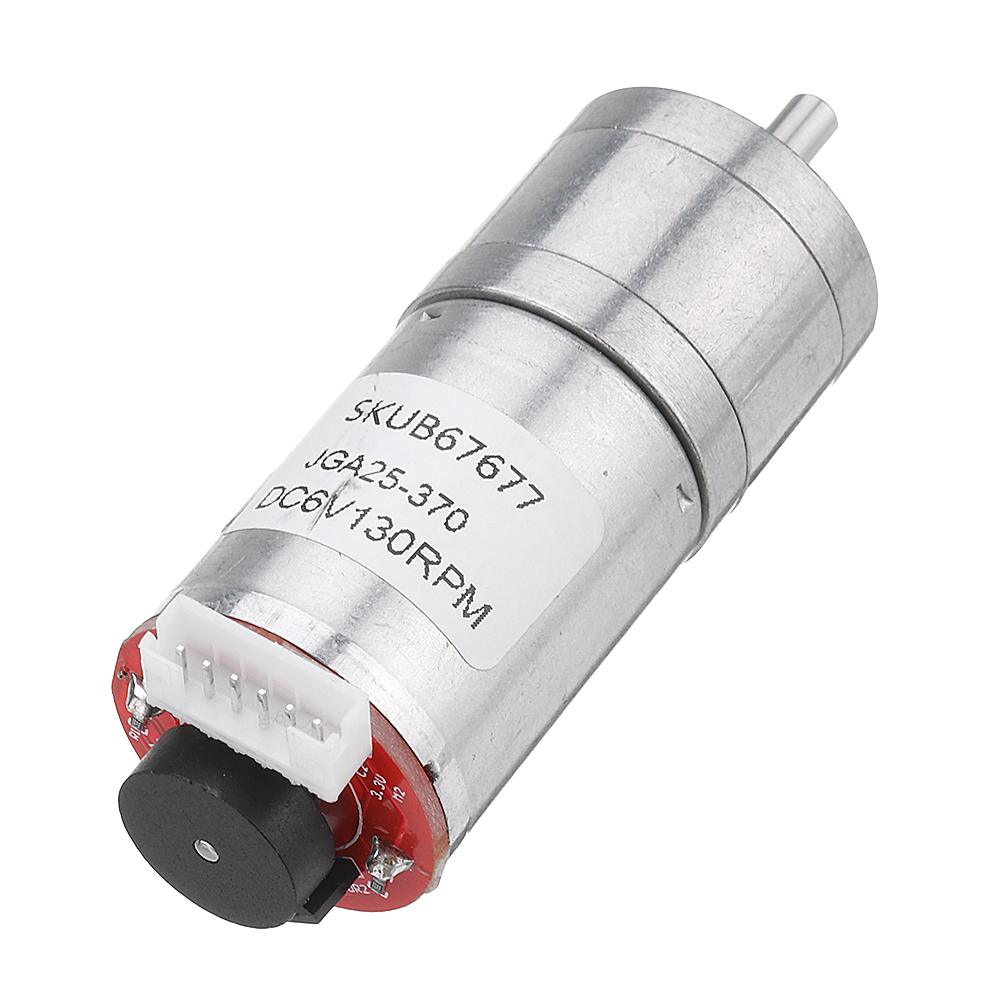

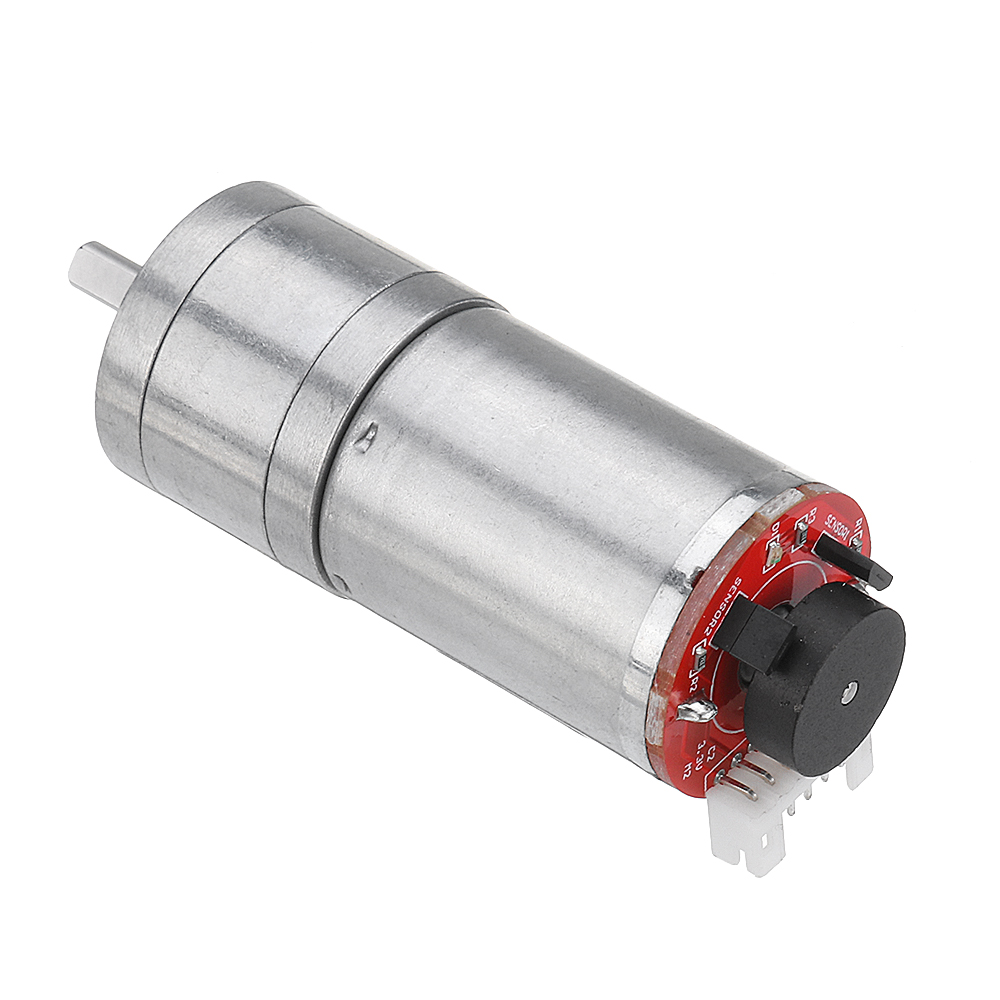

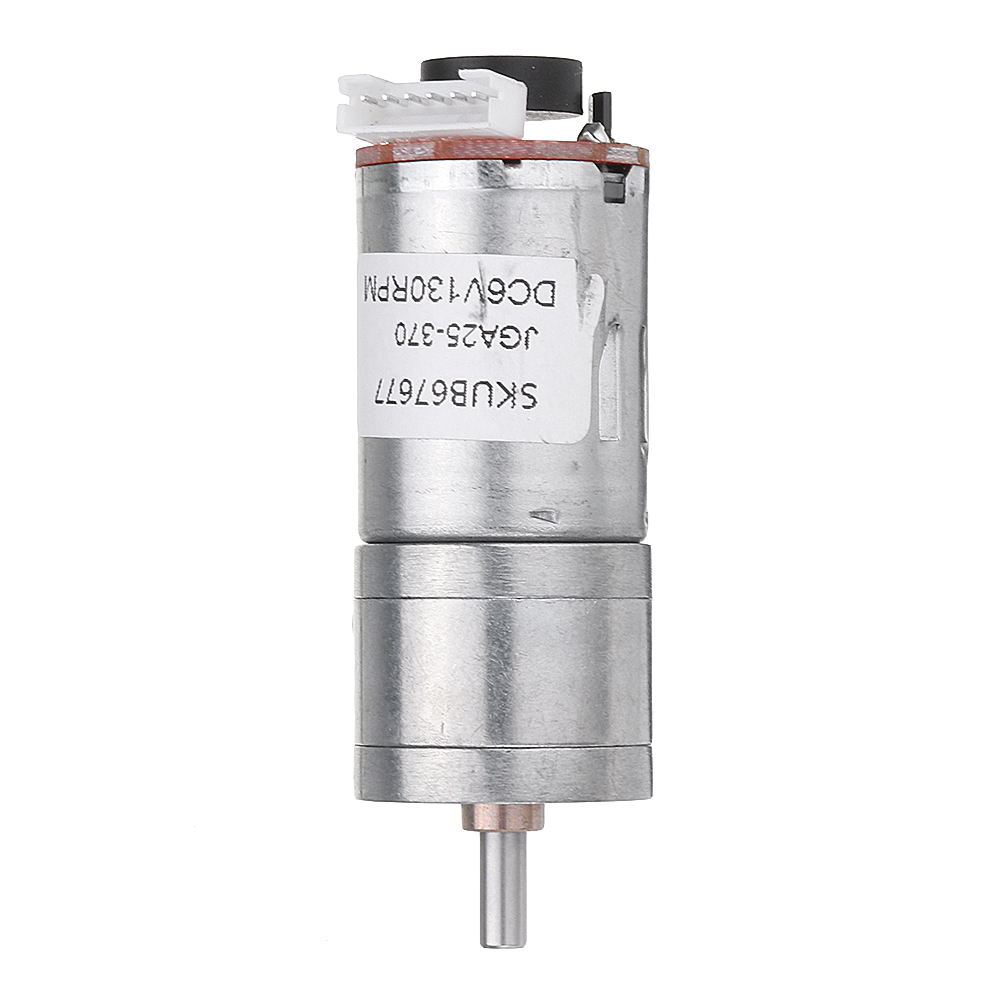

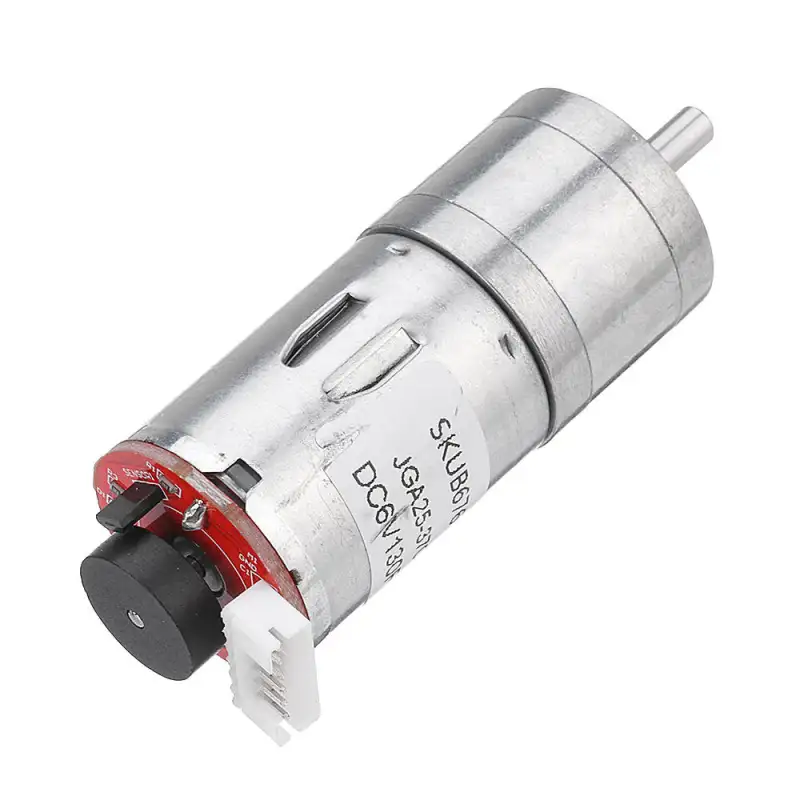

Machifit 25GA370 DC 6V micro gear reduction motor with encoder speed dial reducer

Specifications:

Brand: Machifit

Material: Metal

Voltage: DC 6V
Power: 3W

Speed Regulation: Yes
Rotate In Both Two Sides: Yes

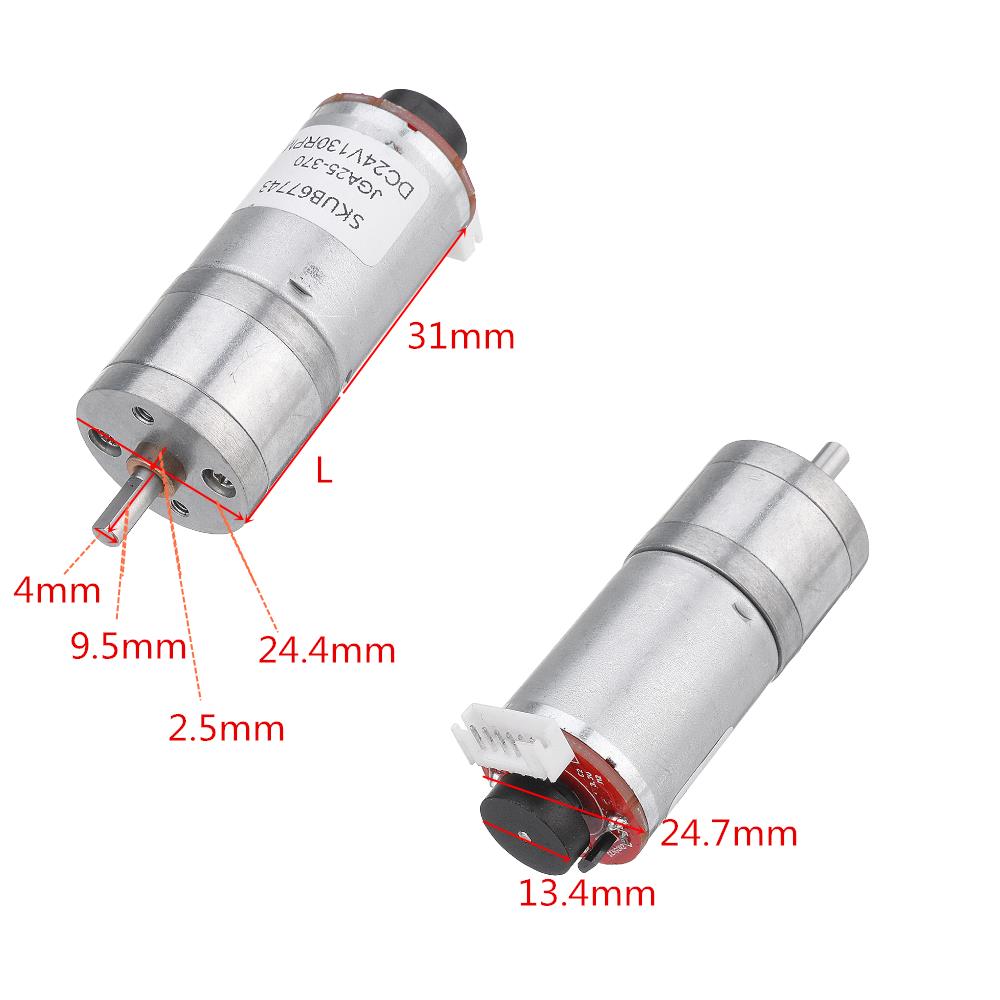

Size(approach):

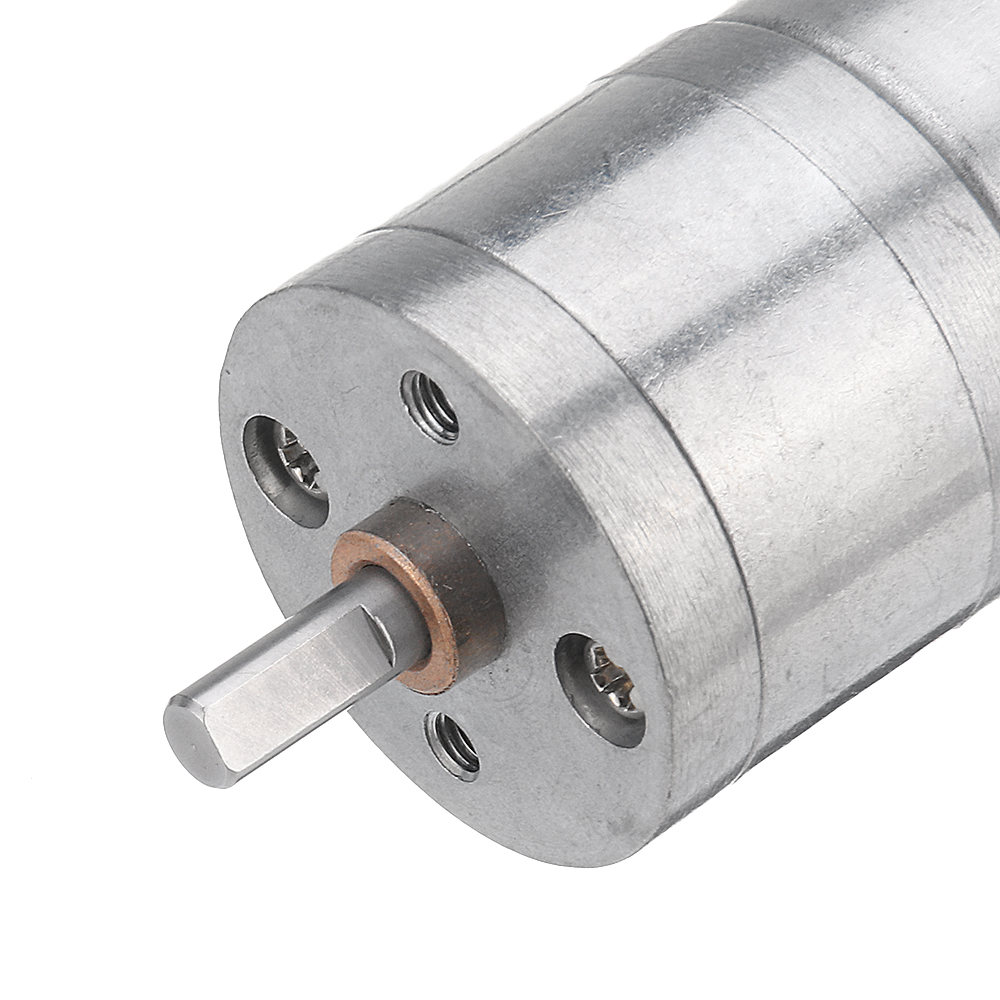

Output Shaft Dia.: 4mm
Line Length: 142mm
Axis Length: 12mm
Axle Shaft Length: 9.8mm

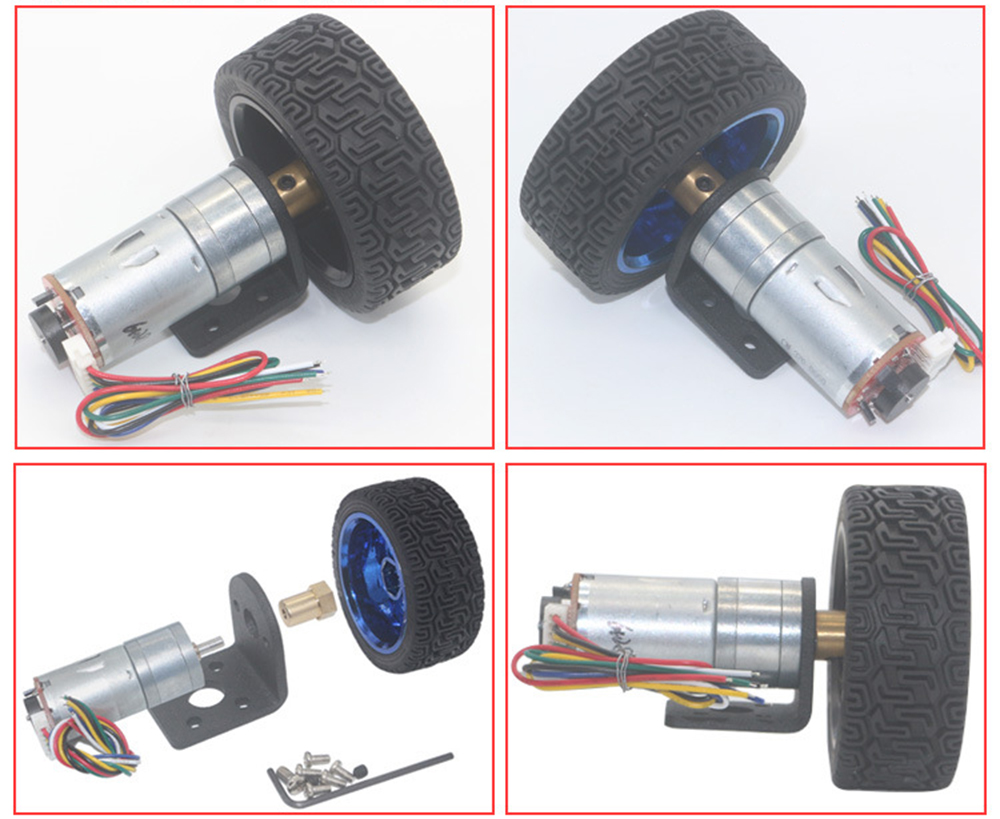

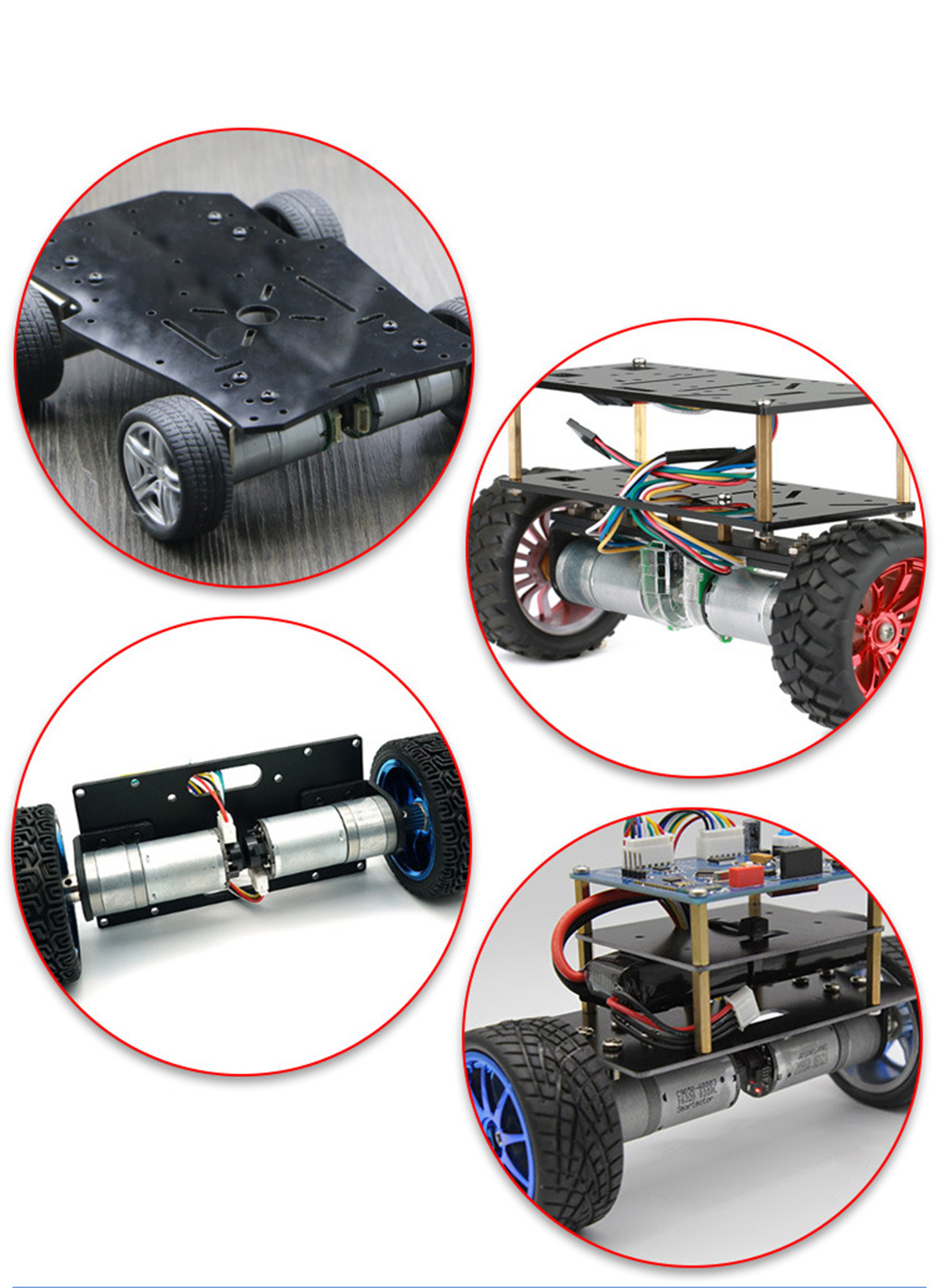

Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

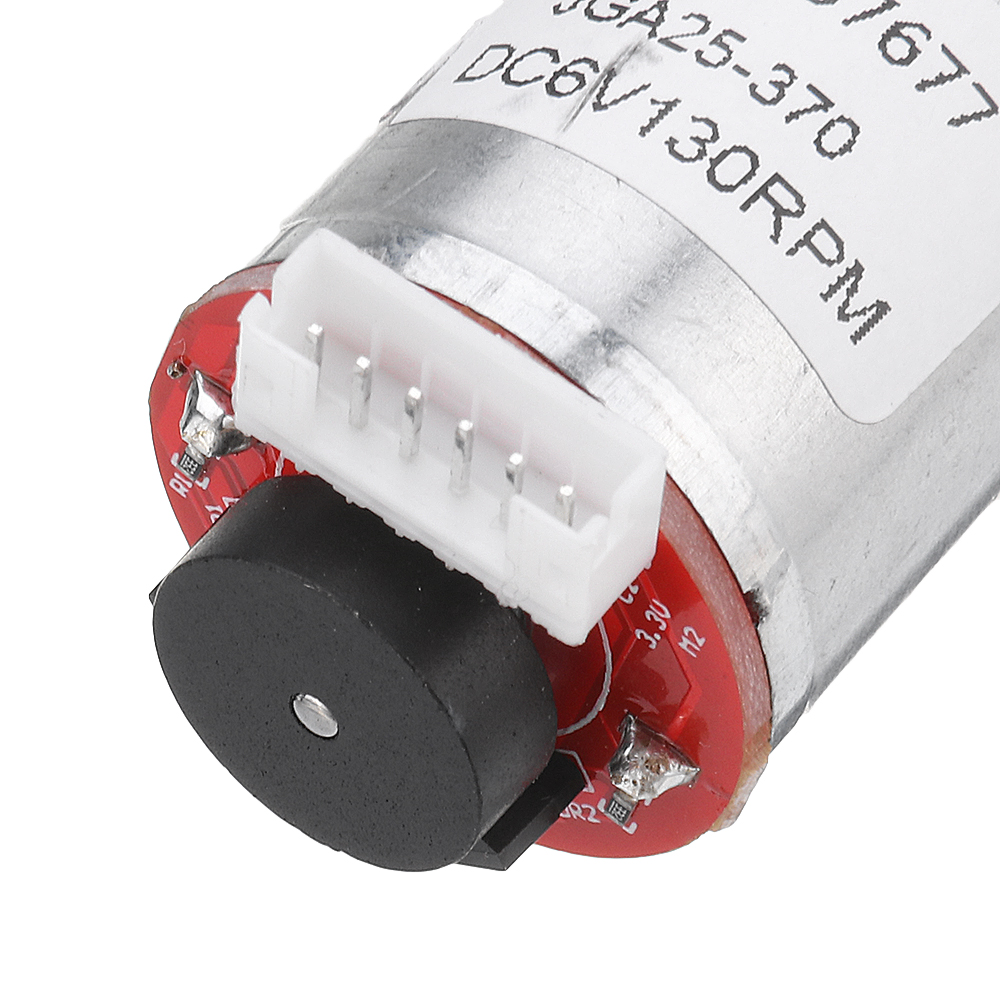

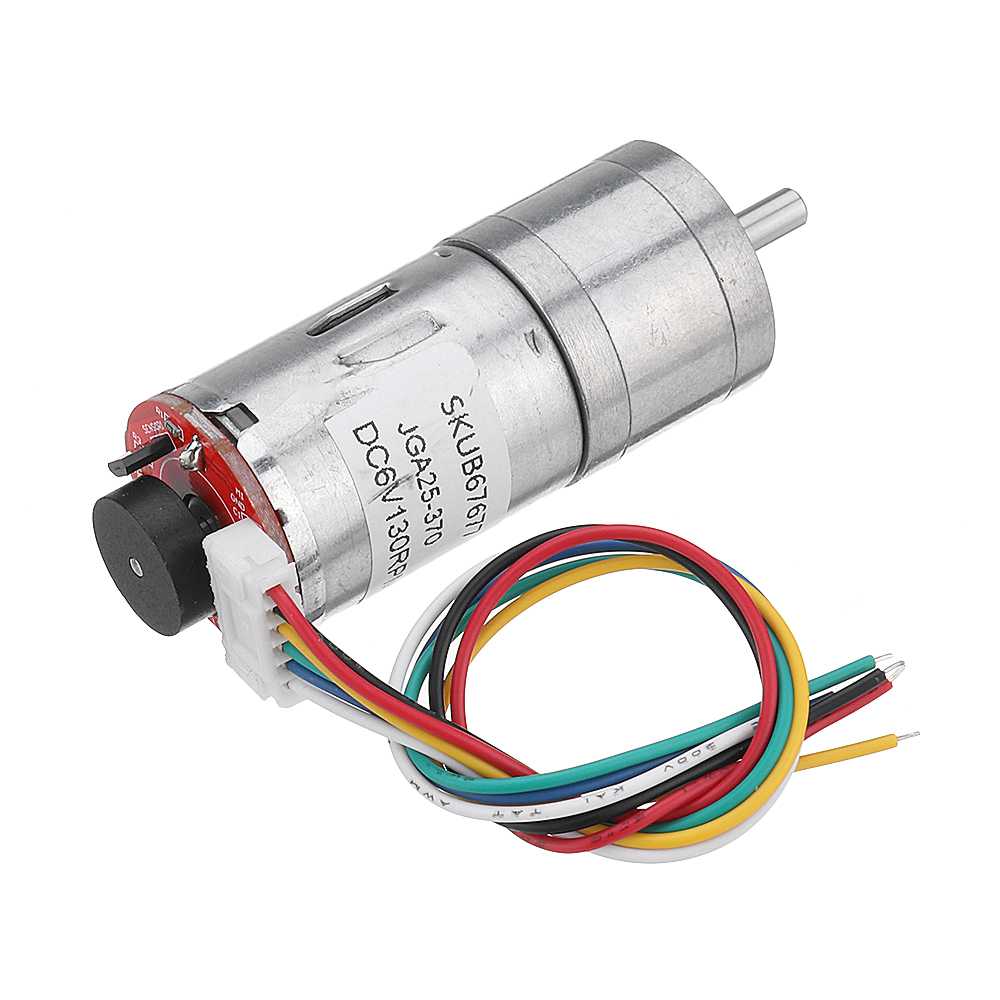

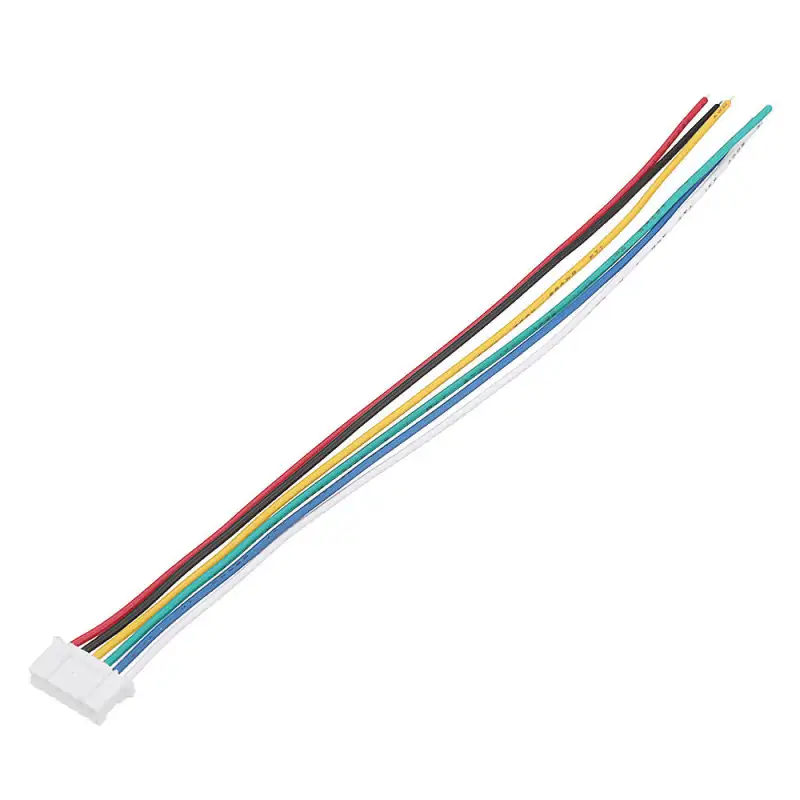

Wiring:

Red: Motor power + positive (change can control motor forward and reverse)

Black: Code power - negative (positive and negative can not be connected incorrectly 3.3-5V)

Yellow: Signal feedback (11 signals from the motor)

Green: Signal feedback (11 signals from the motor)

Blue: Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V)

White: Motor power - negative (change can control motor forward and reverse)

Parameter:

Voltage	RATIO	No-load		Rated-load			Stall
		Current (A)	Speed(rpm) ±10%rpm	Torque (kg.cm)	Speed(rpm) ±10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size
		Current (A)	Speed(rpm) ±10%rpm	Torque (kg.cm)	Speed(rpm) ±10%rpm	Current (A)	Torque (kg.cm)	Current (A)	Weight	L Size	DC 6.0V	1:12	0.1	12	8.3	9	0.5	×	×	91	27
DC 6.0V	1:35	0.1	35	2.9	27	0.5	×	×	89	25
DC 6.0V	1:60	0.1	60	1.7	46	0.5	7.3	2.6	90	23
DC 6.0V	1:130	0.1	130	0.8	100	0.5	4.4	2.6	88	21
DC 6.0V	1:620	0.1	620	0.16	477	0.5	0.9	2.6	83	17.5
