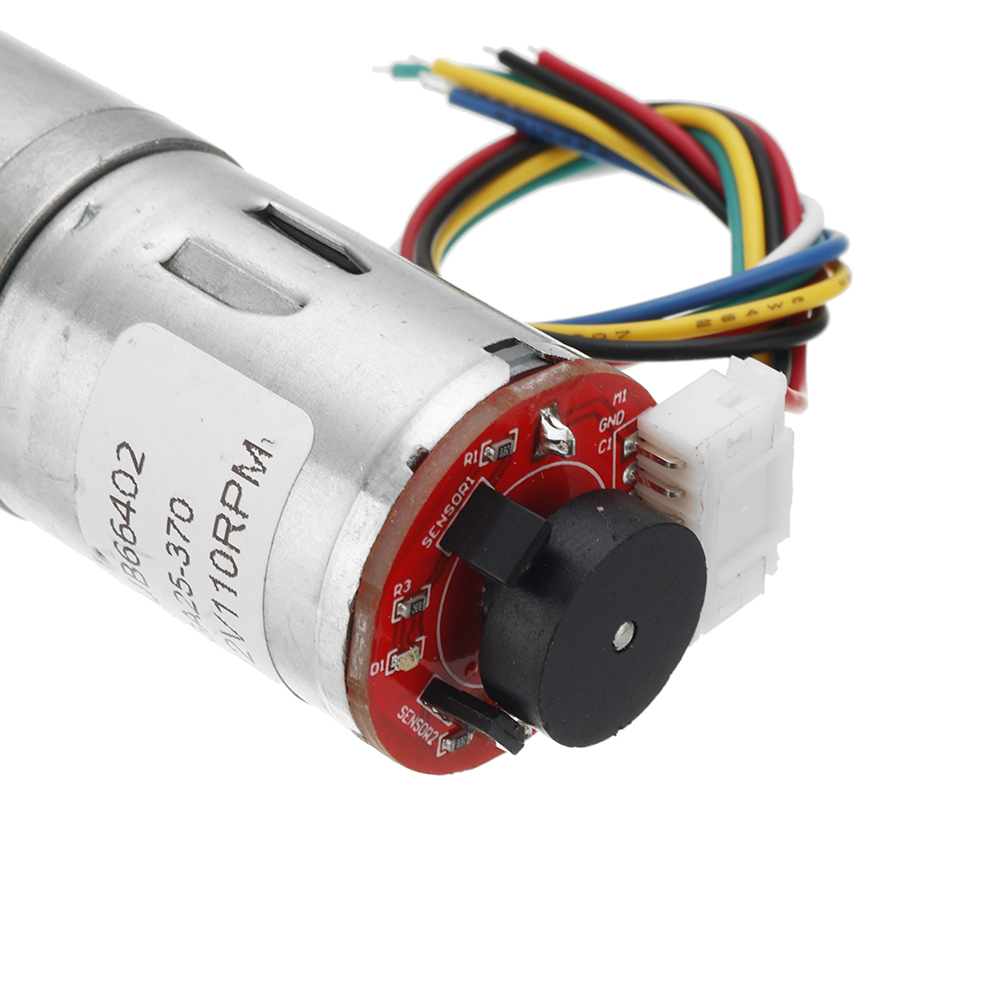

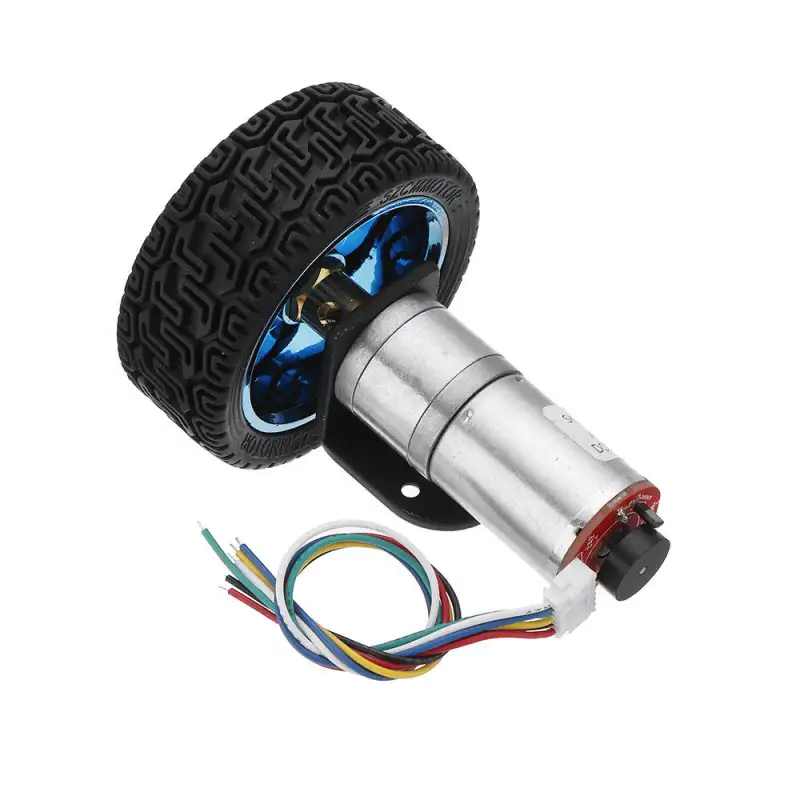

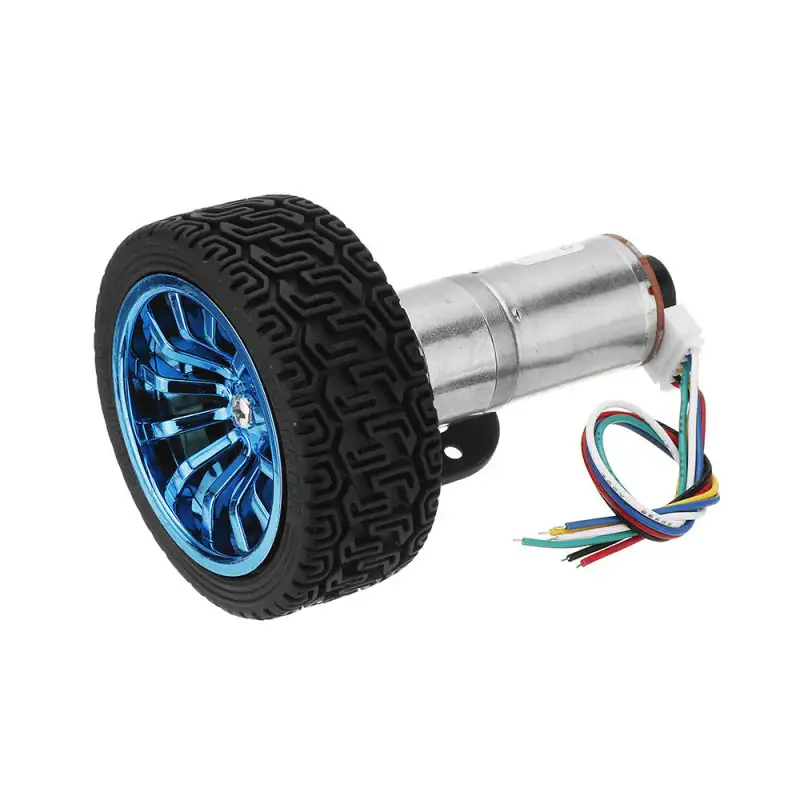

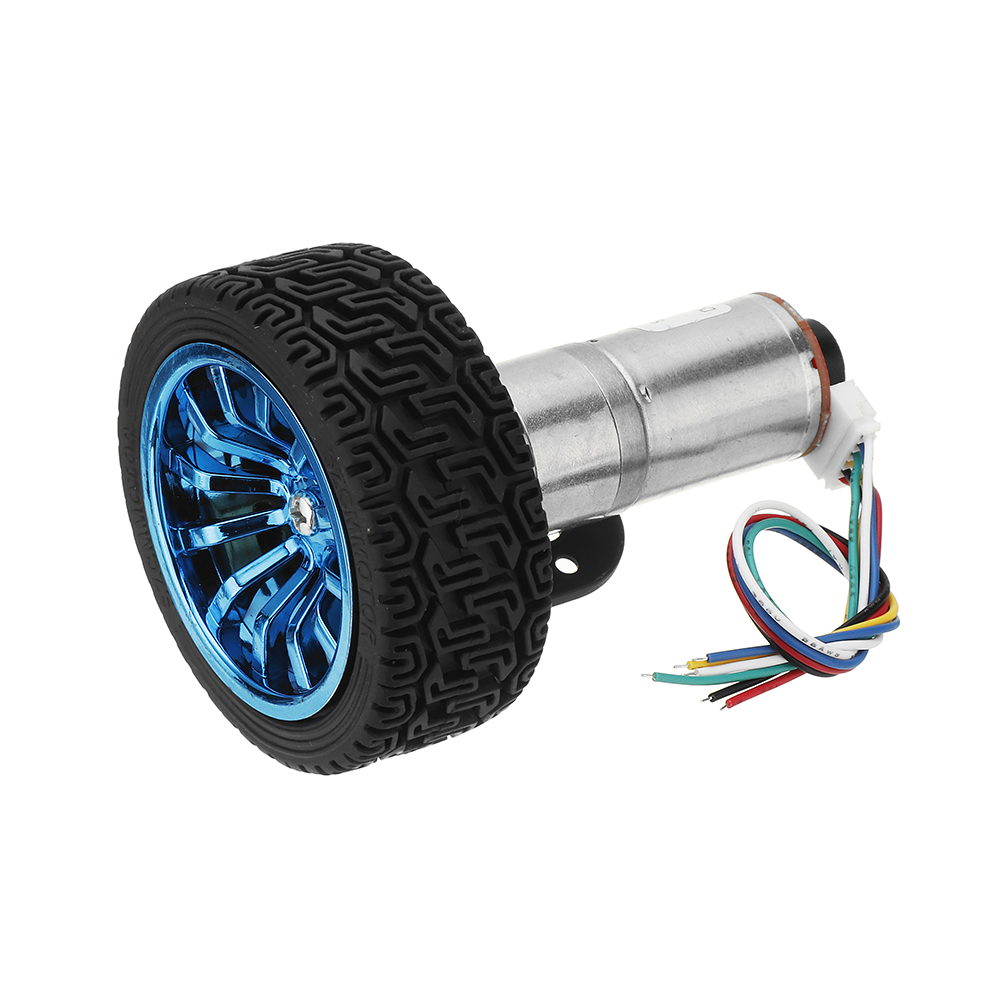

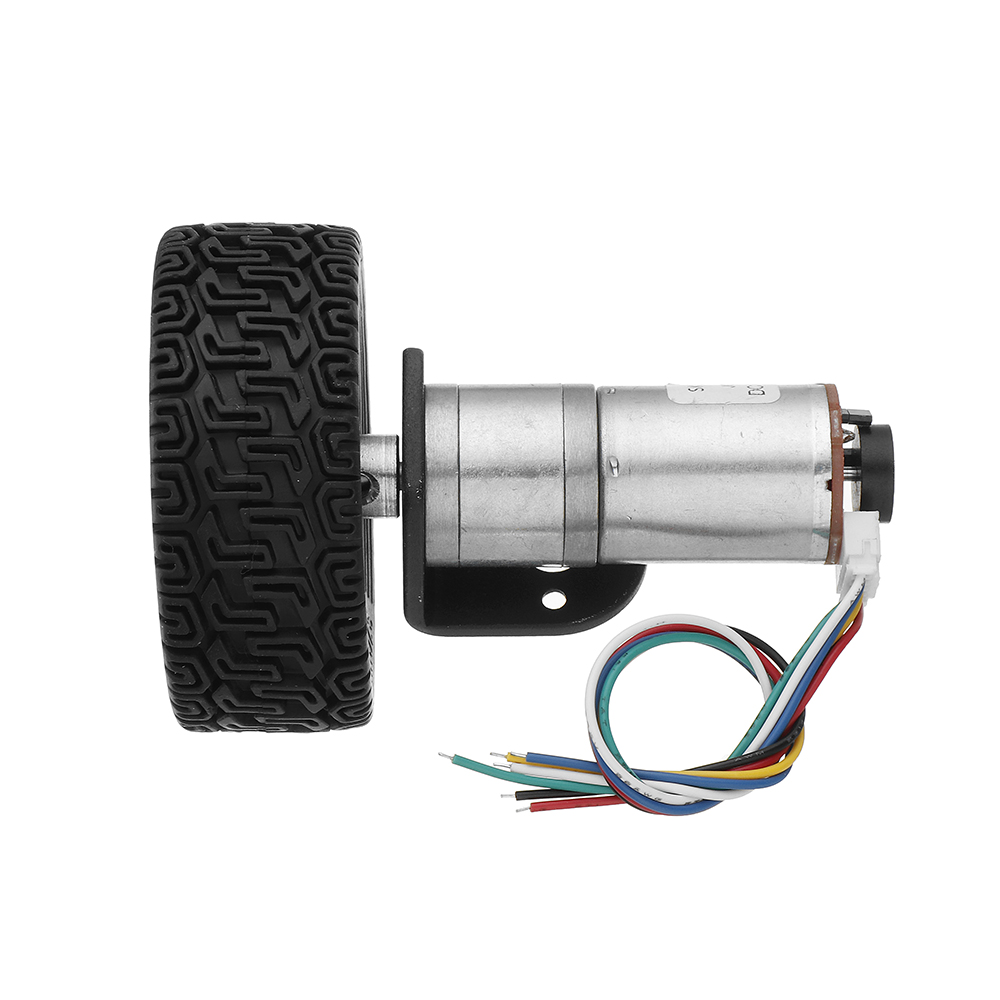

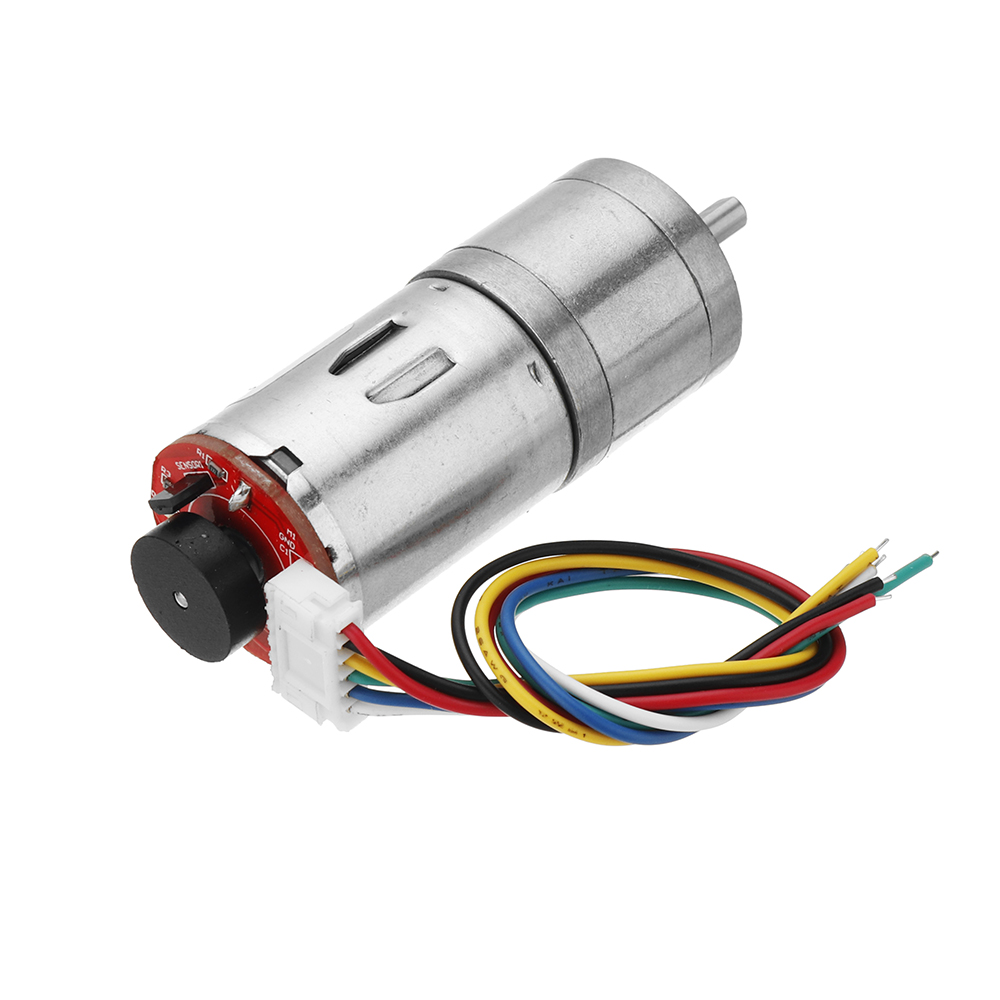

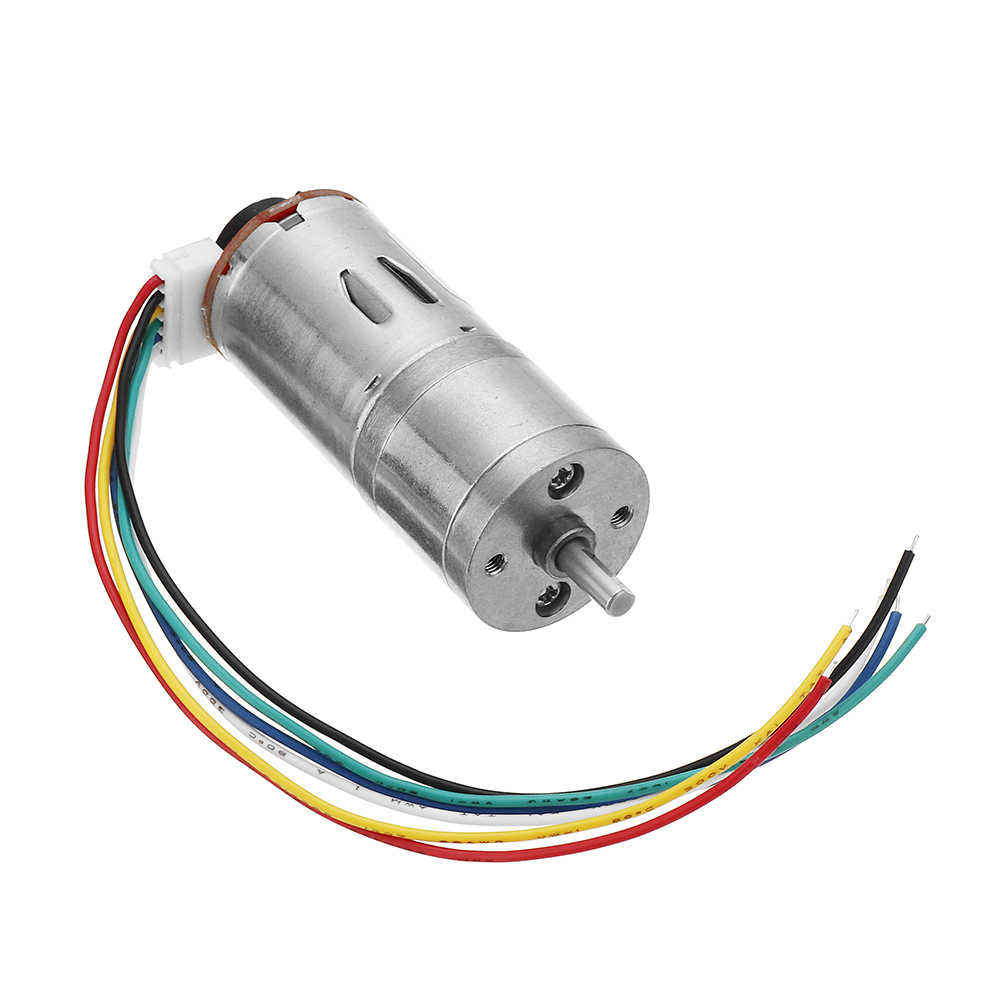

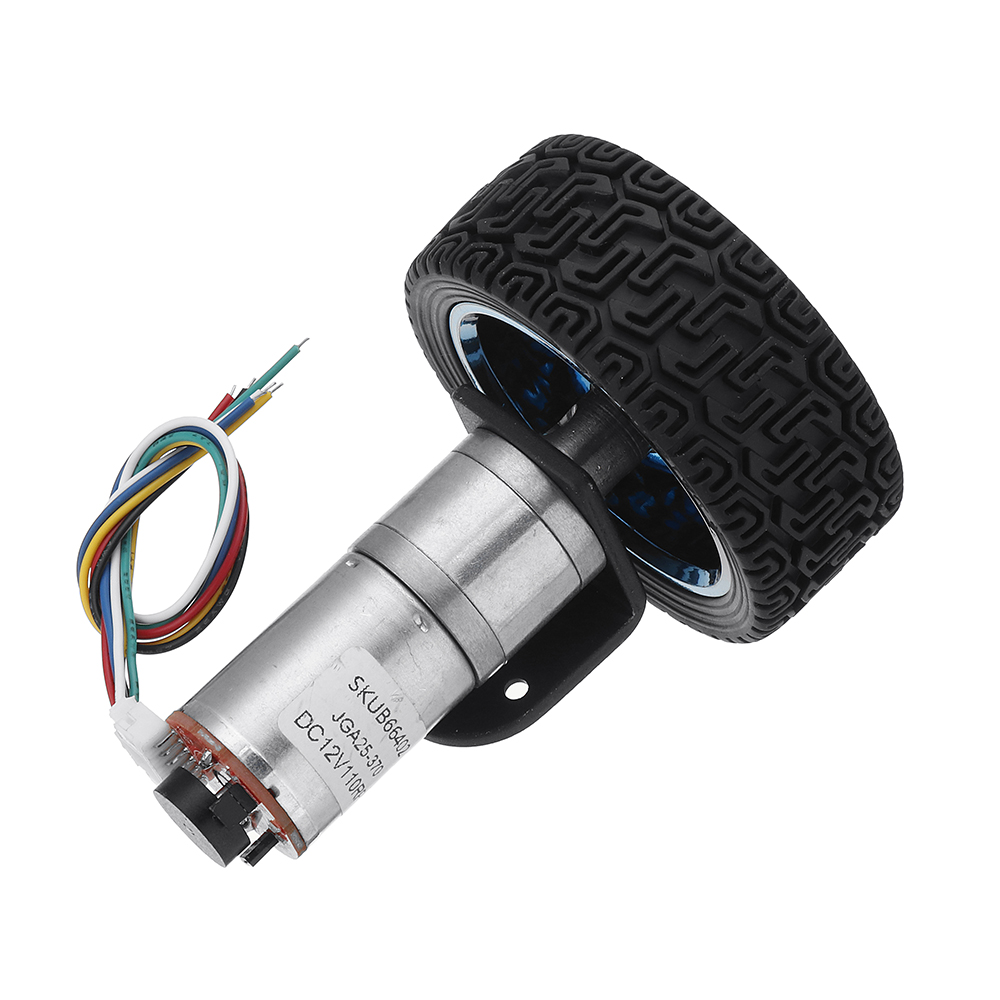

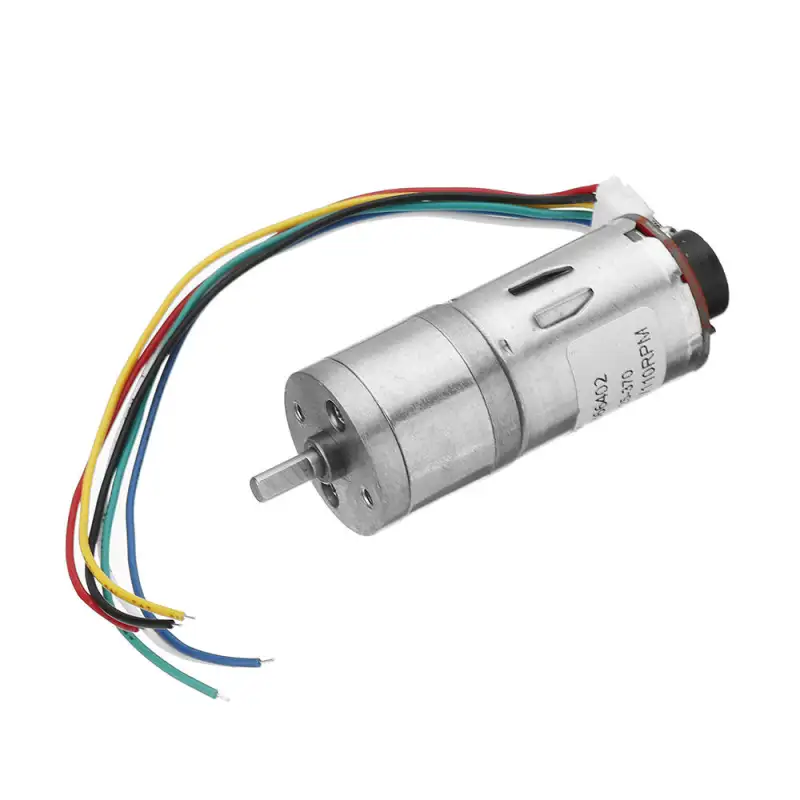

Machifit 25GA370 DC 12V Micro Gear Reduction Encoder Motor with Mounting Bracket and Wheel

Reference:

Condition: New product

175 Item Items Warning: Last items in stock!

$20.93

Rotate Speed

Quantity

More info

Descriptions:
Machifit 25GA370 DC 12V Micro Gear Reduction Motor 25mm Extended Shaft with Mounting Bracket and Wheel

Specifications:

Material: Metal

Voltage: DC 12V

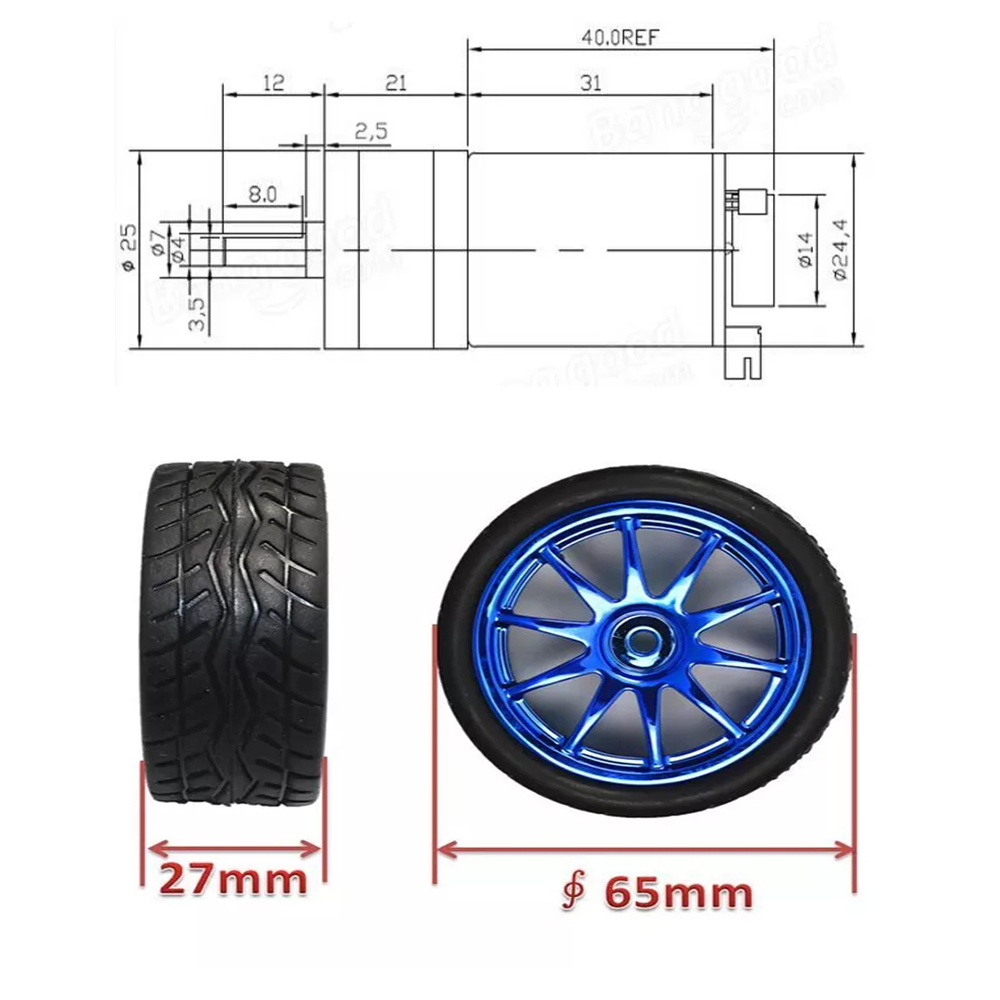

Size(approach):
Output Shaft Dia.: 4mm
Output Shaft Length: 12mm

Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

Parameter:

Voltage

No-load Speed

RATIO

No-load

Rated-load

Stall

Current
(A)

Speed(rpm)
±10%rpm

Torque
(kg.cm)

Speed(rpm)
±10%rpm

Current
(A)

Torque
(kg.cm)

Current
(A)

L Size

DC 12.0V

110rpm

1:75

≤0.15

110

8.0

≤0.75

≤9.0

1.8

DC 12.0V

190rpm

1:45

≤0.15

190

5.0

100

≤0.75

≤9.0

1.8

Machifit-25GA370-DC-12V-Micro-Gear-Reduction-Encoder-Motor-with-Mounting-Bracket-and-Wheel-1532242

Features:
- All the gear of metal mechanism

Wear resistance, strong resistance to torsion, smooth transmission, compact structure.

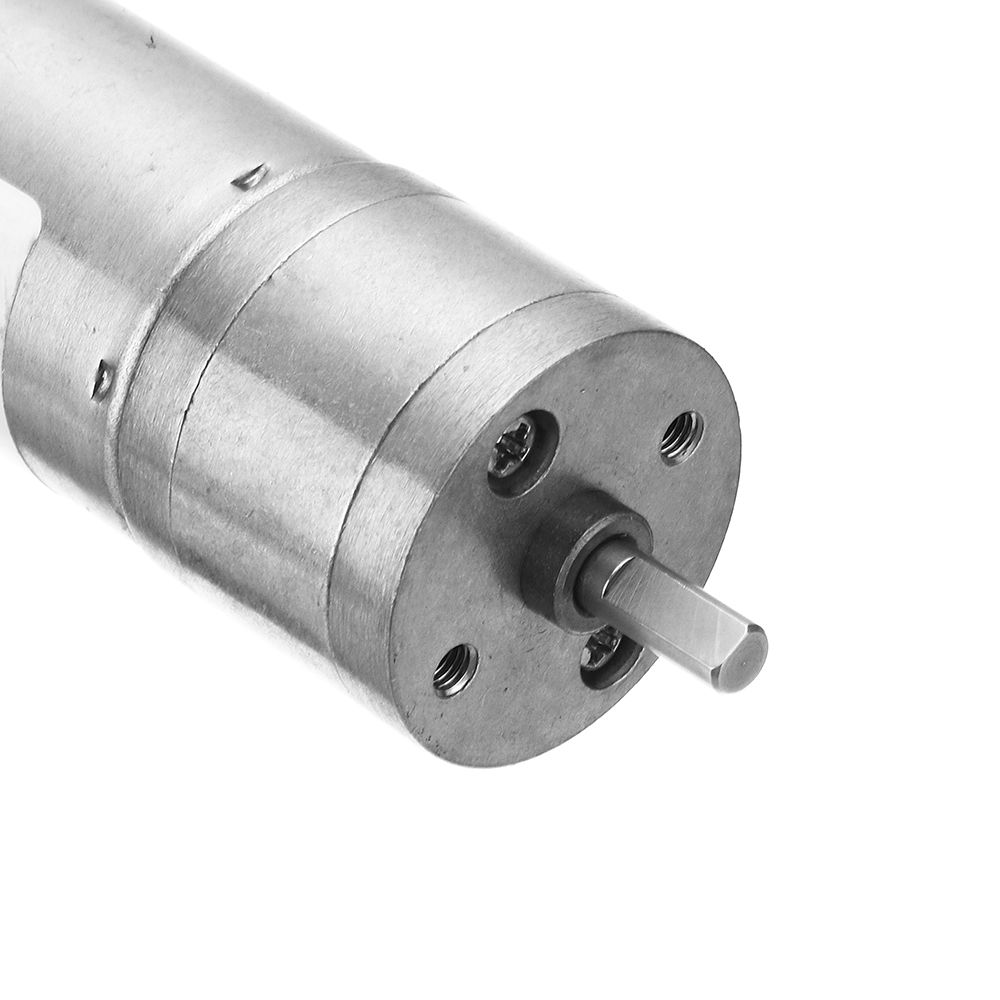

- D-shaped double axis

D-shaped double shaft, excellent thermal conductivity.

- The terminal with red dot or "+" is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor.

- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

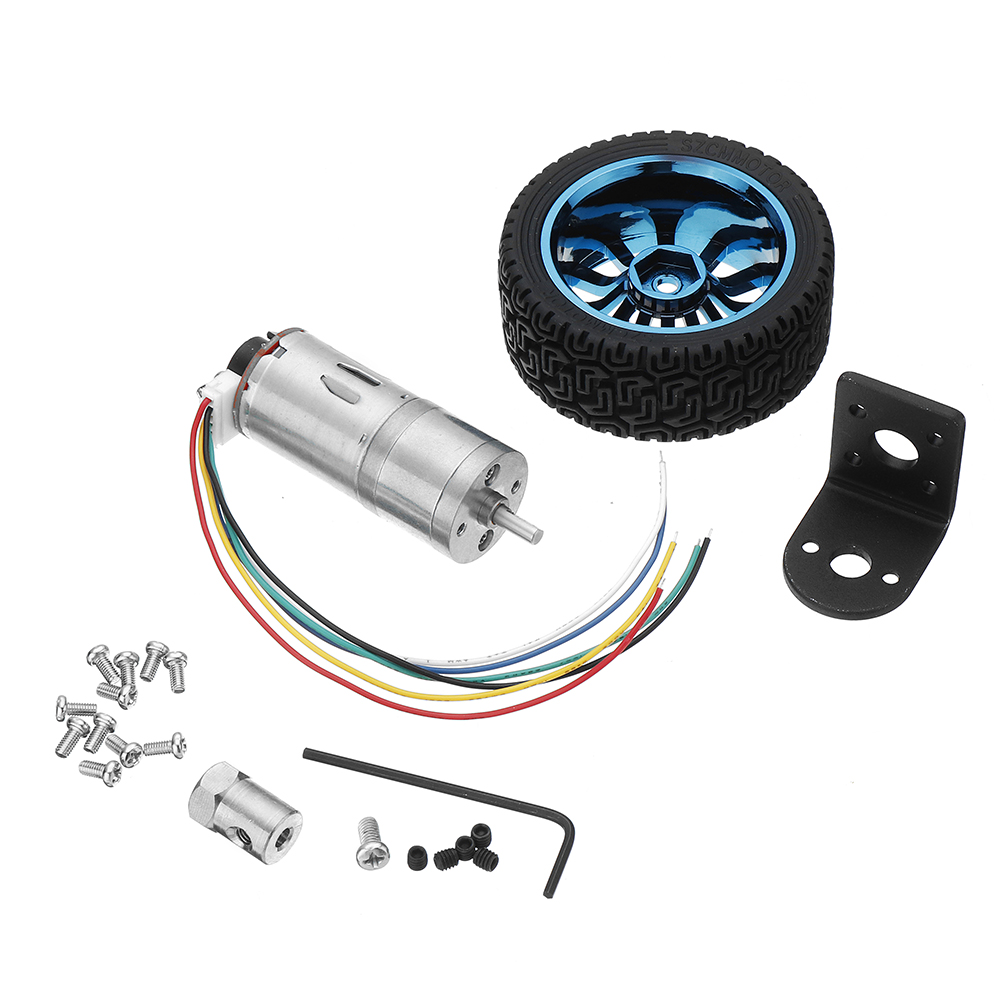

Package Included:
1 x Gear Motor

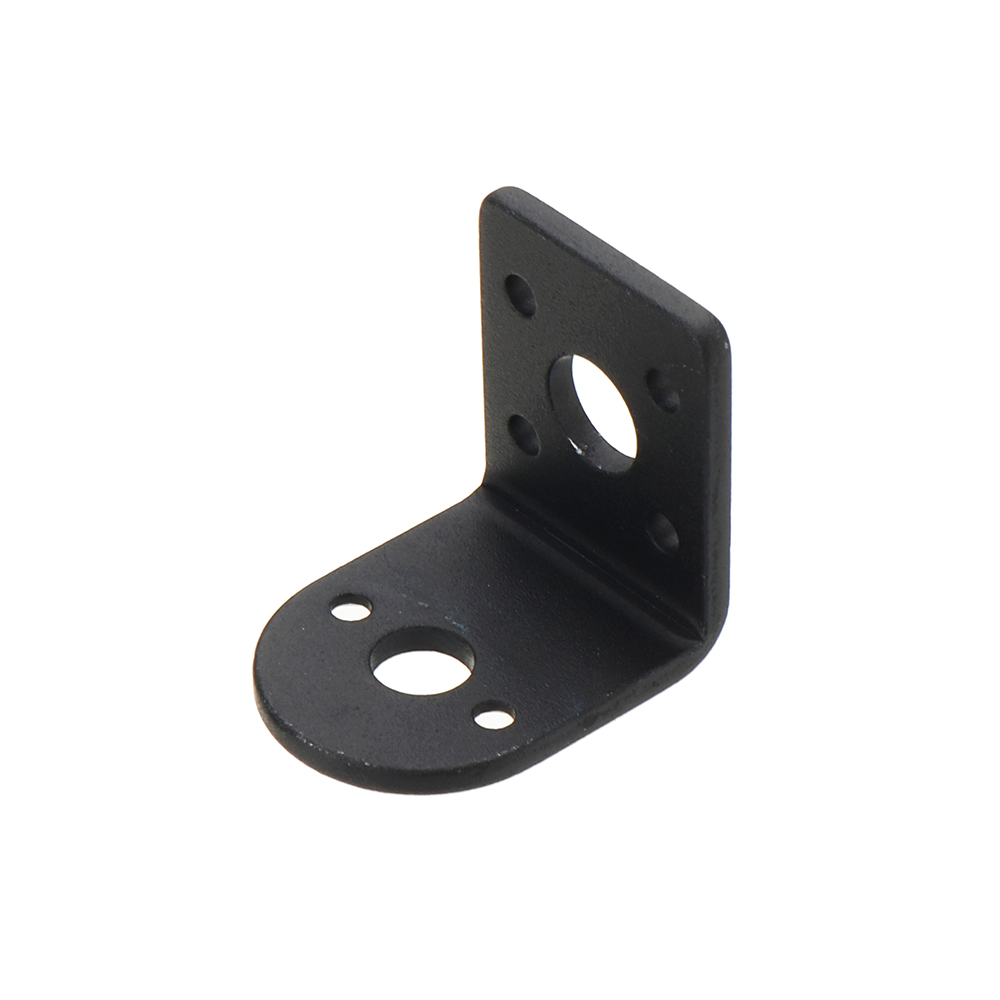

1 x Mounting Bracket

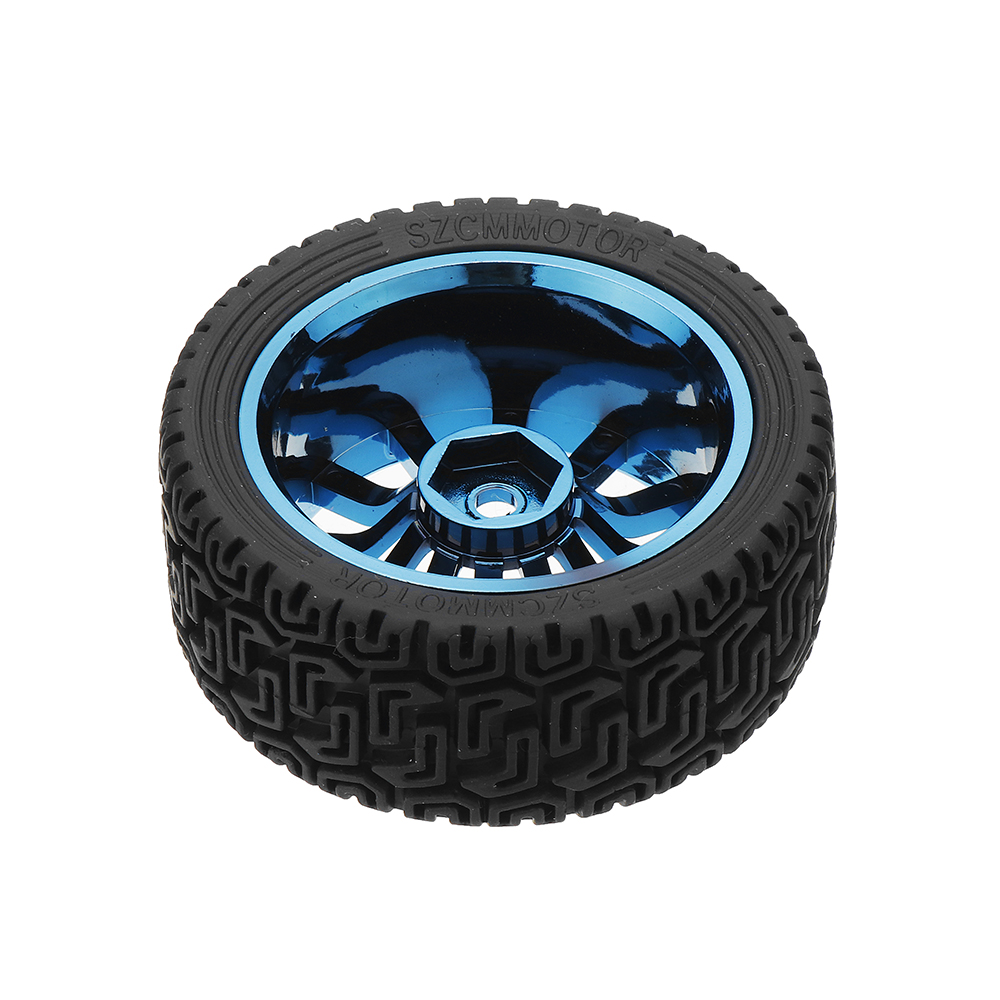

1 x Wheel
