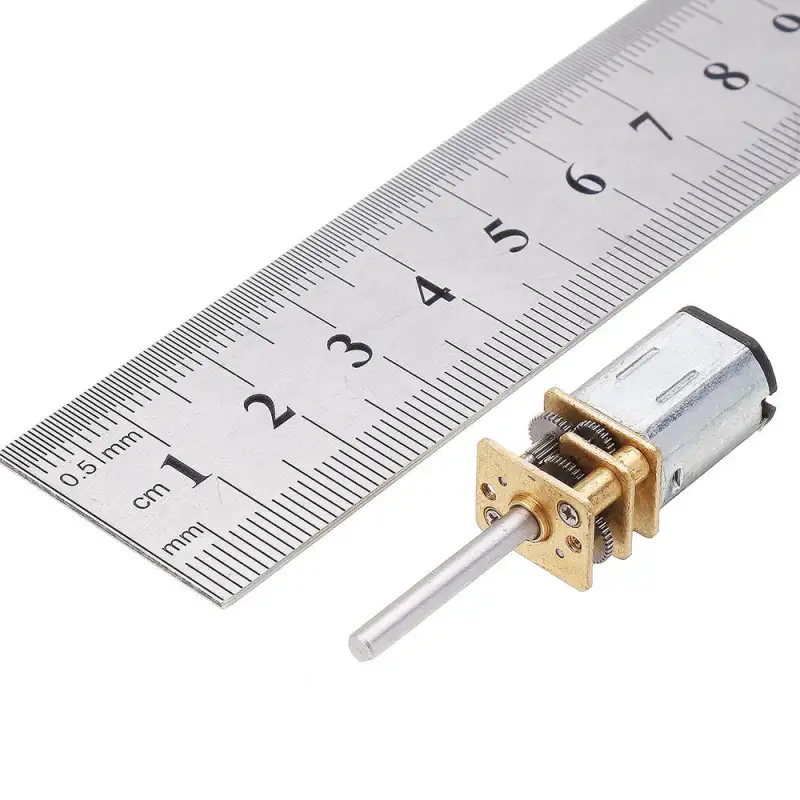

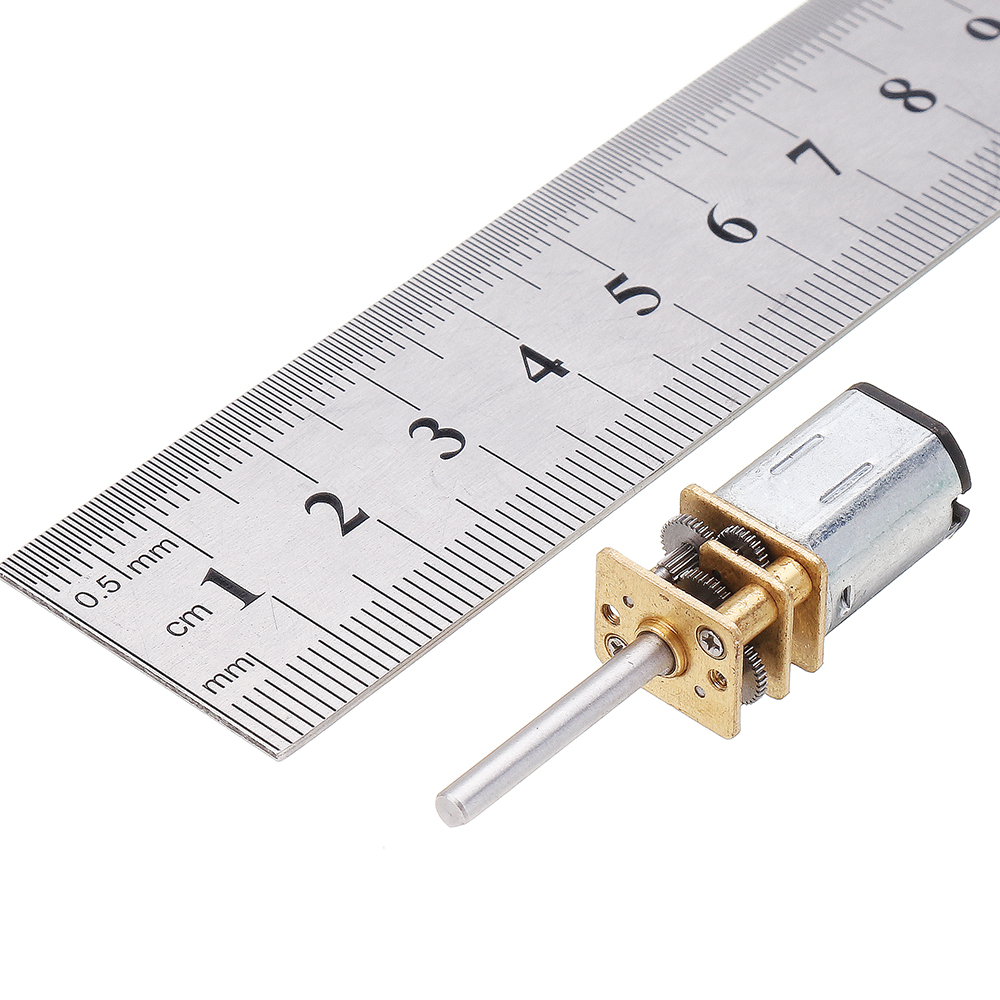

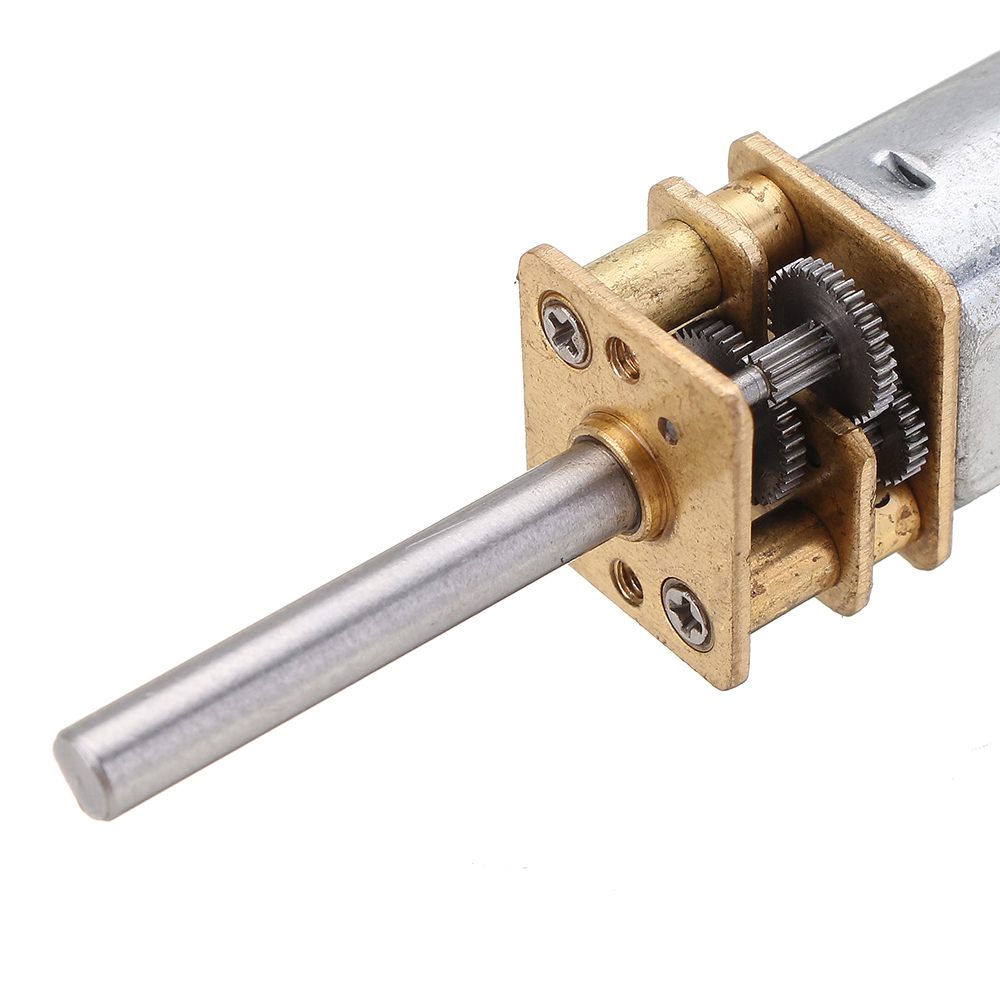

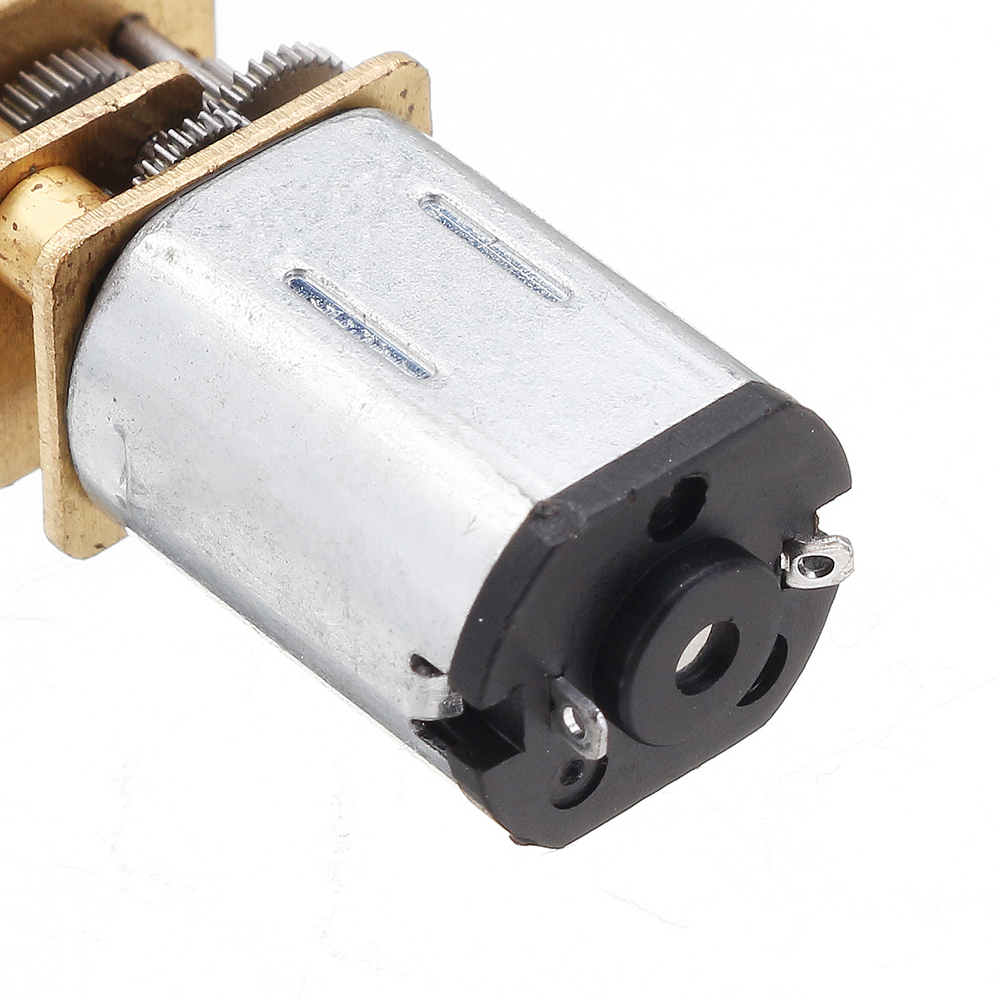

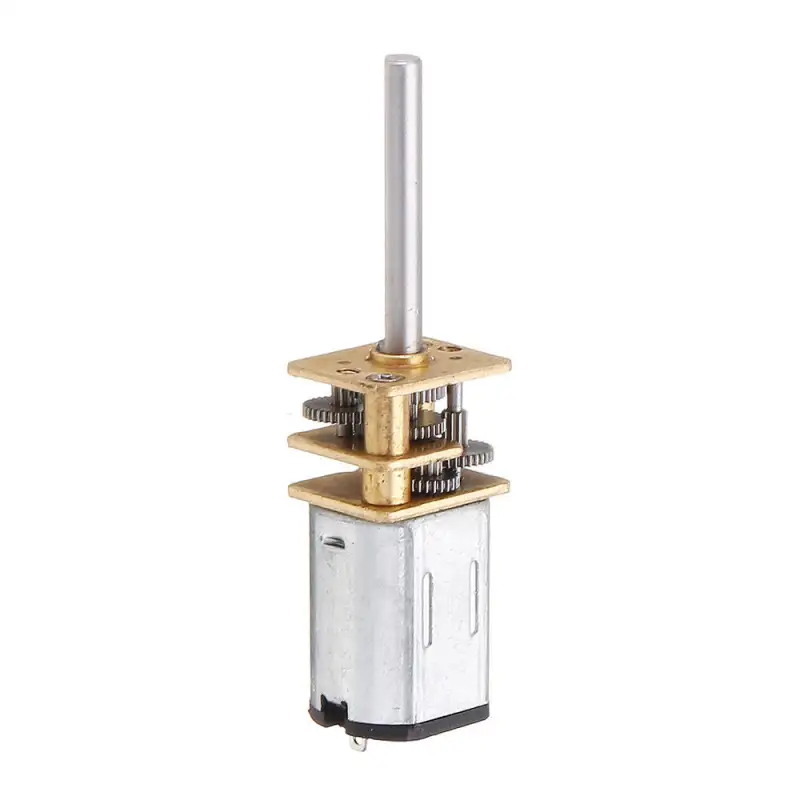

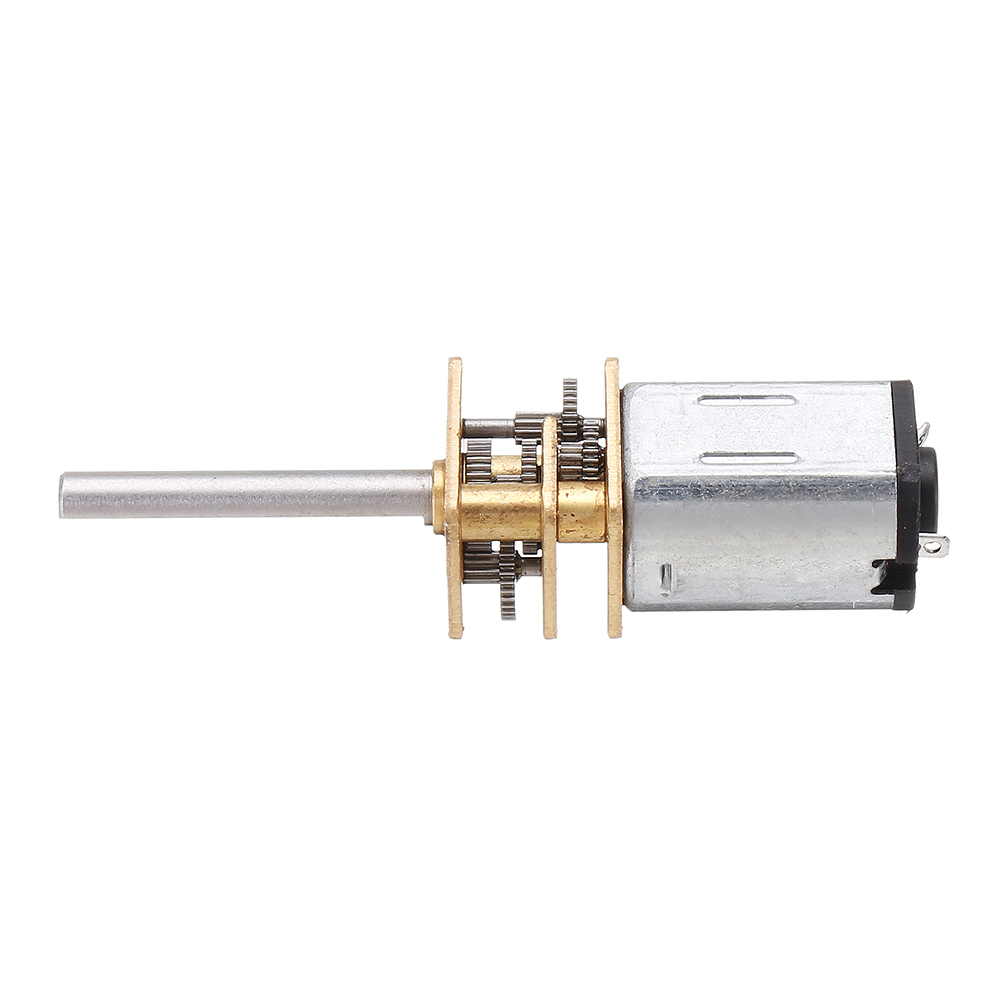

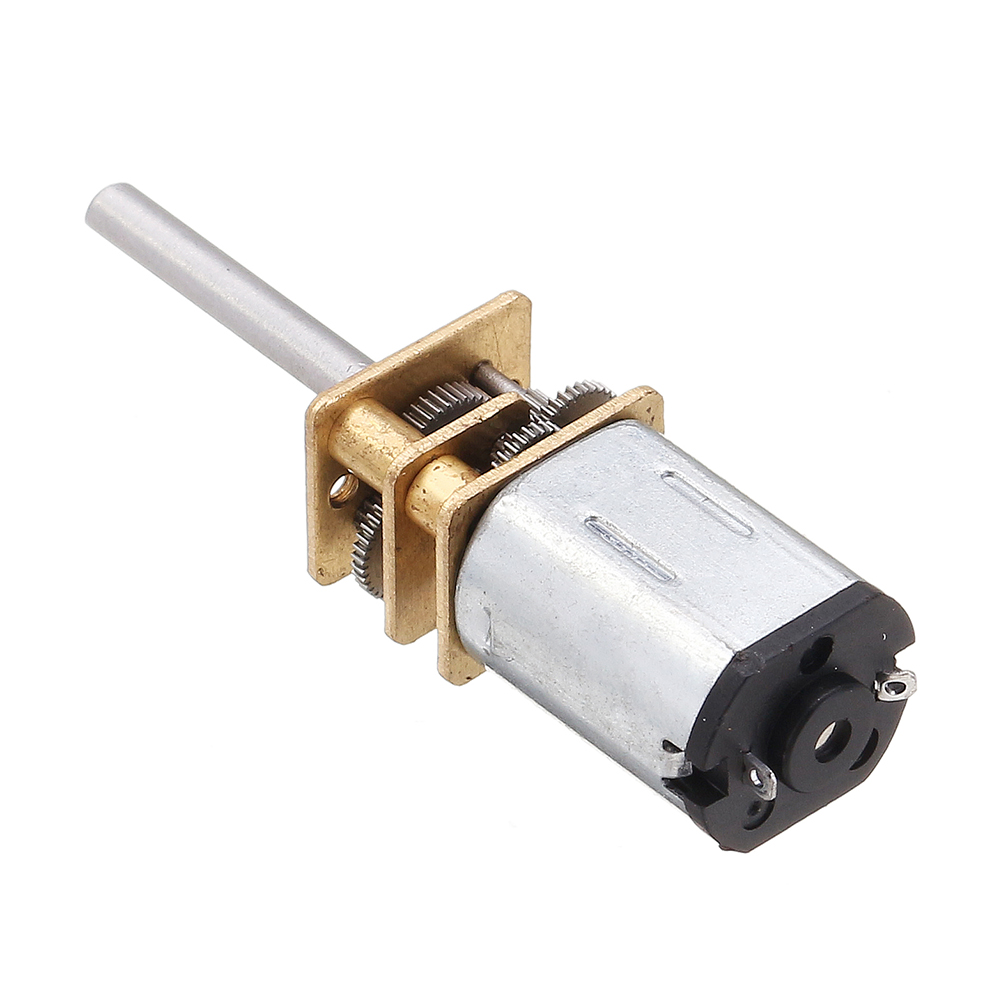

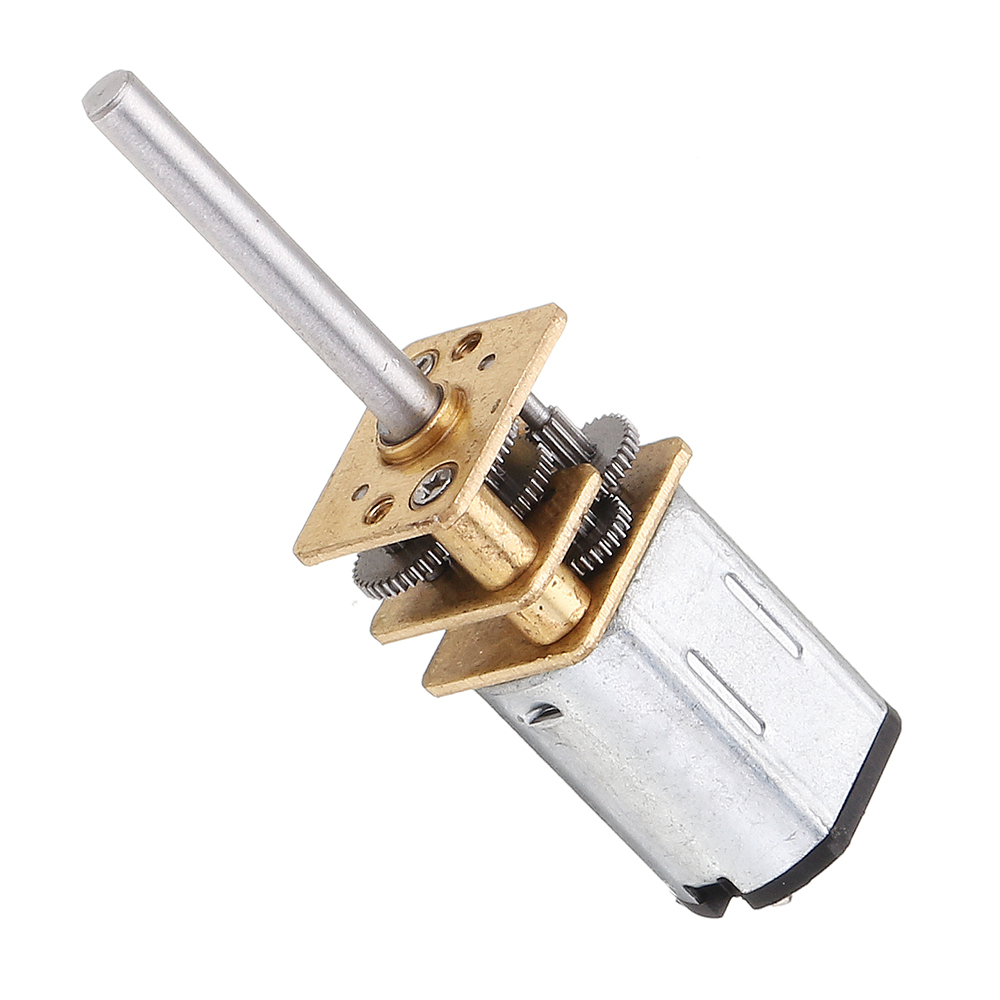

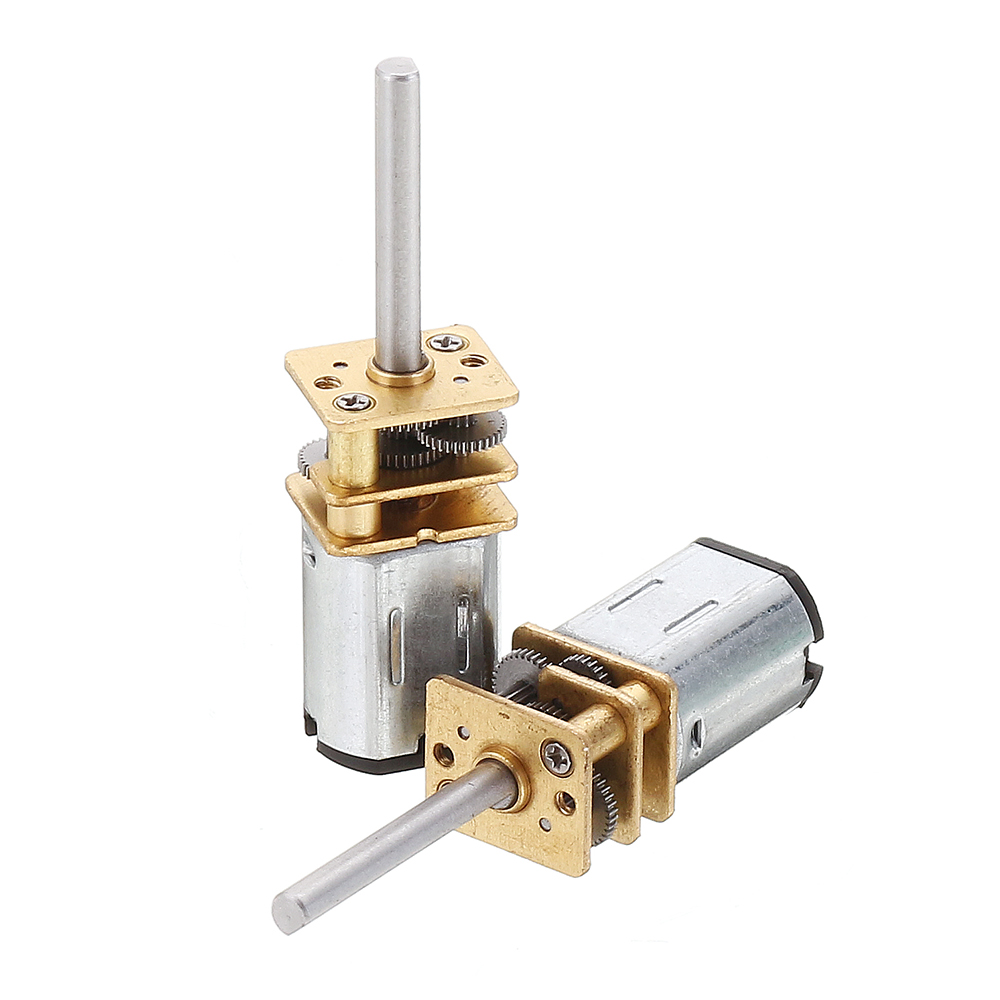

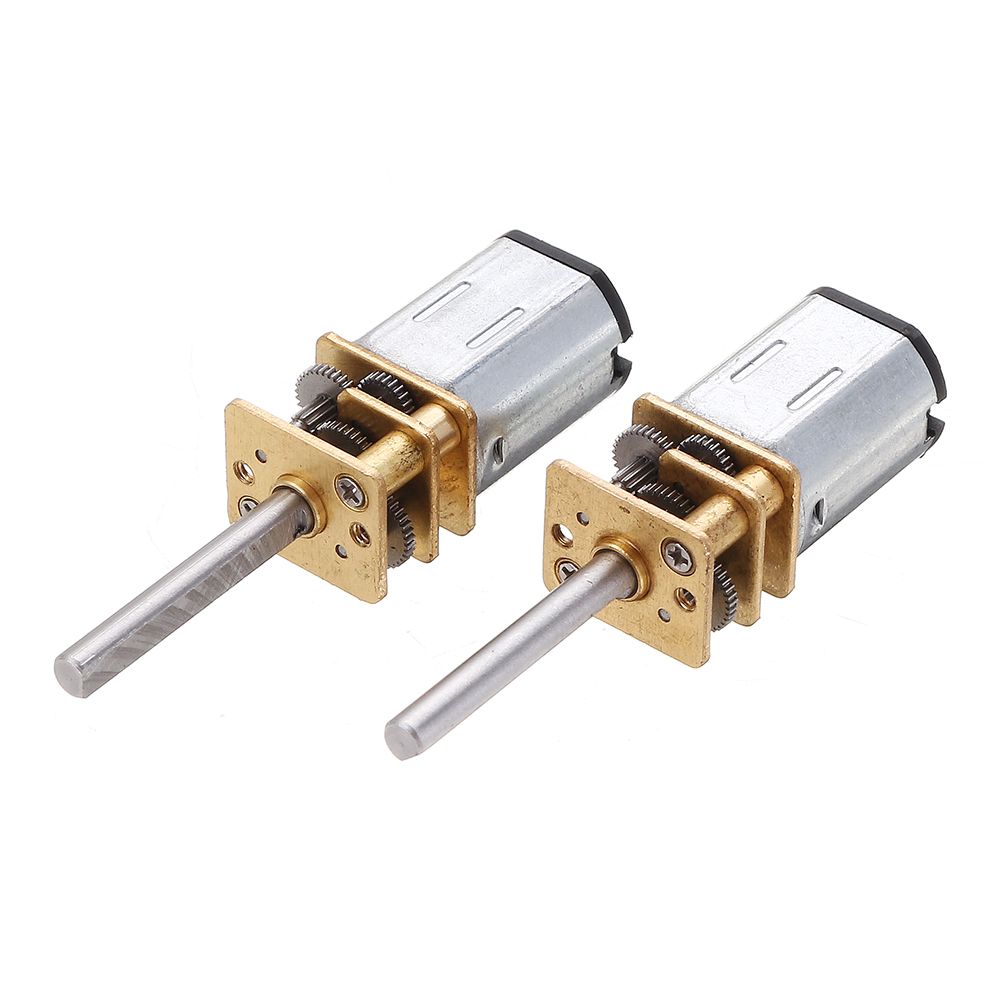

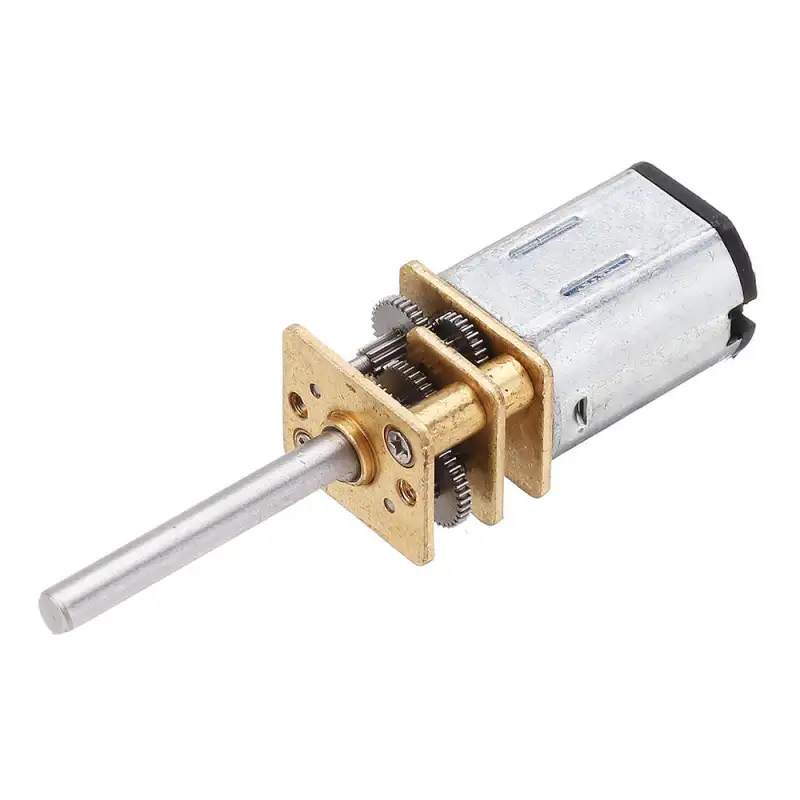

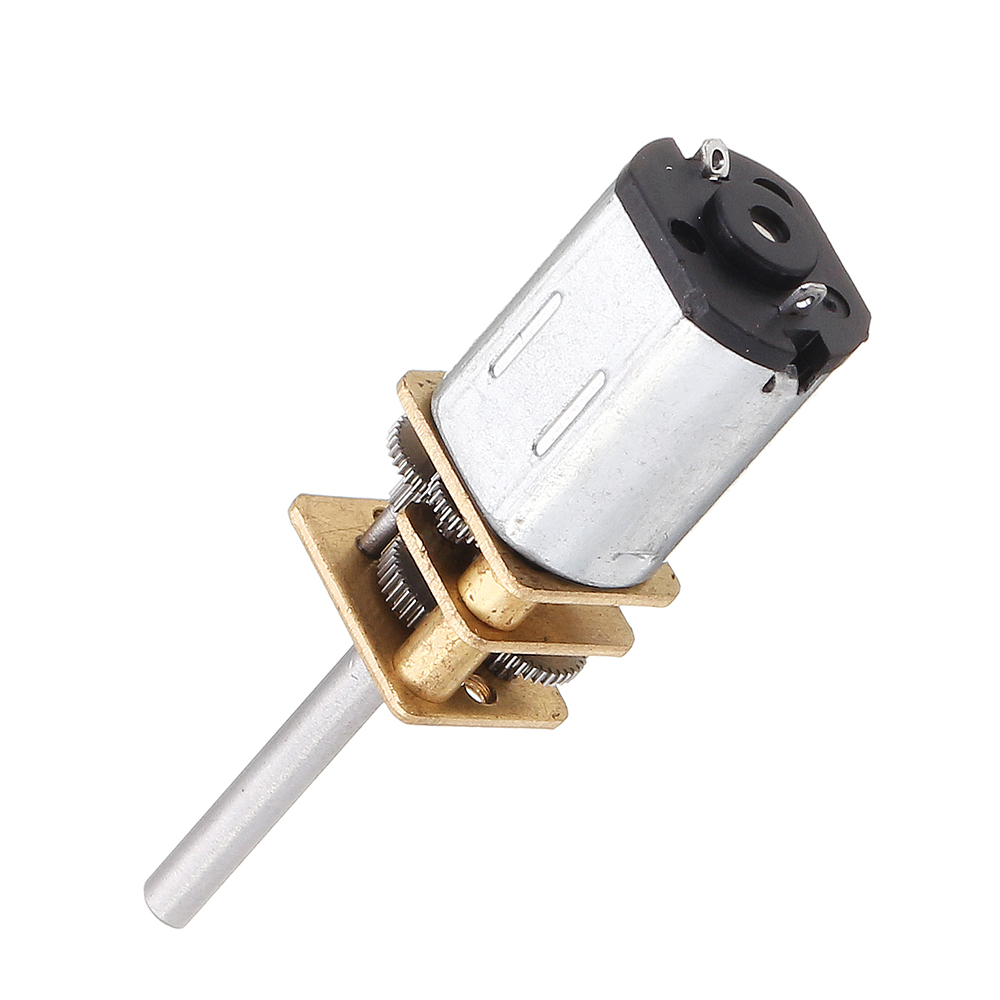

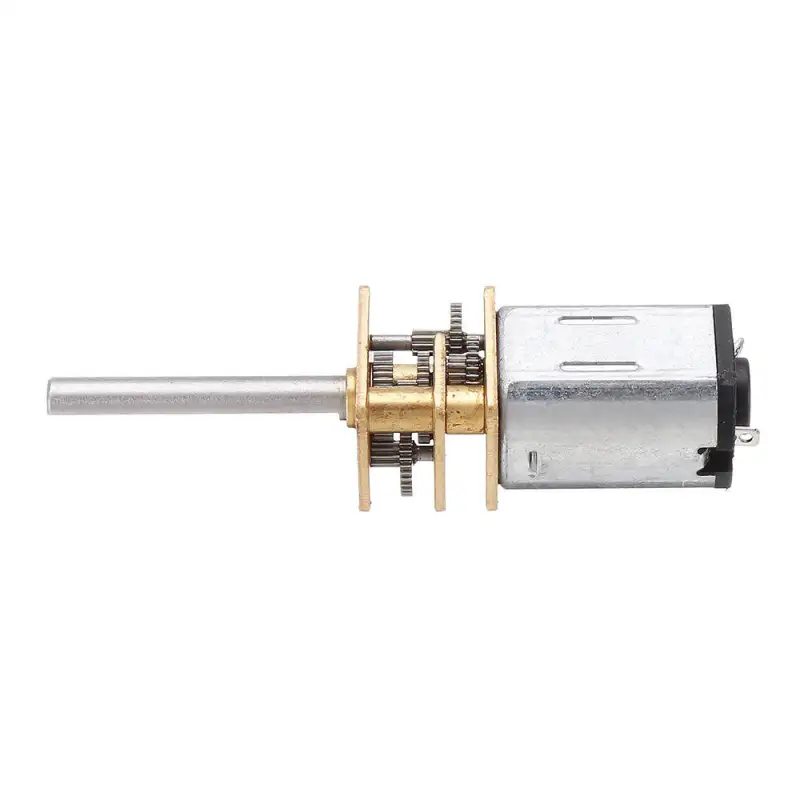

Machifit 20MM-N20 6V 30rpm/12V 100rpm DC Speed Reduction Gear Motor with Metal Gearbox

Reference:

Condition: New product

173 Items

$7.13

More info

Description:
Machifit 20MM-N20 6V 30rpm/12V 100rpm DC extension shaft speed reduction gear motor with metal gearbox.

Specification:

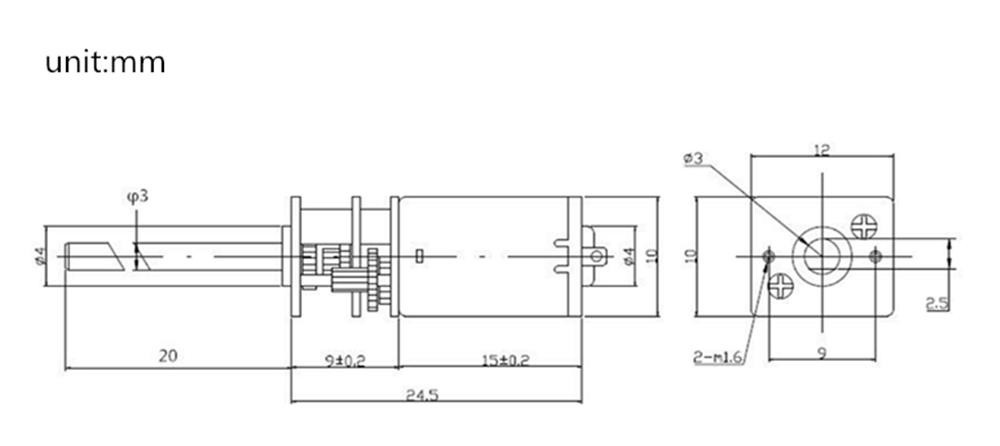

Voltage Gear ratio No load speed No load current Load speed Load current Load torque Stall current Stall torque Weight Axial length
6V 1:298 30rpm 0.02mA 25rpm 0.04mA 1.5kg.cm 1.0A 10.00kg.cm 32g 20mm
12V 1:298 100rpm 0.04mA  80rpm 0.07mA 2kg.cm 1.0A 16.00kg.cm

Fectures:
1. DC miniature metal gear motor, ideal for manufacturing robots.
2. Light weight and high torque.
3. Fine workmanship and durability.
4. Excellent stability.
5. You can also easily install wheels on the engine of the output shaft.

Package Included:
1 x Gear Motor
