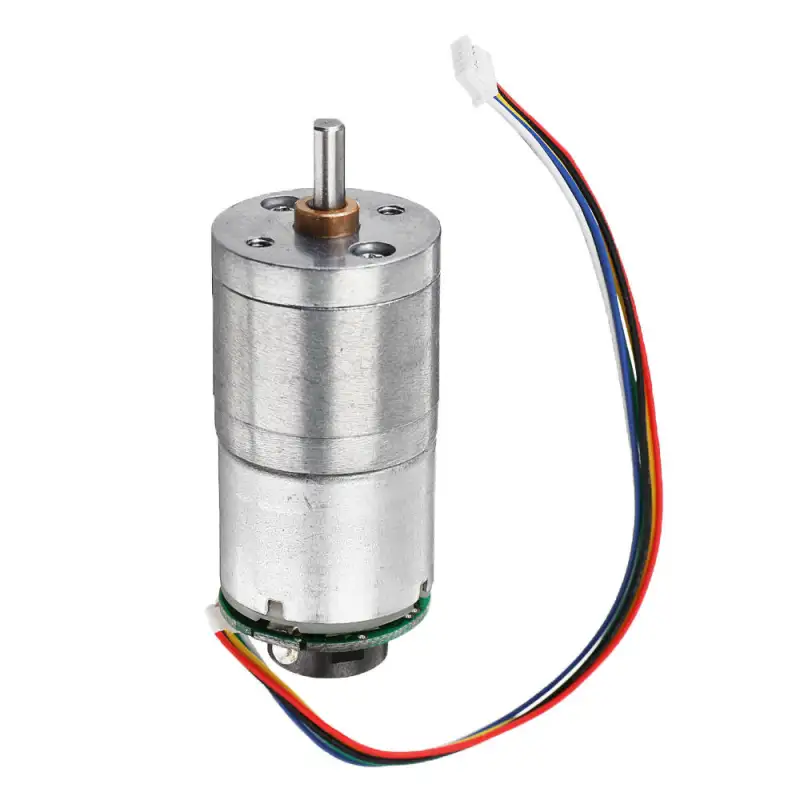

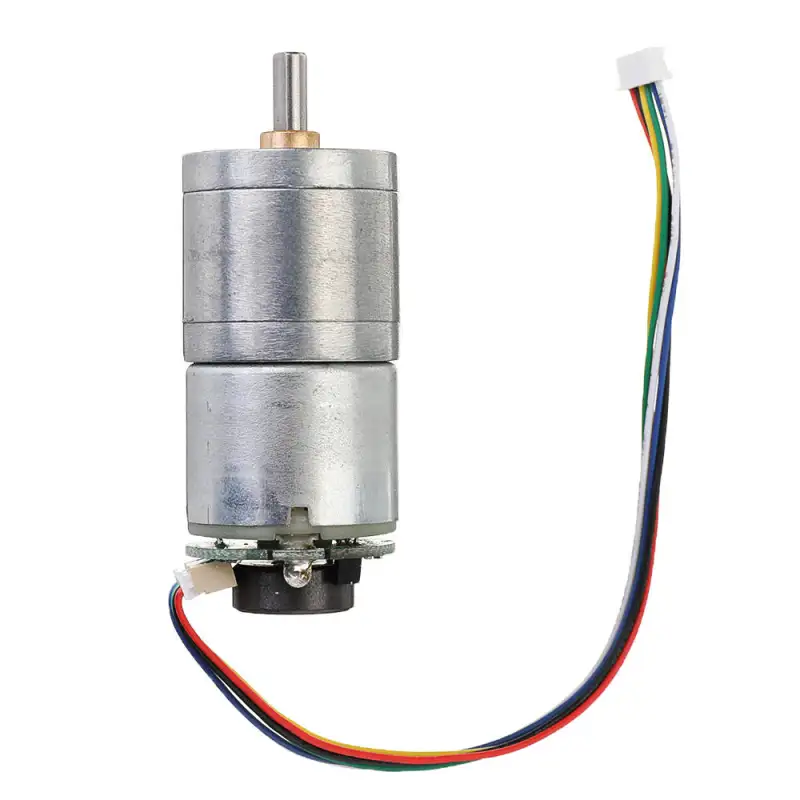

Machifit 12V GM25-310 30/70/100/500rpm DC Encoder Gear Motor Metal Speed Reduction Motor with Cable
Reference:
Condition: New product
Delivery on: Jul 29 2026
379 Items
More info
Description:
Machifit 12V GM25-310 30/70/100/500RMP DC Encoder Gear Motor Metal Speed Reduction Motor with Cable
Specification:
Brand: Machifit
Brand: Machifit
Model: GM25-310
Voltage: 12V
| Type | Gear ratto | No load | Load torque | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||
| A | 1:300 | 30RPM | ≤150mA | 28RPM | ≤170mA | 850g.cm | ≤2.1A | 6.4kg.cm |
| B | 1:150 | 70RPM | ≤170mA | 65RPM | ≤170mA | 680g.cm | ≤2.1A | 5.8kg.cm |
| C | 1:90 | 100RPM | ≤170mA | 91RPM | ≤150mA | 550g.cm | ≤2.1A | 4.8kg.cm |
| D | 1:18 | 500RPM | ≤180mA | 455RPM | ≤185mA | 680g.cm | ≤2.1A | 4.8kg.cm |
Feature:
- This DC motor features large moment of force, low speed, and low noise.
- The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force.
- Applications: perfect for window opener, door opener, mini windlass etc.
- This motor is adopted of pure copper wire coil, with low heat and low loss.

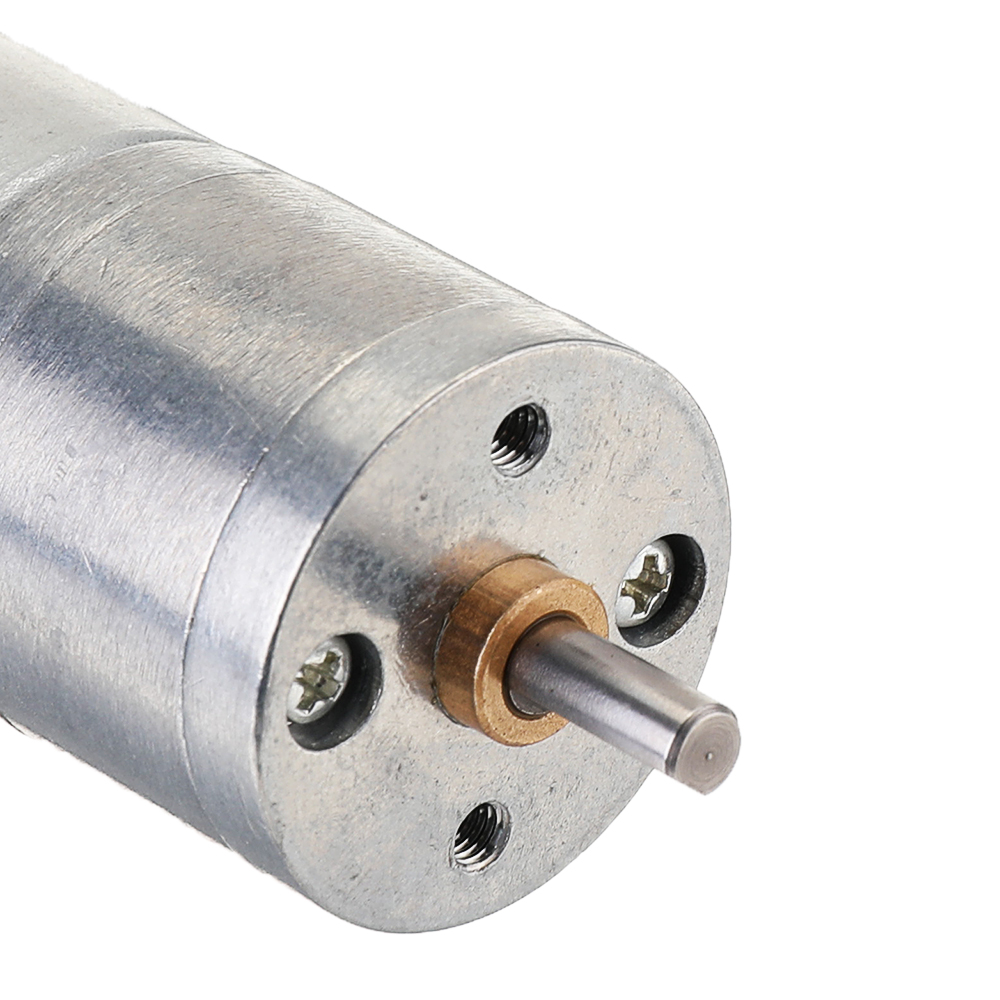

- The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
Package Included:

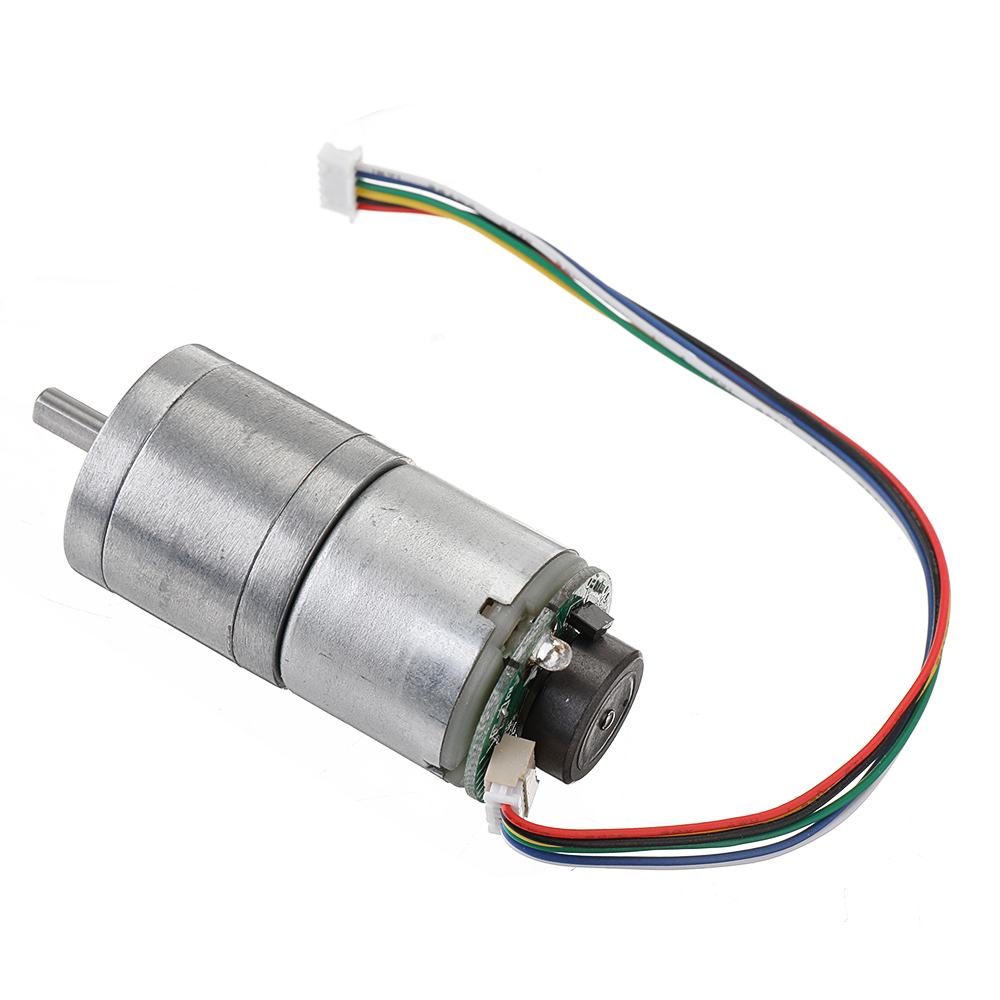

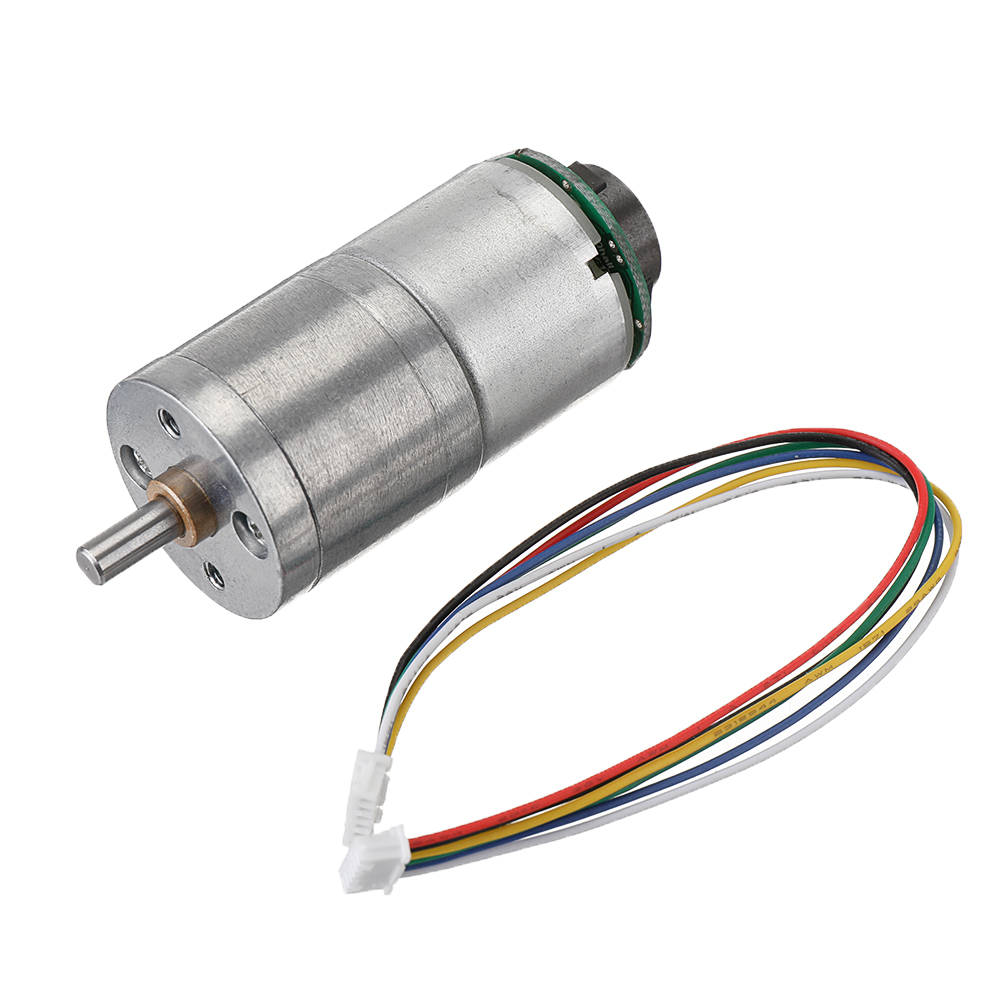

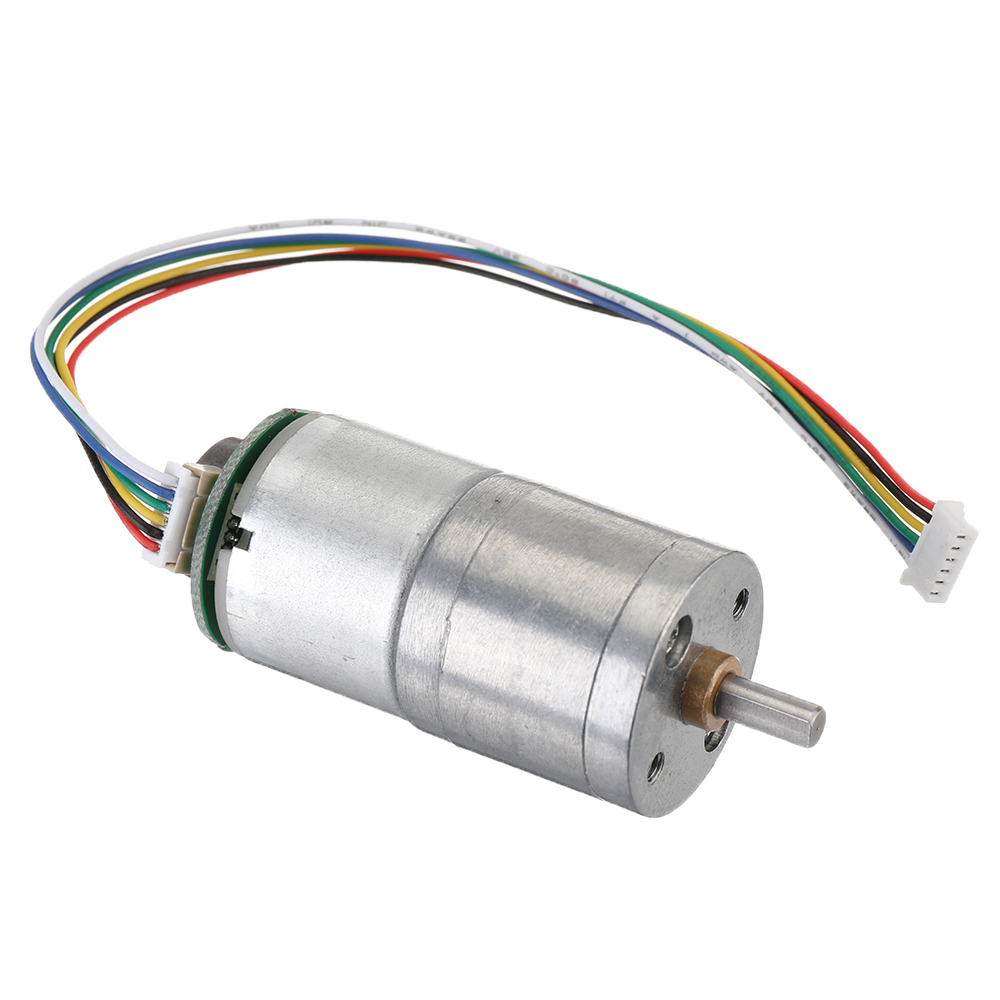

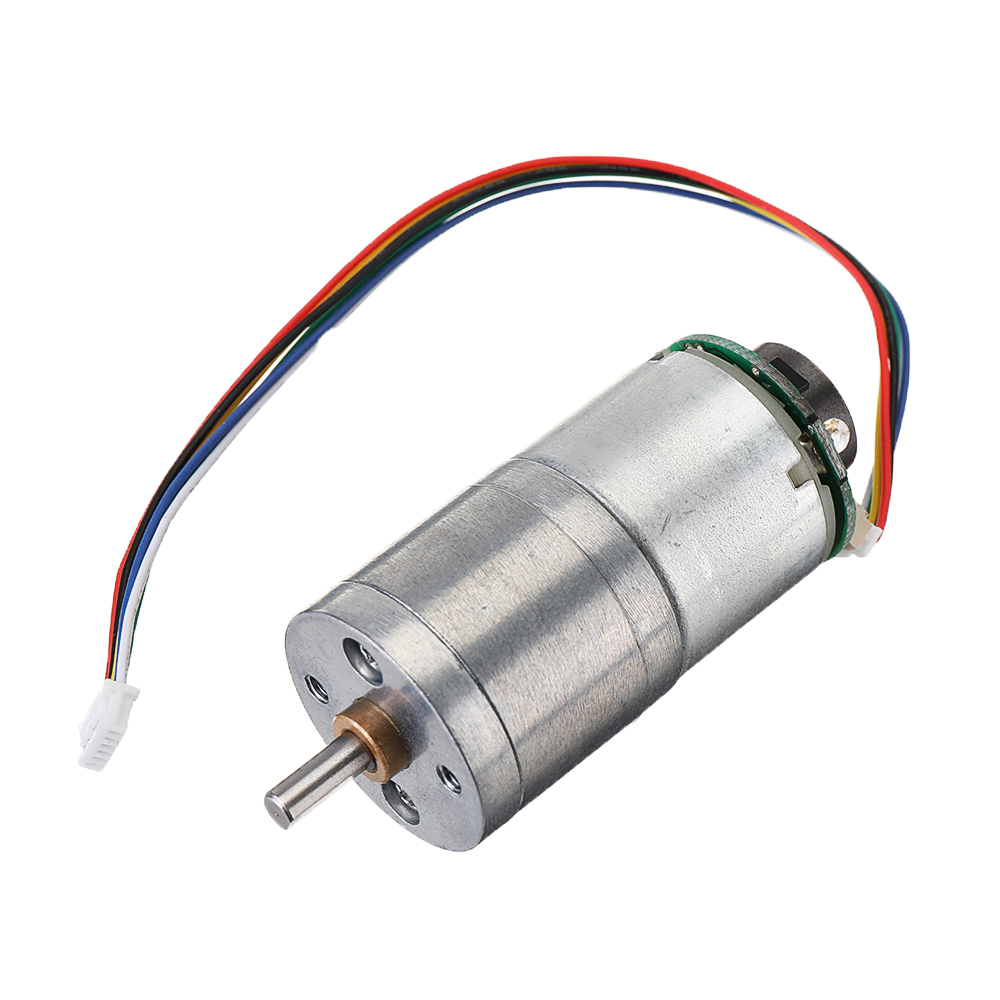

1 x DC Encoder Gear Motor with cable
