JKM NEMA8 1.8°20 Hybrid Stepper Motor Two Phase 42mm 300g.cm 0.8A

Reference: BG0052-9838678

Condition: New product

100 Items

$23.48

More info

Description:

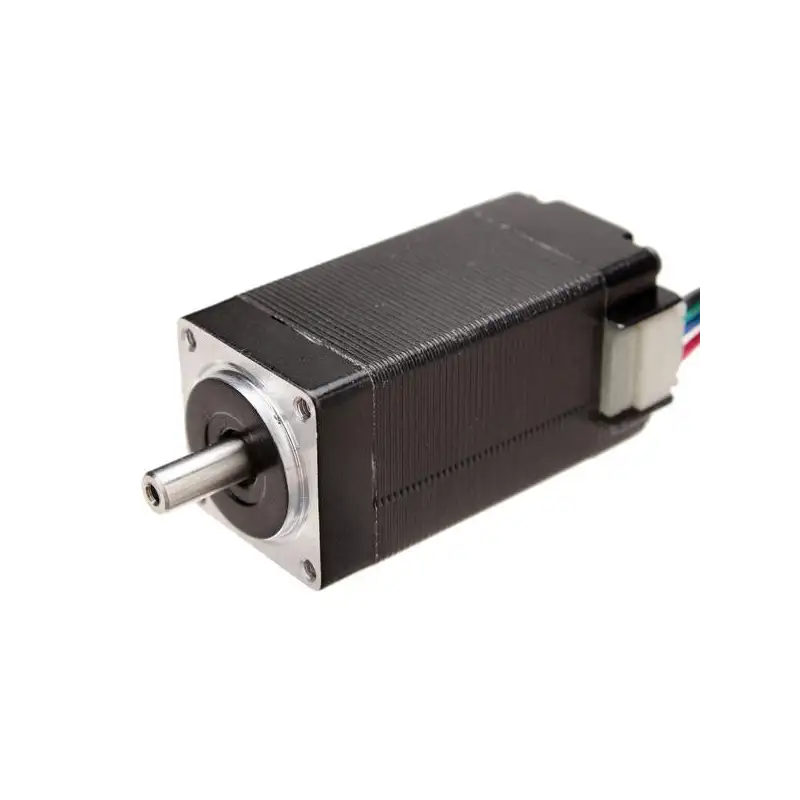

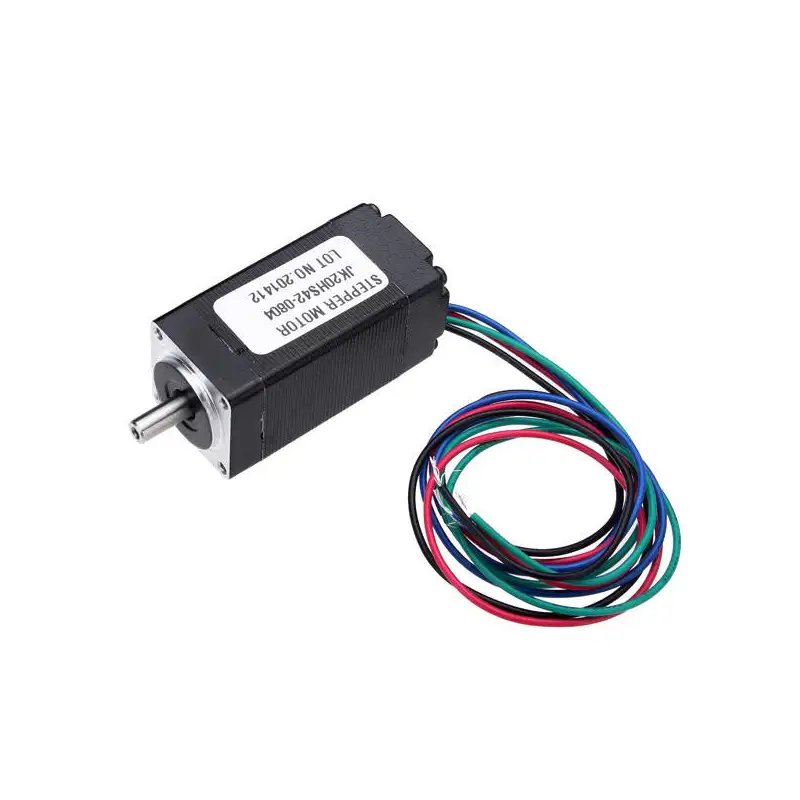

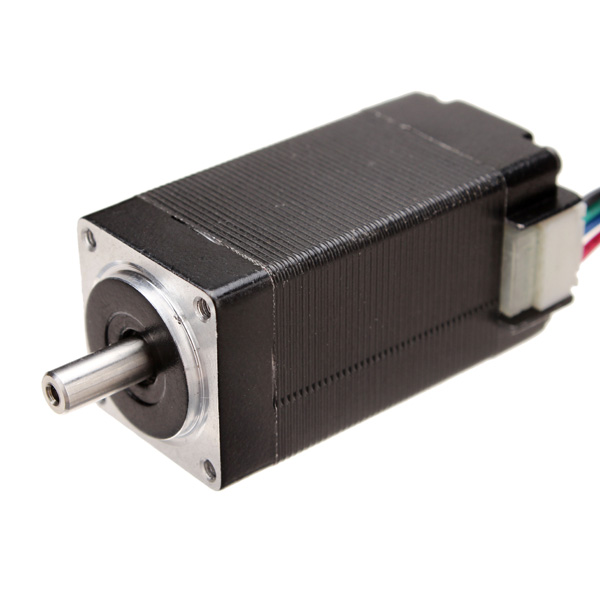

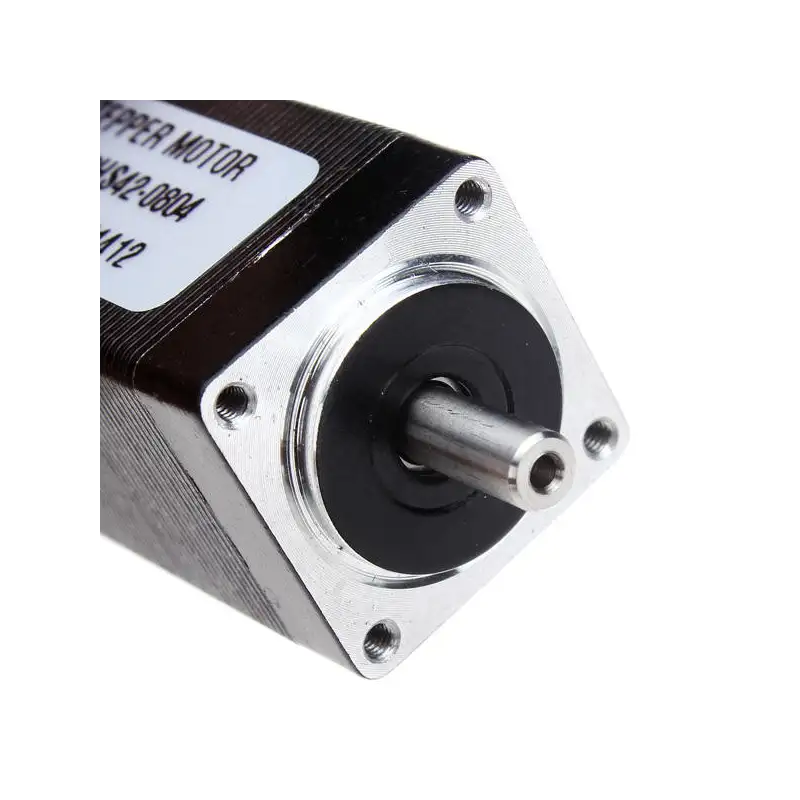

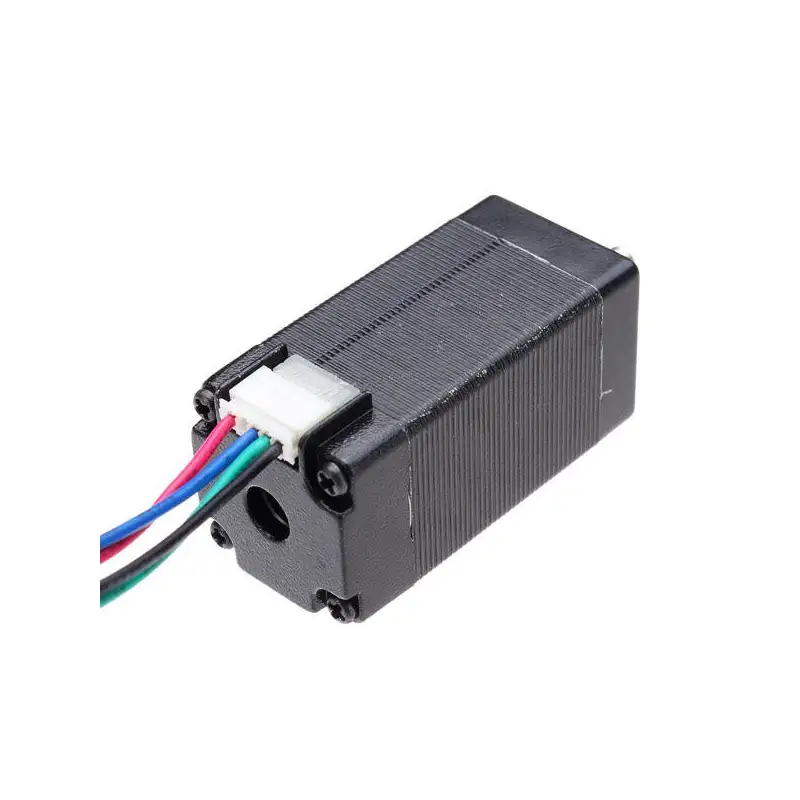

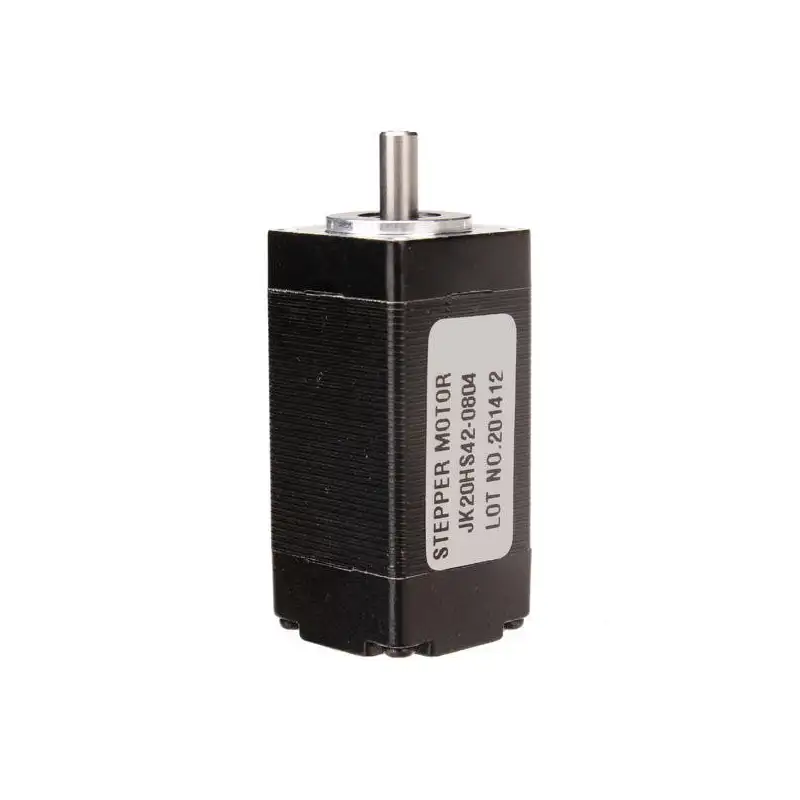

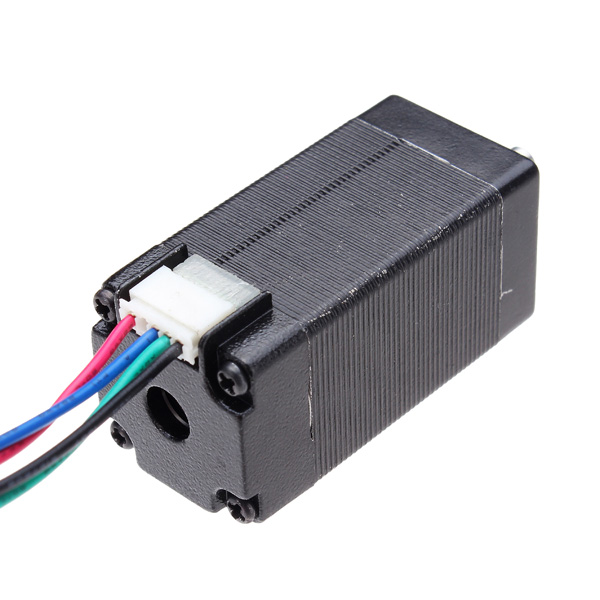

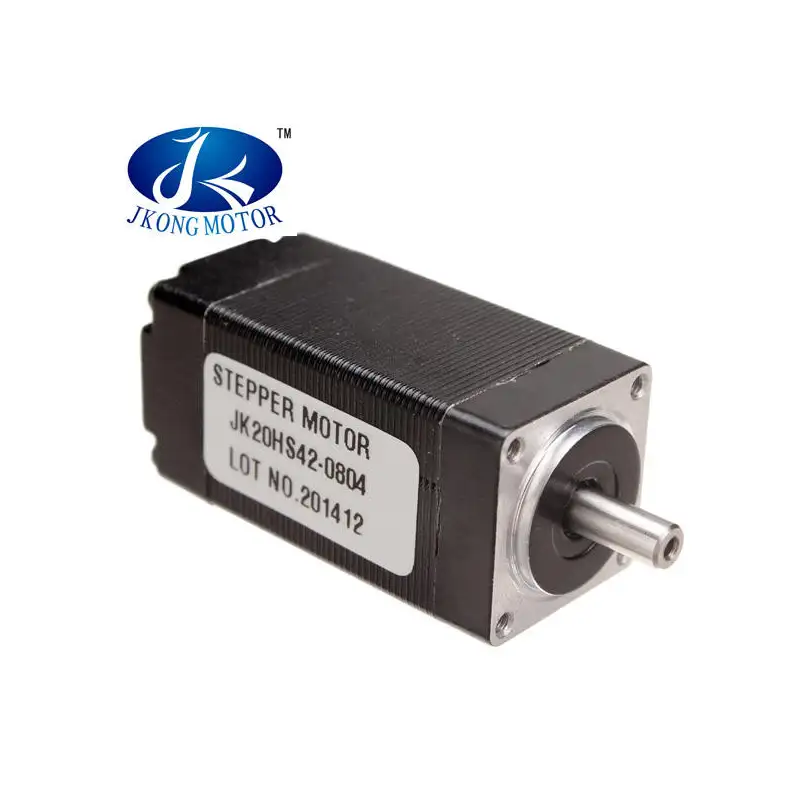

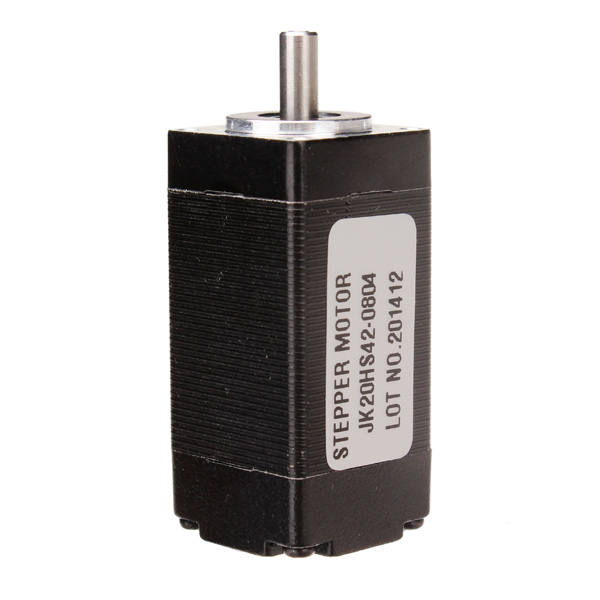

JKM NEMA8 1.8°20 Hybrid Stepper Motor Two Phase 42mm 300g.cm 0.8A

Specification:
Brand: JKM

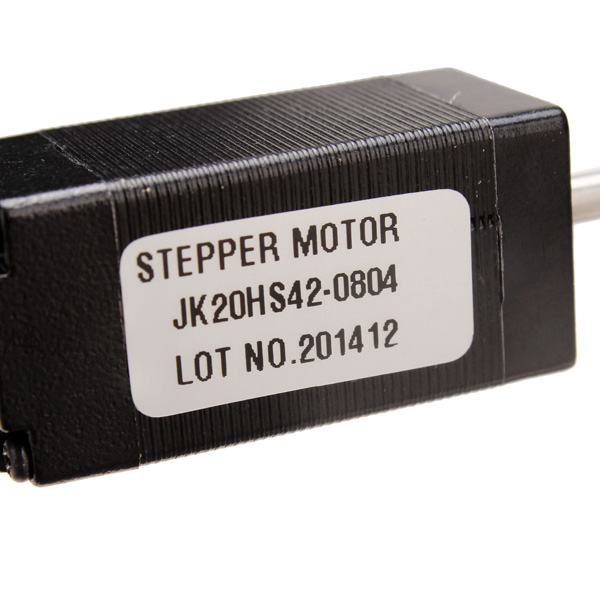

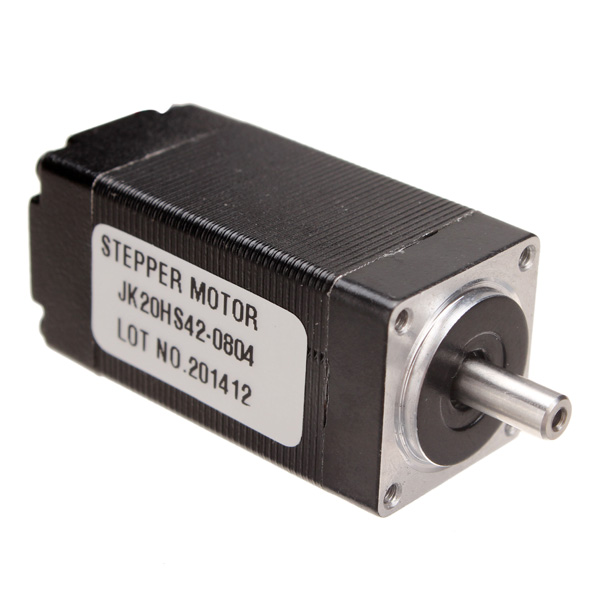

Model: JK20HS42-0804

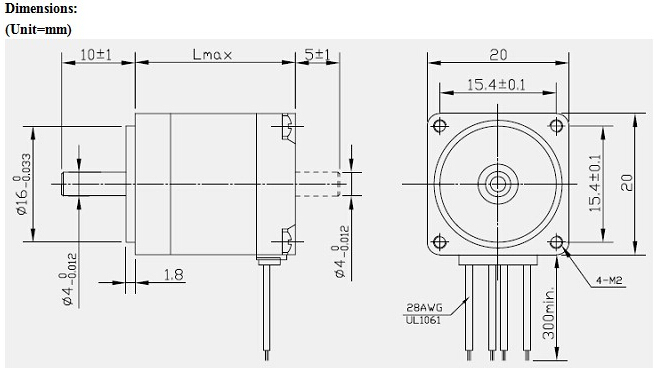

Motor length: 42mm
Diameter of axle: 4mm
The front shafr length:10mm
Size: 20mm x 20mm x 42mm

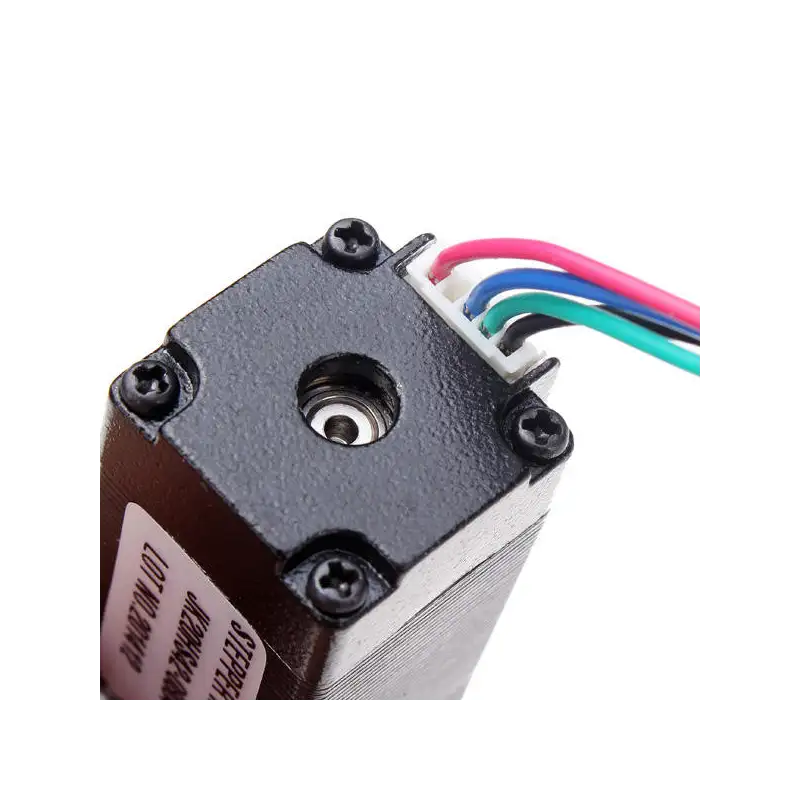

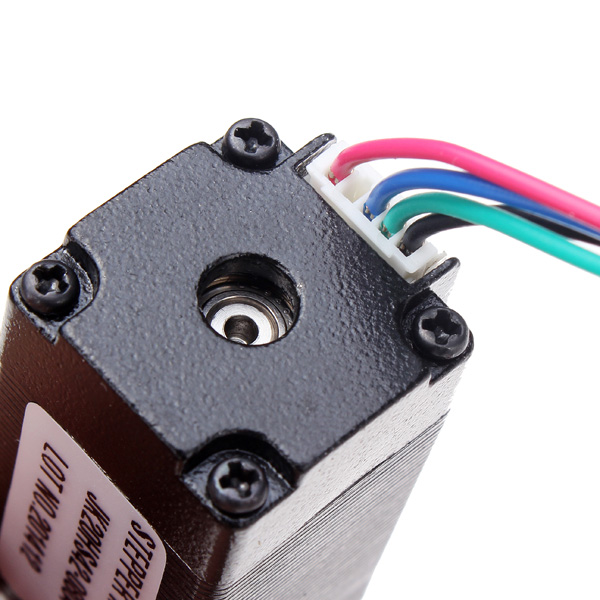

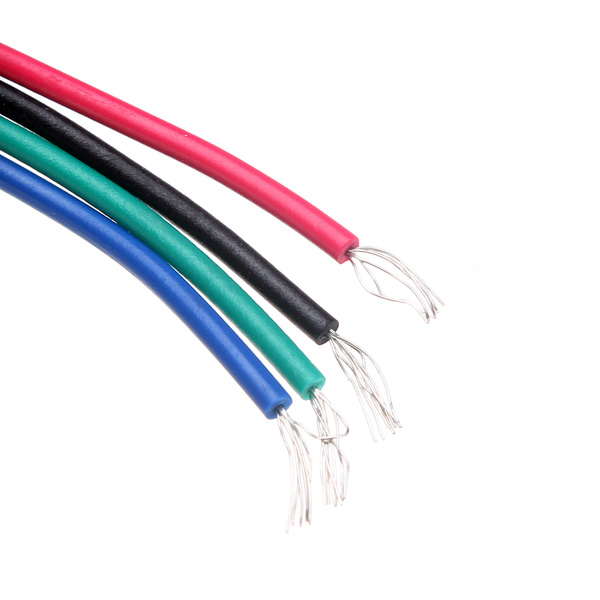

Outgoing line: 300mm (Plug is not included)
Certification:  CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:
Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩMin., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N

Electrical Specification:
Model No. Step Angle Motor Length
Current
/Phase

Resistance
/Phase
Inductance
/Phase
 Holding Torque
# of Leads

 Rotor Inertia Mass
( °) (L)mm  A Ω mH g.cm No. g.cm Kg
JK20HS42-0804 1.8 42 0.8 5.4 1.5 300 4 2 0.08


Features:
High holding torque at high speed.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

JKM-NEMA8-18deg20-Hybrid-Stepper-Motor-Two-Phase-42mm-300gcm-08A-980598JKM-NEMA8-18deg20-Hybrid-Stepper-Motor-Two-Phase-42mm-300gcm-08A-980598

Package Included:
1x Hybrid Stepping Motor
