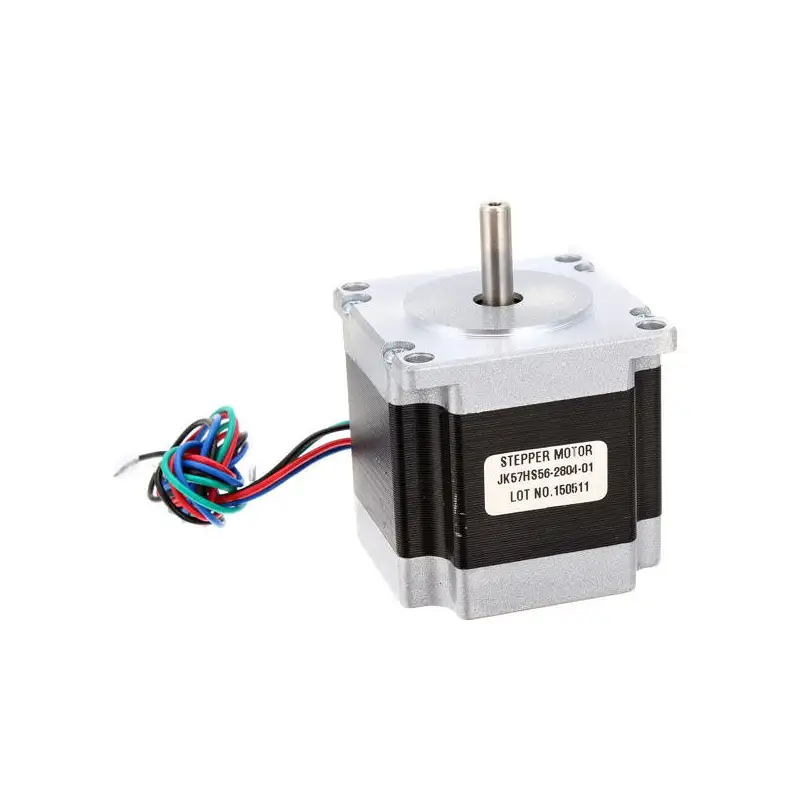

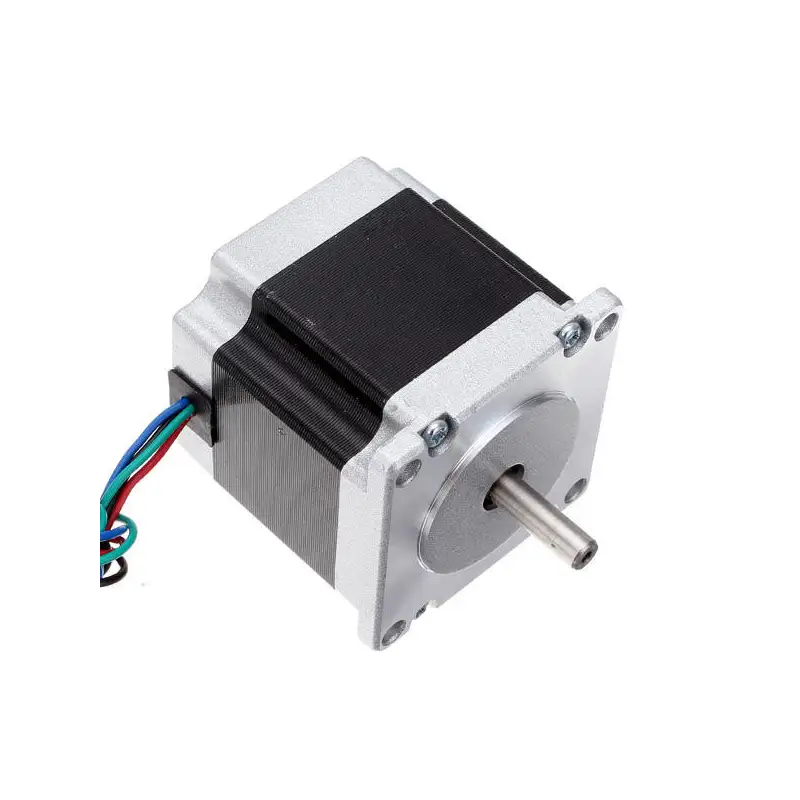

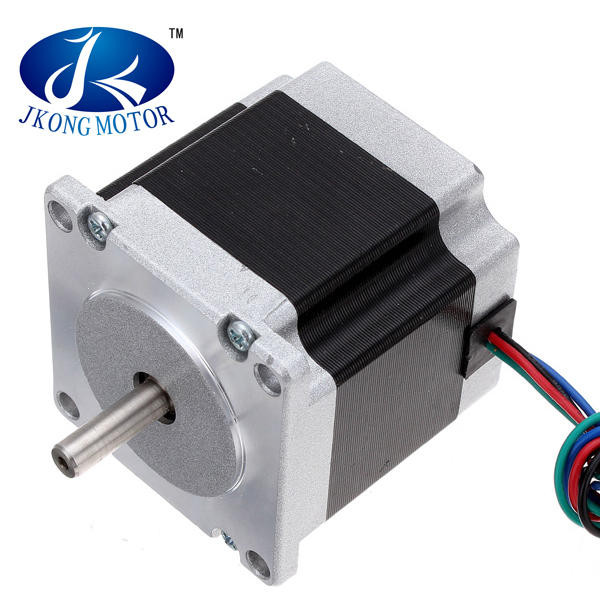

JKM NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm 1.26N.m 2.8A

Reference: BG0052-9643445

Condition: New product

100 Items

$36.21

More info

Description:
JKM NEMA23 1.8°57 Hybrid Stepper Motor Two Phase 56mm Motor 1.26N.m 2.8A

Specification:
Brand: JKM

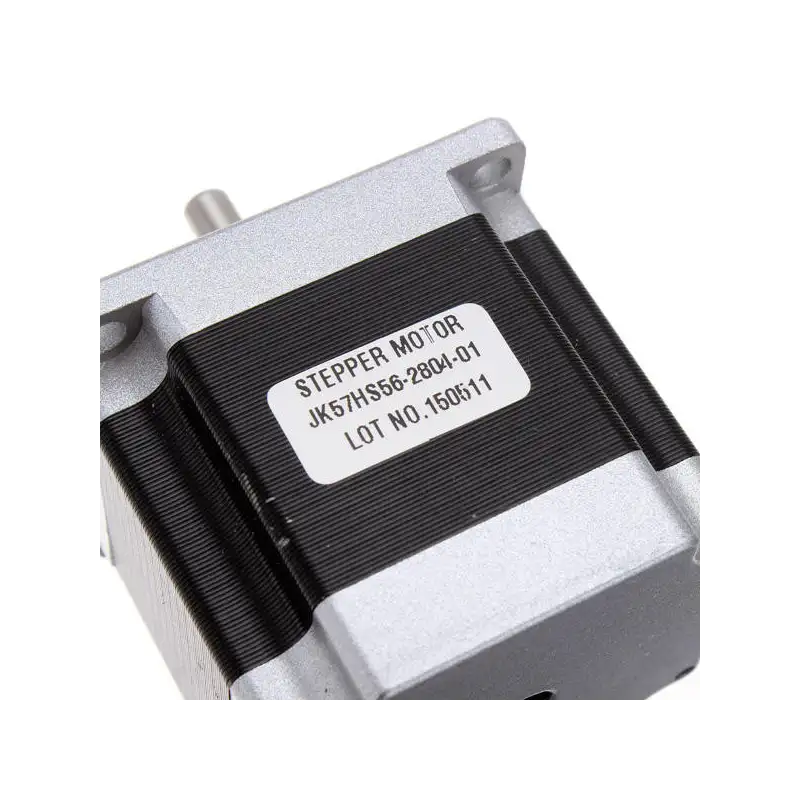

Model: JK57HS56-2804

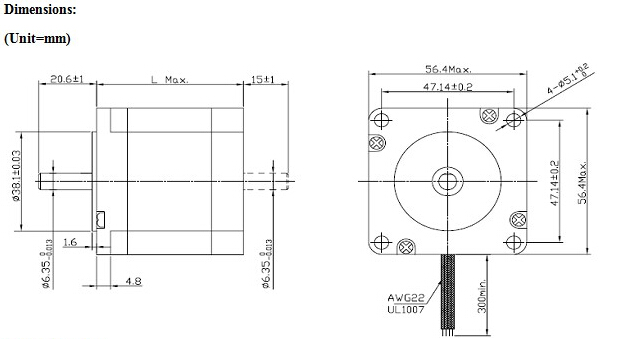

Motor length: 56mm
Diameter of axle: 6.35mm
The front shaft length: 20.6mm
Size: 57mm x 57mm x 56mm
Outgoing line: 300mm (Plug is not included)
Certification:  CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:
Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩMin., 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 75N (20mm from the flange)
Max. axial force 15N

Electrical Specification:
Model No. Step Angle Motor Length
Current
/Phase

Resistance
/Phase
Inductance
/Phase
 Holding Torque
# of Leads

 Detent Torque Rotor Inertia Mass
( °) (L)mm  A Ω mH N.m No. g.cm g.cm Kg
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.26 4 350 280 0.68


Features:
High holding torque at high speed.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

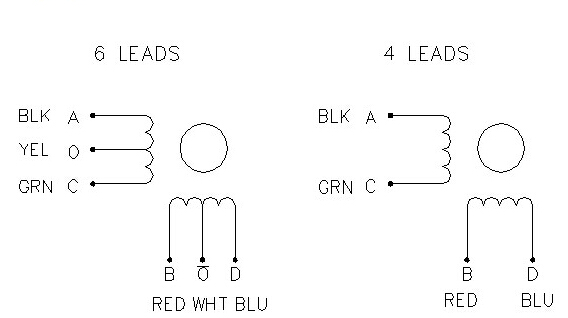

Wiring Diagram:
JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600
Package Included:
1x Hybrid Stepping Motor

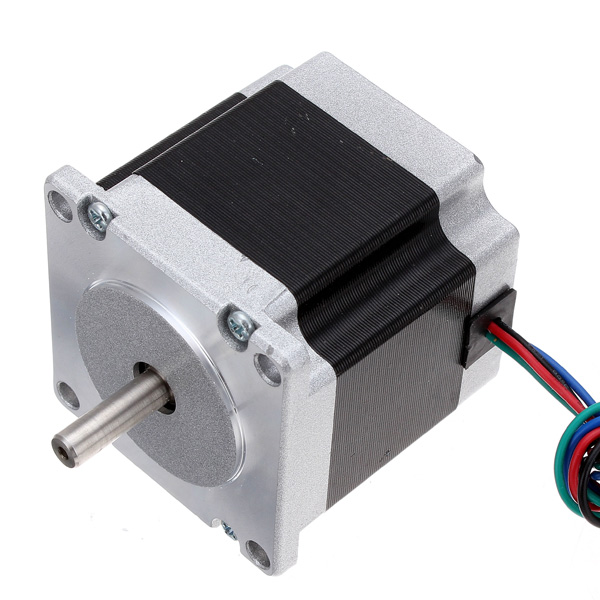

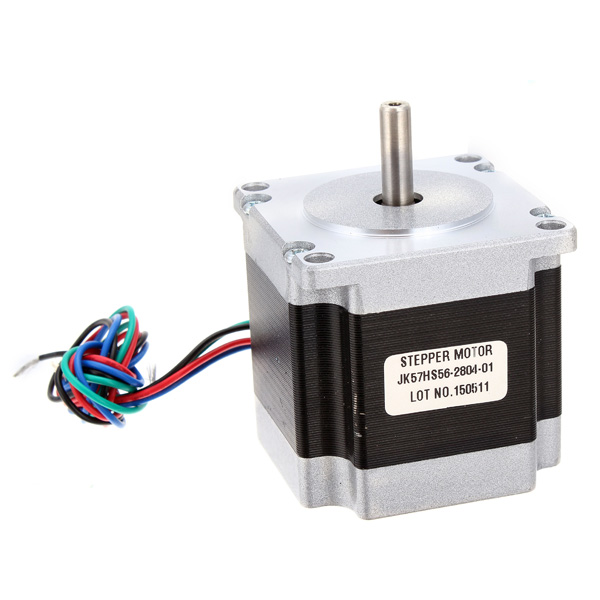

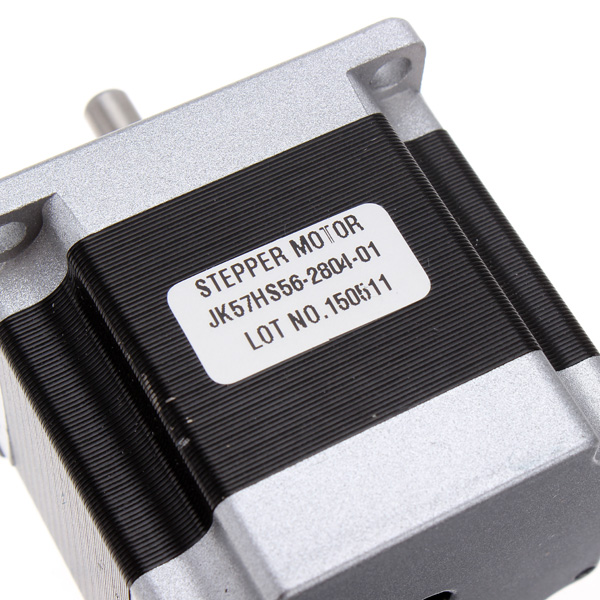

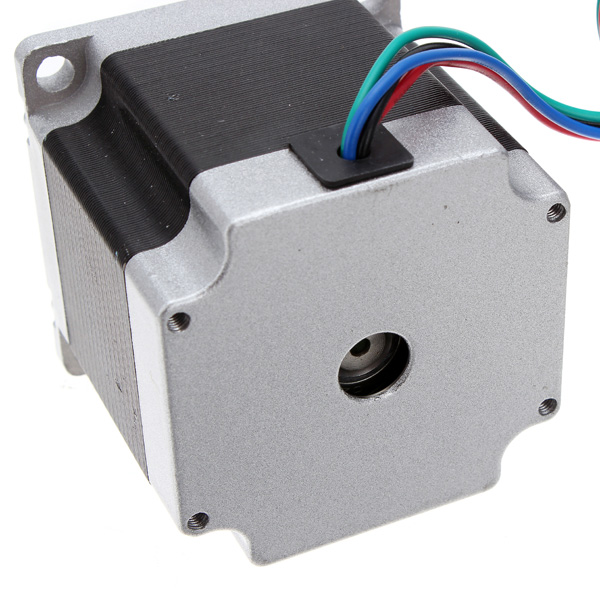

More Details:
JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600





JKM-NEMA23-18deg57-Hybrid-Stepper-Motor-Two-Phase-56mm-126Nm-28A-980600
