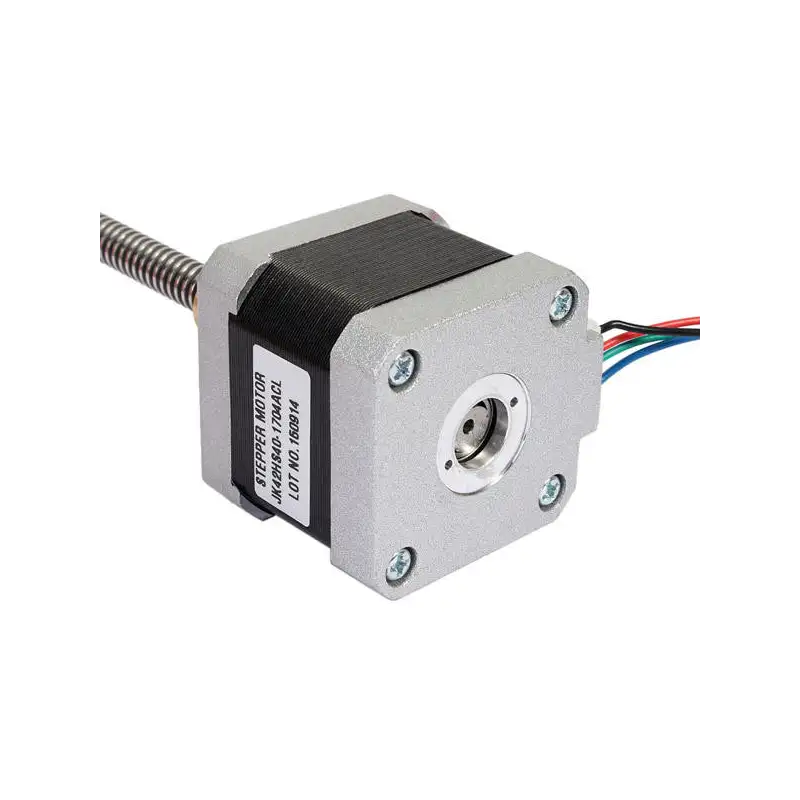

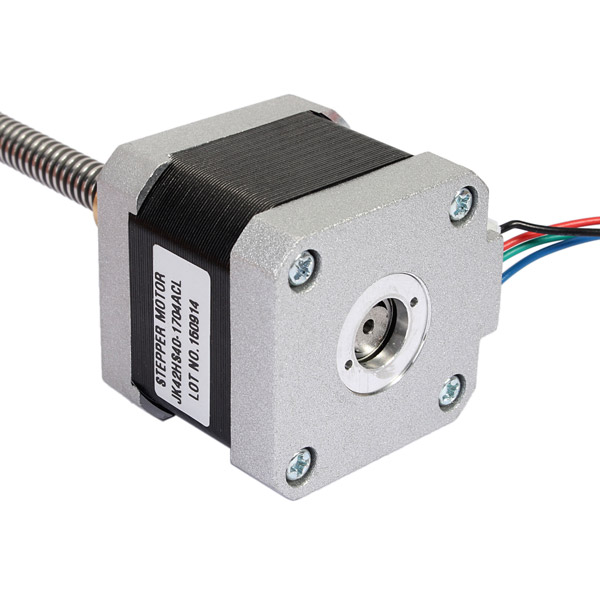

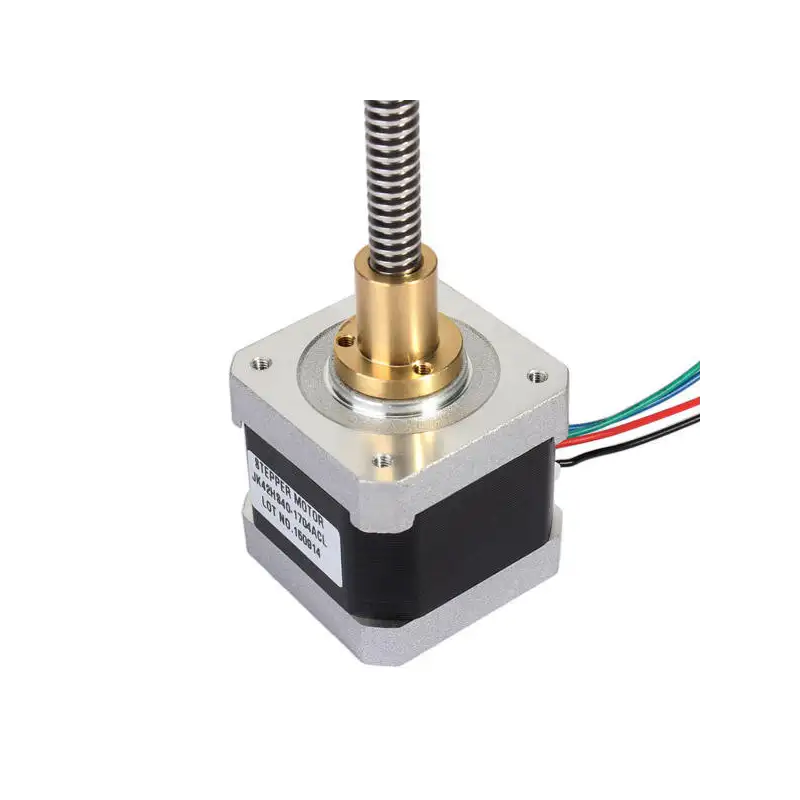

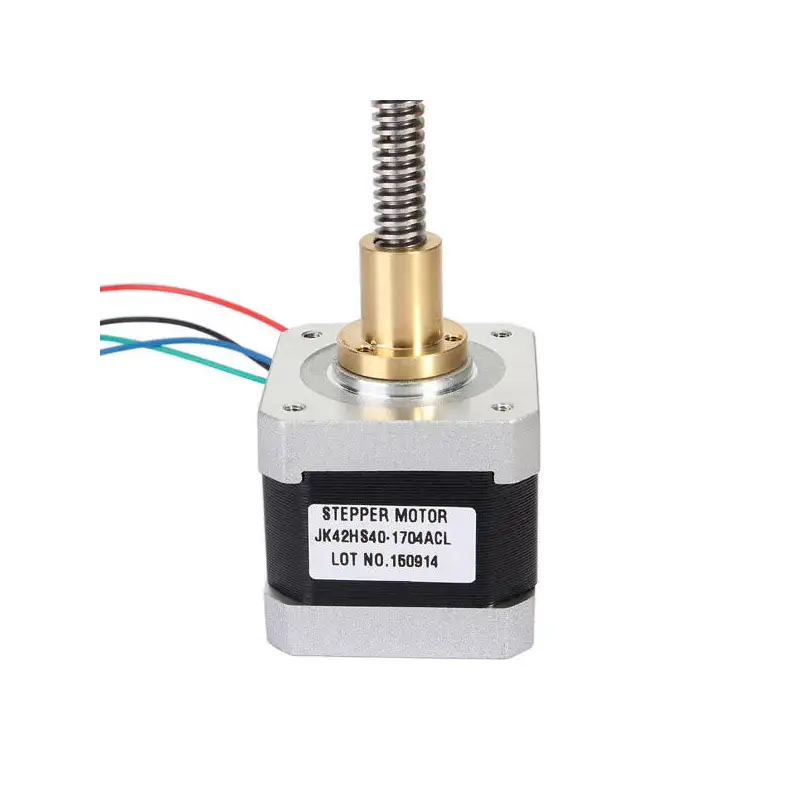

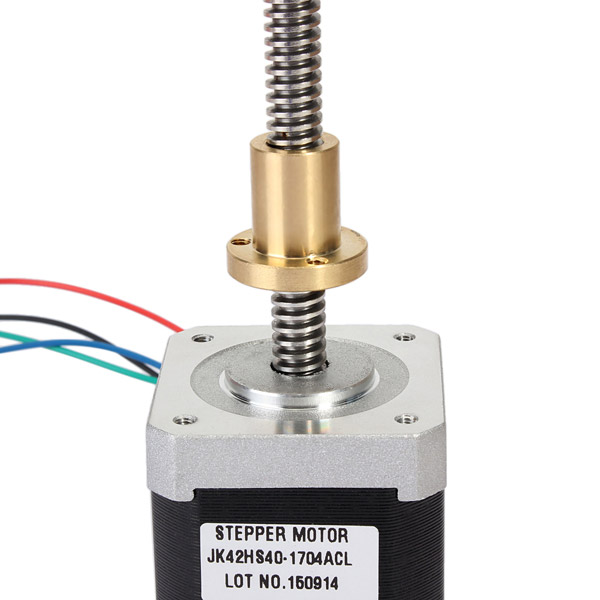

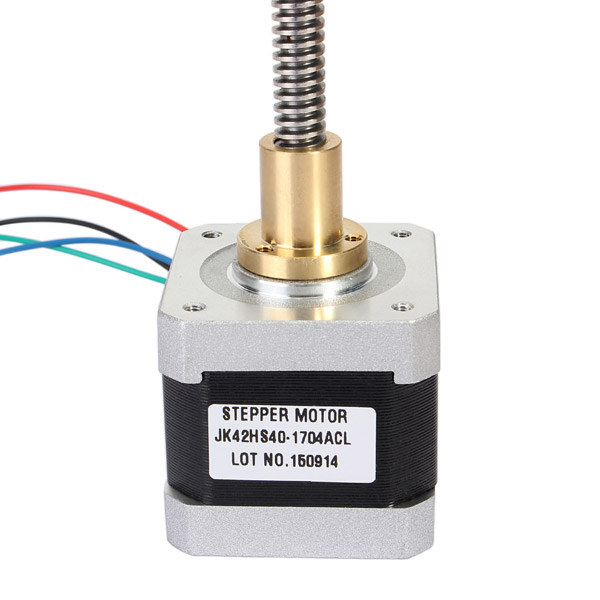

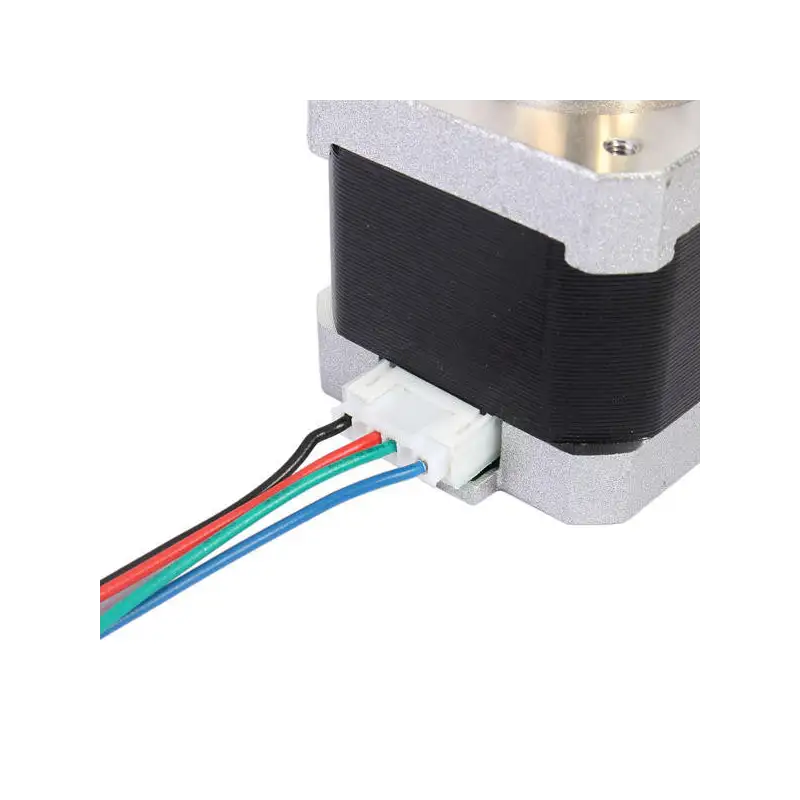

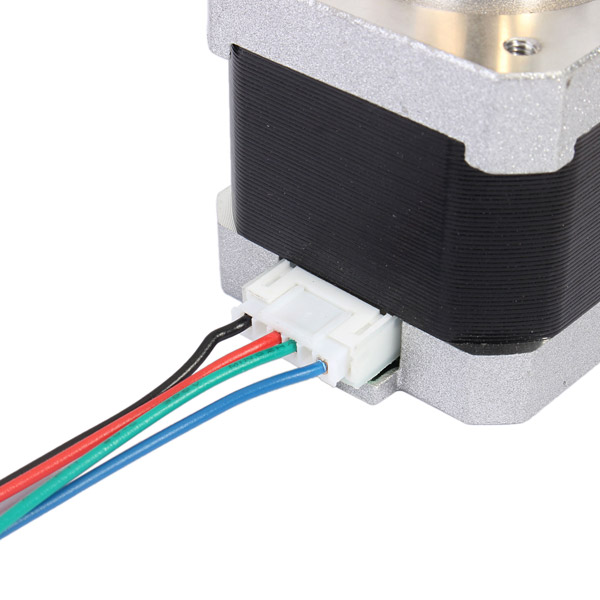

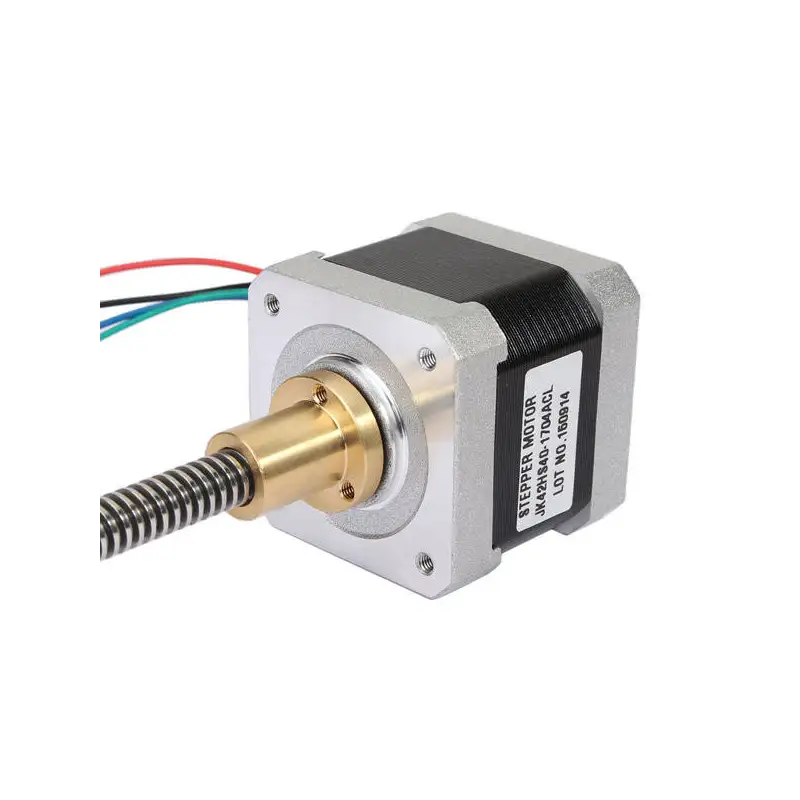

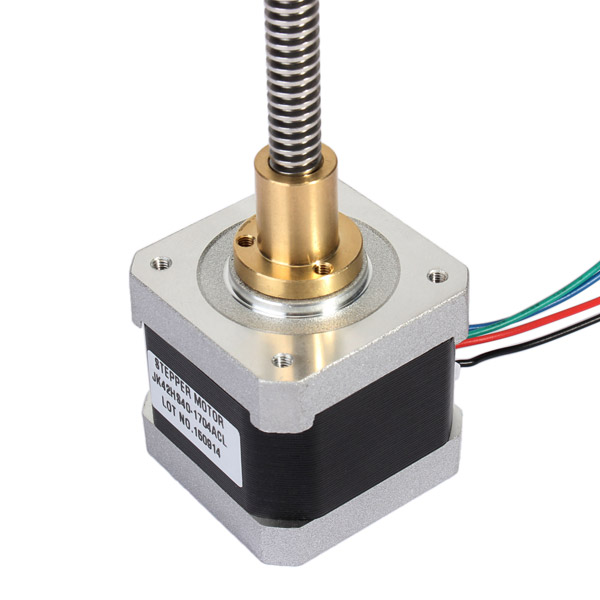

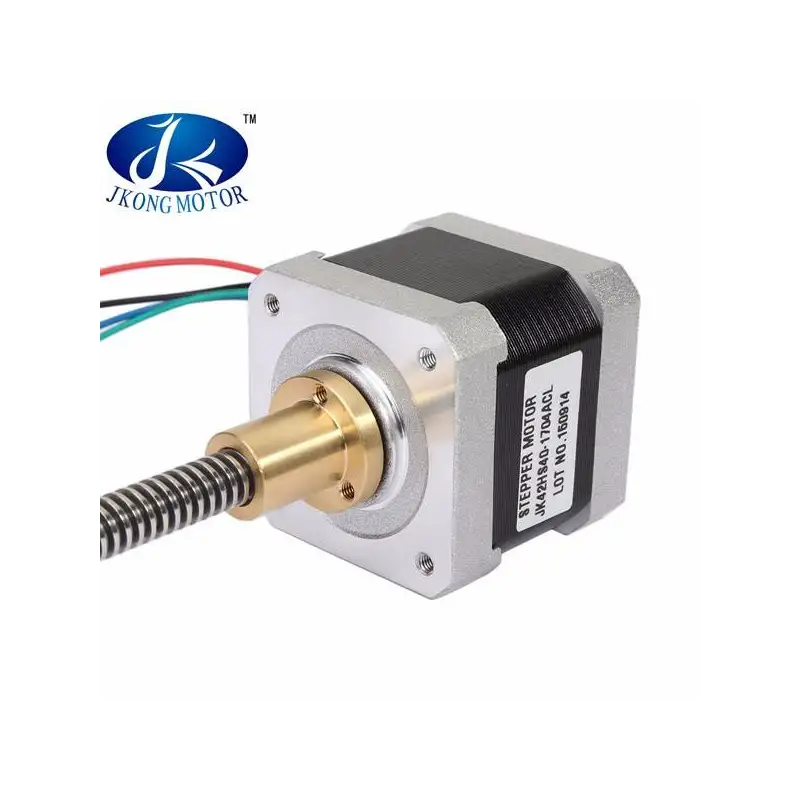

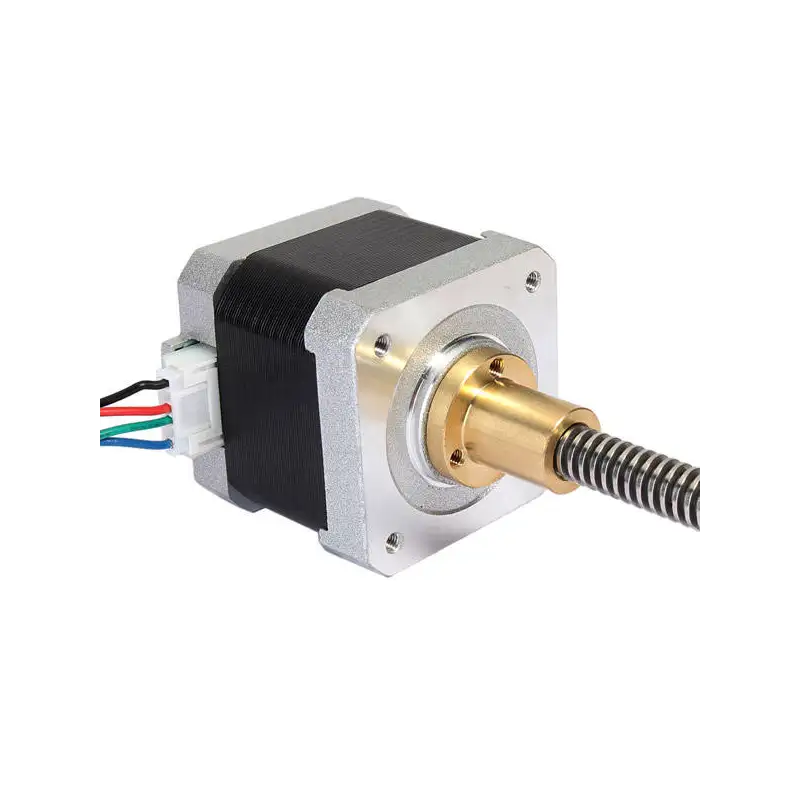

JKM NEMA17 42mm Two Phase Hybrid Linear Stepper Motor 40mm Length For CNC Router

Reference: BG0052-9342369

Condition: New product

100 Items

$42.64

More info

Description:
JKM NEMA17 1.8Degree 1.68A JKM 42mm Hybrid Two Phase Stepper Motor 40mm Length For CNC Router

Specification:
Brand: JKM

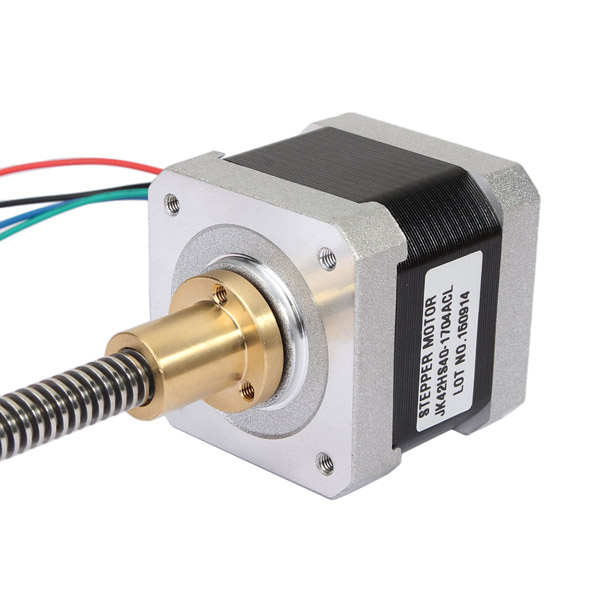

Model Number: JK42HS40-1704ACL

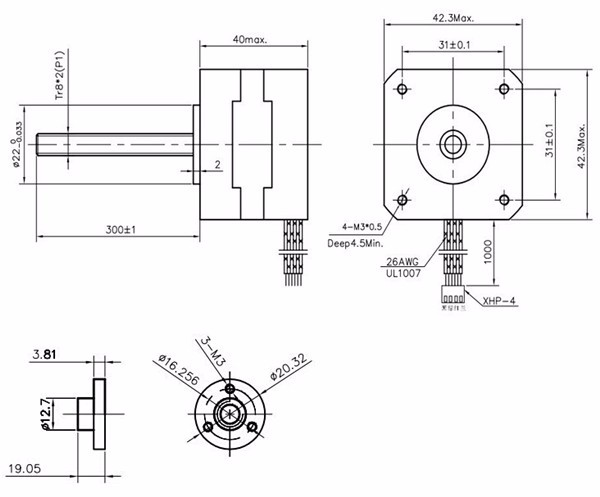

Motor length: 40mm
Boundary Dimension:42*42mm
Size: 42mm x 42mm x 40mm
Diameter of axle: 8mm
Holding Torque: 4.2Kg.cm

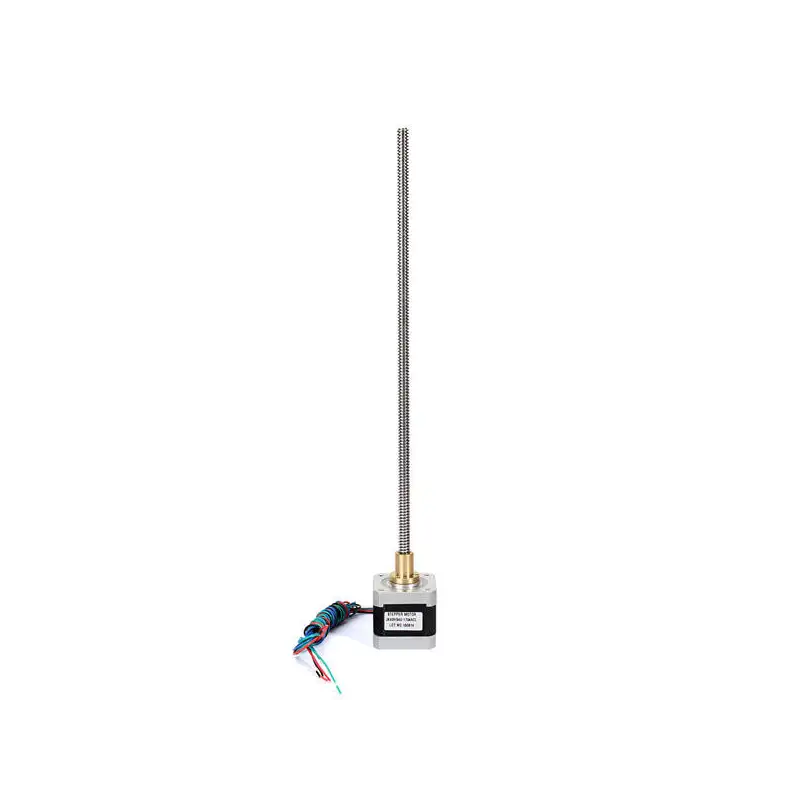

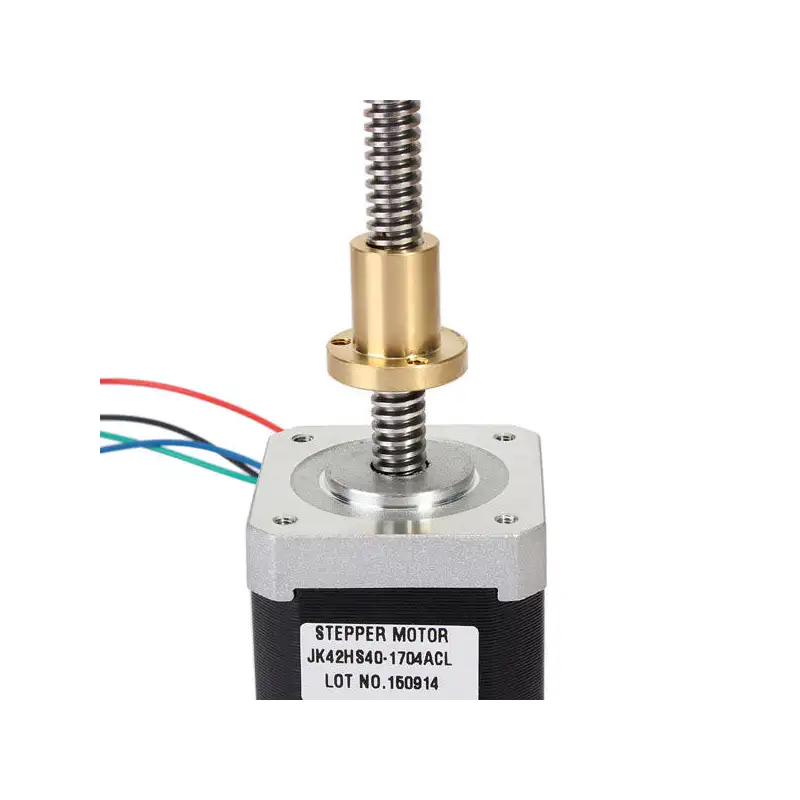

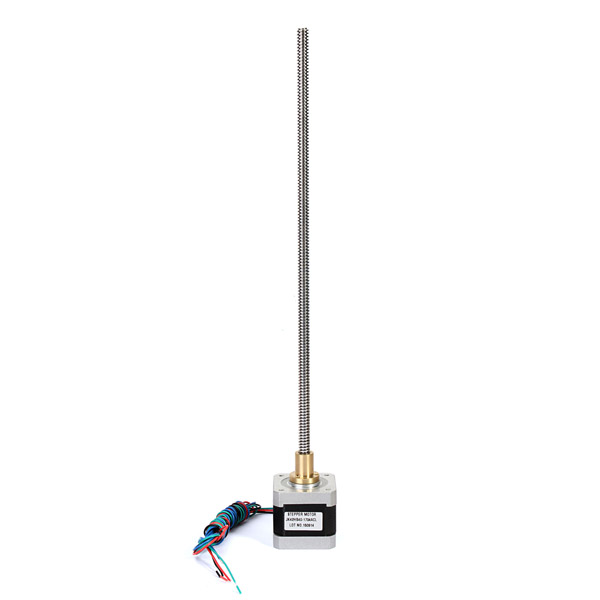

Length of axis: 295mm, Tr8*2(Pitch)
Certification:  CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Genaral Specification:
Item Specifications
Step Angle 1.8°
Temperature Rise  80℃max
Ambient Temperature  -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N

Electrical Specification:
Model No. Step Angle Motor Length Rate
Voltage		 Current
/Phase		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm V A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS40-1704ACL 1.8 40 2.52 1.68 1.5 2.3 4.2 4 150 54
0.40


Note: Please allow 1-2mm error.
