Reference: BG0052-9573881
Condition: New product
100 Item Items Warning: Last items in stock!
Availability date: 05/17/2021

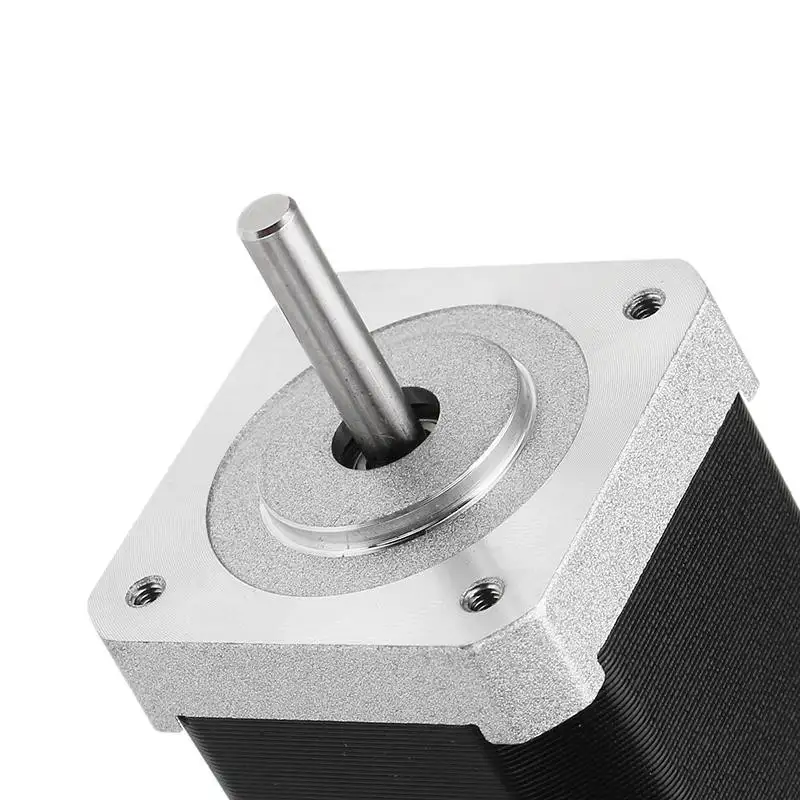

| Brand | JKM |
| Model | 42HS48-2504 |

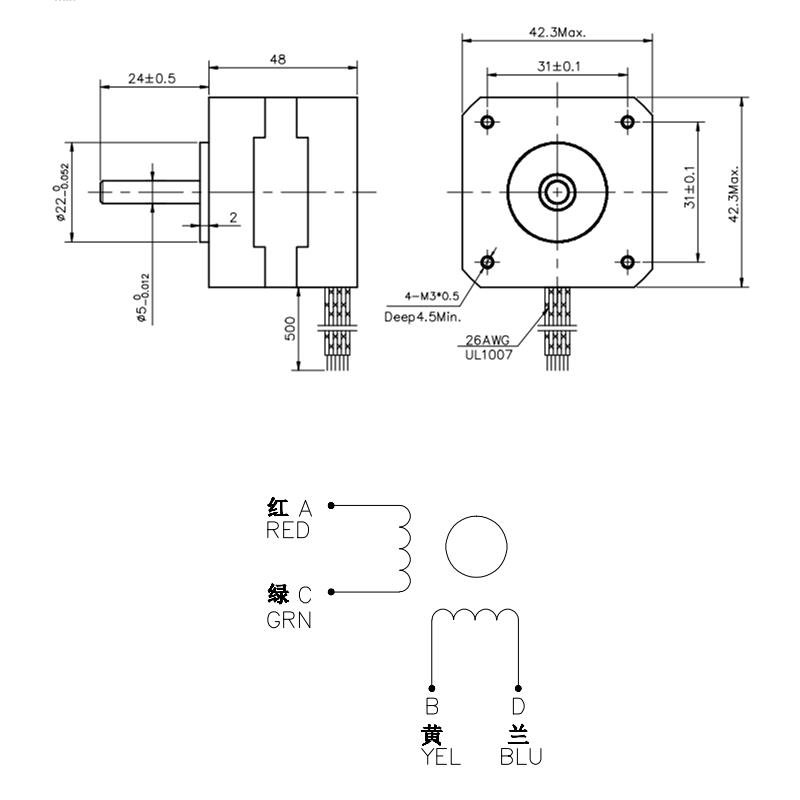

| Motor length | 48mm |
| Diameter of axle | 5mm |
| The front shaft length | 24mm |
| Size | 42x42x48mm |
| Holding Torque | 5kg.cm |
| Outgoing line | 500mm |
| Certification | Certification: CE,ROHS |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. |
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩMin. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
| Model No. | Step Angle | Motor Length | Rate Voltage /Phase |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Mass |
| ( °) | (L)mm | V | A | Ω | mH | kg.cm | No. | Kg | |
| 42HS48-2504 | 1.8 | 48 | 4 | 2.5 | 1.6 | 1.8 | 5 | 4 | 0.34 |
