JKM NEMA11 Stepper Motor 1200g.cm/0.67A Mill Laser Engraving

Reference: BG0052-9186035

Condition: New product

100 Item Items Warning: Last items in stock!

$23.48

Quantity

More info

Description:

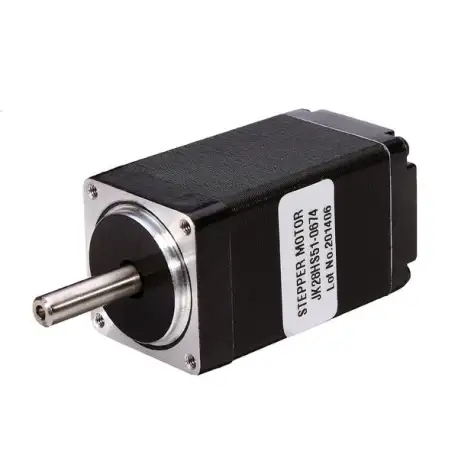

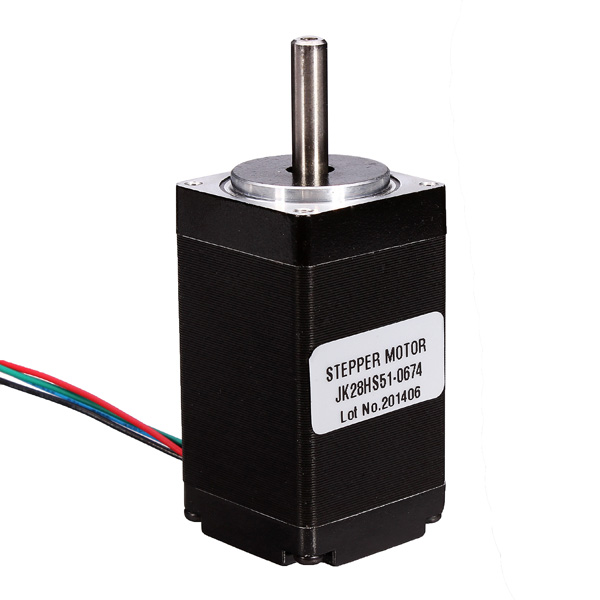

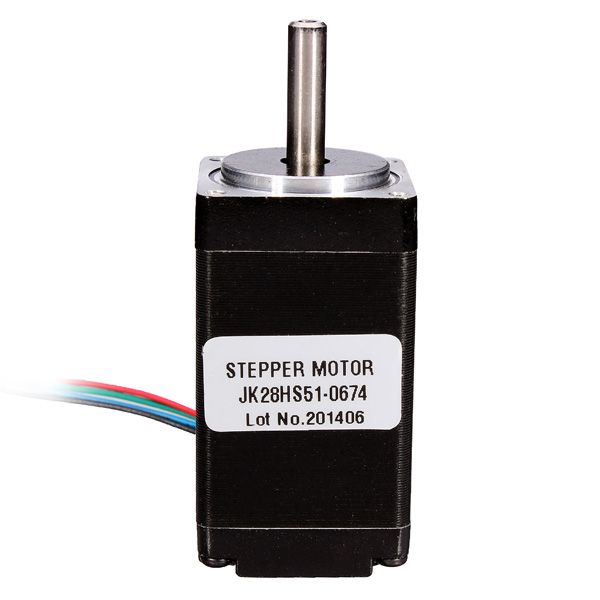

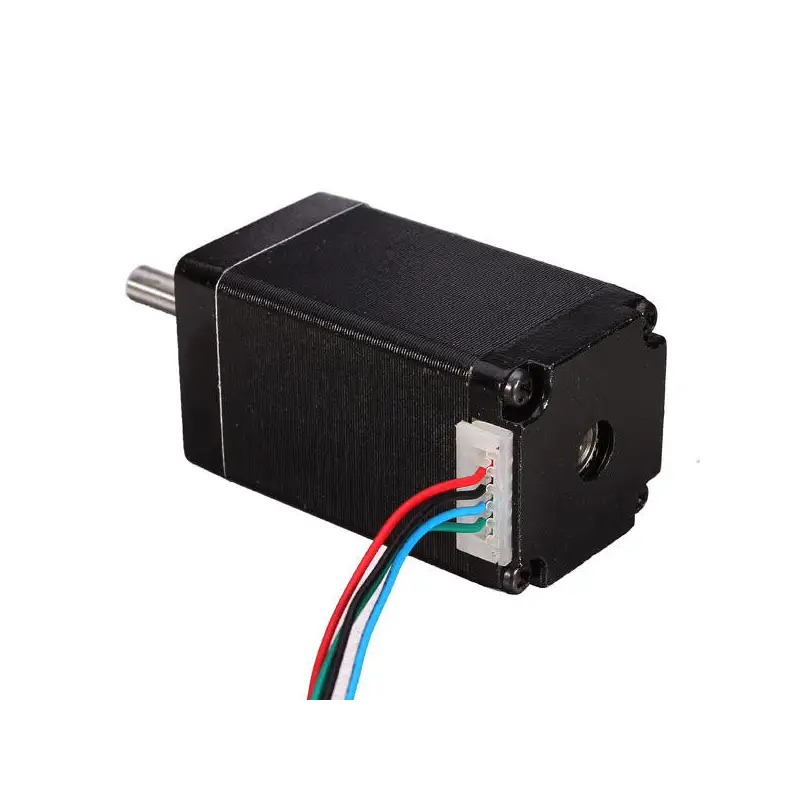

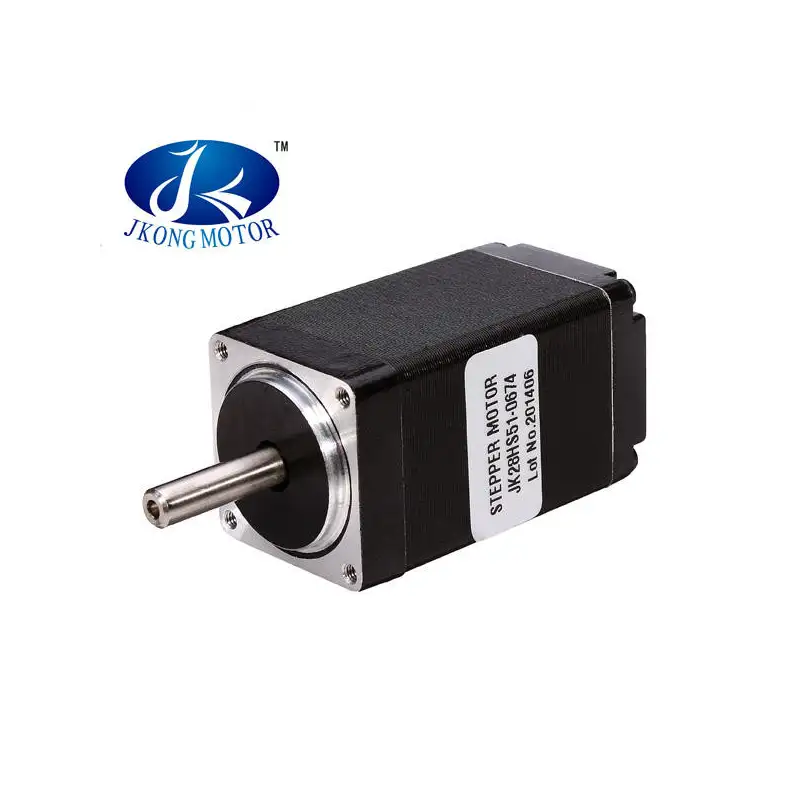

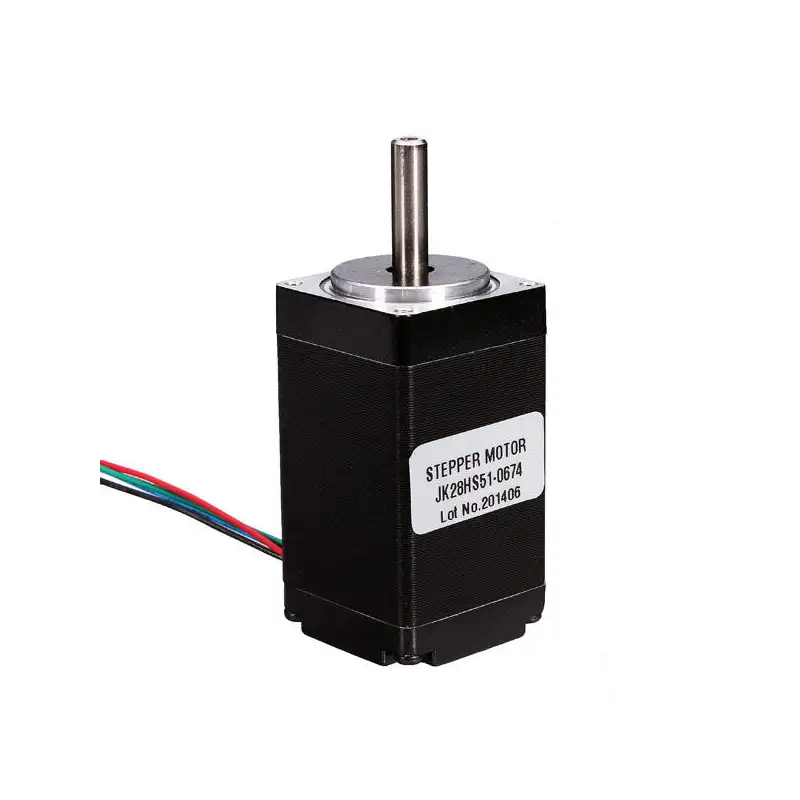

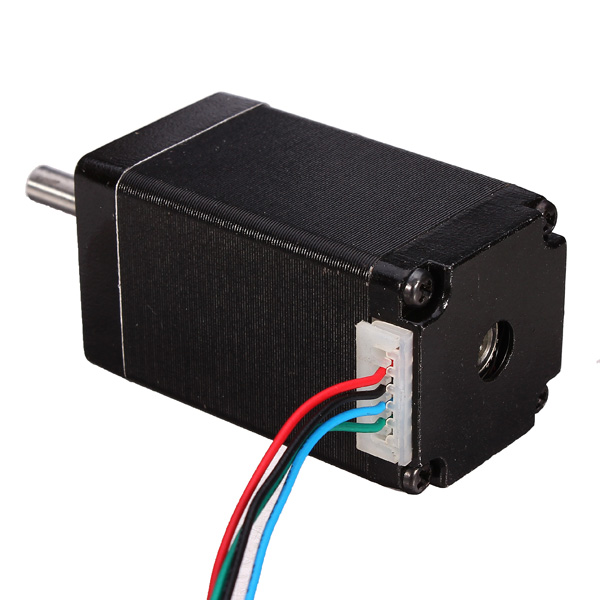

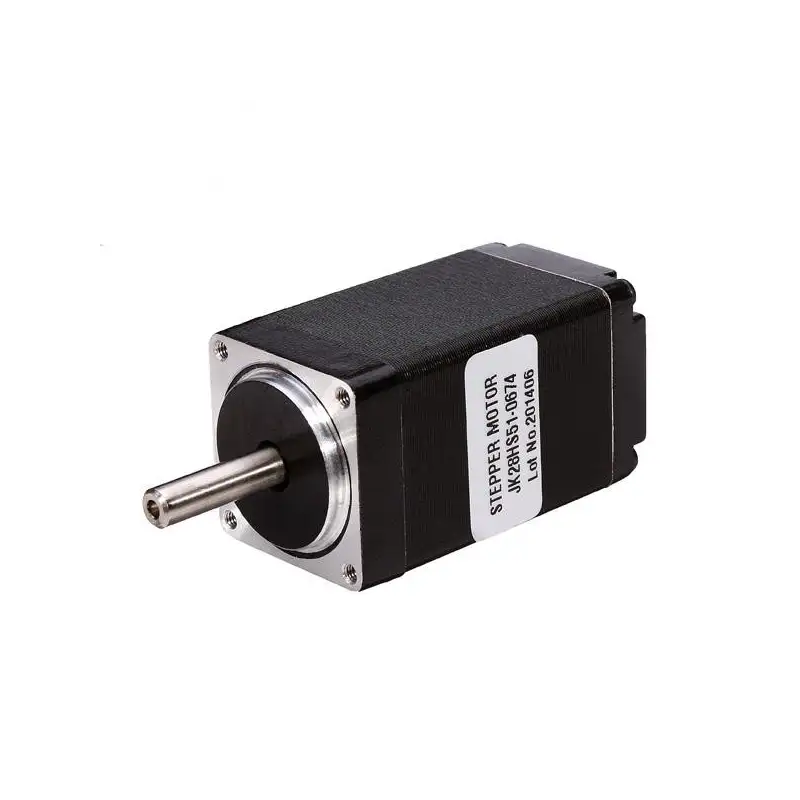

JKM NEMA11 Stepper Motor 1200g.cm/0.67A CNC Router Cut Mill Laser Engraving

Brand: JKM
Model: JK28HS51-0674
Rated Power:3W
Rated Voltage: 12V
Type: Hybrid Stepping Motor

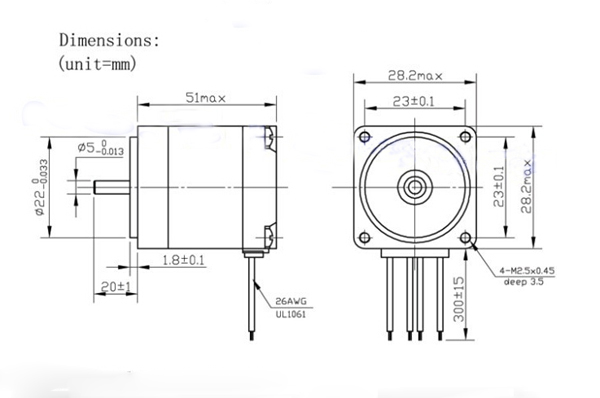

Size: 28MM * 28MM
Motor length: 51mm

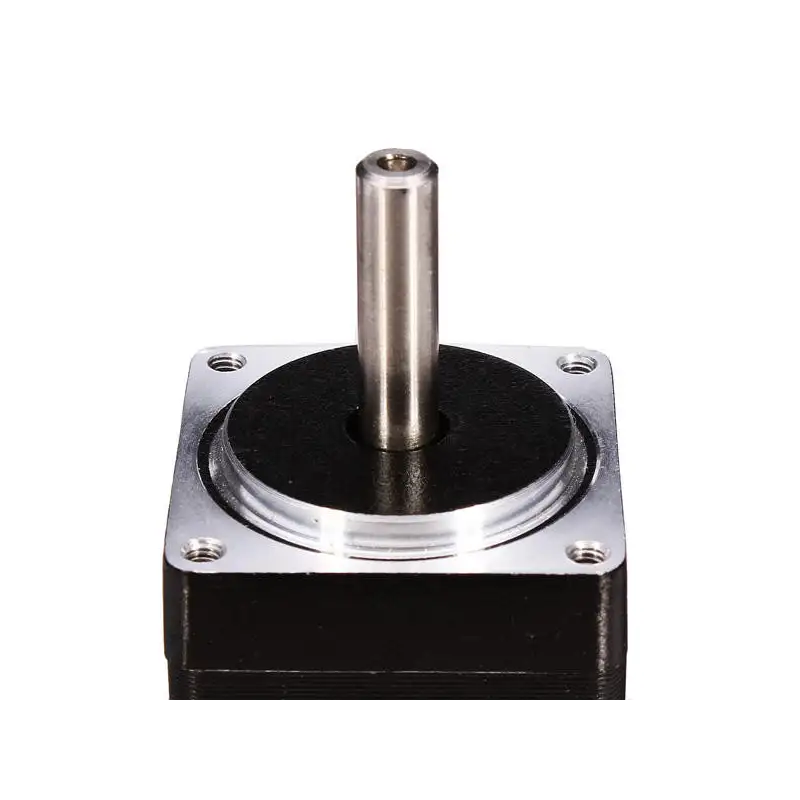

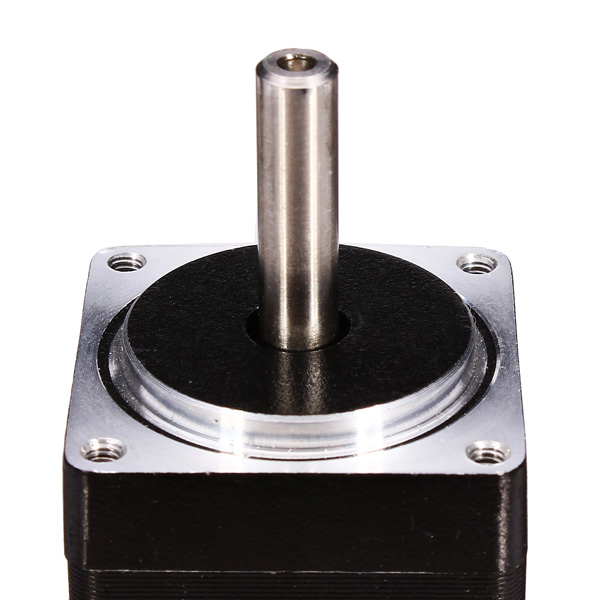

Diameter of axle: 5mm
The front shaft length: 18mm

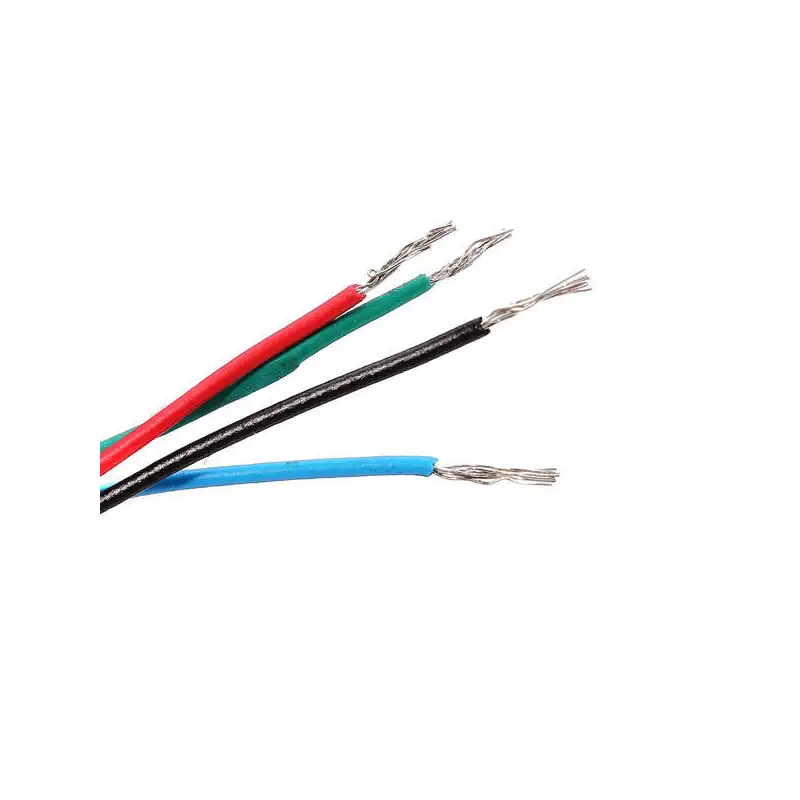

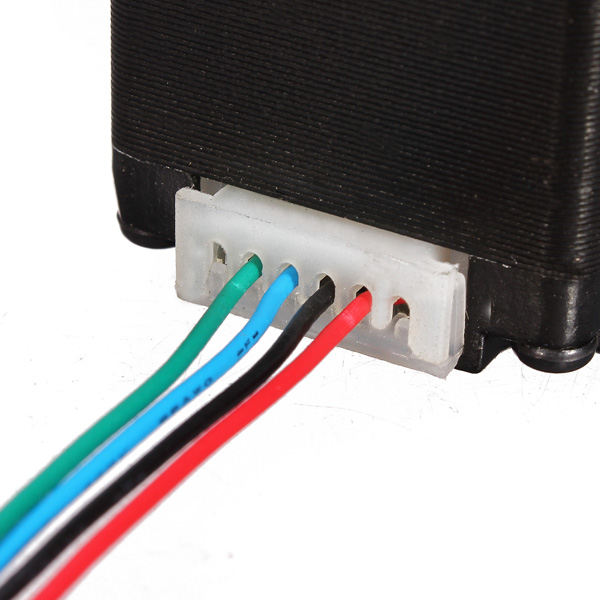

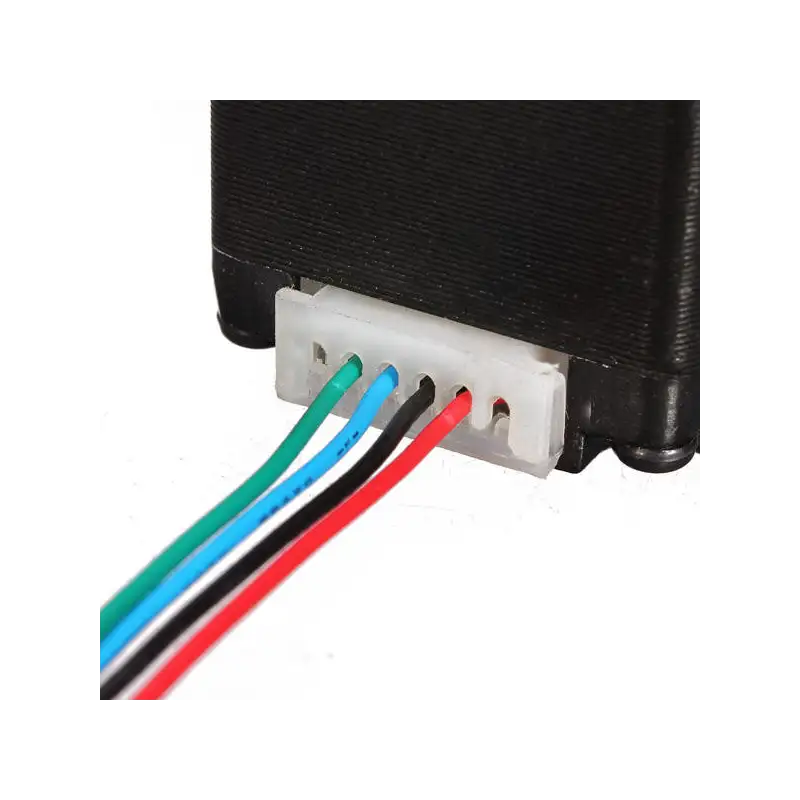

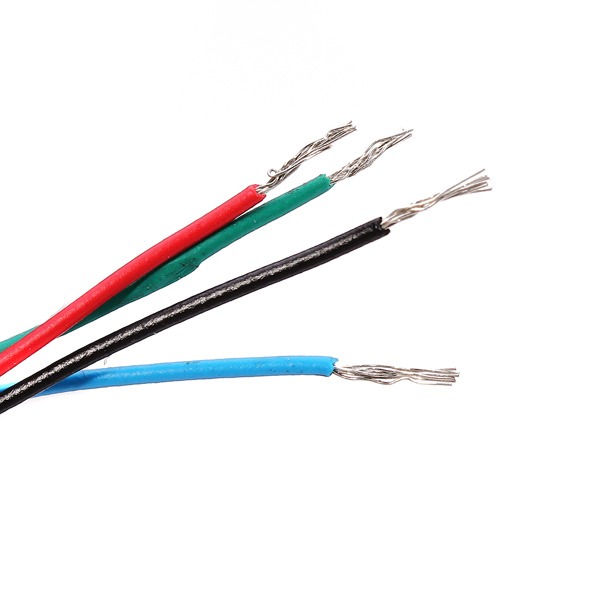

Outgoing line: 300mm (Plug is not included)
Certification: CE,ROHS
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Electrical Specifications:

Model	Step Angle ( ° )	Motor Length (mm)	Rate Voltage (V)	Rate Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (g.cm)	Lead Wire (NO.)	Rotor Inertia (g.cm)	Motor Weight (KG)

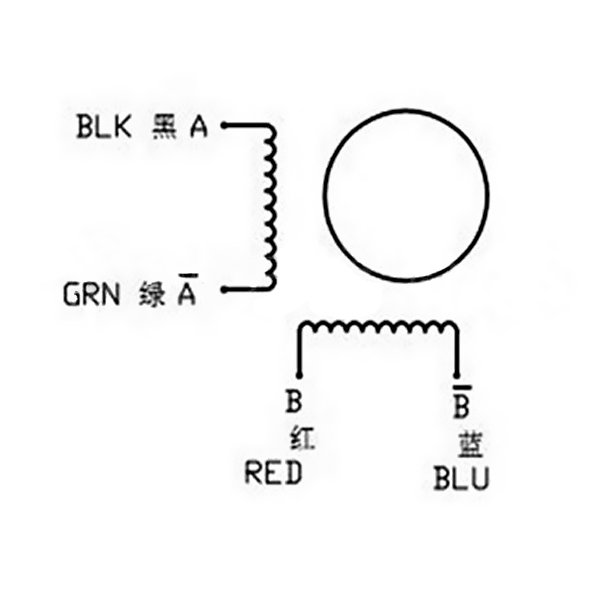

JK28HS51-0674	1.8	51	12	0.67	9.2	7.2	1200	4	18	0.2

General Specifications:

Step Accurency	Temperature RIse	Ambient Temperature Range	Insulation Resistance	Dielectric Strength
±5%	80℃ Max.	20 ℃ ~+50℃	100MΩ Min.50V DC	500V AC 1minute

Features:
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.
