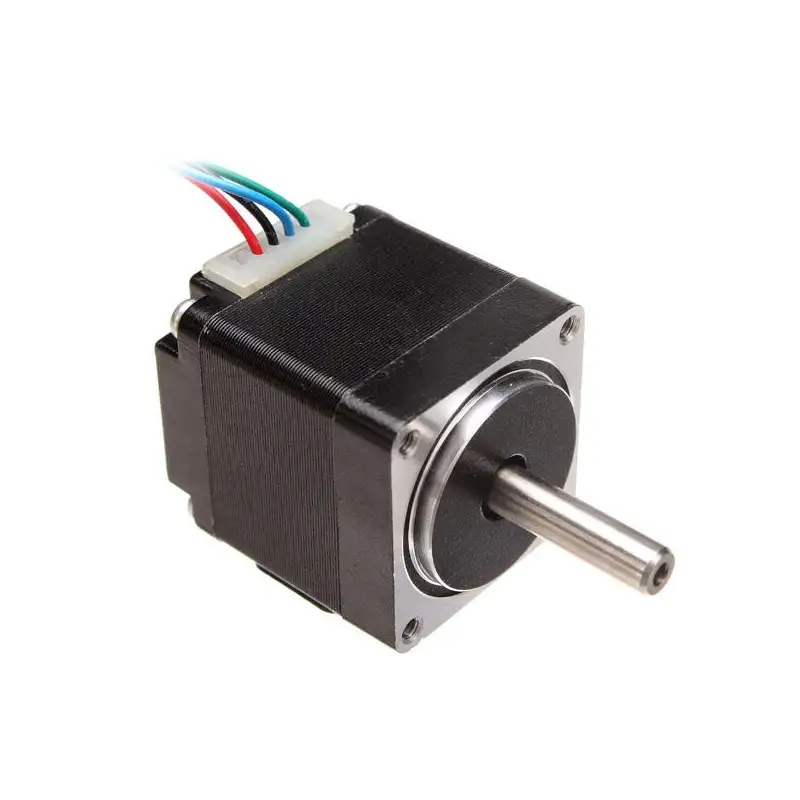

JKM NEMA11 1.8°28 Hybrid Stepper Motor Two Phase 4 Wires 32mm For CNC Router
Reference: BG0052-9920448
Condition: New product
Delivery on: Jul 28 2026
100 Items
More info
Description:
JKM NEMA11 1.8°28 Hybrid Stepper Motor Two Phase 32mm For CNC Router
Specification:
Brand: JKM

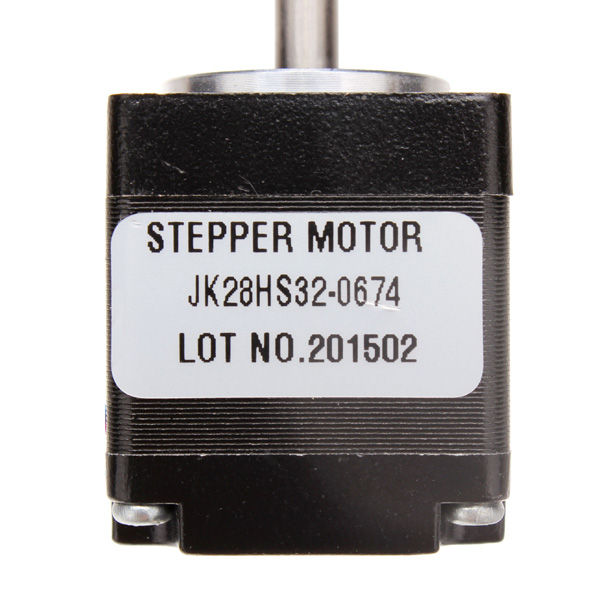

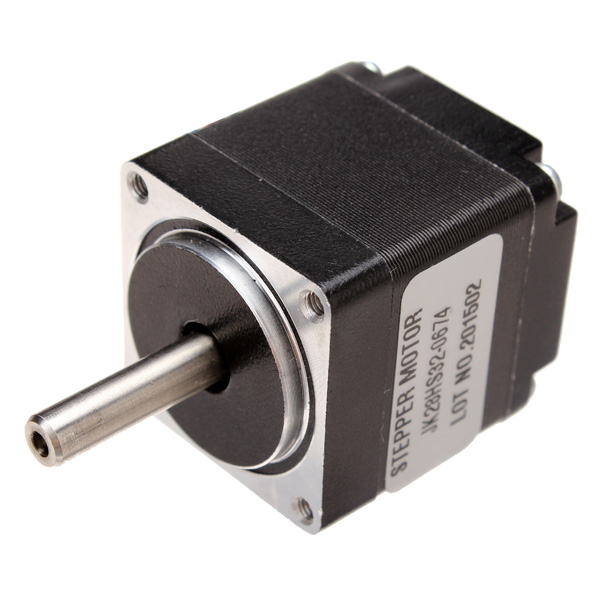

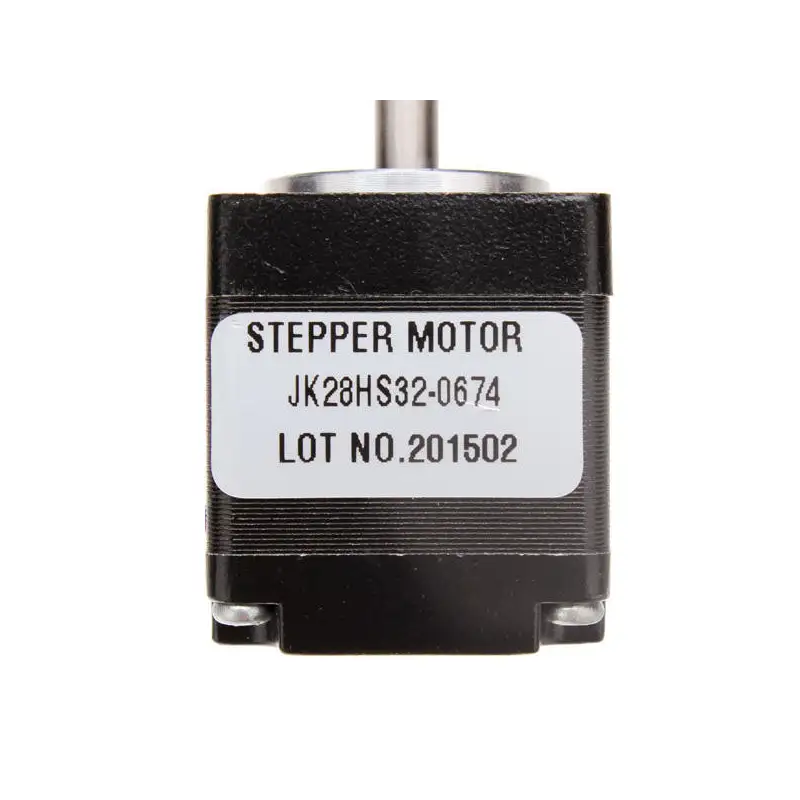

Model: JK28HS32-0674
Motor length: 32mm

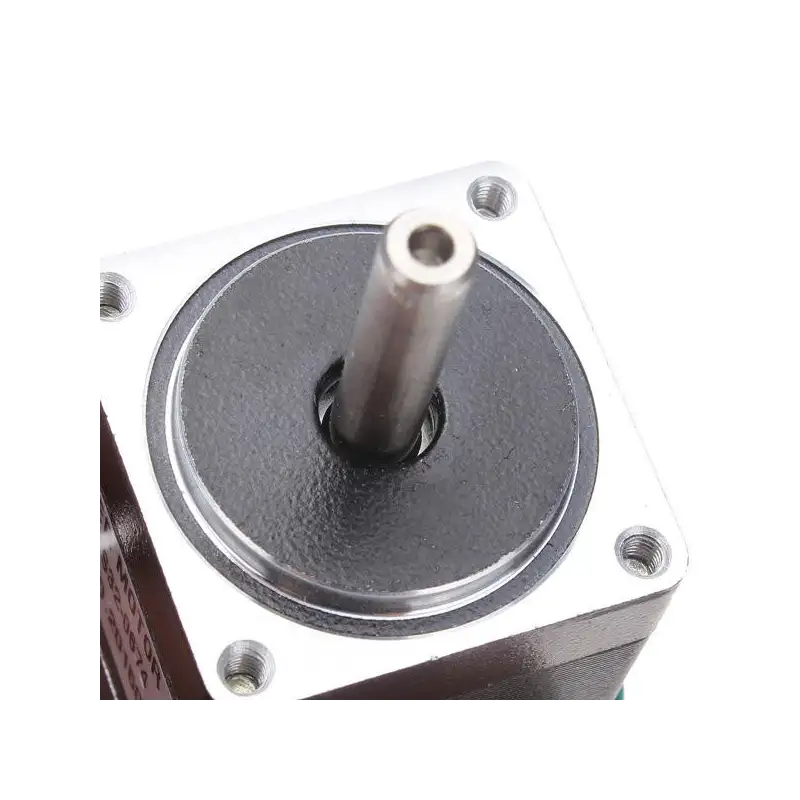

Diameter of axle: 5mm
The front shaft length: 20mm

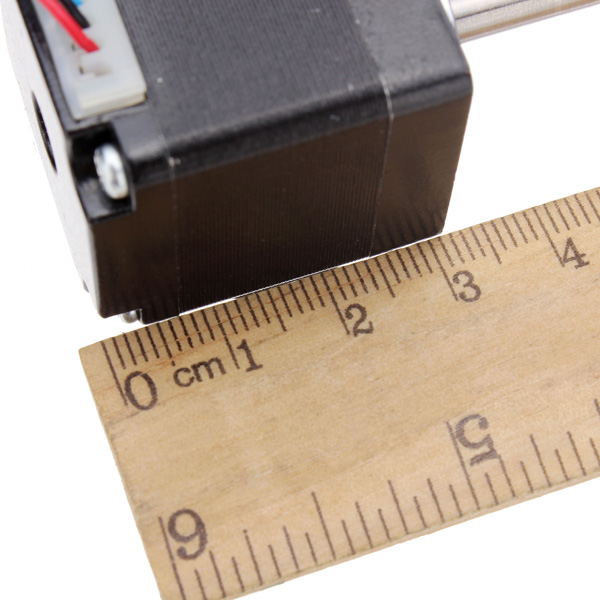

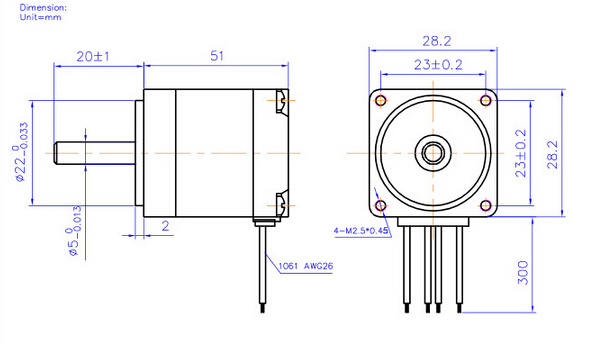

Size: 28mm x 28mm x 32mm

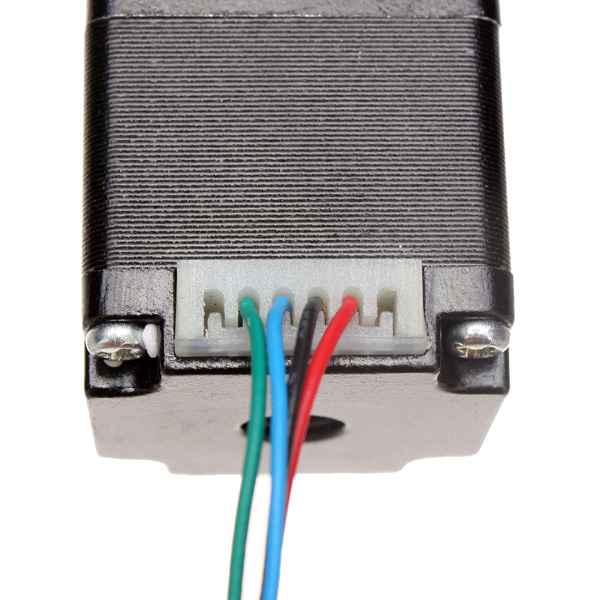

Outgoing line: 300mm (Plug is not included)
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.
Genaral Specification:
Electrical Specification:
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩMin., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length |
Current
/Phase
|
Resistance
/Phase
|
Inductance
/Phase
|
Holding Torque |
# of Leads
|
Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 |
0.11 |
Features:
High holding torque at high speed.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

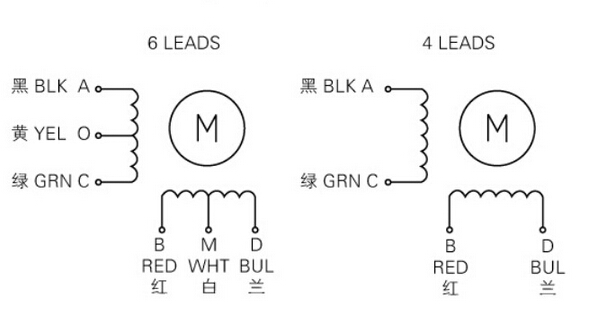

Wiring Diagram:
Wiring Diagram:
Package Included:
1x Hybrid Stepping Motor
