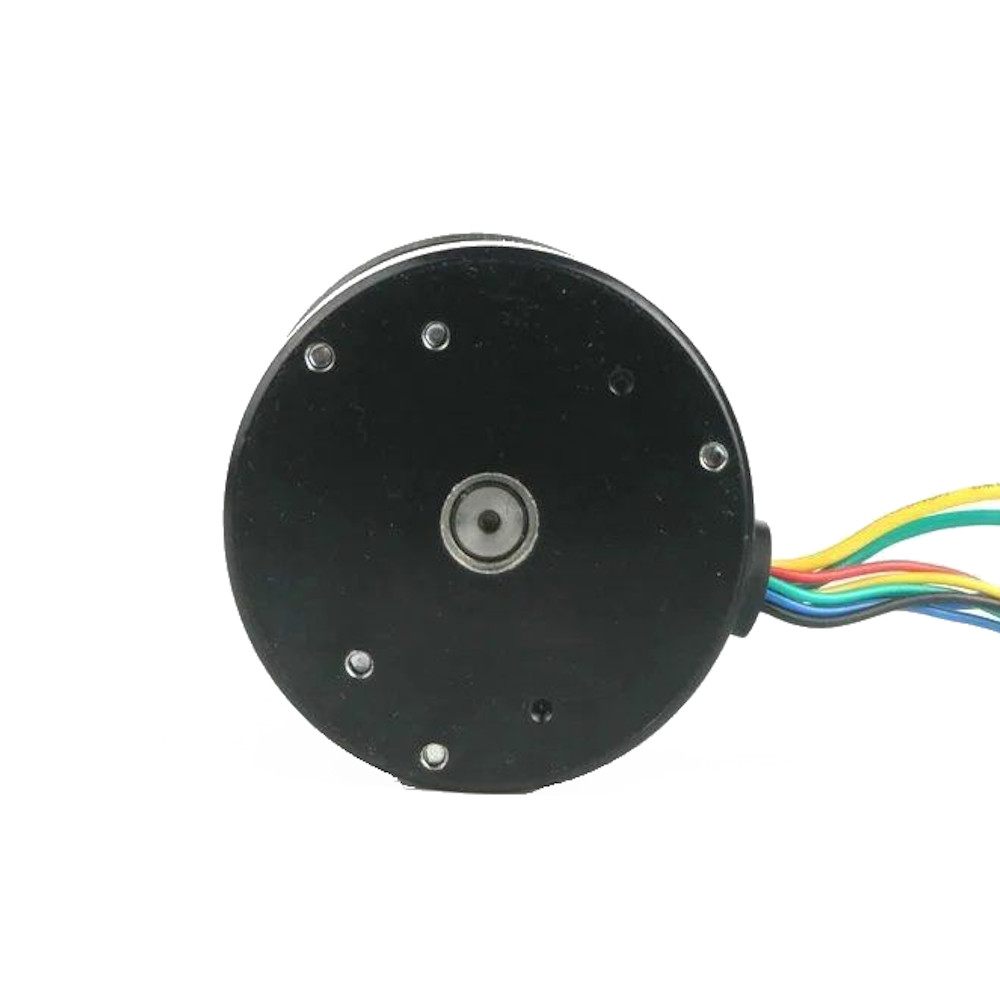

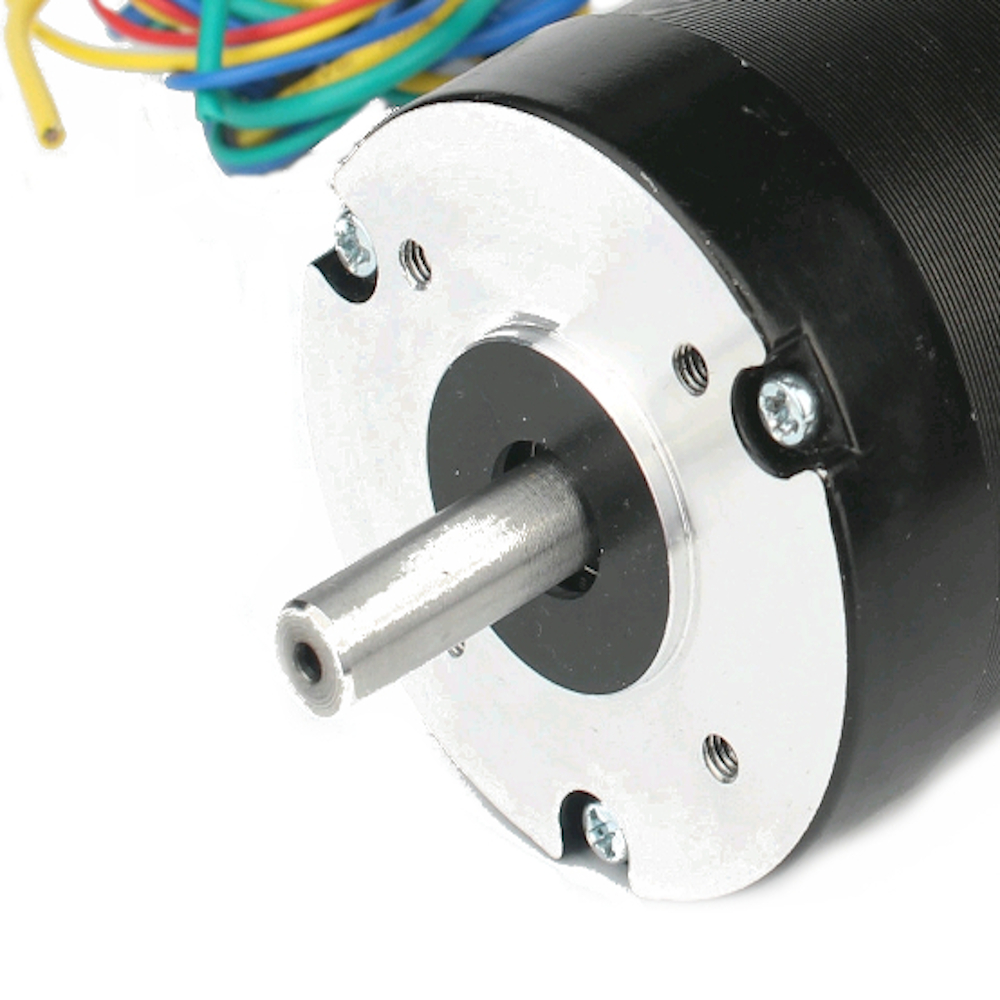

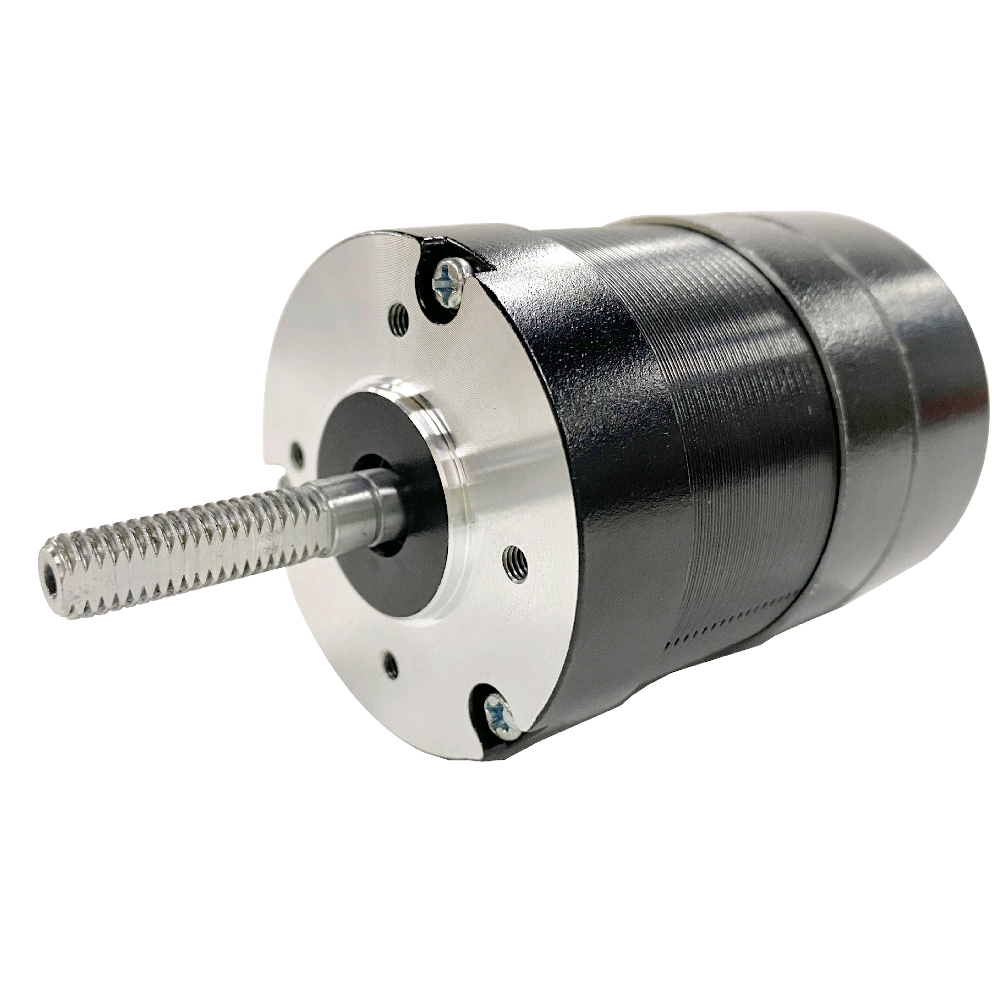

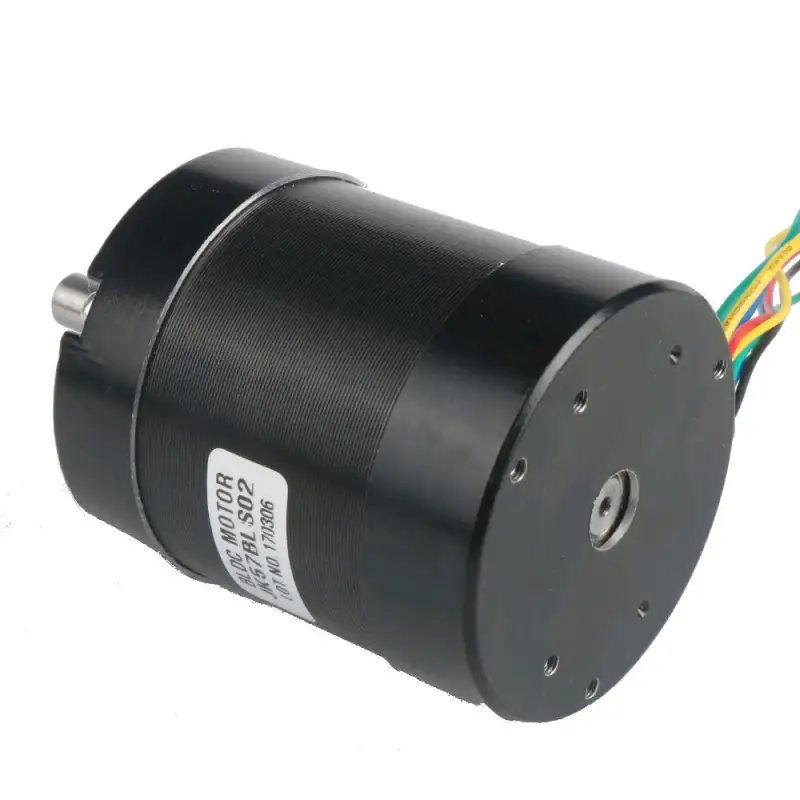

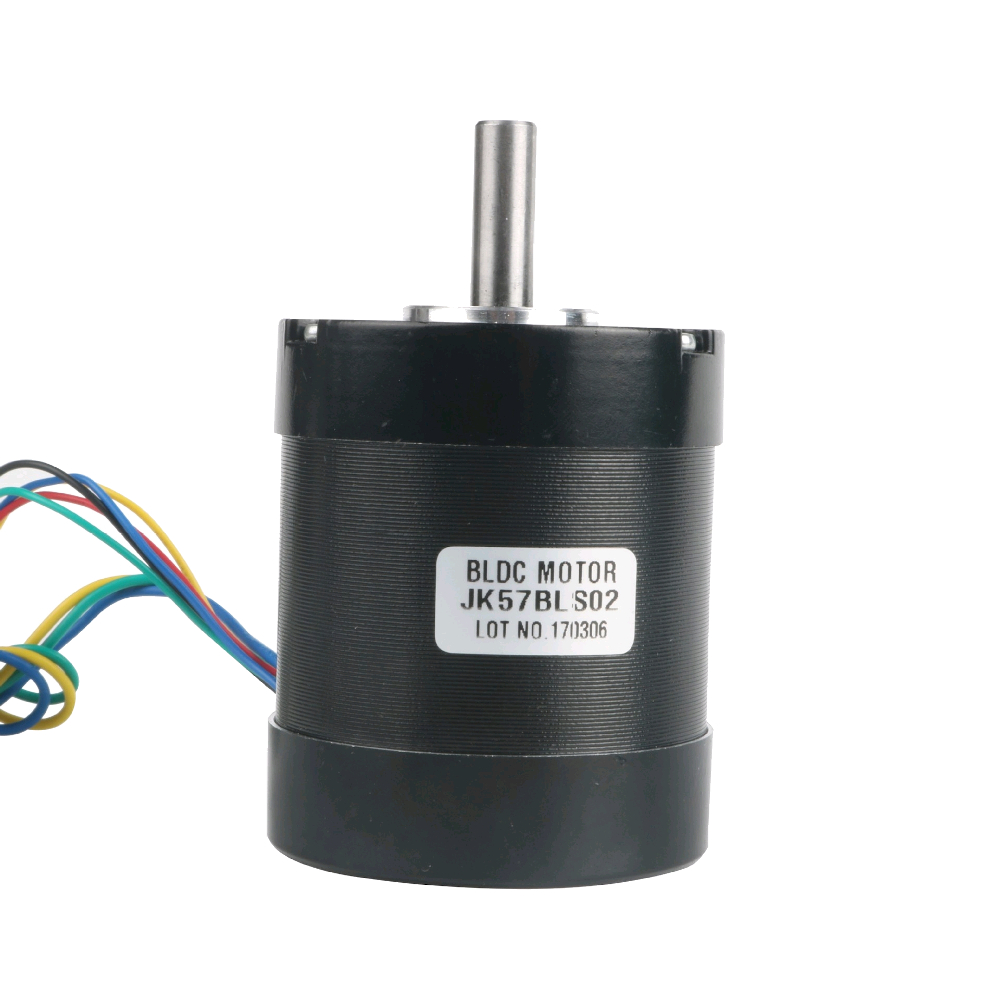

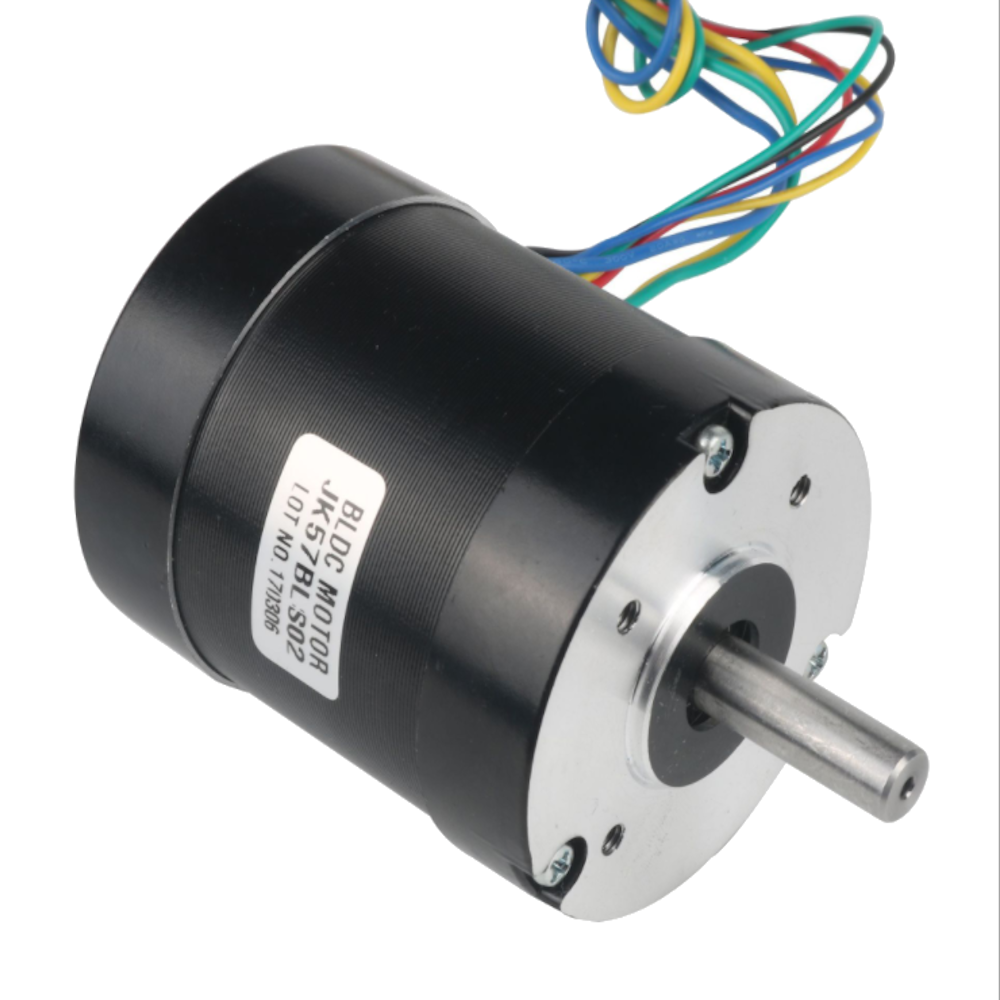

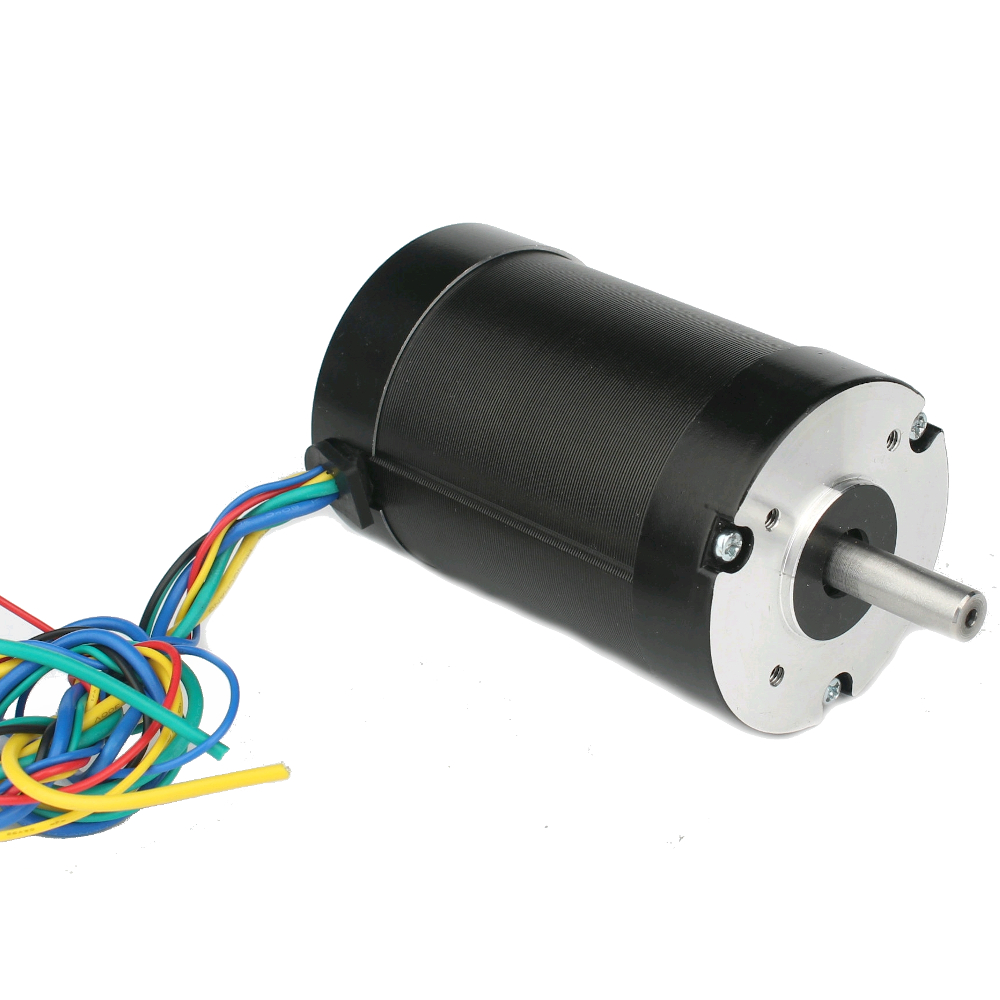

JK57BLS02 Brushless DC Motor 4000Rpm 0.66N.m Torque High Speed Micro BLDC Servo Motor For Automatic Equipment
Reference: BG0052-9075289
Condition: New product
Delivery on: Jun 10 2026
100 Items
More info
Features:
-The model is JK57BLS02
-Made of pure copper, strong power.
-High degree of matching of bearings and stable operation.
-Micro motor, easy to carry.
-High-speed operation, low heat generation.
-Noise reduction design, low noise.
-Small volume, torsion big.
Specification:
| Produce Name | Brushless DC motor |
| Model | JK57BLS02 |
| Material | Metal |
| Voltage | DC 36V |
| Size | 57x57x67mm |
| Package | Carton + soft foam |
JK57BLS02 Electrical Specification:
| Rated Speed | 4000Rpm |
| Rated Torque | 0.22N.m |
| Rated Current | 3.6Amps |
| Rated Power | 92W |
| Peak Torque | 0.66N.m |
| Peak Current | 11.5Amps |
| Body Length | 67mm |
| Weight | 0.75kg |
Package Included:
| 1 Pc x | 36V Brushless DC motor |
More Detail:
