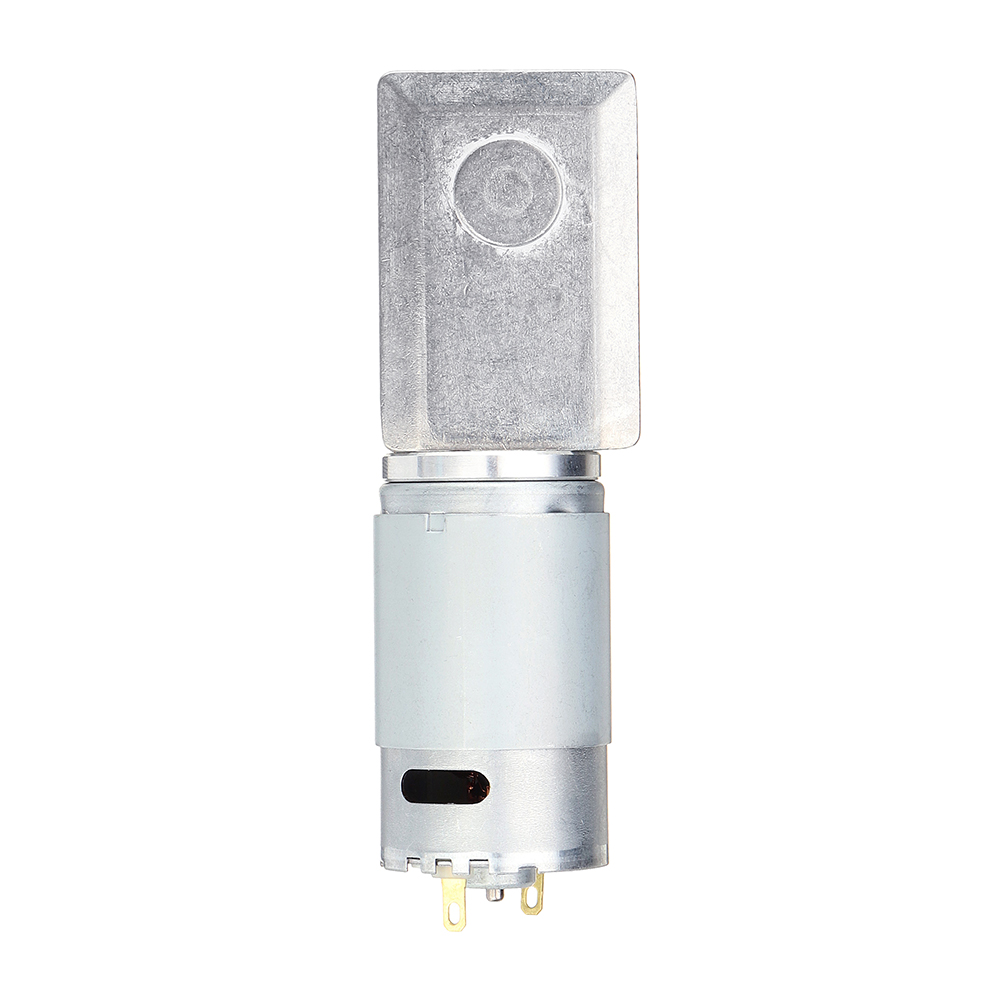

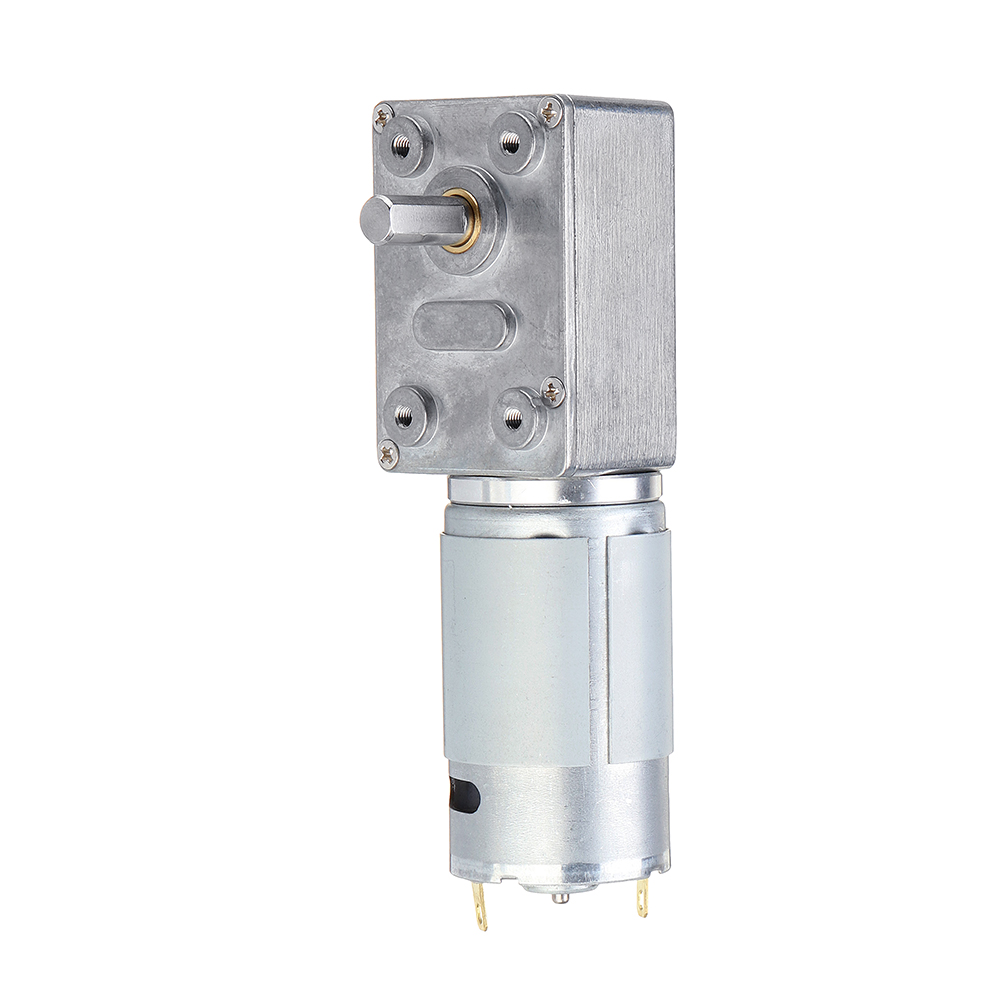

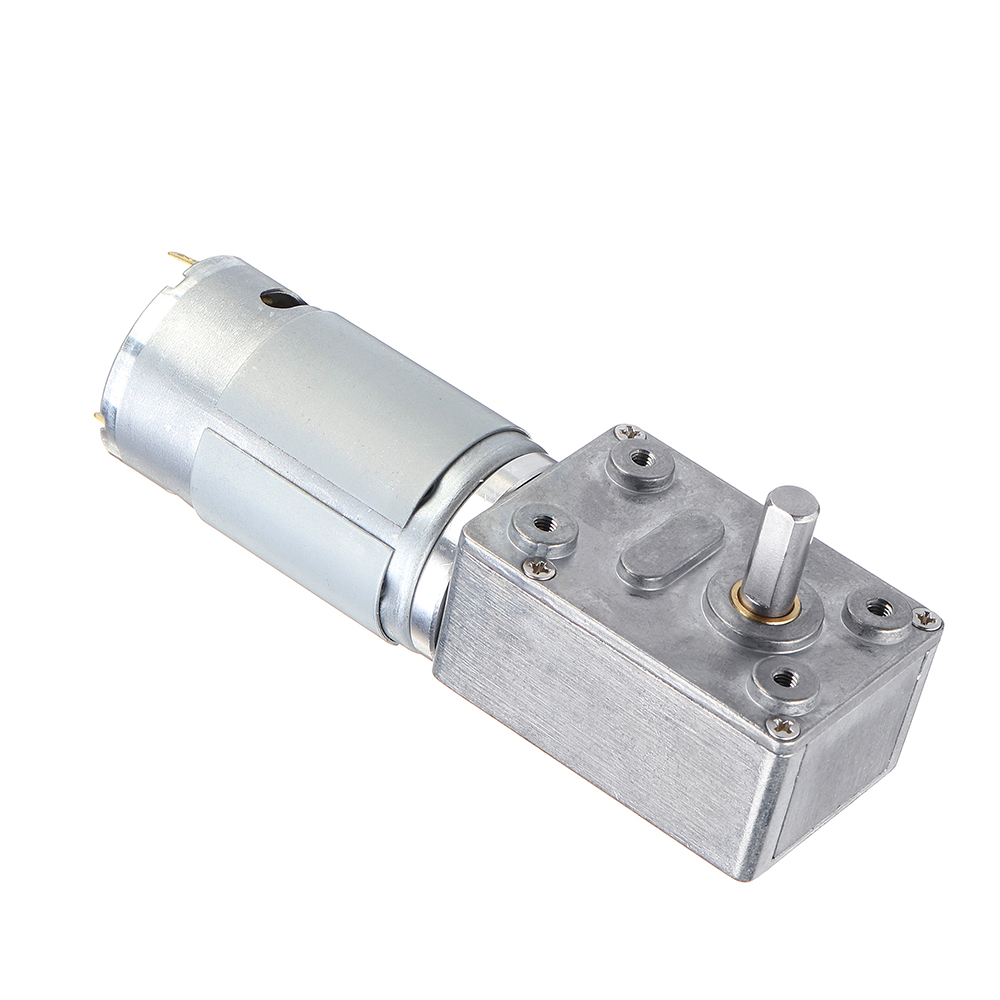

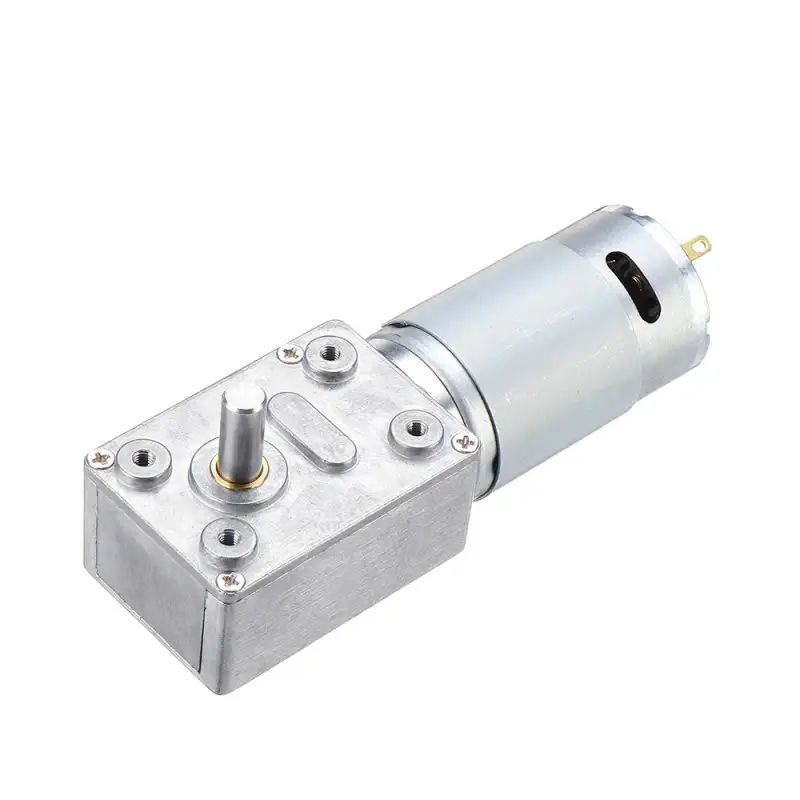

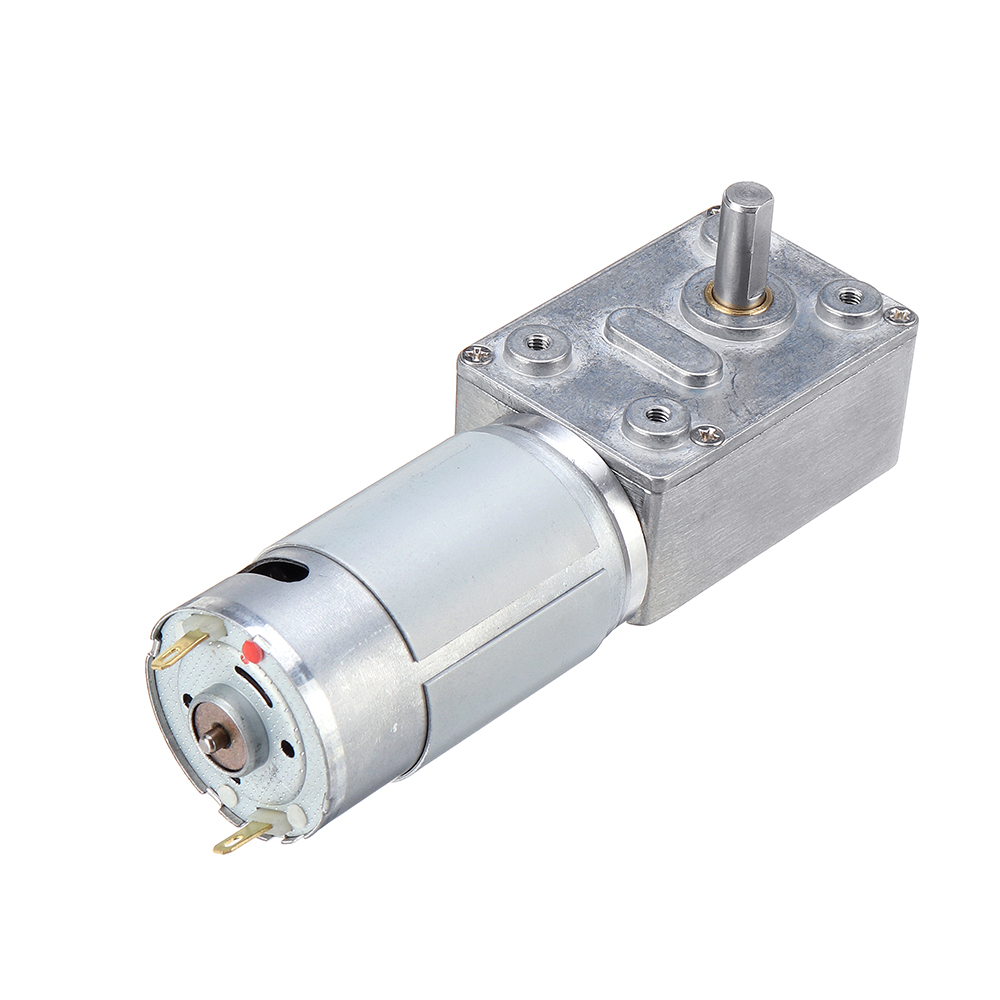

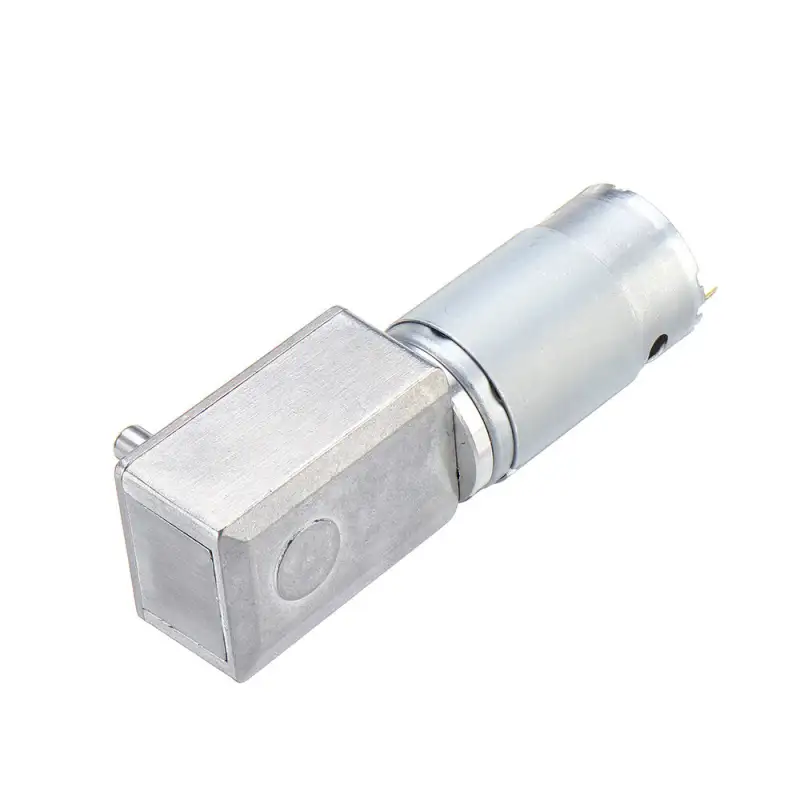

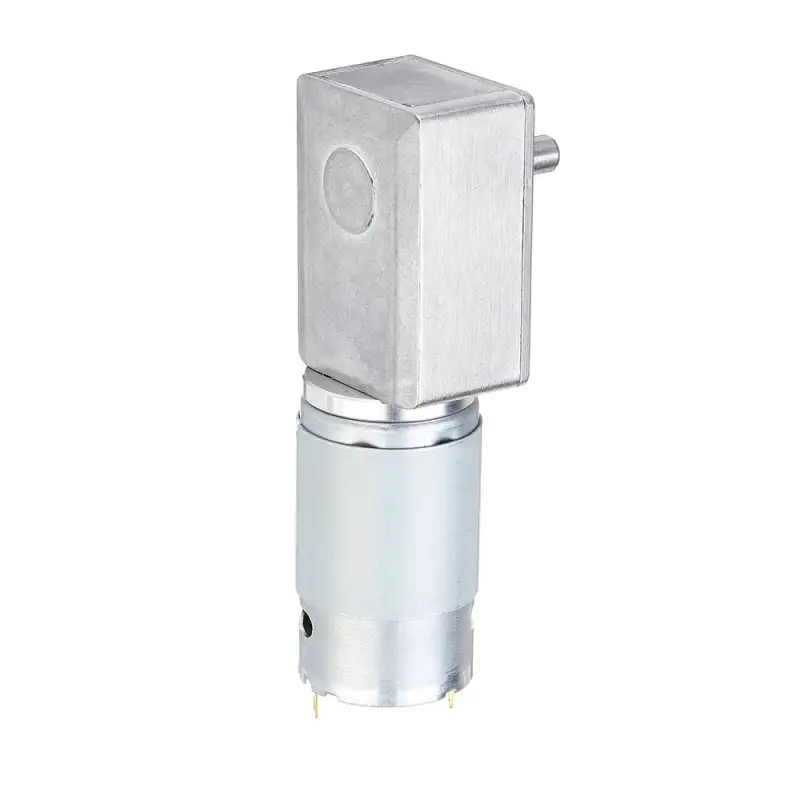

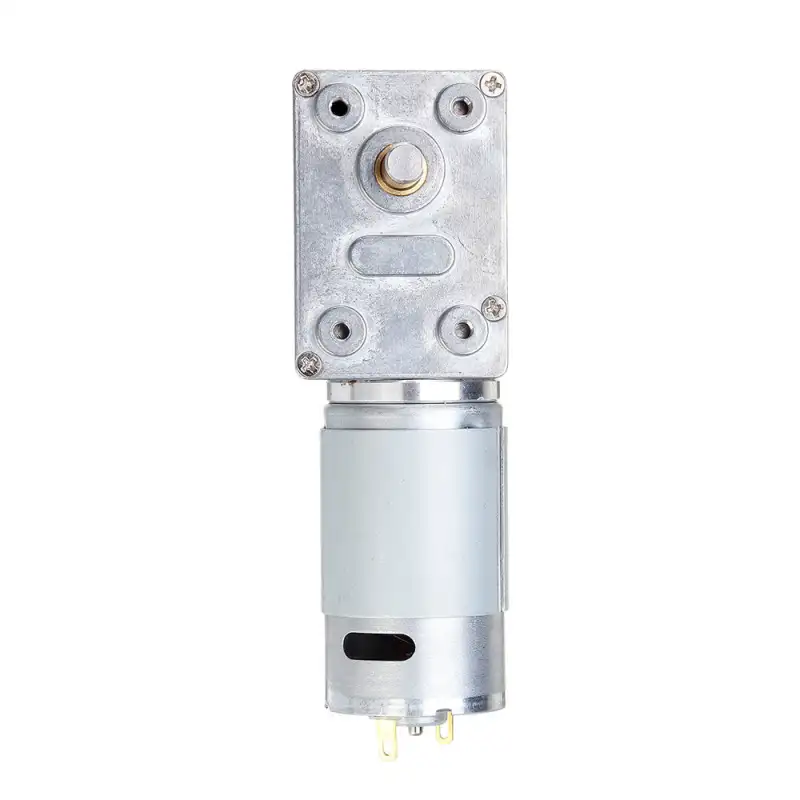

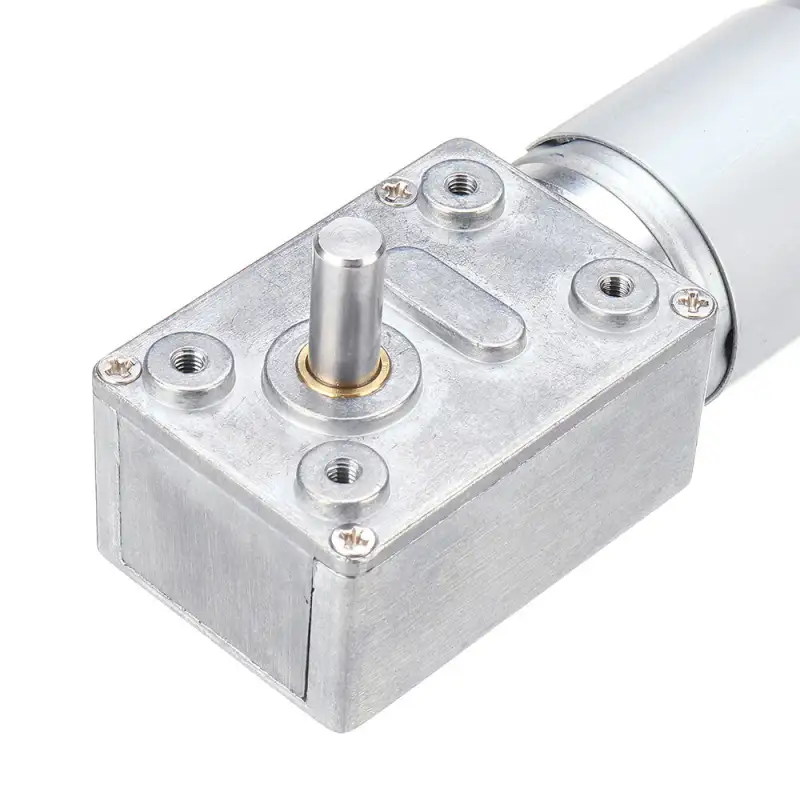

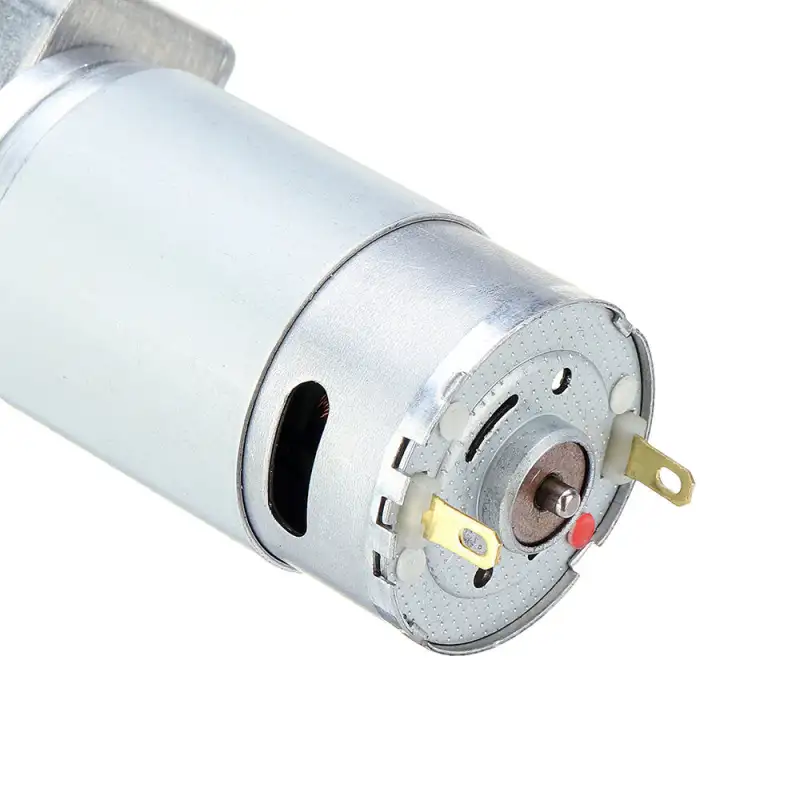

JGY395 DC 12V 5/20/40/70/100rpm High Torque Turbo Worm Geared Motor Gear Reducer Motor

Reference:

Condition: New product

100 Item Items Warning: Last items in stock!

$15.69

Rotate Speed

Quantity

More info

Description:

JGY395 DC 12V 5/20/40/70/100rpm High Torque Turbo Worm Geared Motor Gear Reducer Motor

Specifications:

Product Name	Gear Reducer Motor
Model	JGY395
Rated Voltage	DC12V
Rated Power	8W
Speed	5rpm, 20rpm, 40rpm, 70rpm, 100rpm
Temperature Range	-10℃ to 50℃
Humidity Range	30% ~ 80%
Storage Temperature	-20℃ to 60℃
Quantity	1 Pc × Geared Motor

Voltage	Gear Ratio	No Load		Load Torque			Stall
Voltage	Gear Ratio	Speed	Current	Speed	Current	Torque	Current	Torqued
12V	1:1100	5rpm	≤90MA	4rpm	≤300MA	2320g.cm	≤2.1A	40.45kg.cm
	1:380	20rpm	≤60MA	19rpm	≤170MA	1150g.cm		29.4kg.cm
	1:147	40rpm	≤60MA	38rpm	≤170MA	980g.cm		28.8kg.cm
	1:85	70rpm	≤60MA	65rpm	≤170MA	550g.cm		27.8kg.cm
	1:60	100rpm	≤60MA	91rpm	≤170MA	82g.cm		21.5kg.cm

Features:

- The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation.

- Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.

- The reducer output shaft arranged vertically with the motor shaft, whole motor output shaft relatively-short than general gear motor, widely used to be installed the dimensions requirements strictly occasion.

Package Included.

Note:

- When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor.

- The axis of rotation of the motor's life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items.

- Manufactured heavy eccentric load of radiation, harmful life of the motor.

- Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect.

- Do not run the motor in the surrounding temperature and moisture.

Package Included:

1 Pc ×

Geared Motor
