JGB37-520 DC 12V Gear Motor 107RPM Geared Reducer Motor 6MM 50D Long Shaft Motor

Reference: BG0052-9893831

Condition: New product

100 Item Items Warning: Last items in stock!

$11.48

Quantity

More info

Descriptions:
JGB37-520 DC 12V Micro Gear Reduction Motor 50mm Extended Shaft Gear Motor

Specifications:

Voltage: DC 12V

Size(approach):
Output Shaft Dia.: 5.5mm

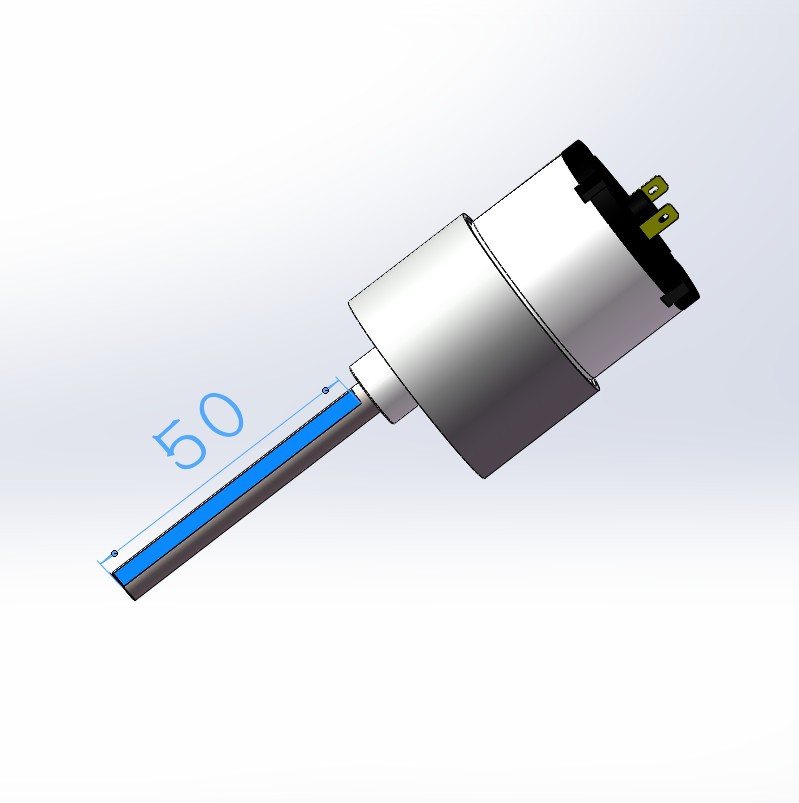

Output Shaft Length: 50mm
Motor: 33*23mm (without output shaft)

Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

Parameter:

Voltage

RATIO

No-load

Rated-load

Stall

Current
(A)

Speed(rpm)
±10%rpm

Torque
(kg.cm)

Speed(rpm)
±10%rpm

Current
(A)

Torque
(kg.cm)

Current
(A)

L Size

DC 12.0V

1:56.25

0.06

107

0.24

5.6

1.2

Features:
- All the gear of metal mechanism

Wear resistance, strong resistance to torsion, smooth transmission, compact structure.

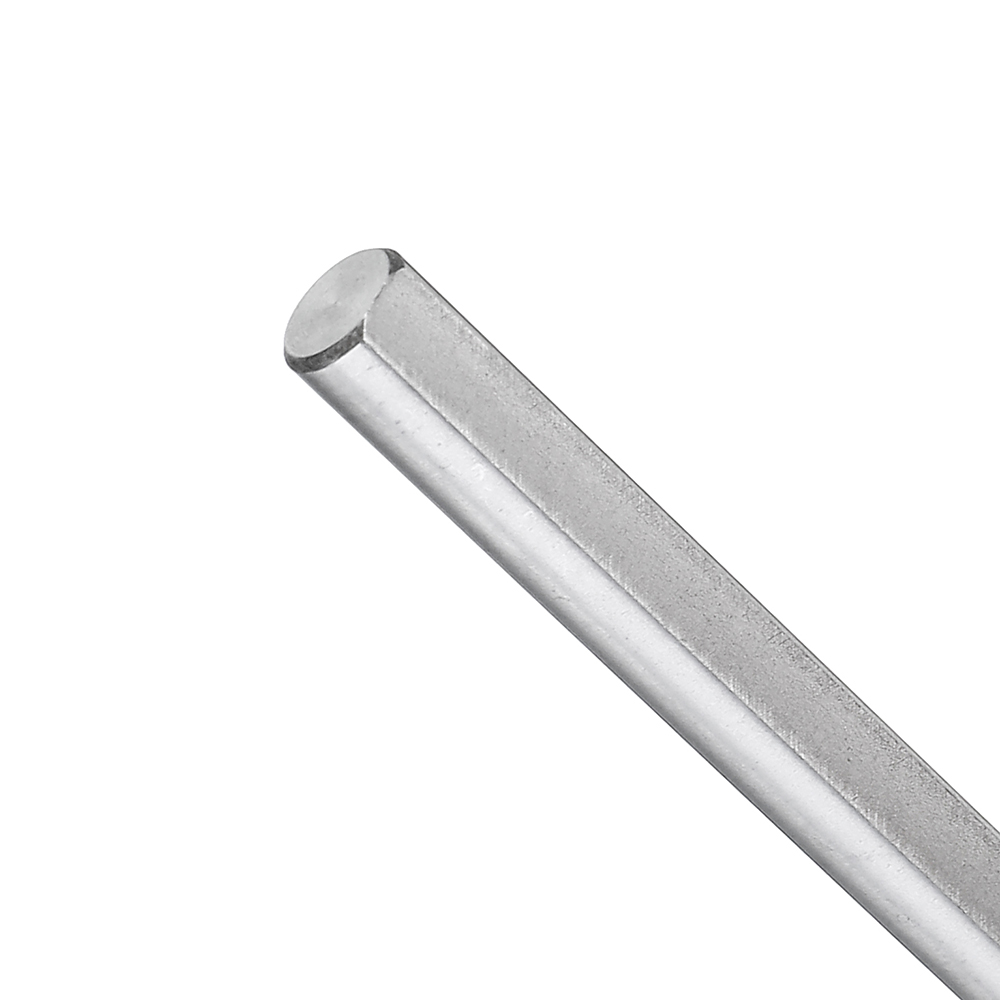

- D-shaped double axis

D-shaped double shaft, excellent thermal conductivity.

- The terminal with red dot or "+" is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor.

- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1pc x 12V Extended Shaft Motor
