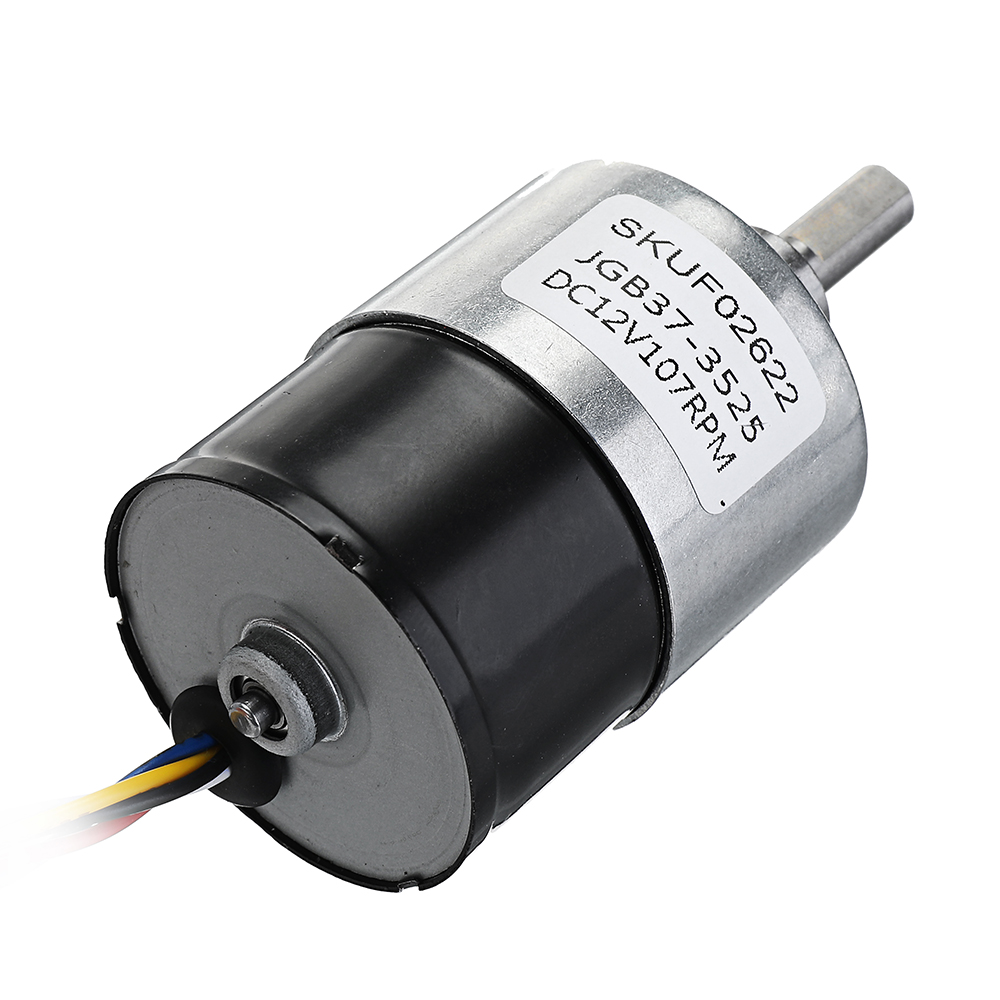

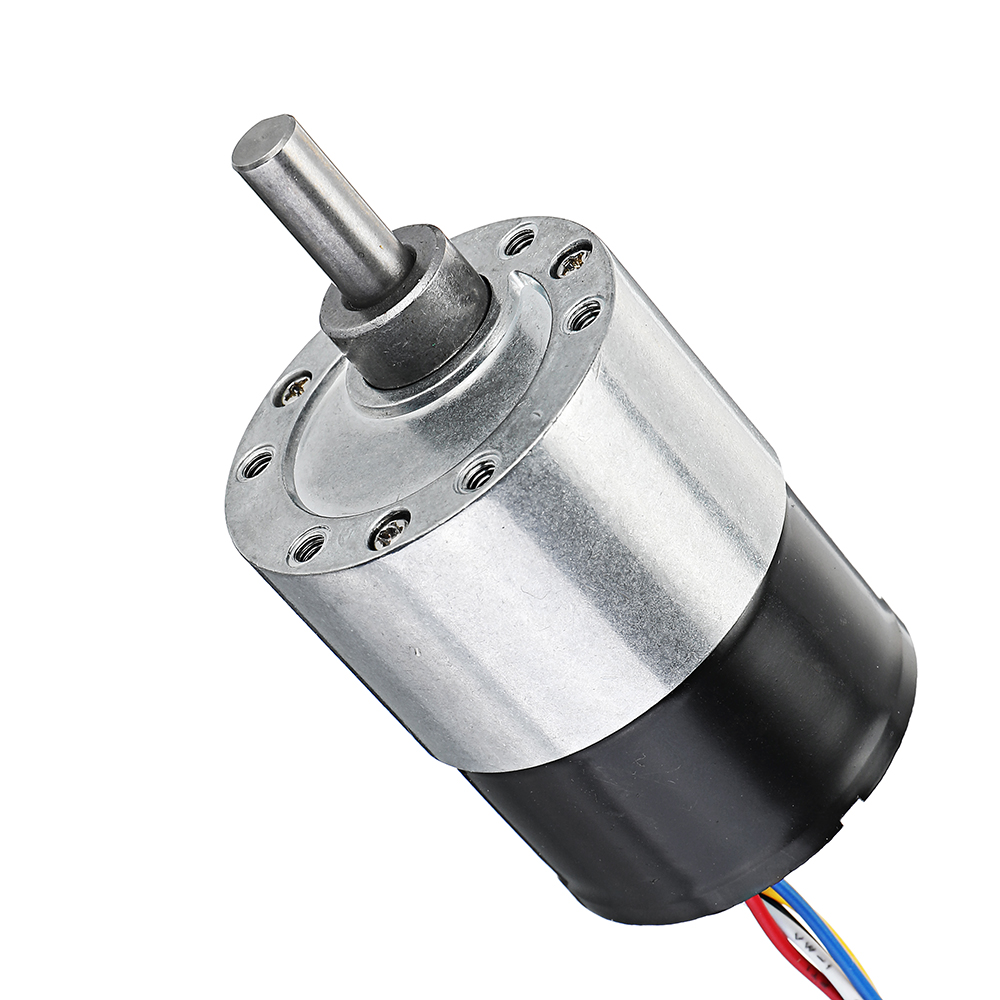

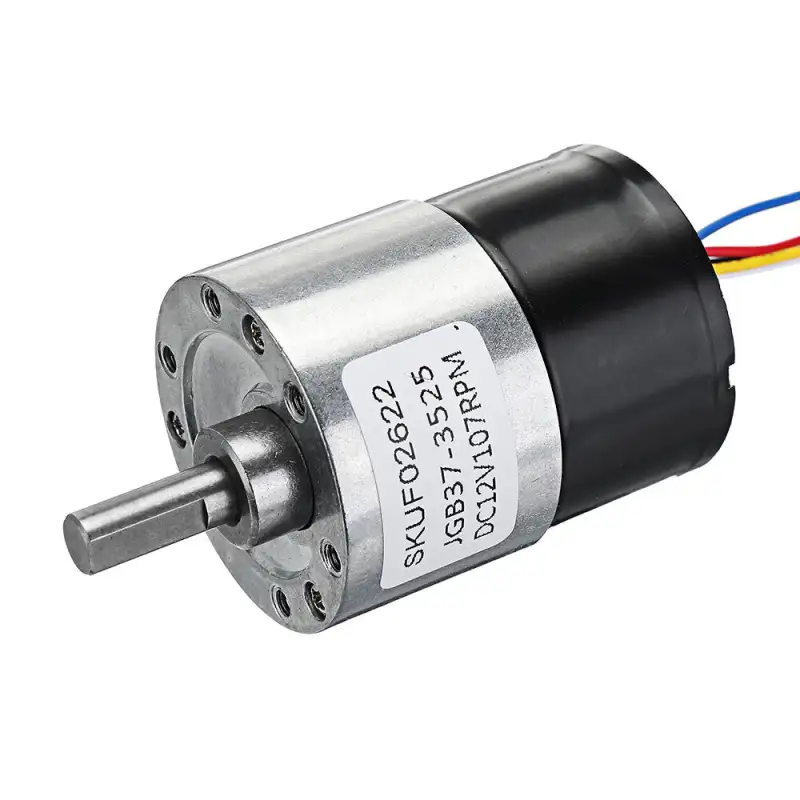

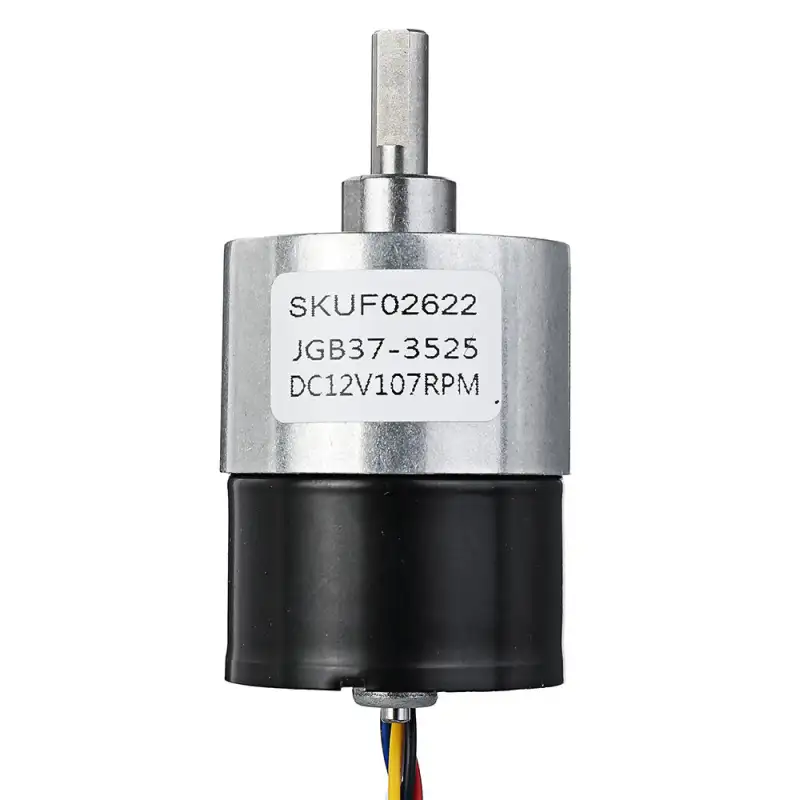

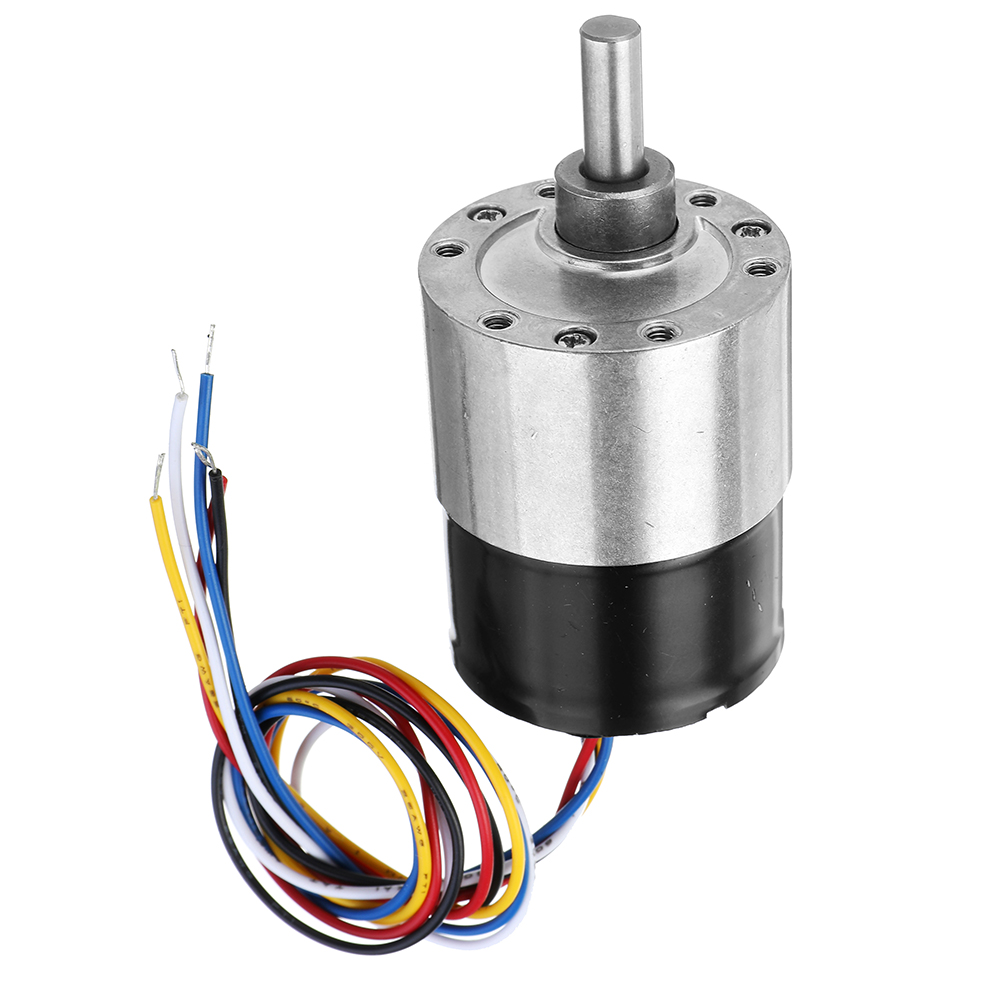

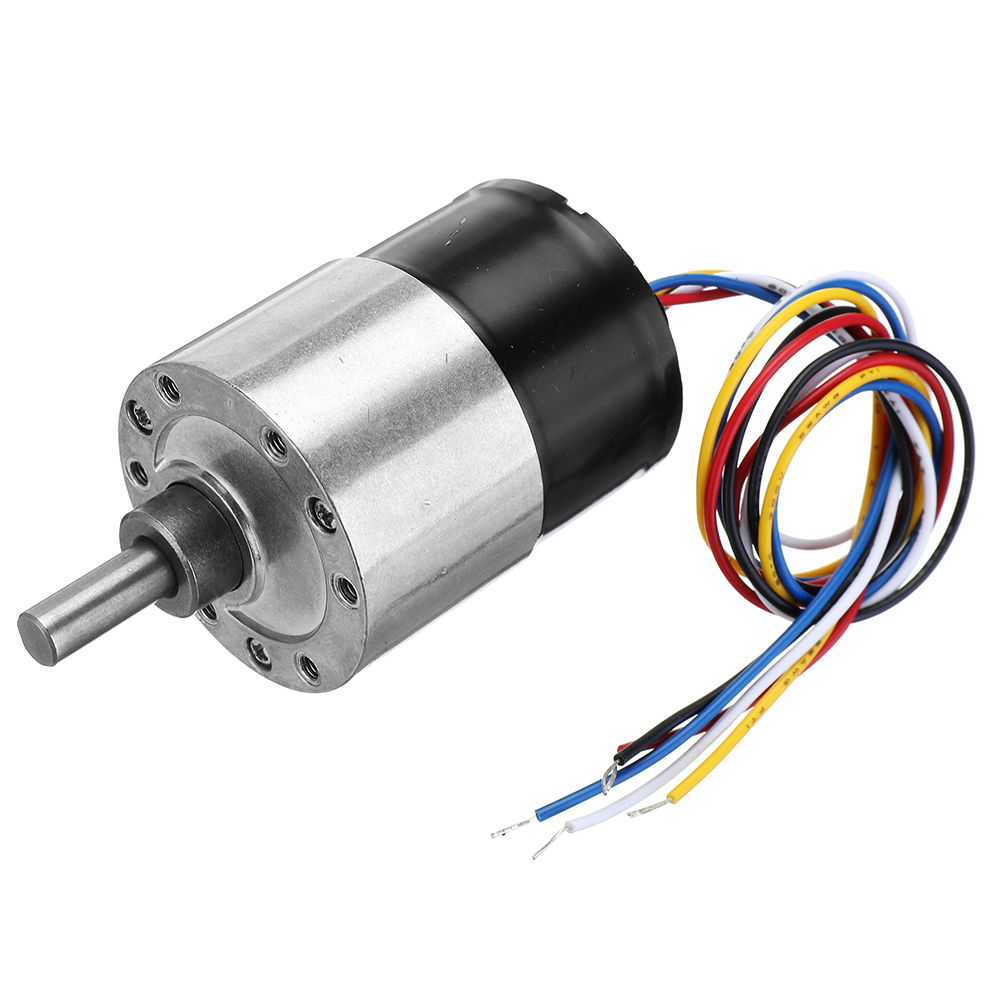

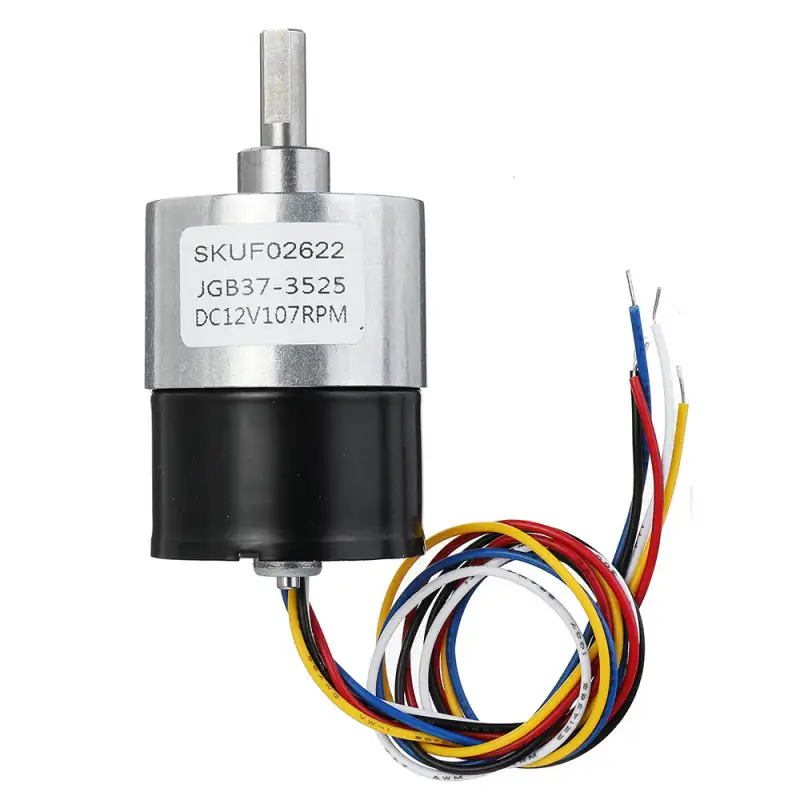

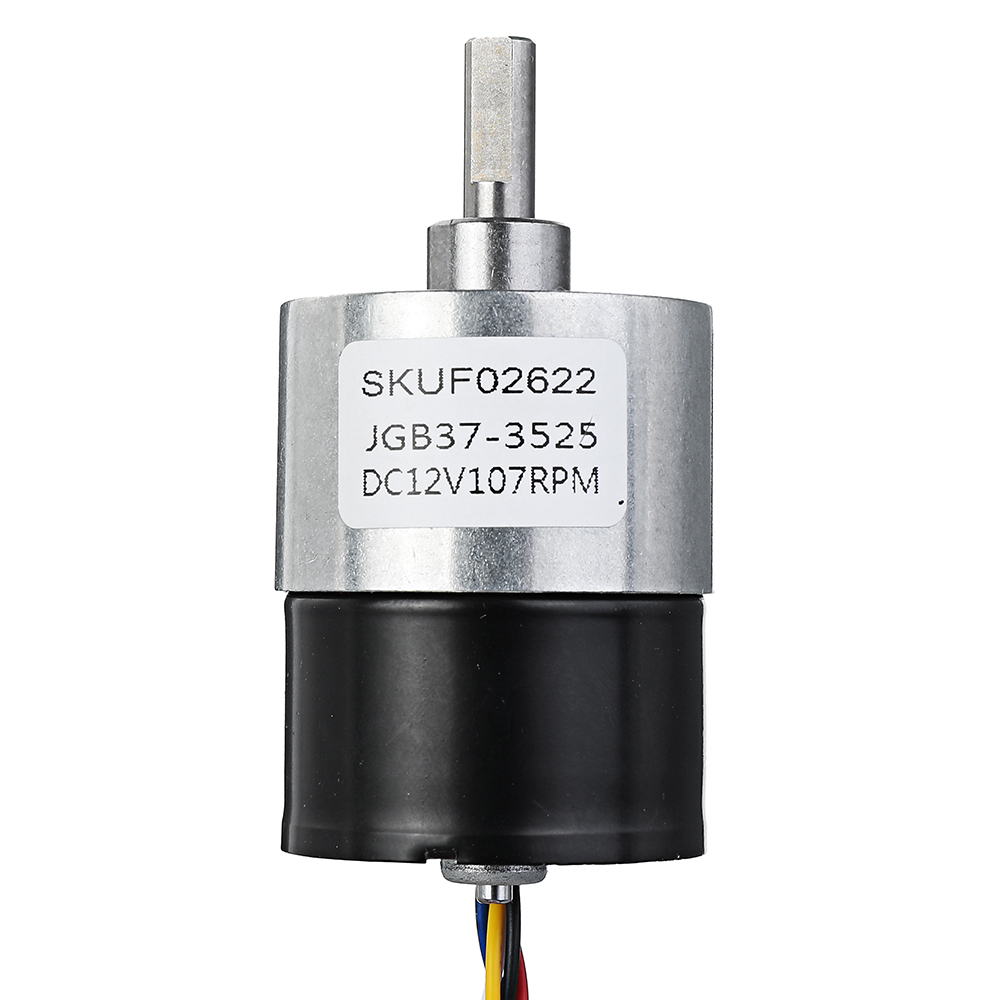

JGB37-3525 DC 12V Brushless Motor 107rpm Gear Reduction Motor 37MM Geared Motor

Reference: BG0052-9501105

Condition: New product

100 Item Items Warning: Last items in stock!

$23.91

Quantity

More info

Descriptions:

DC 12V Gear Motor 107RPM Brushless Gear Reduction Motor

Specifications:

Type: Reduction Motor

Material: Metal

Voltage: DC 12V

Reduction Ratio	1:56
No-load Current (MA)	≤70
No-load Speed (rpm)	107
Rated Torque (Kg.cm)	6.8
Rated Speed (rpm)	76
Rated Current (A)	0.8
Maximum Torque (Kg.cm)	12.5
Stop Current (A)

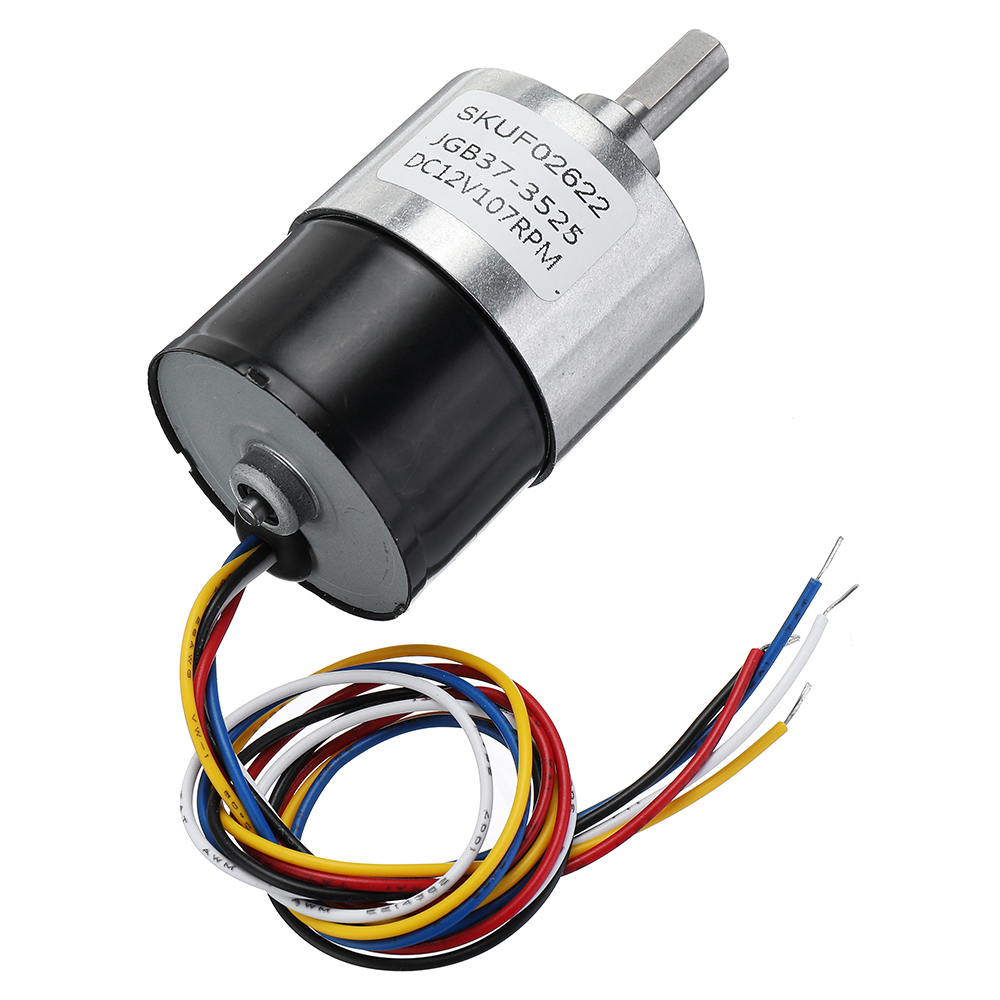

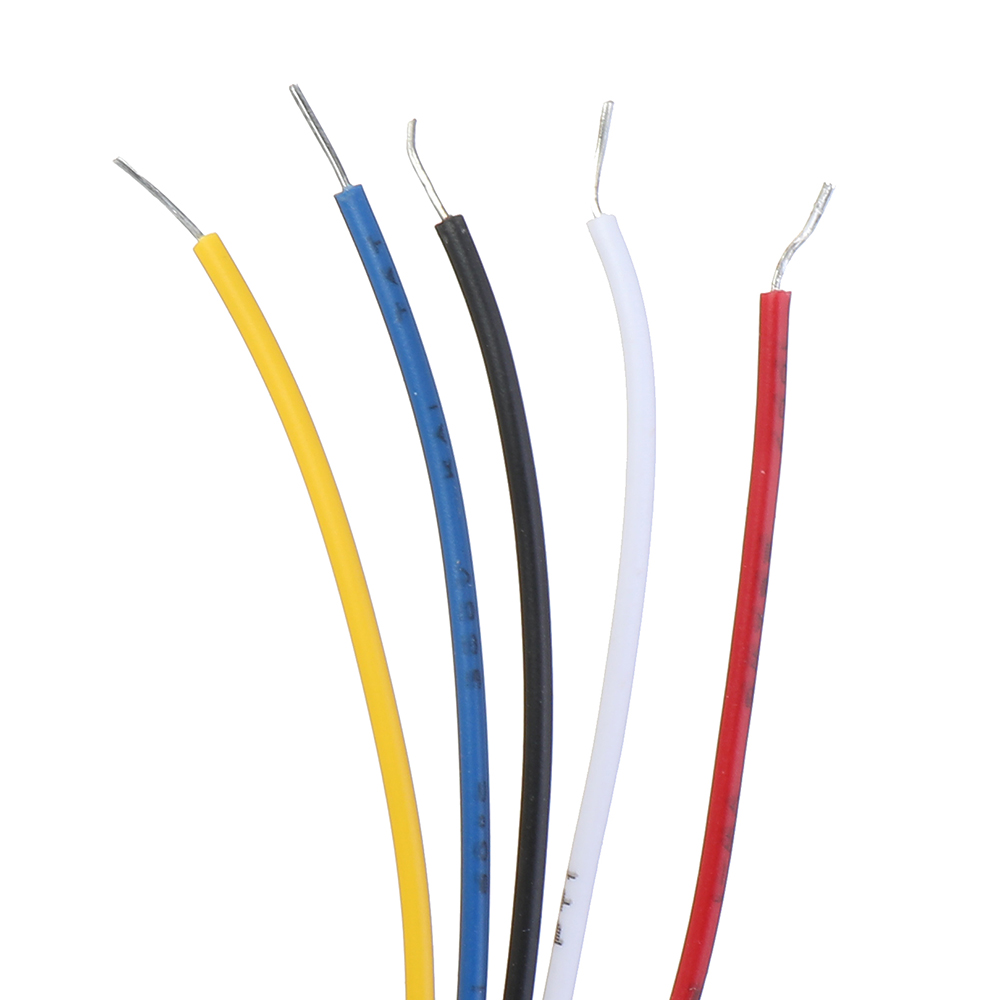

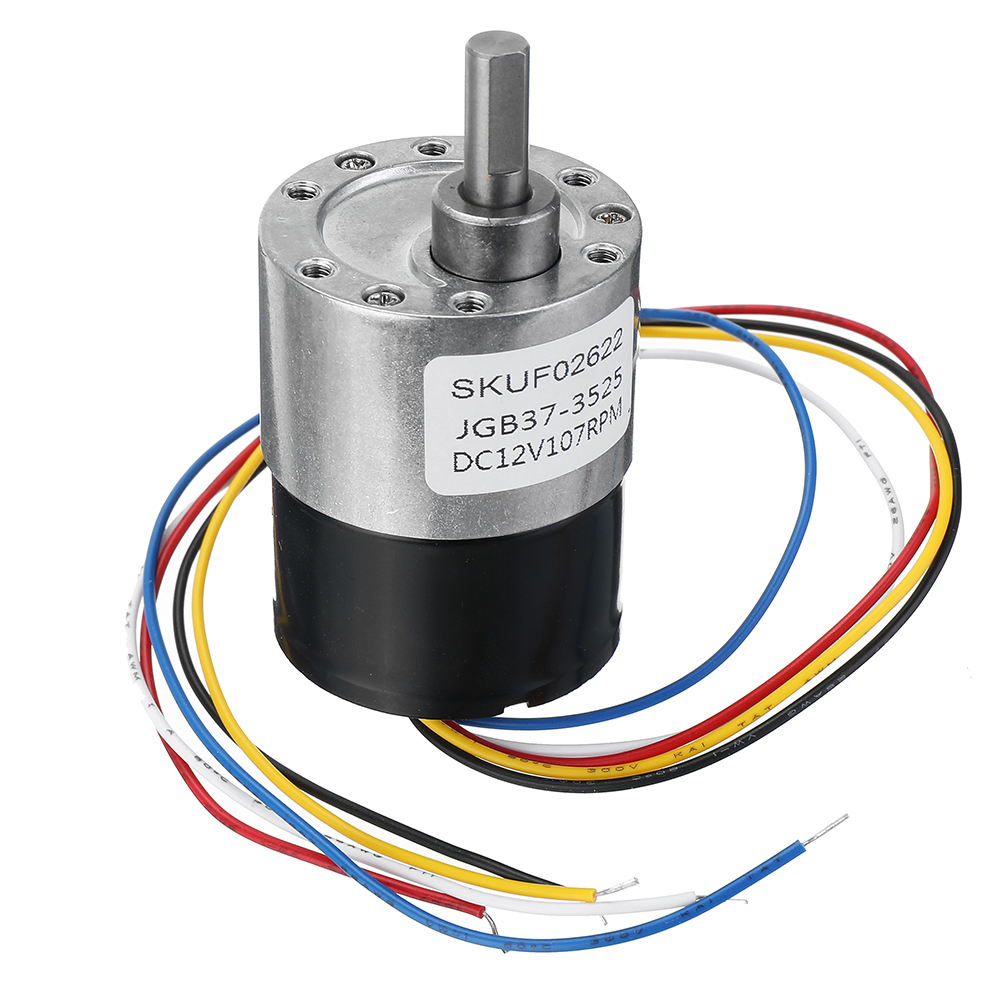

3525 Five-wire Control Wiring Mode:

- Black wire: connect to power negative -

- Red line: connected to motor positive pole +

- White line: CW/CCW reversing line. Connect the white line to the black line to change the direction

- Yellow line: FG signal line outputs Hall signal, one signal per turn of base pulse

- Blue line: PWM pulse width speed control line can be connected to 0-5V pulse width governor

(Connect the blue line to the negative motor and brake immediately)

Features:

- Small volume, torsion big, all metal gear, durable, not easy to wear.

- Application for Boat,Car,Electric Bicycle,Fan,Home Appliance.

Package Included:

1 Pc x DC Gear Motor

More Details:

JGB37-3525-DC-12V-Brushless-Motor-107rpm-Gear-Reduction-Motor-37MM-Geared-Motor-1676114
