HANPOSE TB6600 Stepper Motor Driver and 17HS4401-S 40mm Nema 17 Stepper Motor for CNC Engraving Machine

Reference: BG0052-9763878

Condition: New product

100 Items

$27.72

More info

Description:

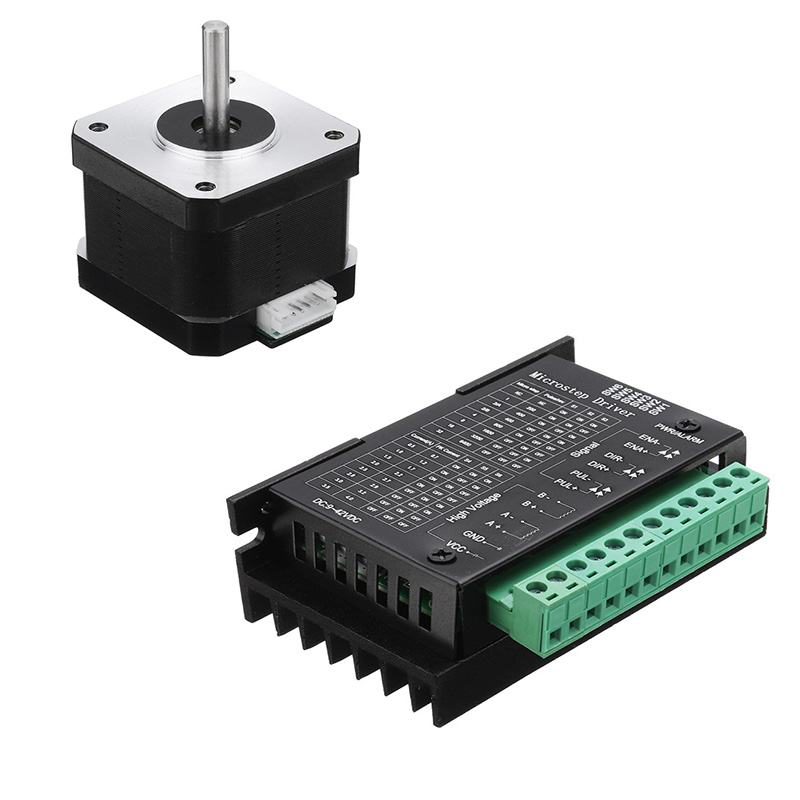

HANPOSE TB6600 Stepper Motor Driver and 17HS4401-S 40mm Nema 17 Stepper Motor for CNC Engraving Machine

Specification:

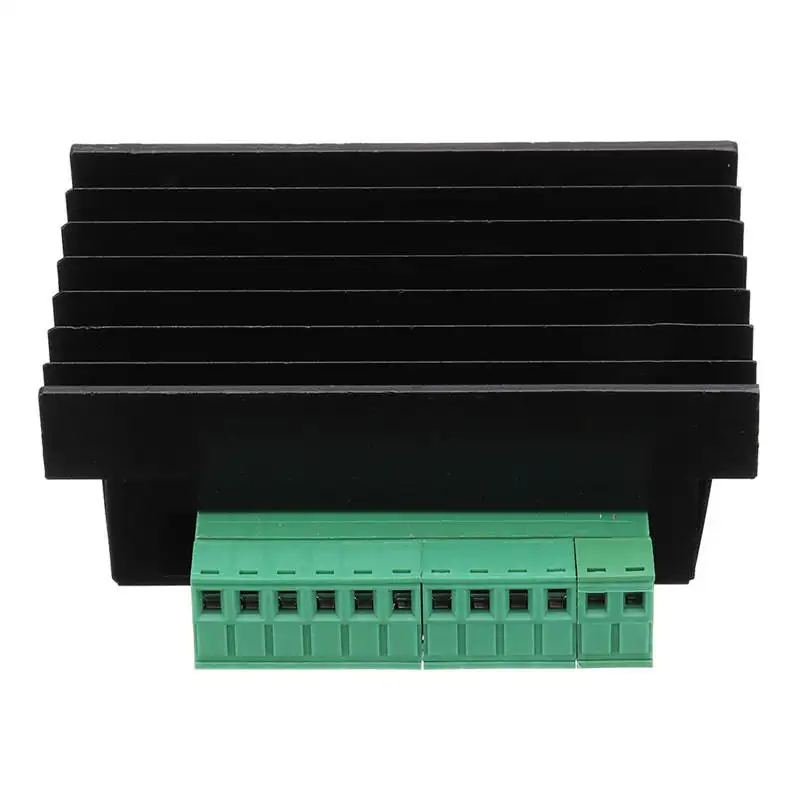

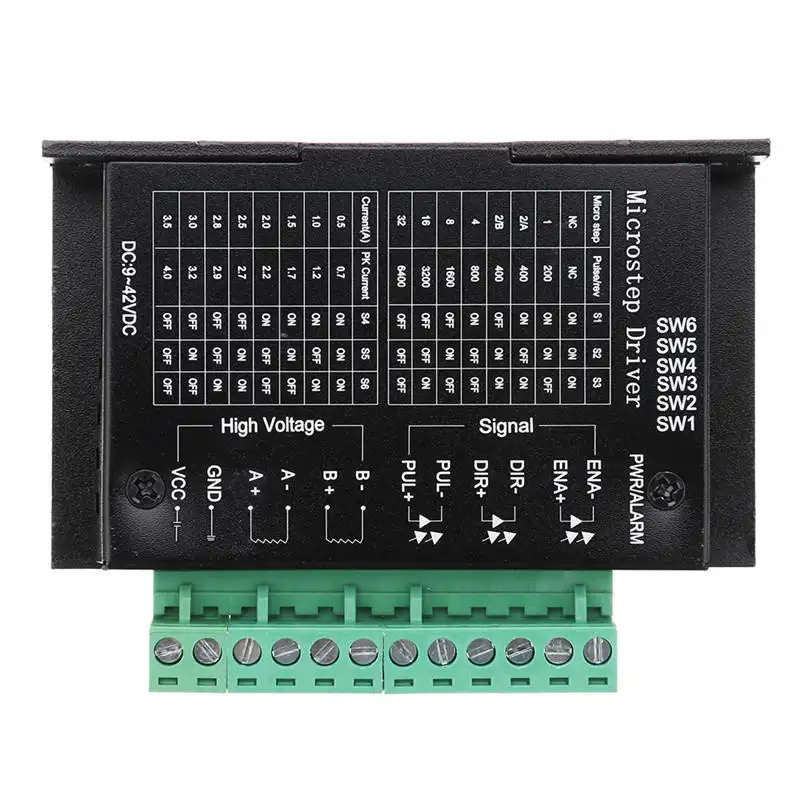

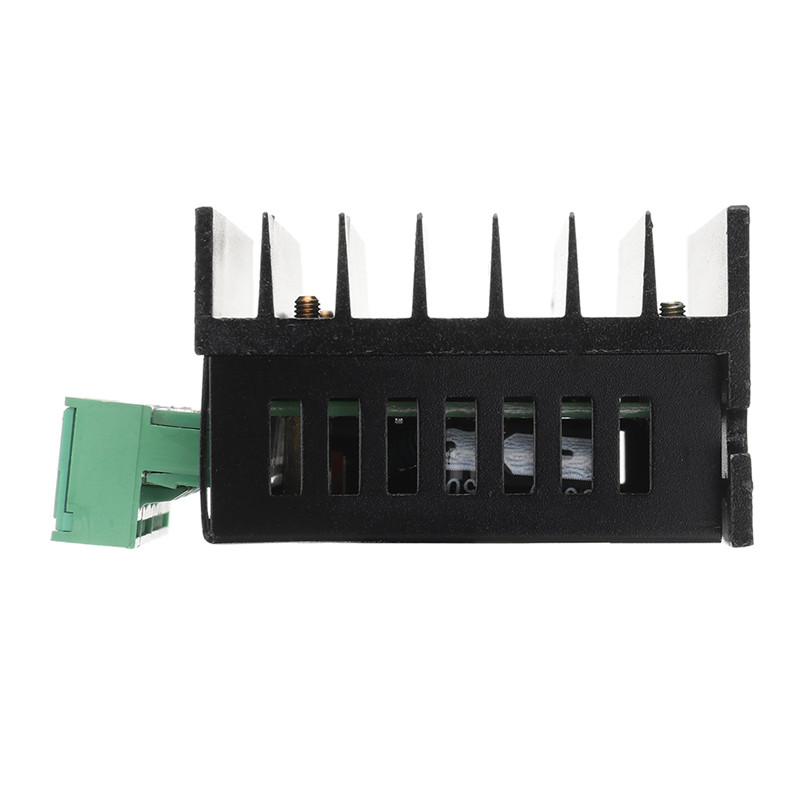

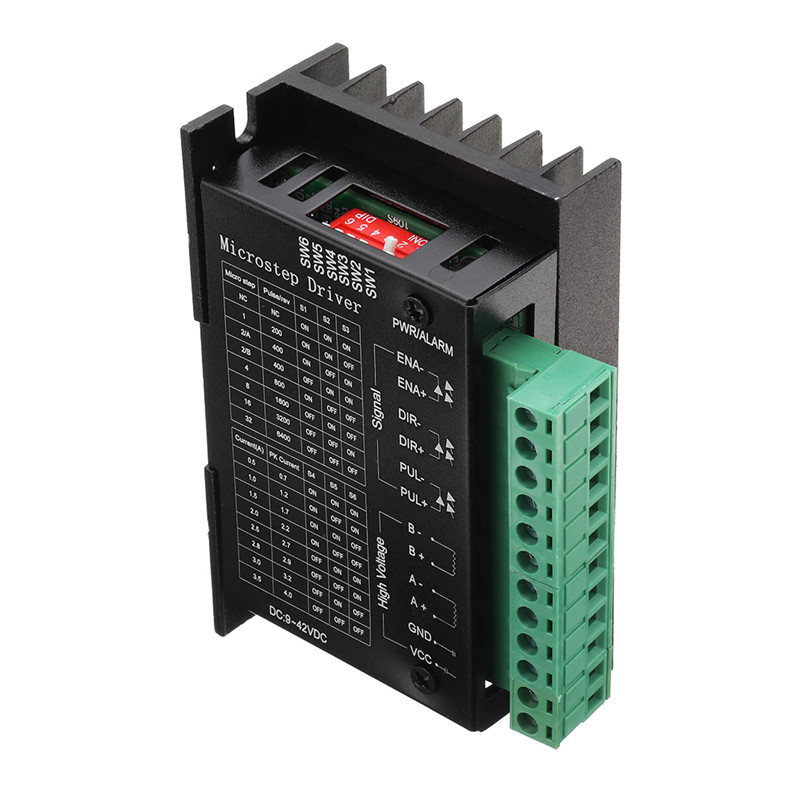

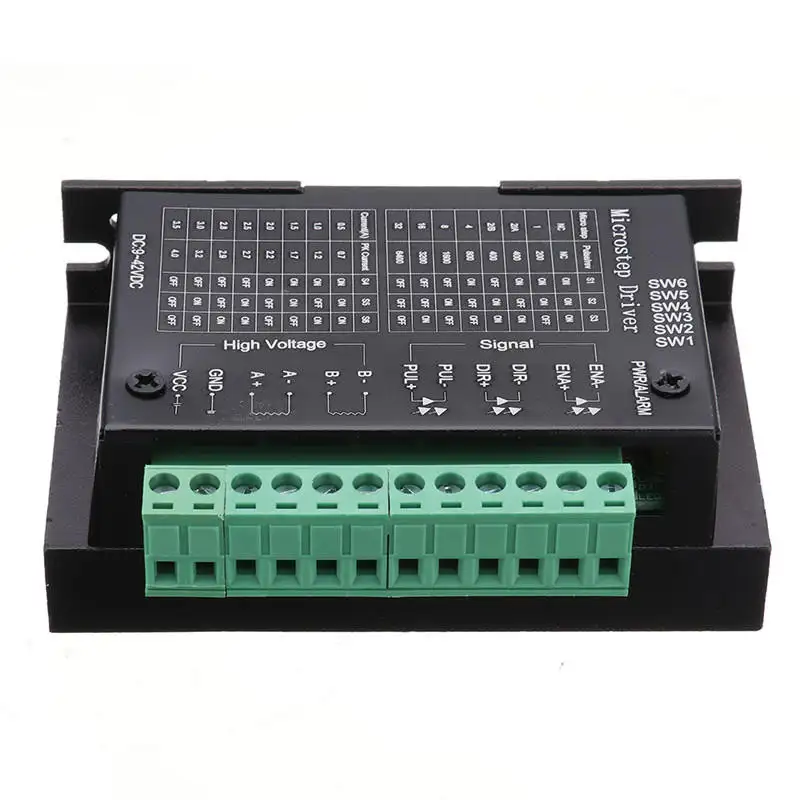

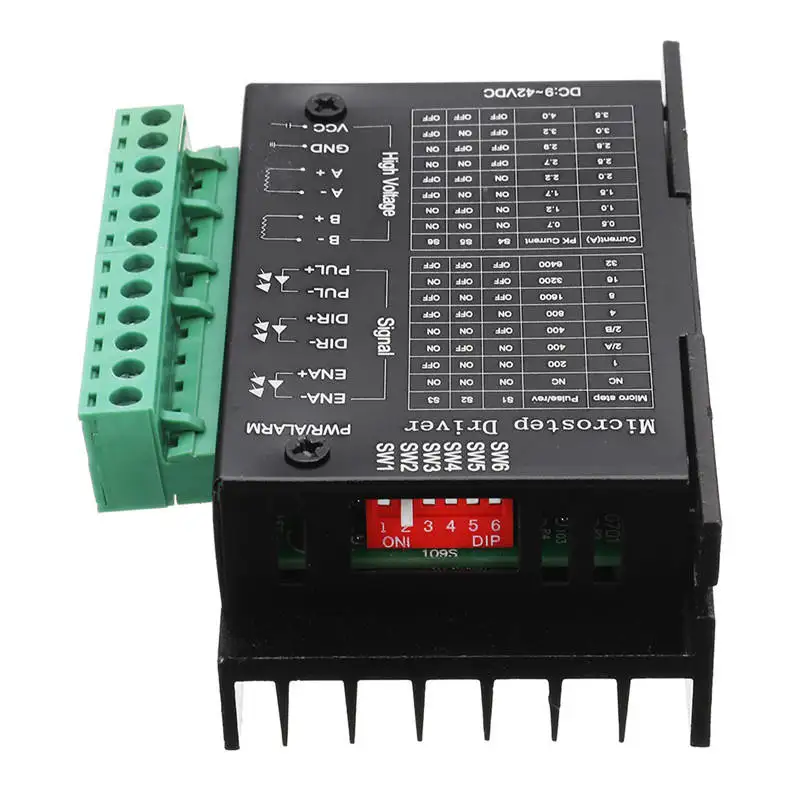

TB6600 Stepper Motor Driver
Brand: HANPOSE
Model: TB6600
Size: 96X56X35mm
Appl to motor : Nema 17/23/34(42/57/86 Stepper Motor)
Control signal: 3.3V-24V
Subdivision accuracy: 1-32
Output current: 4A
Voltage: DC9-24V

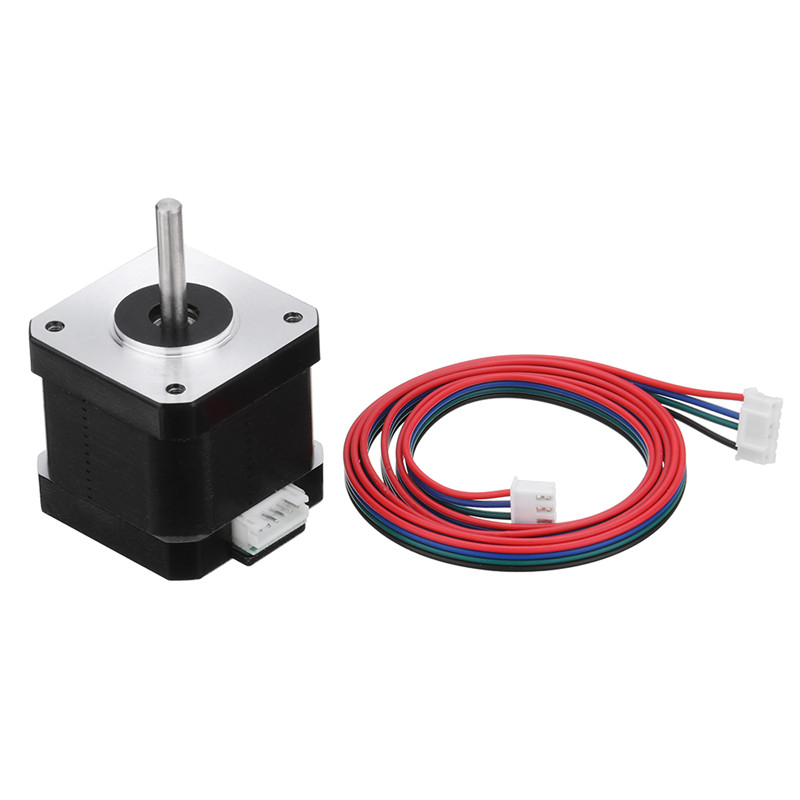

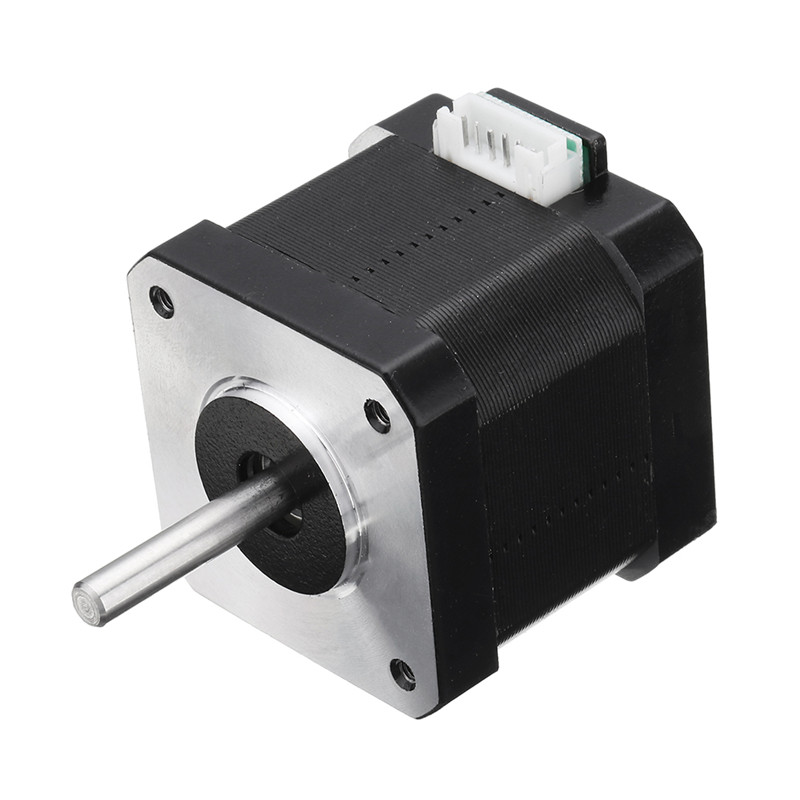

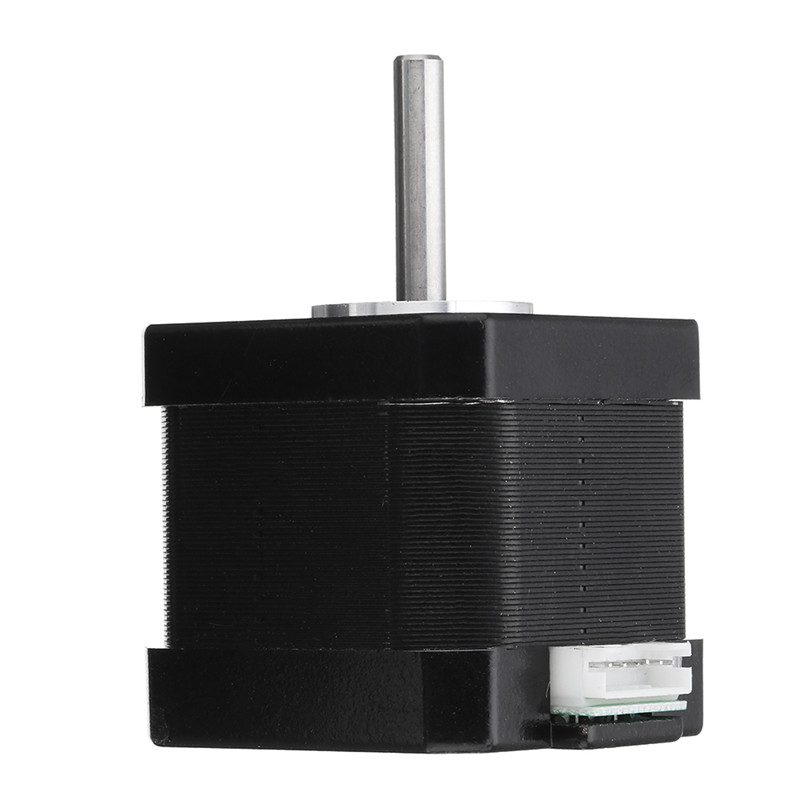

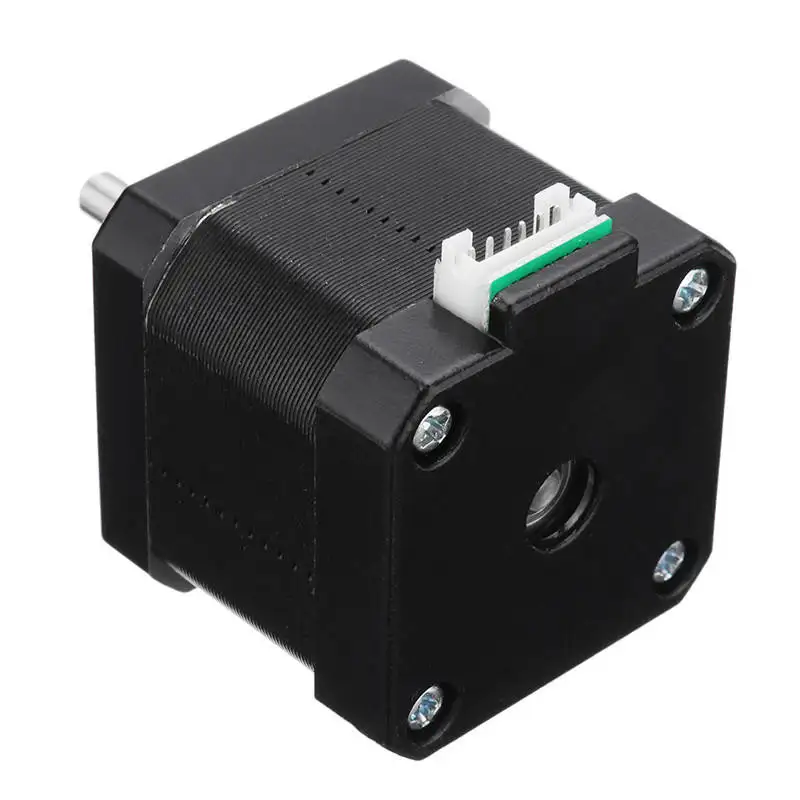

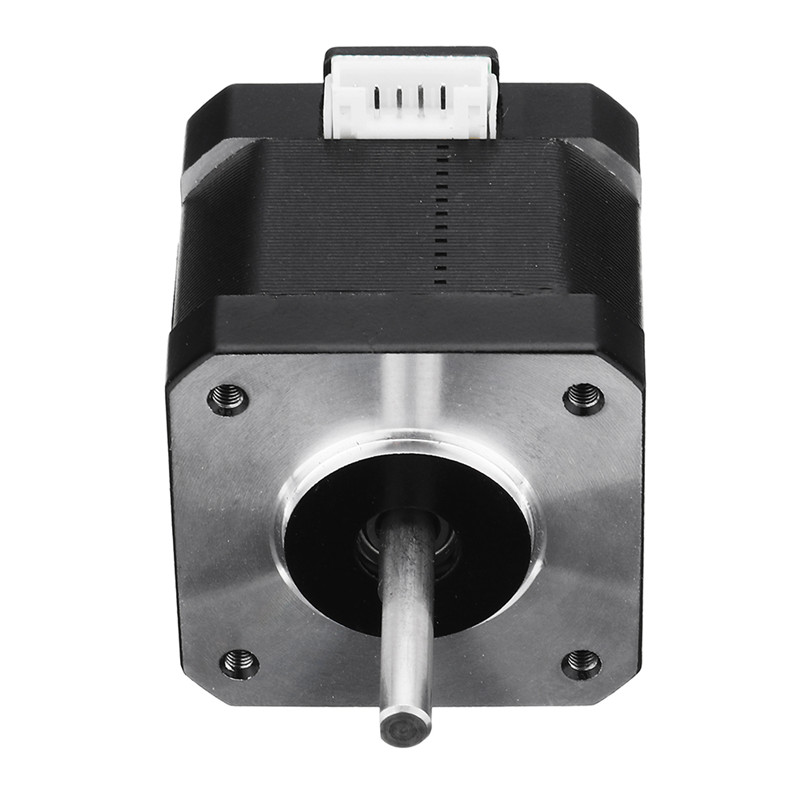

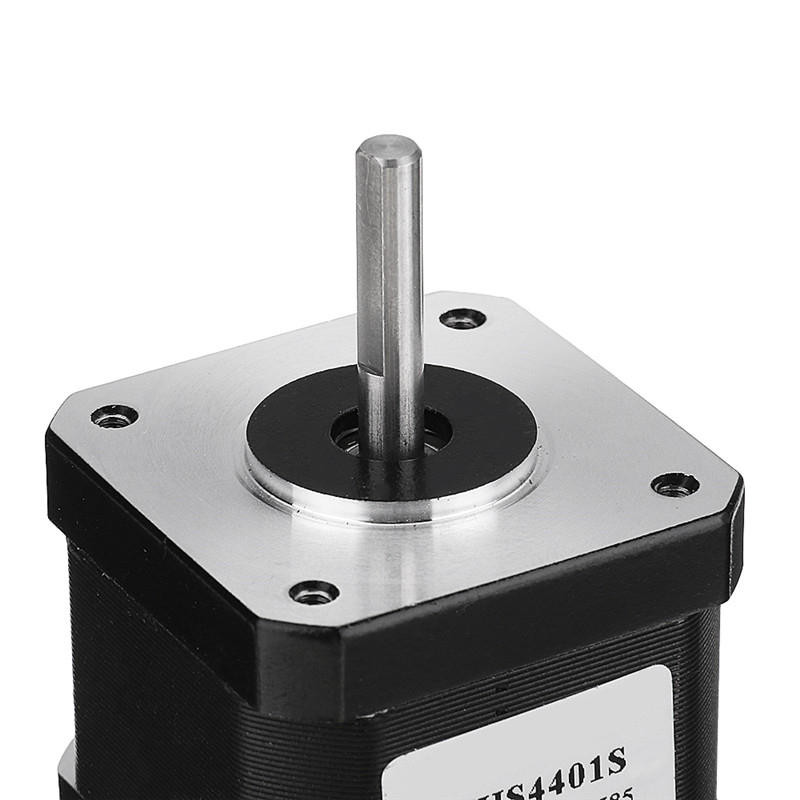

17HS4401-S Stepper Motor
Model 17HS4401-S
Type Hy-brid
Phase 2
Step Angle 1.8°
Motor Size 42 x 40mm

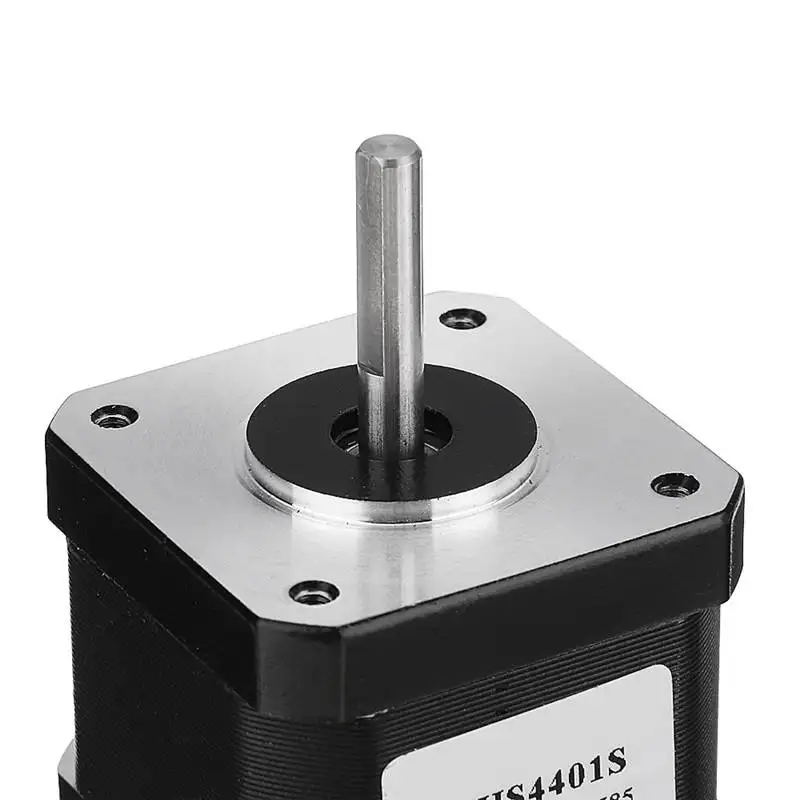

Shaft "D" shaft 22 x Ф5mm

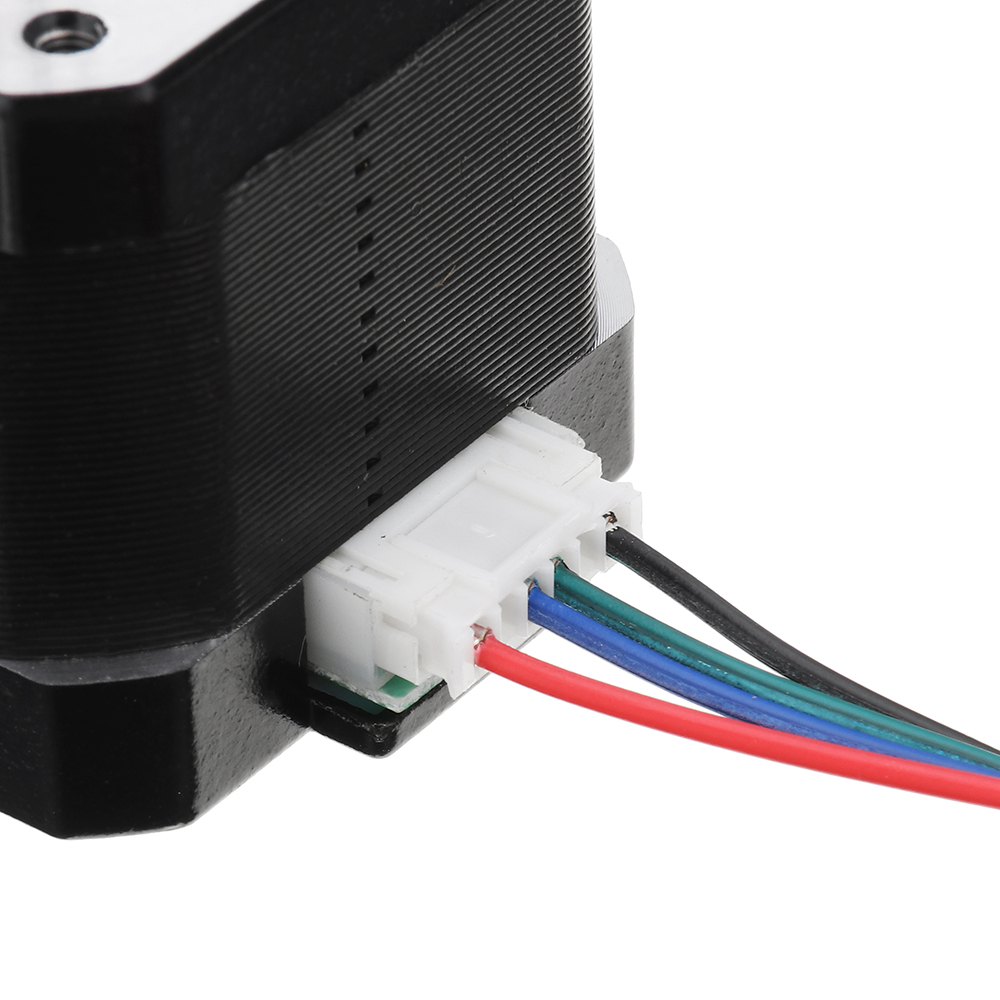

Outlet way "4" plug line

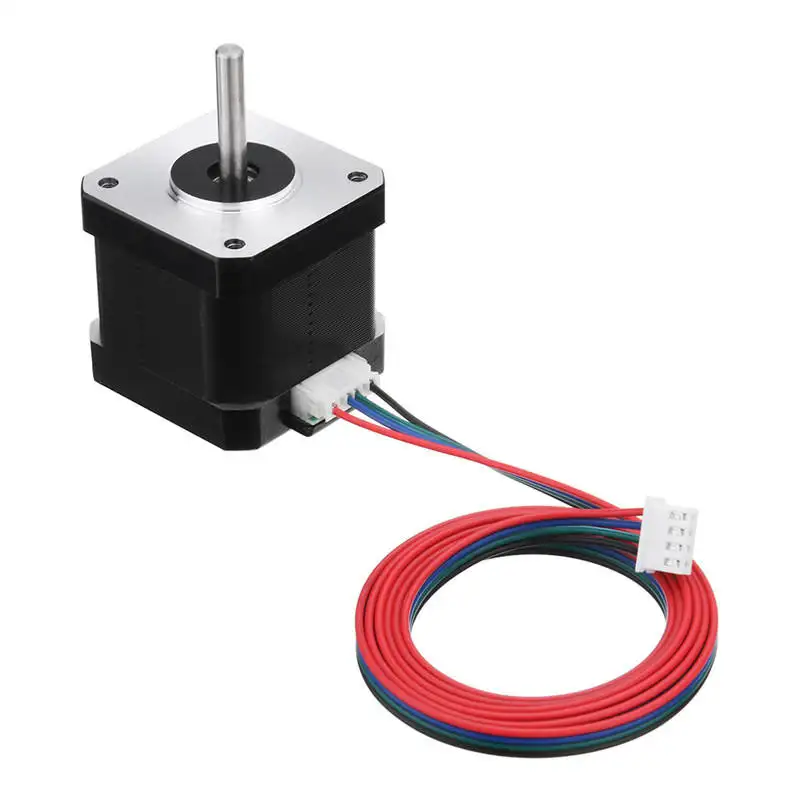

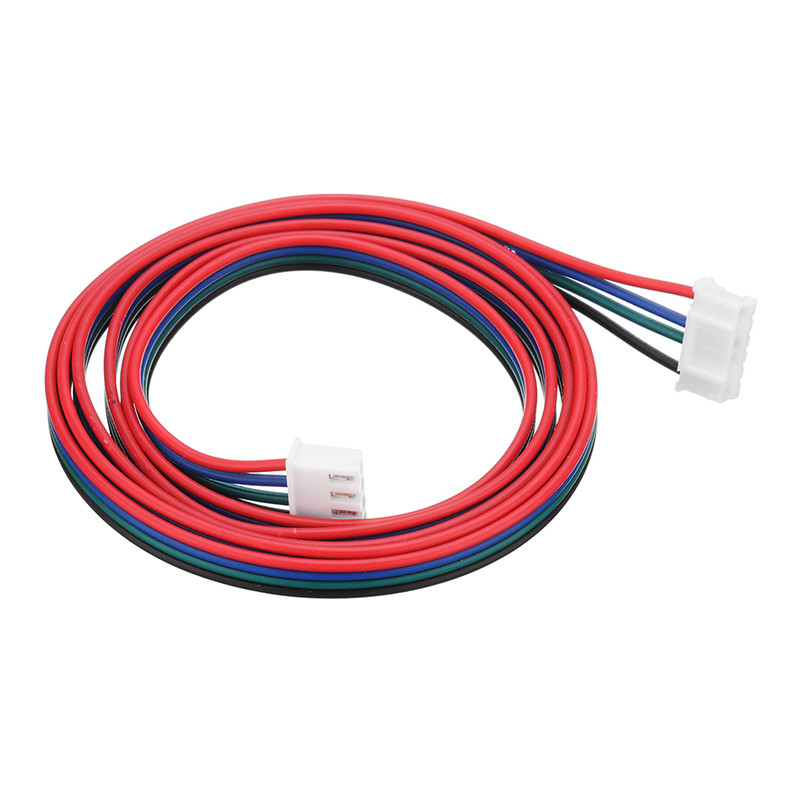

Motor leads Dupont line(1M)
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current		 Resistance
/Phase		 Inductance
/Phase		 Holding Torque Detent
Torque		 Inertia Of
Rotor		   Lead
( °) (L)mm (A) (Ω) (mH) (N.cm)  (N.cm)  (G. cm²) (No.)
17HS4401-S 1.8 40 1.7 1.5 2.8 40 2.2 54 4

General Specification:
Precisions angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precisions inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. DC 9-42v power supply, DC12-24V power supply best.
2. Controller input signal voltage 3.3-24V General.

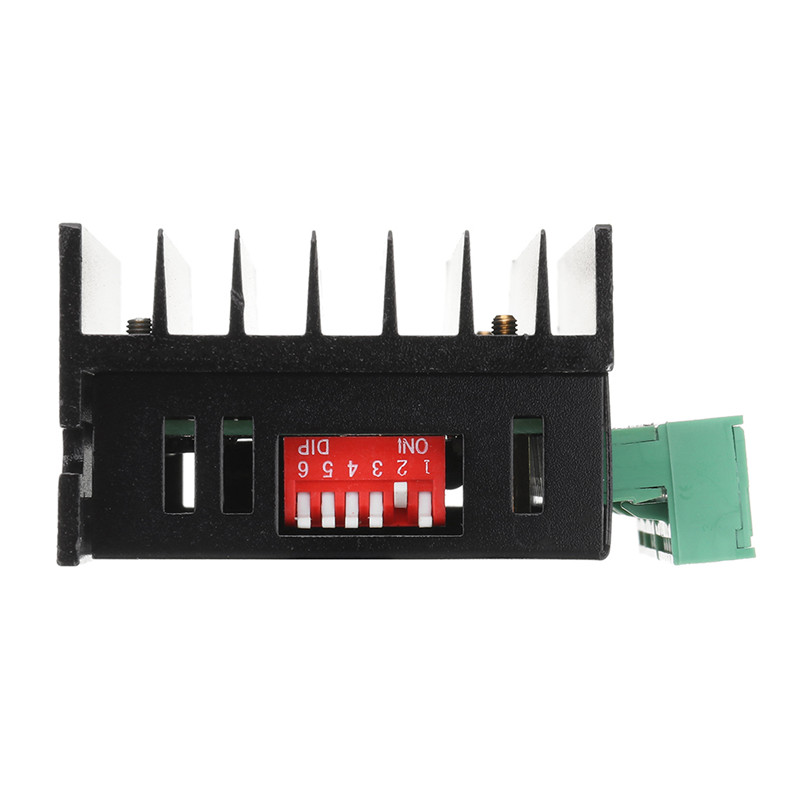

3. Subdivision precision 1-32 subdivision optional.
4. Output current 4.0A.
5. H bipolar constant current drive bridge.
6. High speed optocoupler isolation input signal.
7. Built in temperature protection and over-current protection.
8. Automatic half of the flows reduce fever.
9. Motor noise optimization function.
10. Small volume, space saving.
11. Good acceleration performance.

Package Included:
1 X TB6600 Stepper Motor Driver
1 X 17HS4401-S Stepper Motor
